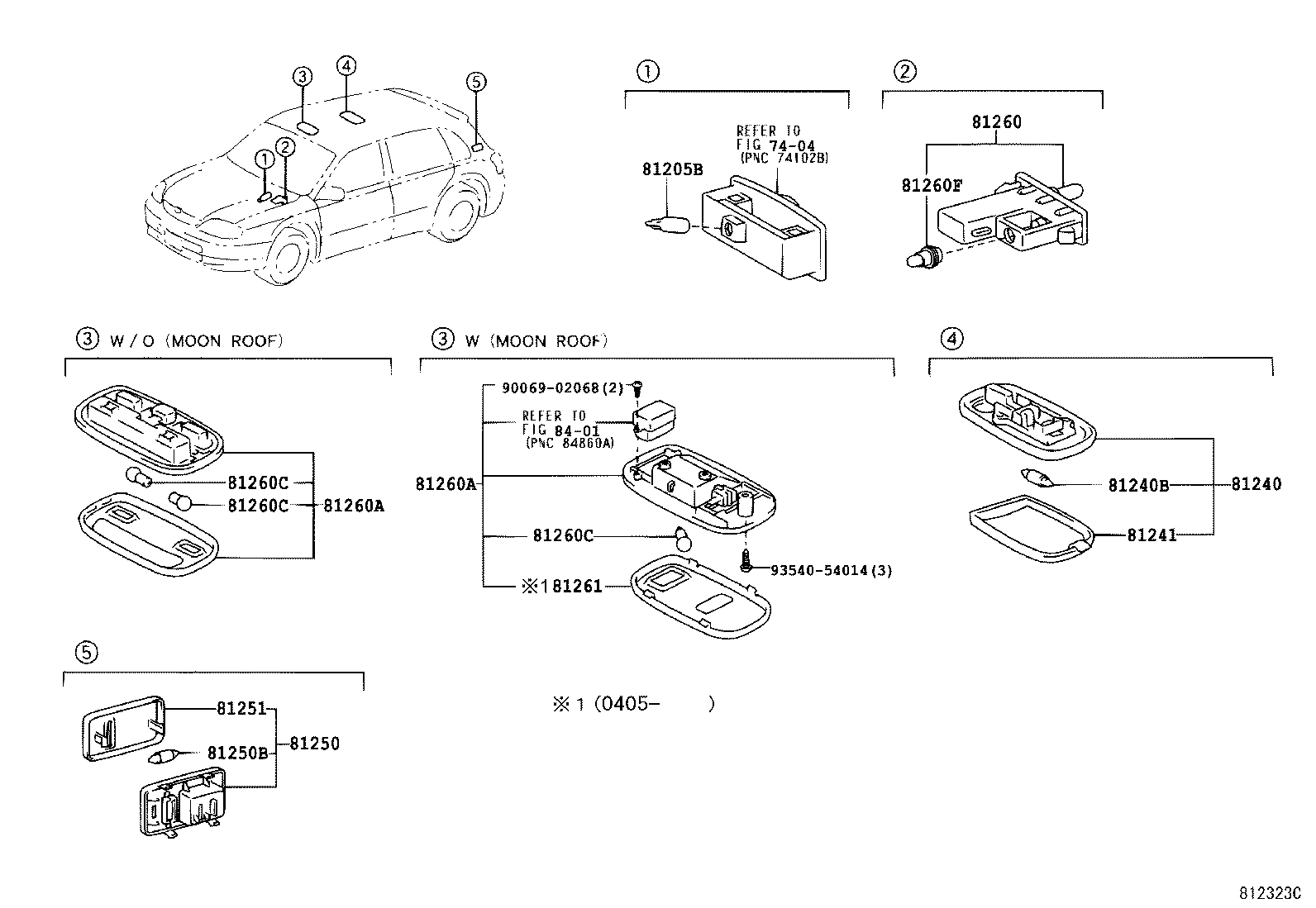

Toyota Corolla hb (jpp) ZZE121 INTERIOR LAMP

Part #	Description	Period	Qty
81205B - BULB, ASH RECEPTACLE LAMP
90981-11018	CDE120,ZZE12#..JPP 12V 1.2W W/O SOCKET	09/2002 - 05/2004	1
90981-11018	NDE120,ZZE12#..JPP 12V 1.2W W/O SOCKET	05/2004 - 12/2999	1
81240 - LAMP ASSY, ROOM, NO.1
81240-12070B0	CDE120,ZZE12#..JPP..TERRA LT.GRAY,TRIM1#,8#	09/2002 - 05/2004	1
81240-12070B0	NDE120,ZZE12#..JPP LT.GRAY,TRIM1#	05/2004 - 12/2999	1
81240B - BULB, ROOM LAMP, NO.1
90981-14011	NDE120,ZZE12#..JPP 12V 8W	05/2004 - 12/2999	1
90981-14011	ZZE12#..JPP 12V 8W	09/2002 - 05/2004	1
81241 - LENS, ROOM LAMP, NO.1
81241-12070	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
81241-12070	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
81250 - LAMP ASSY, ROOM, NO.2
81250-12030B5	NDE120,ZZE12#..JPP DK.GRAY,TRIM1#	05/2004 - 12/2999	1
81250-12030B5	CDE120,ZZE12#..JPP..TERRA DK.GRAY,TRIM1#,8#	09/2002 - 05/2004	1
81250B - BULB, ROOM LAMP, NO.2
99132-13050	ZZE12#..JPP 12V 5W	09/2002 - 05/2004	1
99132-13050	NDE120,ZZE12#..JPP 12V 5W	05/2004 - 12/2999	1
81251 - LENS, ROOM LAMP, NO.2
81251-12030	ZZE12#..JPP	09/2002 - 05/2004	1
81251-12030	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
81260 - LAMP ASSY, GLOVE BOX
81260-13040	ZZE12#..JPP	09/2002 - 05/2004	1
81260-13040	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
81260A - LAMP ASSY, MAP
81260-12110B0	CDE120,ZZE12#..JPP..TERRA W/O(MOON ROOF),LT.GRAY,TRIM1#,8#	09/2002 - 05/2004	1
81260-05050B2	CDE120,ZZE12#..JPP..TERRA W(MOON ROOF),LT.GRAY,TRIM1#,8#	09/2002 - 05/2004	1
81260-05050B2	ZZE12#..JPP W(MOON ROOF),LT.GRAY,TRIM1#	05/2004 - 08/2004	1
81260-05051B2	NDE120,ZZE12#..JPP LT.GRAY,TRIM1#	09/2004 - 03/2006	1
81260-12110B0	NDE120,ZZE12#..JPP W/O(MOON ROOF),LT.GRAY,TRIM1#	05/2004 - 12/2999	1
81260-05052B2	NDE120,ZZE12#..JPP LT.GRAY,TRIM1#	04/2006 - 12/2999	1
81260A - LAMP ASSY, MAP
81260-12110B0	CDE120,ZZE12#..JPP..TERRA W/O(MOON ROOF),LT.GRAY,TRIM1#,8#	09/2002 - 05/2004	1
81260-05050B2	CDE120,ZZE12#..JPP..TERRA W(MOON ROOF),LT.GRAY,TRIM1#,8#	09/2002 - 05/2004	1
81260-05050B2	ZZE12#..JPP W(MOON ROOF),LT.GRAY,TRIM1#	05/2004 - 08/2004	1
81260-05051B2	NDE120,ZZE12#..JPP LT.GRAY,TRIM1#	09/2004 - 03/2006	1
81260-12110B0	NDE120,ZZE12#..JPP W/O(MOON ROOF),LT.GRAY,TRIM1#	05/2004 - 12/2999	1
81260-05052B2	NDE120,ZZE12#..JPP LT.GRAY,TRIM1#	04/2006 - 12/2999	1
81260C - BULB(FOR MAP LAMP)
90011-11006	ZZE12#..JPP 12V 5W	09/2002 - 05/2004	1
90011-11006	ZZE12#..JPP 12V 5W	05/2004 - 08/2004	1
90981-12005	ZZE12#..JPP 12V 8W	09/2002 - 05/2004	2
90981-WC009	NDE120,ZZE12#..JPP 12V 5W	09/2004 - 03/2006	1
90981-12005	NDE120,ZZE12#..JPP 12V 8W	05/2004 - 12/2999	2
90981-WC009	NDE120,ZZE12#..JPP 12V 5W	04/2006 - 12/2999	1
81260C - BULB(FOR MAP LAMP)
90011-11006	ZZE12#..JPP 12V 5W	09/2002 - 05/2004	1
90011-11006	ZZE12#..JPP 12V 5W	05/2004 - 08/2004	1
90981-12005	ZZE12#..JPP 12V 8W	09/2002 - 05/2004	2
90981-WC009	NDE120,ZZE12#..JPP 12V 5W	09/2004 - 03/2006	1
90981-12005	NDE120,ZZE12#..JPP 12V 8W	05/2004 - 12/2999	2
90981-WC009	NDE120,ZZE12#..JPP 12V 5W	04/2006 - 12/2999	1
81260C - BULB(FOR MAP LAMP)
90011-11006	ZZE12#..JPP 12V 5W	09/2002 - 05/2004	1
90011-11006	ZZE12#..JPP 12V 5W	05/2004 - 08/2004	1
90981-12005	ZZE12#..JPP 12V 8W	09/2002 - 05/2004	2
90981-WC009	NDE120,ZZE12#..JPP 12V 5W	09/2004 - 03/2006	1
90981-12005	NDE120,ZZE12#..JPP 12V 8W	05/2004 - 12/2999	2
90981-WC009	NDE120,ZZE12#..JPP 12V 5W	04/2006 - 12/2999	1
81260F - BULB(FOR GLOVE BOX LAMP)
90981-11018	ZZE12#..JPP 12V 1.2W W/O SOCKET	09/2002 - 05/2004	1
90981-11018	NDE120,ZZE12#..JPP 12V 1.2W W/O SOCKET	05/2004 - 12/2999	1
81261 - LENS AND COVER, MAP LAMP
81261-05050B4	ZZE12#..JPP LT.GRAY,TRIM1#	09/2004 - 03/2006	1
81261-05050B4	NDE120,ZZE12#..JPP LT.GRAY,TRIM1#	04/2006 - 12/2999	1
81261-05050B4	ZZE12#..JPP LT.GRAY,TRIM1#	05/2004 - 08/2004	1
Common parts
90069-02068
93540-54014
Linked diagrams
7404
8401

ZZE121R-AHMDKW (2002)

(0209- )JPP
