Toyota Corolla hb (jpp) ZZE121 REAR COMBINATION LAMP

ZZE121R-AHMDKW (2002)

Toyota Corolla Hb (Jpp)

Production Sep 2002 - Oct 2006

Engine 3ZZFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

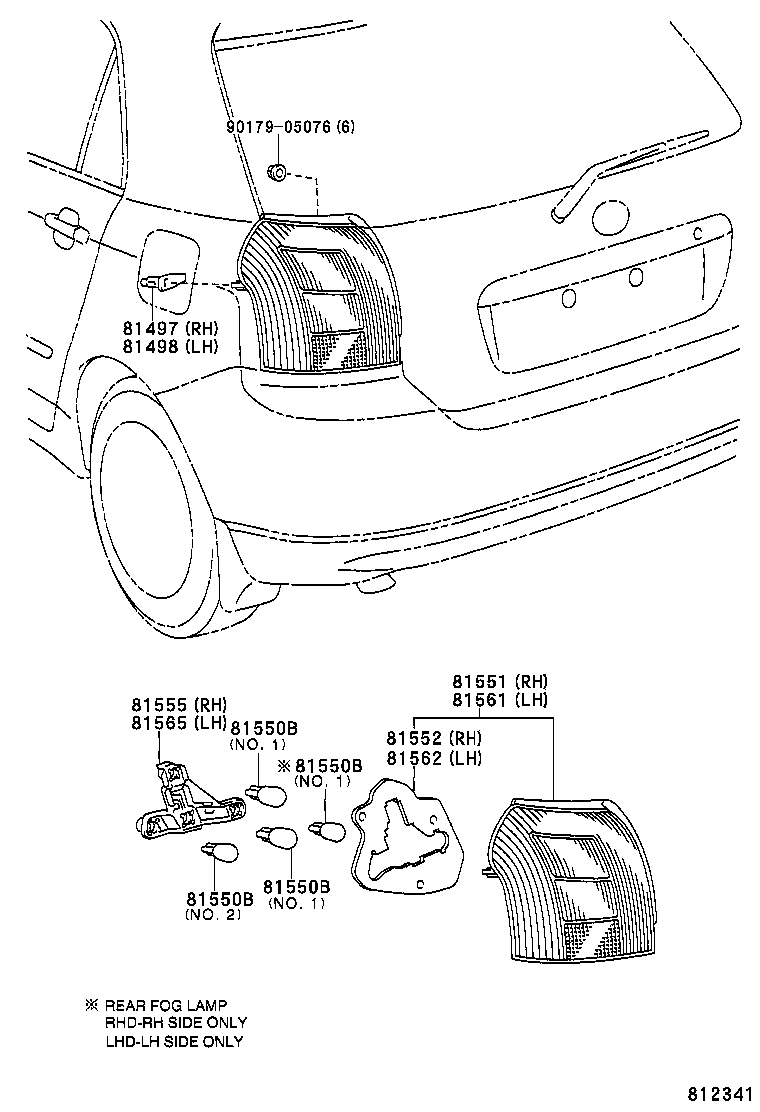

(0209-0405)JPP

Click highlighted areas on diagram

Part #	Description	Period	Qty
81497 - COVER, REAR COMBINATION LAMP, RH
81497-13010	ZZE12#..JPP	09/2002 - 05/2004	1
81497-13010	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
81498 - COVER, REAR COMBINATION LAMP, LH
81498-13010	ZZE12#..JPP	09/2002 - 05/2004	1
81498-13010	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210	CDE120,ZZE12#..JPP 12V 21W,NO.1	09/2002 - 05/2004	5
99132-21210	CDE120,ZZE12#..JPP 12V 21/5W,NO.2	09/2002 - 05/2004	2
99132-21210	NDE120,ZZE12#..JPP 12V 21/5W,NO.2	05/2004 - 12/2999	2
99132-11210	NDE120,ZZE12#..JPP 12V 21W,NO.1	05/2004 - 12/2999	5
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210	CDE120,ZZE12#..JPP 12V 21W,NO.1	09/2002 - 05/2004	5
99132-21210	CDE120,ZZE12#..JPP 12V 21/5W,NO.2	09/2002 - 05/2004	2
99132-21210	NDE120,ZZE12#..JPP 12V 21/5W,NO.2	05/2004 - 12/2999	2
99132-11210	NDE120,ZZE12#..JPP 12V 21W,NO.1	05/2004 - 12/2999	5
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210	CDE120,ZZE12#..JPP 12V 21W,NO.1	09/2002 - 05/2004	5
99132-21210	CDE120,ZZE12#..JPP 12V 21/5W,NO.2	09/2002 - 05/2004	2
99132-21210	NDE120,ZZE12#..JPP 12V 21/5W,NO.2	05/2004 - 12/2999	2
99132-11210	NDE120,ZZE12#..JPP 12V 21W,NO.1	05/2004 - 12/2999	5
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210	CDE120,ZZE12#..JPP 12V 21W,NO.1	09/2002 - 05/2004	5
99132-21210	CDE120,ZZE12#..JPP 12V 21/5W,NO.2	09/2002 - 05/2004	2
99132-21210	NDE120,ZZE12#..JPP 12V 21/5W,NO.2	05/2004 - 12/2999	2
99132-11210	NDE120,ZZE12#..JPP 12V 21W,NO.1	05/2004 - 12/2999	5
81551 - LENS, REAR COMBINATION LAMP, RH
81551-13600	ZZE12#..JPP..RHD	09/2002 - 05/2004	1
81551-13660	ZZE12#..JPP..RHD	05/2004 - 12/2999	1
81552 - GASKET, REAR COMBINATION LAMP LENS, RH
81552-13660	NDE120,ZZE12#..JPP	05/2004 - 10/2006	1
81552-13610	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81557-13660	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
81557-13610	ZZE12#..JPP..RHD	07/2003 - 05/2004	1
81557-13600	ZZE12#..JPP..RHD	09/2002 - 07/2003	1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-13570	ZZE12#..JPP..RHD	09/2002 - 05/2004	1
81561-13620	ZZE12#..JPP..RHD	05/2004 - 12/2999	1
81562 - GASKET, REAR COMBINATION LAMP LENS, LH
81552-13610	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
81552-13660	NDE120,ZZE12#..JPP	05/2004 - 10/2006	1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81567-13570	ZZE12#..JPP..RHD	09/2002 - 07/2003	1
81567-13620	NDE120,ZZE12#..JPP	05/2004 - 10/2006	1
81567-13580	ZZE12#..JPP..RHD	07/2003 - 05/2004	1
Common parts
90179-05076

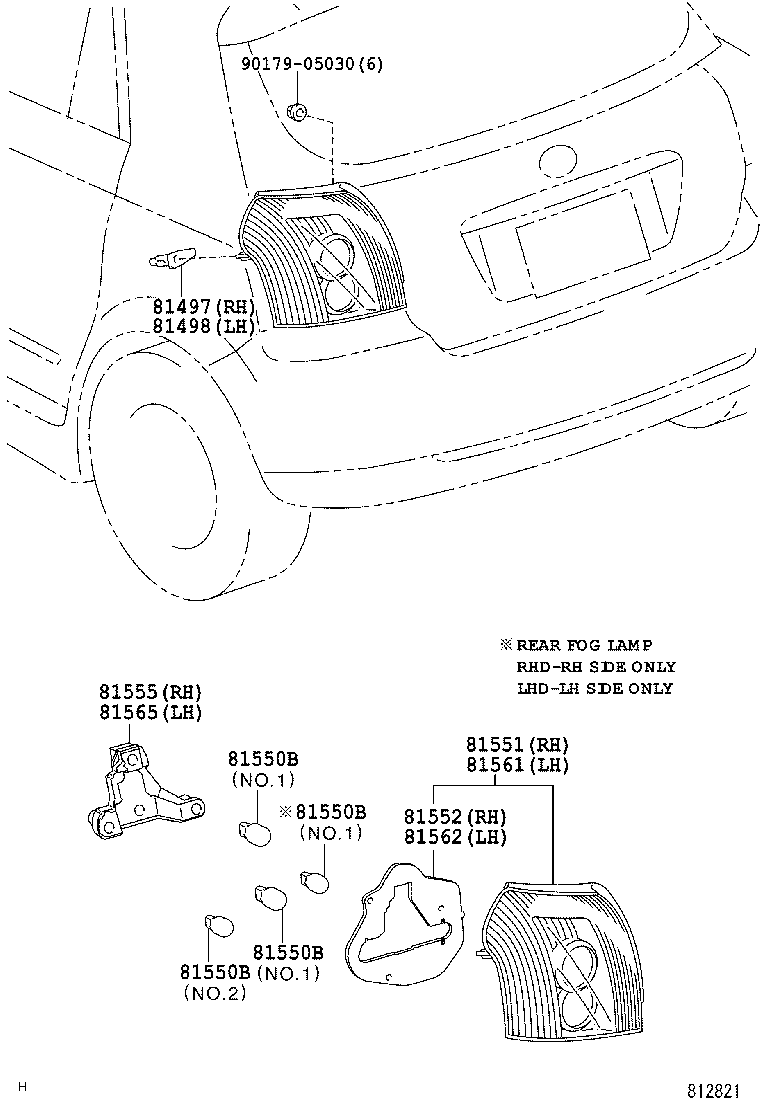

(0405- )JPP

Click highlighted areas on diagram

Part #	Description	Period	Qty
81497 - COVER, REAR COMBINATION LAMP, RH
81497-13010	ZZE12#..JPP	09/2002 - 05/2004	1
81497-13010	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
81498 - COVER, REAR COMBINATION LAMP, LH
81498-13010	ZZE12#..JPP	09/2002 - 05/2004	1
81498-13010	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210	CDE120,ZZE12#..JPP 12V 21W,NO.1	09/2002 - 05/2004	5
99132-21210	CDE120,ZZE12#..JPP 12V 21/5W,NO.2	09/2002 - 05/2004	2
99132-21210	NDE120,ZZE12#..JPP 12V 21/5W,NO.2	05/2004 - 12/2999	2
99132-11210	NDE120,ZZE12#..JPP 12V 21W,NO.1	05/2004 - 12/2999	5
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210	CDE120,ZZE12#..JPP 12V 21W,NO.1	09/2002 - 05/2004	5
99132-21210	CDE120,ZZE12#..JPP 12V 21/5W,NO.2	09/2002 - 05/2004	2
99132-21210	NDE120,ZZE12#..JPP 12V 21/5W,NO.2	05/2004 - 12/2999	2
99132-11210	NDE120,ZZE12#..JPP 12V 21W,NO.1	05/2004 - 12/2999	5
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210	CDE120,ZZE12#..JPP 12V 21W,NO.1	09/2002 - 05/2004	5
99132-21210	CDE120,ZZE12#..JPP 12V 21/5W,NO.2	09/2002 - 05/2004	2
99132-21210	NDE120,ZZE12#..JPP 12V 21/5W,NO.2	05/2004 - 12/2999	2
99132-11210	NDE120,ZZE12#..JPP 12V 21W,NO.1	05/2004 - 12/2999	5
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210	CDE120,ZZE12#..JPP 12V 21W,NO.1	09/2002 - 05/2004	5
99132-21210	CDE120,ZZE12#..JPP 12V 21/5W,NO.2	09/2002 - 05/2004	2
99132-21210	NDE120,ZZE12#..JPP 12V 21/5W,NO.2	05/2004 - 12/2999	2
99132-11210	NDE120,ZZE12#..JPP 12V 21W,NO.1	05/2004 - 12/2999	5
81551 - LENS, REAR COMBINATION LAMP, RH
81551-13600	ZZE12#..JPP..RHD	09/2002 - 05/2004	1
81551-13660	ZZE12#..JPP..RHD	05/2004 - 12/2999	1
81552 - GASKET, REAR COMBINATION LAMP LENS, RH
81552-13660	NDE120,ZZE12#..JPP	05/2004 - 10/2006	1
81552-13610	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81557-13660	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
81557-13610	ZZE12#..JPP..RHD	07/2003 - 05/2004	1
81557-13600	ZZE12#..JPP..RHD	09/2002 - 07/2003	1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-13570	ZZE12#..JPP..RHD	09/2002 - 05/2004	1
81561-13620	ZZE12#..JPP..RHD	05/2004 - 12/2999	1
81562 - GASKET, REAR COMBINATION LAMP LENS, LH
81552-13610	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
81552-13660	NDE120,ZZE12#..JPP	05/2004 - 10/2006	1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81567-13570	ZZE12#..JPP..RHD	09/2002 - 07/2003	1
81567-13620	NDE120,ZZE12#..JPP	05/2004 - 10/2006	1
81567-13580	ZZE12#..JPP..RHD	07/2003 - 05/2004	1
Common parts
90179-05030
