Toyota Corolla hb (jpp) ZZE121 HEADLAMP

ZZE121R-AHMDKW (2002)

Toyota Corolla Hb (Jpp)

Production Sep 2002 - Oct 2006

Engine 3ZZFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

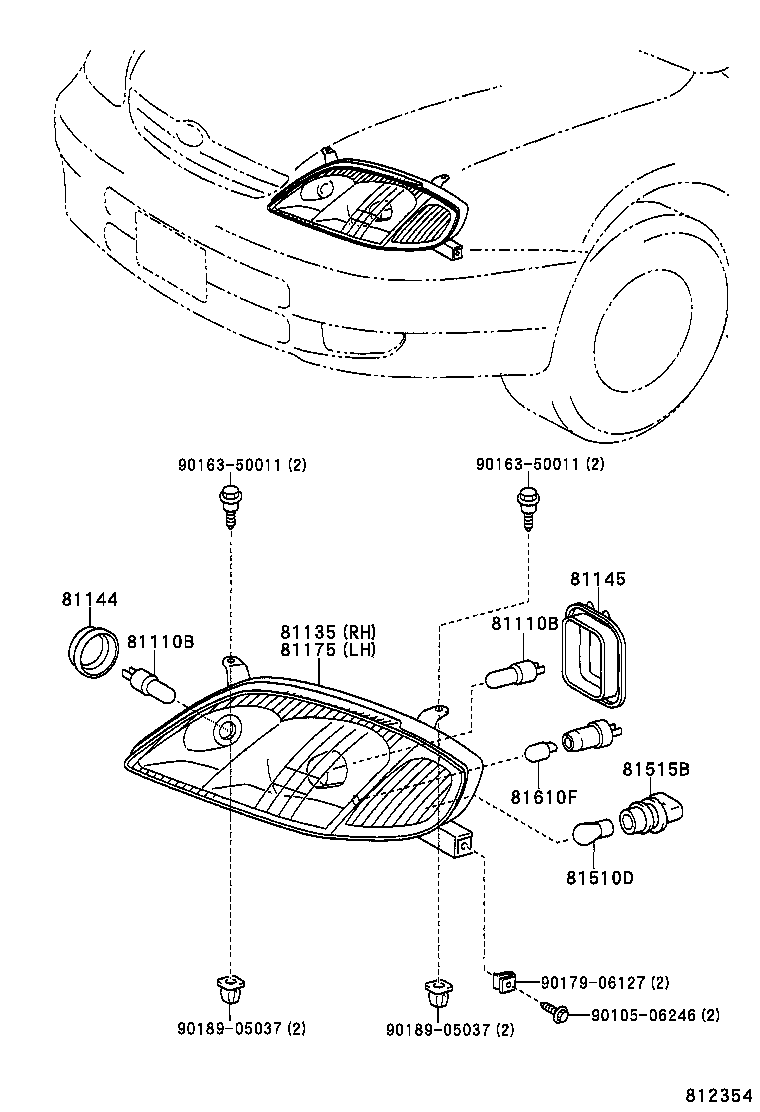

ILLUST NO. 1 OF 2(0209-0405)JPP

Click highlighted areas on diagram

Part #	Description	Period	Qty
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13079	ZZE12#..JPP 12V 55W,HALOGEN	09/2002 - 05/2004	4
90981-13079	NDE120,ZZE12#..JPP 12V 55W,HALOGEN	05/2004 - 12/2999	4
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13079	ZZE12#..JPP 12V 55W,HALOGEN	09/2002 - 05/2004	4
90981-13079	NDE120,ZZE12#..JPP 12V 55W,HALOGEN	05/2004 - 12/2999	4
81135 - UNIT ASSY, HEADLAMP, RH
81130-13310	ZZE12#..JPP..RHD	09/2002 - 05/2004	1
81130-13330	ZZE12#..JPP..RHD RH TRAFFIC SPEC	05/2004 - 12/2999	1
81130-13340	ZZE12#..JPP..RHD	05/2004 - 12/2999	1
81130-13300	ZZE12#..JPP..RHD RH TRAFFIC SPEC	09/2002 - 05/2004	1
81144 - COVER, HEADLAMP, NO.1
81139-13330	NDE120,ZZE12#..JPP	05/2004 - 12/2999	2
81135-13290	ZZE12#..JPP	09/2002 - 05/2004	2
81145 - COVER, HEADLAMP, NO.2
81135-13300	NDE120,ZZE12#..JPP	05/2004 - 12/2999	2
81135-13300	ZZE12#..JPP	09/2002 - 05/2004	2
81175 - UNIT ASSY, HEADLAMP, LH
81170-13340	ZZE12#..JPP..RHD	05/2004 - 12/2999	1
81170-13300	ZZE12#..JPP..RHD RH TRAFFIC SPEC	09/2002 - 05/2004	1
81170-13310	ZZE12#..JPP..RHD	09/2002 - 05/2004	1
81170-13330	ZZE12#..JPP..RHD RH TRAFFIC SPEC	05/2004 - 12/2999	1
81510D - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15020	NDE120,ZZE12#..JPP 12V 21W,AMBER	05/2004 - 12/2999	2
90981-15020	ZZE12#..JPP 12V 21W,AMBER	09/2002 - 05/2004	2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90069-81027	NDE120,ZZE12#..JPP	05/2004 - 12/2999	2
90069-81027	ZZE12#..JPP	09/2002 - 05/2004	2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050	NDE120,ZZE12#..JPP 12V 5W	05/2004 - 12/2999	2
99132-12050	ZZE12#..JPP 12V 5W	09/2002 - 05/2004	2
Common parts
90105-06246
90163-50011
90179-06127
90189-05037

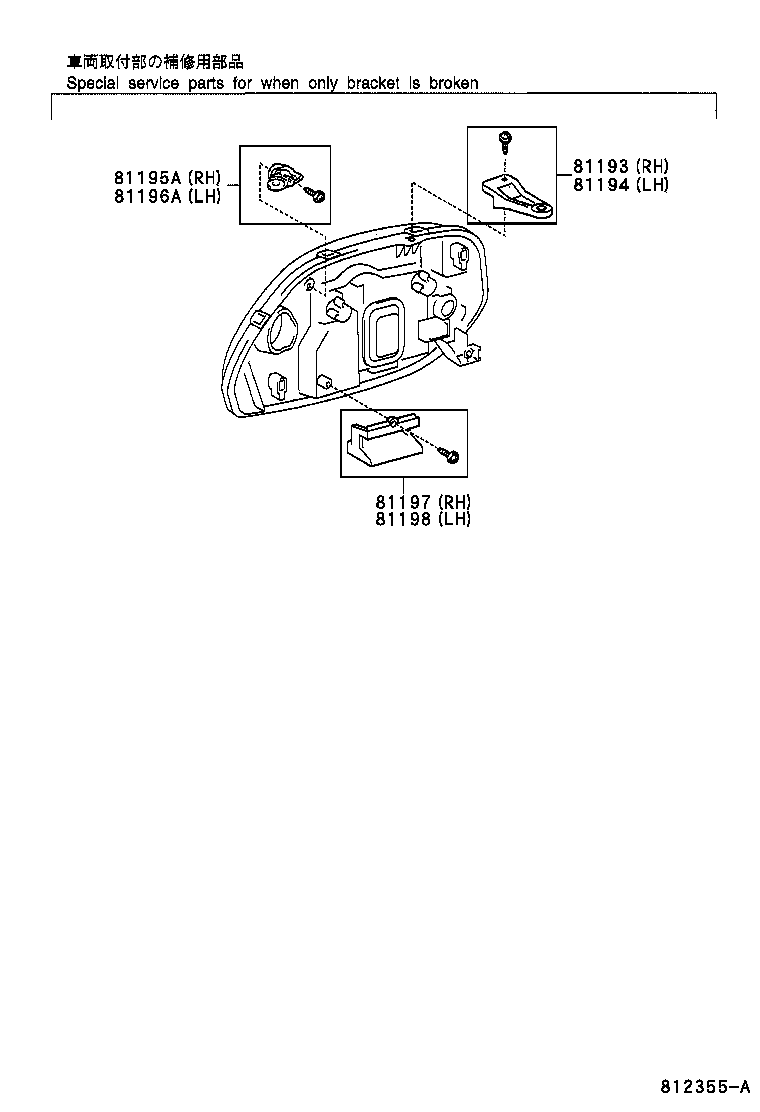

ILLUST NO. 2 OF 2(0209- )JPP

Click highlighted areas on diagram

Part #	Description	Period	Qty
81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193-02020	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
81193-02020	ZZE12#..JPP	09/2002 - 05/2004	1
81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194-02040	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
81194-02040	ZZE12#..JPP	09/2002 - 05/2004	1
81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH
81195-02030	ZZE12#..JPP	09/2002 - 05/2004	1
81195-02030	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH
81196-02020	ZZE12#..JPP	09/2002 - 05/2004	1
81196-02020	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
81197 - BRACKET, HEADLAMP, LOWER RH
81197-02020	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
81197-02020	ZZE12#..JPP	09/2002 - 05/2004	1
81198 - BRACKET, HEADLAMP, LWR LH
81197-02020	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
81197-02020	ZZE12#..JPP	09/2002 - 05/2004	1

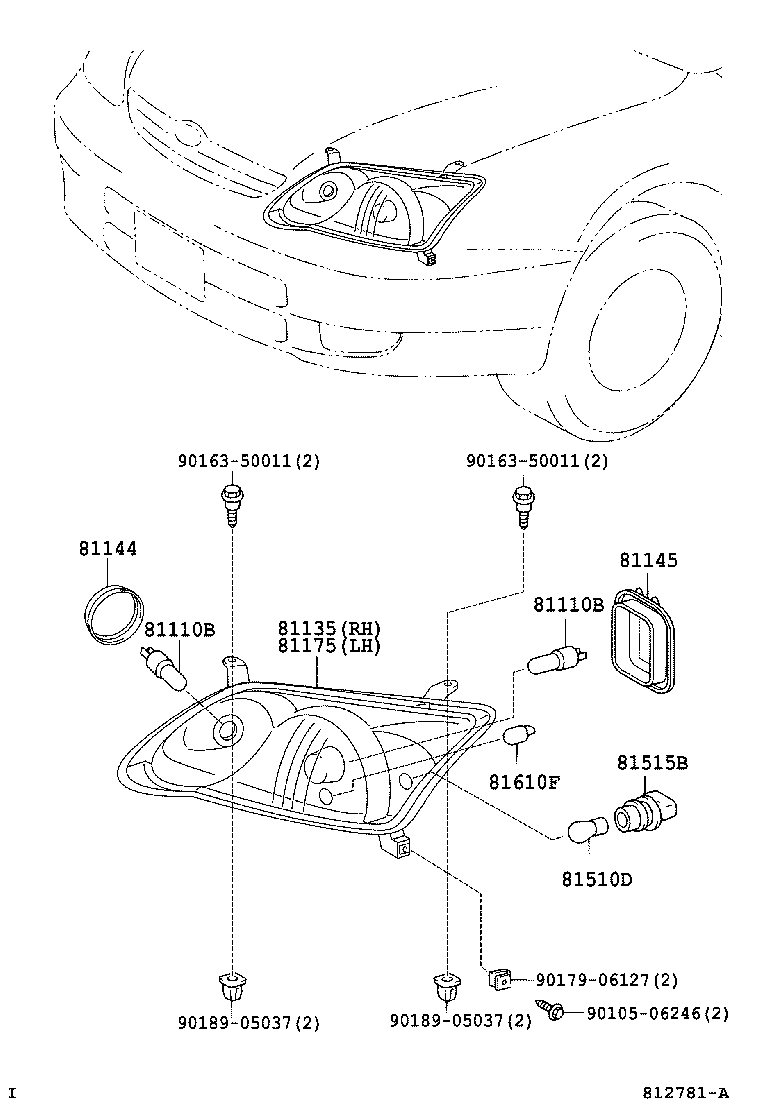

ILLUST NO. 1 OF 2(0405- )JPP

Click highlighted areas on diagram

Part #	Description	Period	Qty
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13079	ZZE12#..JPP 12V 55W,HALOGEN	09/2002 - 05/2004	4
90981-13079	NDE120,ZZE12#..JPP 12V 55W,HALOGEN	05/2004 - 12/2999	4
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13079	ZZE12#..JPP 12V 55W,HALOGEN	09/2002 - 05/2004	4
90981-13079	NDE120,ZZE12#..JPP 12V 55W,HALOGEN	05/2004 - 12/2999	4
81135 - UNIT ASSY, HEADLAMP, RH
81130-13310	ZZE12#..JPP..RHD	09/2002 - 05/2004	1
81130-13330	ZZE12#..JPP..RHD RH TRAFFIC SPEC	05/2004 - 12/2999	1
81130-13340	ZZE12#..JPP..RHD	05/2004 - 12/2999	1
81130-13300	ZZE12#..JPP..RHD RH TRAFFIC SPEC	09/2002 - 05/2004	1
81144 - COVER, HEADLAMP, NO.1
81139-13330	NDE120,ZZE12#..JPP	05/2004 - 12/2999	2
81135-13290	ZZE12#..JPP	09/2002 - 05/2004	2
81145 - COVER, HEADLAMP, NO.2
81135-13300	NDE120,ZZE12#..JPP	05/2004 - 12/2999	2
81135-13300	ZZE12#..JPP	09/2002 - 05/2004	2
81175 - UNIT ASSY, HEADLAMP, LH
81170-13340	ZZE12#..JPP..RHD	05/2004 - 12/2999	1
81170-13300	ZZE12#..JPP..RHD RH TRAFFIC SPEC	09/2002 - 05/2004	1
81170-13310	ZZE12#..JPP..RHD	09/2002 - 05/2004	1
81170-13330	ZZE12#..JPP..RHD RH TRAFFIC SPEC	05/2004 - 12/2999	1
81510D - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15020	NDE120,ZZE12#..JPP 12V 21W,AMBER	05/2004 - 12/2999	2
90981-15020	ZZE12#..JPP 12V 21W,AMBER	09/2002 - 05/2004	2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90069-81027	NDE120,ZZE12#..JPP	05/2004 - 12/2999	2
90069-81027	ZZE12#..JPP	09/2002 - 05/2004	2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050	NDE120,ZZE12#..JPP 12V 5W	05/2004 - 12/2999	2
99132-12050	ZZE12#..JPP 12V 5W	09/2002 - 05/2004	2
Common parts
90105-06246
90163-50011
90179-06127
90189-05037
