ZZE121R-AHMDKW (2002)
Toyota Corolla Hb (Jpp)
Production
Sep 2002
-
Oct 2006
Engine
3ZZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

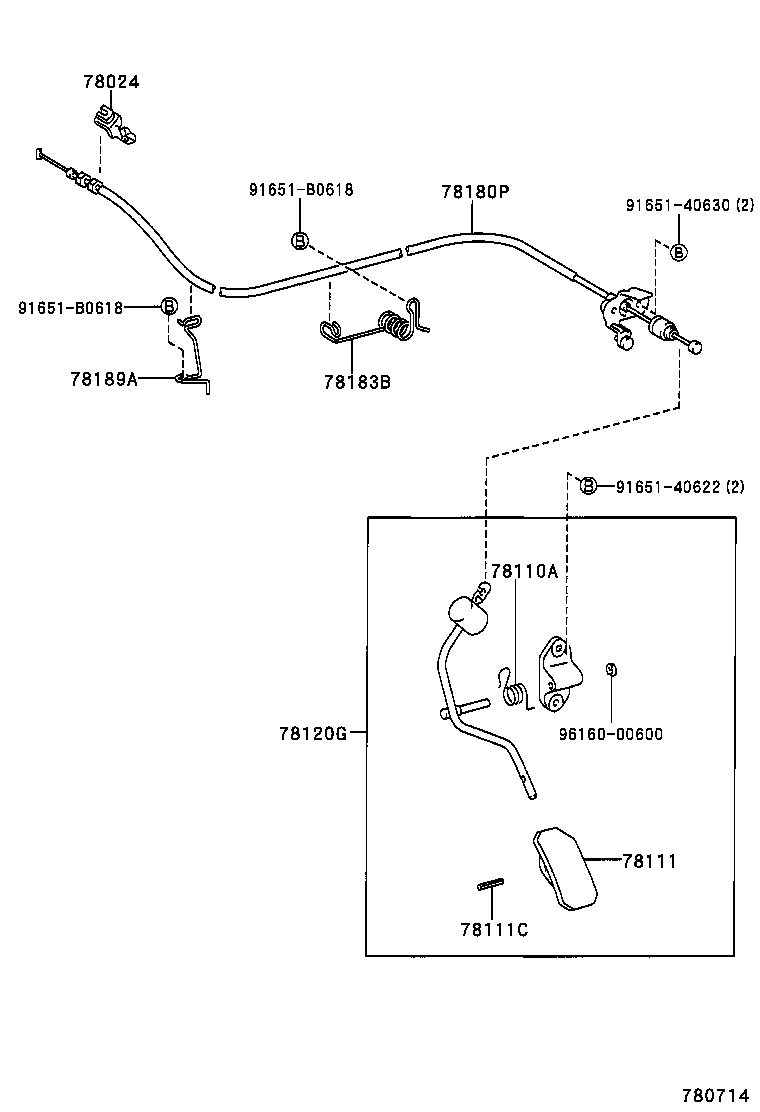

(0209-0405)JPP..RHD..5F
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-12090 |
ZZE12#..JPP |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90959-03307 |
ZZE12#..JPP..RHD |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-32020 |
ZZE12#..JPP..RHD |
1 | ||
| 78111-32020 |
ZZE12#..JPP..RHD |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90254-04019 |
ZZE120..JPP;ZZE121..JPP..RHD;ZZE121..JPP..LHD..5F |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-12340 |
ZZE12#..JPP..RHD |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-02240 |
ZZE12#..JPP..RHD |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-13010 |
ZZE12#..JPP..RHD |
1 | ||
| 78189A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.2 | ||||
| 78189-12100 |
ZZE12#..JPP |
1 | ||
| Common parts | ||||
| 91651-40622 | ||||
| 91651-40630 | ||||
| 91651-B0618 | ||||
| 96160-00600 | ||||

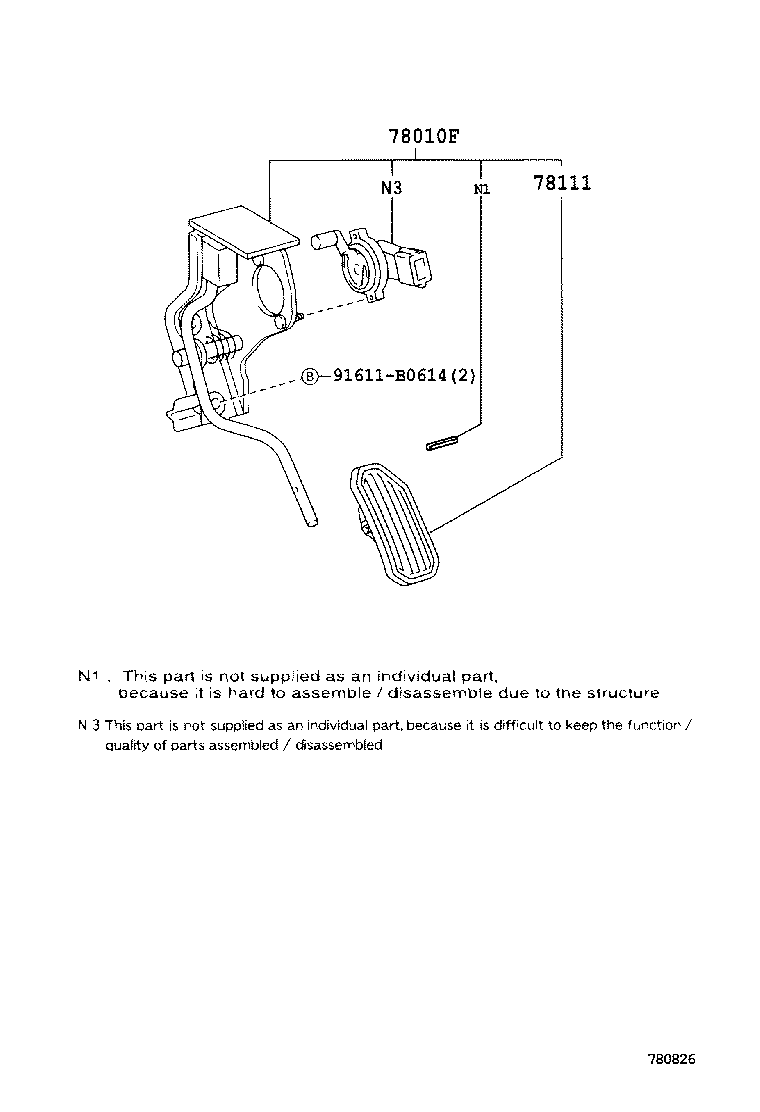

(0405- )ZZE121..JPP..RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78010F - PEDAL ASSY, ACCELERATOR | ||||
| 78010-12152 |
ZZE121..JPP..RHD |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-32020 |
ZZE12#..JPP..RHD |
1 | ||
| 78111-32020 |
ZZE12#..JPP..RHD |
1 | ||
| Common parts | ||||
| 91611-B0614 | ||||
