ZZE121R-AHMDKW (2002)
Toyota Corolla Hb (Jpp)

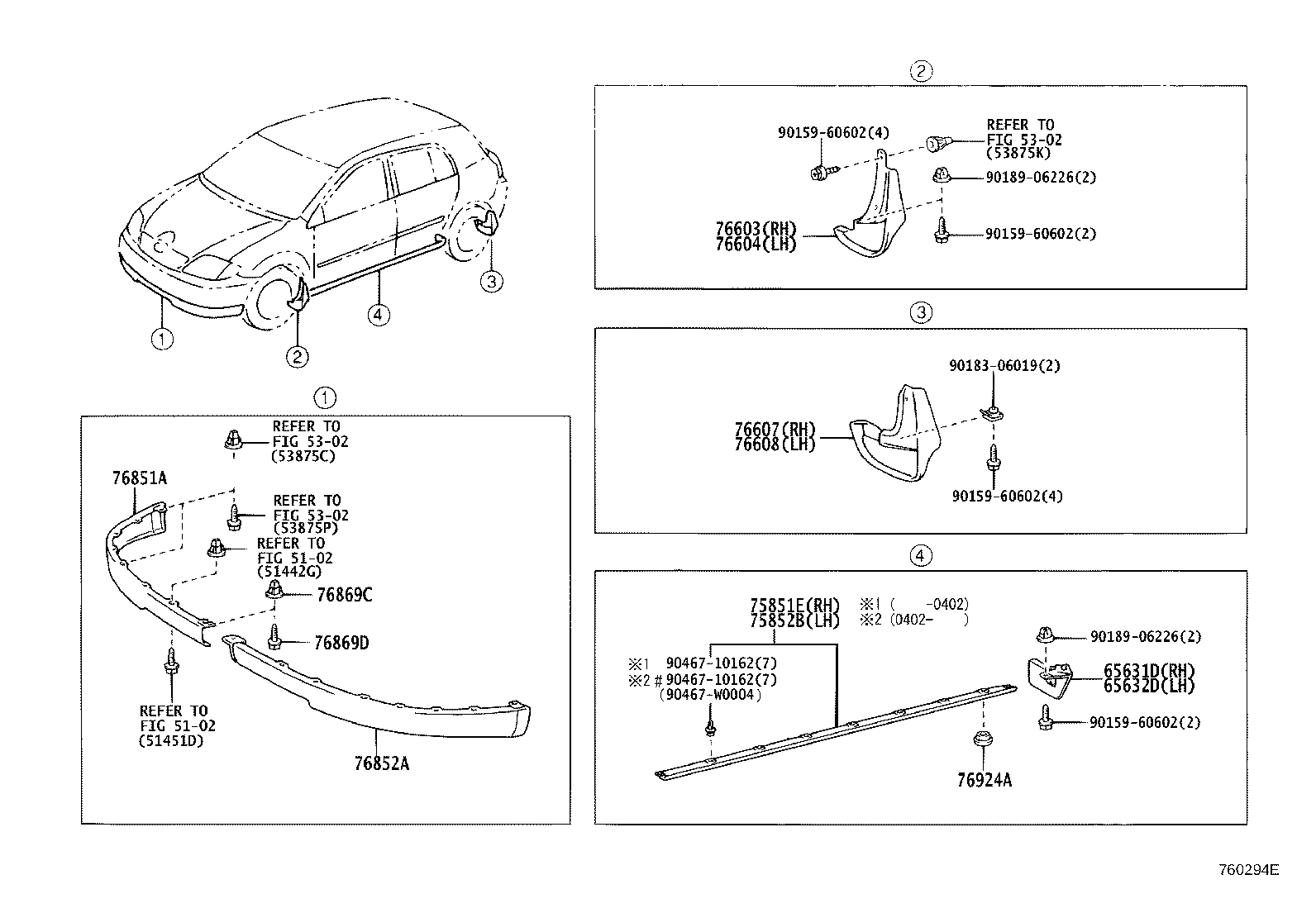

ILLUST NO. 1 OF 2(0209- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65631D - PLATE, REAR WHEEL HOUSE, FRONT RH | ||||
| 65631-02020 |
NDE120,ZZE12#..JPP |
1 | ||
| 65631-02020 |
CDE120,ZZE12#..JPP |
1 | ||
| 65632D - PLATE, REAR WHEEL HOUSE, FRONT LH | ||||
| 65632-02020 |
CDE120,ZZE12#..JPP |
1 | ||
| 65632-02020 |
NDE120,ZZE12#..JPP |
1 | ||
| 75851E - MOULDING, BODY ROCKER PANEL, RH | ||||
| 75851-02050 |
CDE120,ZZE12#..JPP |
1 | ||
| 75851-02050 |
NDE120,ZZE12#..JPP |
1 | ||
| 75852B - MOULDING, BODY ROCKER PANEL, LH | ||||
| 75852-02050 |
NDE120,ZZE12#..JPP |
1 | ||
| 75852-02050 |
CDE120,ZZE12#..JPP |
1 | ||
| 76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH | ||||
| 76621-02120 |
CDE120,ZZE12#..JPP |
1 | ||
| 76621-02120 |
NDE120,ZZE12#..JPP |
1 | ||
| 76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH | ||||
| 76622-02130 |
NDE120,ZZE12#..JPP |
1 | ||
| 76622-02130 |
CDE120,ZZE12#..JPP |
1 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76625-02130 |
CDE120,ZZE12#..JPP NO PAINT REQ. |
1 | ||
| 76625-02160 |
NDE120,ZZE12#..JPP NO PAINT REQ. |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76626-02130 |
CDE120,ZZE12#..JPP NO PAINT REQ. |
1 | ||
| 76626-02160 |
NDE120,ZZE12#..JPP NO PAINT REQ. |
1 | ||
| 76851A - COVER, FRONT SPOILER, RH | ||||
| 76851-02020 |
CDE120,ZZE12#..JPP |
1 | ||
| 76851-02090 |
NDE120,ZZE12#..JPP |
1 | ||
| 76852A - COVER, FRONT SPOILER, LH | ||||
| 76852-02080 |
NDE120,ZZE12#..JPP |
1 | ||
| 76852-02020 |
CDE120,ZZE12#..JPP |
1 | ||
| 76869C - GROMMET, SCREW, NO.1 | ||||
| 90189-05144 |
CDE120,ZZE12#..JPP |
1 | ||
| 90189-05144 |
NDE120,ZZE12#..JPP |
1 | ||
| 76869D - SCREW, NO.2 | ||||
| 90159-60488 |
CDE120,ZZE12#..JPP |
1 | ||
| 90159-60488 |
NDE120,ZZE12#..JPP |
1 | ||
| 76924A - RETAINER, SIDE MUDGUARD, NO.2 | ||||
| 76924-52021 |
NDE120,ZZE12#..JPP..TERRA W(SIDE MUD GUARD) |
16 | ||
| 76924-52021 |
NDE120,ZZE12#..JPP |
14 | ||
| 76924-52021 |
CDE120,ZZE12#..JPP |
14 | ||
| Common parts | ||||
| 90159-60602 | ||||
| 90183-06019 | ||||
| 90189-06226 | ||||
| 90467-10162 | ||||
| 90467-W0004 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5302 | ||||

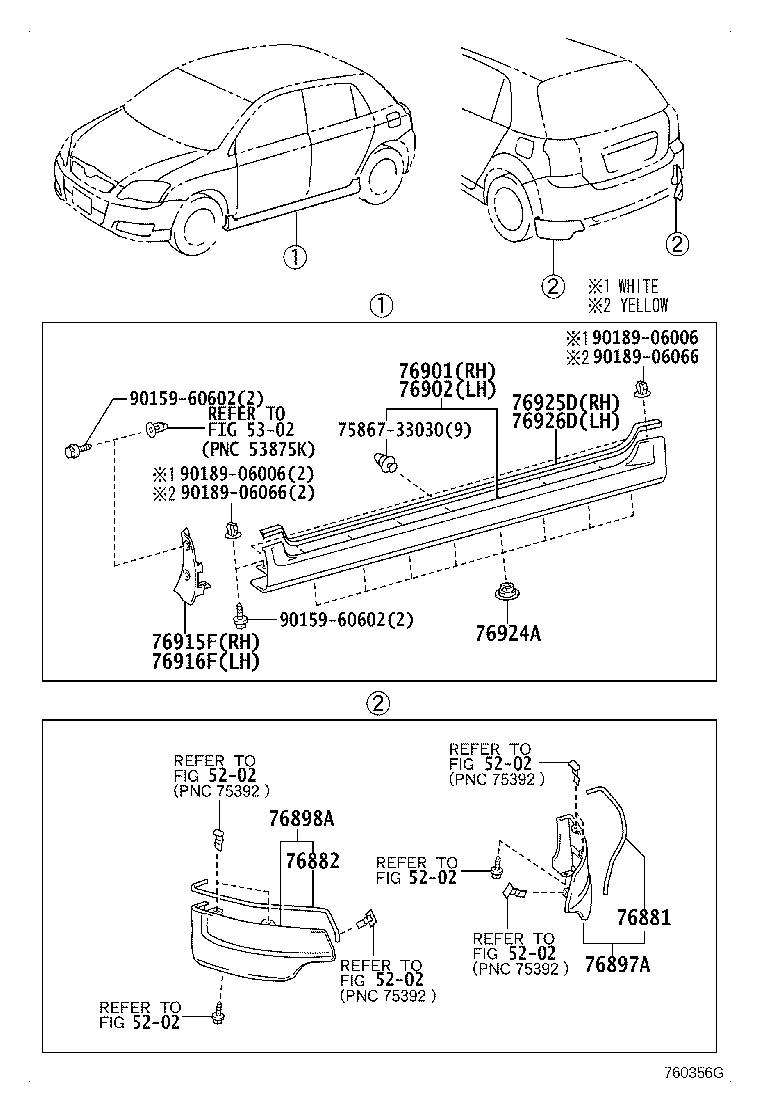

ILLUST NO. 2 OF 2(0405-0508)JPP..TERRA ; (0508- )JPP..SOL
SIDE MUD GUARD & REAR SIDE SPOILEER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 76881 - PROTECTOR, REAR SPOILER SIDE, NO.1 RH | ||||
| 76881-13020B4 |
NDE120,ZZE12#..JPP..TERRA LT. GRAY,040 ,1C0 ,8S1 |
1 | ||
| 76881-13020C0 |
NDE120,ZZE12#..JPP..TERRA BLACK,1C3 ,209 ,3E5 ,6S3 ,8P4 |
1 | ||
| 76882 - PROTECTOR, REAR SPOILER SIDE, NO.1 LH | ||||
| 76881-13020B4 |
NDE120,ZZE12#..JPP..TERRA LT. GRAY,040 ,1C0 ,8S1 |
1 | ||
| 76881-13020C0 |
NDE120,ZZE12#..JPP..TERRA BLACK,1C3 ,209 ,3E5 ,6S3 ,8P4 |
1 | ||
| 76897A - SPOILER,REAR SIDE RH | ||||
| 76087-13010G3 |
NDE120,ZZE12#..JPP..TERRA DK GREEN M M,6S3 |
1 | ||
| 76087-13010A3 |
NDE120,ZZE12#..JPP..TERRA SUPER WHITE 2,040 |
1 | ||
| 76087-13010J7 |
NDE120,ZZE12#..JPP..TERRA LT BLUE M M,8S1 |
1 | ||
| 76087-13010D6 |
NDE120,ZZE12#..JPP..TERRA SUPER RED II,3E5 |
1 | ||
| 76087-13010B7 |
NDE120,ZZE12#..JPP..TERRA GRAY M M,1C3 |
1 | ||
| 76087-13010J6 |
NDE120,ZZE12#..JPP..TERRA DK BLUE M M,8P4 |
1 | ||
| 76087-13010C3 |
NDE120,ZZE12#..JPP..TERRA BLACK MC,209 |
1 | ||
| 76087-13010B6 |
NDE120,ZZE12#..JPP..TERRA SILVER ME,1C0 |
1 | ||
| 76898A - SPOILER,REAR SIDE LH | ||||
| 76088-13010B6 |
NDE120,ZZE12#..JPP..TERRA SILVER ME,1C0 |
1 | ||
| 76088-13010C3 |
NDE120,ZZE12#..JPP..TERRA BLACK MC,209 |
1 | ||
| 76088-13010D6 |
NDE120,ZZE12#..JPP..TERRA SUPER RED II,3E5 |
1 | ||
| 76088-13010G3 |
NDE120,ZZE12#..JPP..TERRA DK GREEN M M,6S3 |
1 | ||
| 76088-13010J6 |
NDE120,ZZE12#..JPP..TERRA DK BLUE M M,8P4 |
1 | ||
| 76088-13010A3 |
NDE120,ZZE12#..JPP..TERRA SUPER WHITE 2,040 |
1 | ||
| 76088-13010J7 |
NDE120,ZZE12#..JPP..TERRA LT BLUE M M,8S1 |
1 | ||
| 76088-13010B7 |
NDE120,ZZE12#..JPP..TERRA GRAY M M,1C3 |
1 | ||
| 76901 - MUDGUARD SUB-ASSY, SIDE, RH | ||||
| 76901-02903 |
NDE120,ZZE12#..JPP..TERRA |
1 | ||
| 76902 - MUDGUARD SUB-ASSY, SIDE, LH | ||||
| 76902-02903 |
NDE120,ZZE12#..JPP..TERRA |
1 | ||
| 76915F - MUDGUARD, SIDE, FR RH | ||||
| 76915-02020 |
NDE120,ZZE12#..JPP..TERRA |
1 | ||
| 76916F - MUDGUARD, SIDE, FR LH | ||||
| 76916-02020 |
NDE120,ZZE12#..JPP..TERRA |
1 | ||
| 76924A - RETAINER, SIDE MUDGUARD, NO.2 | ||||
| 76924-52021 |
NDE120,ZZE12#..JPP..TERRA W(SIDE MUD GUARD) |
16 | ||
| 76924-52021 |
NDE120,ZZE12#..JPP |
14 | ||
| 76924-52021 |
CDE120,ZZE12#..JPP |
14 | ||
| 76925D - PROTECTOR, SIDE MUDGUARD, RH | ||||
| 76925-12080C0 |
NDE120,ZZE12#..JPP..TERRA BLACK,1C3 ,209 ,3E5 ,6S3 ,8P4 |
1 | ||
| 76925-12080B2 |
NDE120,ZZE12#..JPP..TERRA LT. GRAY,040 ,1C0 ,8S1 |
1 | ||
| 76926D - PROTECTOR, SIDE MUDGUARD, LH | ||||
| 76925-12080C0 |
NDE120,ZZE12#..JPP..TERRA BLACK,1C3 ,209 ,3E5 ,6S3 ,8P4 |
1 | ||
| 76925-12080B2 |
NDE120,ZZE12#..JPP..TERRA LT. GRAY,040 ,1C0 ,8S1 |
1 | ||
| Common parts | ||||
| 75867-33030 | ||||
| 90159-60602 | ||||
| 90189-06006 | ||||
| 90189-06066 | ||||
| Linked diagrams | ||||
| 5202 | ||||
| 5302 | ||||
