ZZE121R-AHMDKW (2002)
Toyota Corolla Hb (Jpp)

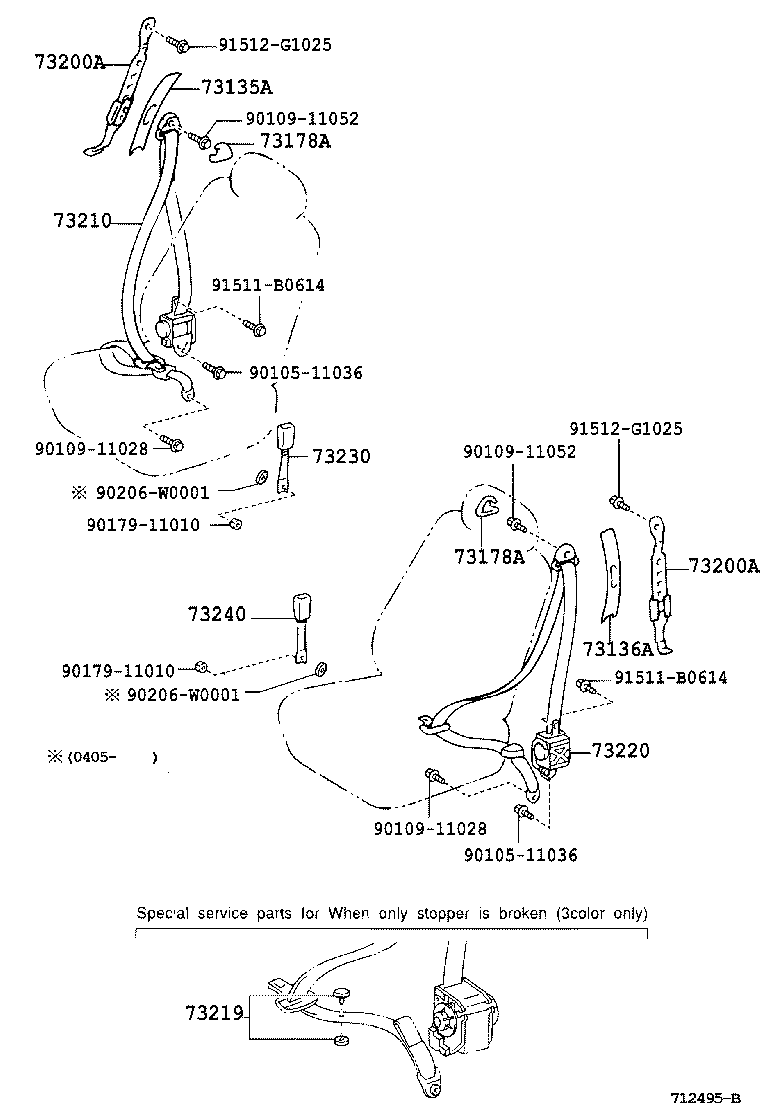

ILLUST NO. 1 OF 2(0209- )JPP
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73135A - COVER, SHOULDER BELT ANCHOR, RH | ||||
| 73237-02010B2 |
CDE120,ZZE12#..JPP..TERRA LT.GRAY,TRIM1#,8# |
1 | ||
| 73237-02020B0 |
NDE120,ZZE12#..JPP W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1# |
1 | ||
| 73237-02020B0 |
CDE120,ZZE12#..JPP..TERRA W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1#,8# |
1 | ||
| 73237-02010B2 |
NDE120,ZZE12#..JPP LT.GRAY,TRIM1# |
1 | ||
| 73136A - COVER, SHOULDER BELT ANCHOR, LH | ||||
| 73237-02020B0 |
NDE120,ZZE12#..JPP W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1# |
1 | ||
| 73237-02020B0 |
CDE120,ZZE12#..JPP..TERRA W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1#,8# |
1 | ||
| 73237-02010B2 |
NDE120,ZZE12#..JPP LT.GRAY,TRIM1# |
1 | ||
| 73237-02010B2 |
CDE120,ZZE12#..JPP..TERRA LT.GRAY,TRIM1#,8# |
1 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-33020B3 |
CDE120,ZZE12#..JPP..TERRA LT.GRAY,TRIM1#,8# |
2 | ||
| 73178-33020B3 |
NDE120,ZZE12#..JPP LT.GRAY,TRIM1# |
2 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-33020B3 |
CDE120,ZZE12#..JPP..TERRA LT.GRAY,TRIM1#,8# |
2 | ||
| 73178-33020B3 |
NDE120,ZZE12#..JPP LT.GRAY,TRIM1# |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-52040B0 |
CDE120,ZZE12#..JPP..TERRA LT.GRAY,TRIM1#,8# |
2 | ||
| 73200-52040B0 |
NDE120,ZZE12#..JPP LT.GRAY,TRIM1# |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-52040B0 |
CDE120,ZZE12#..JPP..TERRA LT.GRAY,TRIM1#,8# |
2 | ||
| 73200-52040B0 |
NDE120,ZZE12#..JPP LT.GRAY,TRIM1# |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-02120C0 |
CDE120,ZZE12#..JPP..TERRA BLACK,TRIM1#,8# |
1 | ||
| 73210-02121C1 |
CDE120,ZZE12#..JPP..TERRA BLACK,TRIM1#,8# |
1 | ||
| 73210-12A30C1 |
NDE120,ZZE12#..JPP BLACK,TRIM1# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33020 |
CDE120,ZZE12#..JPP GRAY |
1 | ||
| 73219-33010 |
CDE120,ZZE12#..JPP BLACK |
1 | ||
| 73219-33020 |
NDE120,ZZE12#..JPP GRAY |
1 | ||
| 73219-33030 |
NDE120,ZZE12#..JPP BEIGE |
1 | ||
| 73219-33010 |
NDE120,ZZE12#..JPP BLACK |
1 | ||
| 73219-33030 |
CDE120,ZZE12#..JPP BEIGE |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-02111C1 |
CDE120,ZZE12#..JPP..TERRA BLACK,TRIM1#,8# |
1 | ||
| 73220-02110C0 |
CDE120,ZZE12#..JPP..TERRA BLACK,TRIM1#,8# |
1 | ||
| 73220-1A270C1 |
NDE120,ZZE12#..JPP BLACK,TRIM1# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-12730B0 |
ZZE12#..JPP..RHD DK.GRAY,TRIM1# |
1 | ||
| 73230-02120B0 |
CDE120,ZZE12#..JPP..TERRA DK.GRAY,TRIM1#,8# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-12740B0 |
ZZE12#..JPP..RHD DK.GRAY,TRIM1# |
1 | ||
| 73230-02120B0 |
CDE120,ZZE12#..JPP..TERRA DK.GRAY,TRIM1#,8# |
1 | ||
| Common parts | ||||
| 90105-11036 | ||||
| 90109-11028 | ||||
| 90109-11052 | ||||
| 90179-11010 | ||||
| 90206-W0001 | ||||
| 91511-B0614 | ||||
| 91512-G1025 | ||||

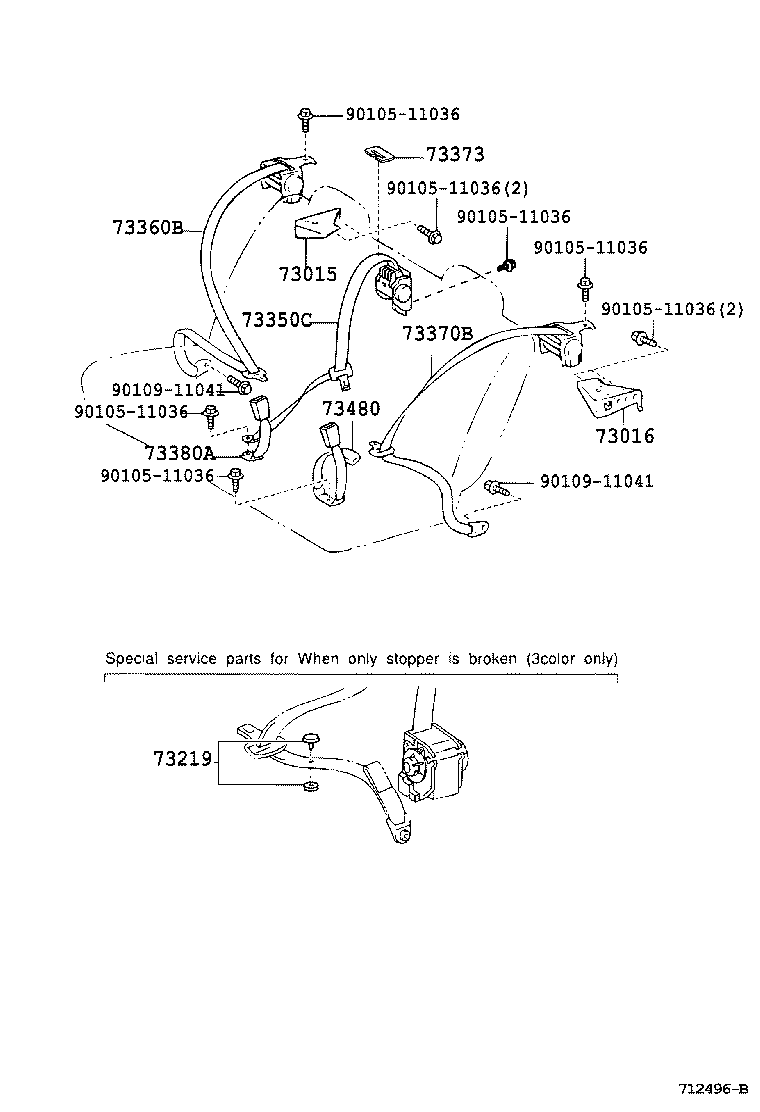

ILLUST NO. 2 OF 2(0209- )JPP
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73015 - BRACKET SUB-ASSY, BELT OUTER ANCHOR, RH | ||||
| 73015-12020 |
NDE120,ZZE12#..JPP |
1 | ||
| 73015-12020 |
CDE120,ZZE12#..JPP |
1 | ||
| 73016 - BRACKET SUB-ASSY, BELT OUTER ANCHOR, LH | ||||
| 73016-12010 |
NDE120,ZZE12#..JPP |
1 | ||
| 73016-12010 |
CDE120,ZZE12#..JPP |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33020 |
CDE120,ZZE12#..JPP GRAY |
1 | ||
| 73219-33010 |
CDE120,ZZE12#..JPP BLACK |
1 | ||
| 73219-33020 |
NDE120,ZZE12#..JPP GRAY |
1 | ||
| 73219-33030 |
NDE120,ZZE12#..JPP BEIGE |
1 | ||
| 73219-33010 |
NDE120,ZZE12#..JPP BLACK |
1 | ||
| 73219-33030 |
CDE120,ZZE12#..JPP BEIGE |
1 | ||
| 73350C - BELT ASSY, REAR SEAT, OUTER CENTER | ||||
| 73350-02040C1 |
CDE120,ZZE12#..JPP..TERRA BLACK,TRIM1#,8# |
1 | ||
| 73350-12250C0 |
NDE120,ZZE12#..JPP BLACK,TRIM1# |
1 | ||
| 73360B - BELT ASSY, REAR SEAT, OUTER | ||||
| 73360-02170C1 |
CDE120,ZZE12#..JPP..TERRA BLACK,TRIM1#,8# |
1 | ||
| 73360-12790C0 |
NDE120,ZZE12#..JPP BLACK,TRIM1# |
1 | ||
| 73370B - BELT ASSY, REAR SEAT, OUTER | ||||
| 73360-12790C0 |
NDE120,ZZE12#..JPP BLACK,TRIM1# |
1 | ||
| 73360-02170C1 |
CDE120,ZZE12#..JPP..TERRA BLACK,TRIM1#,8# |
1 | ||
| 73373 - COVER, REAR SEAT SHOULDER BELT | ||||
| 73373-02030B0 |
NDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 73373-02030B0 |
CDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 73373-02030J0 |
CDE120,ZZE12#..JPP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 73380A - BELT ASSY, REAR SEAT, INNER | ||||
| 73380-02030C1 |
CDE120,ZZE12#..JPP..TERRA BLACK,TRIM1#,8# |
1 | ||
| 73380-12420C0 |
NDE120,ZZE12#..JPP BLACK,TRIM1# |
1 | ||
| 73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH | ||||
| 73480-12220C0 |
NDE120,ZZE12#..JPP BLACK,TRIM1# |
1 | ||
| 73480-02110C1 |
CDE120,ZZE12#..JPP..TERRA BLACK,TRIM1#,8# |
1 | ||
| Common parts | ||||
| 90105-11036 | ||||
| 90109-11041 | ||||
