ZZE121R-AHMDKW (2002)
Toyota Corolla Hb (Jpp)

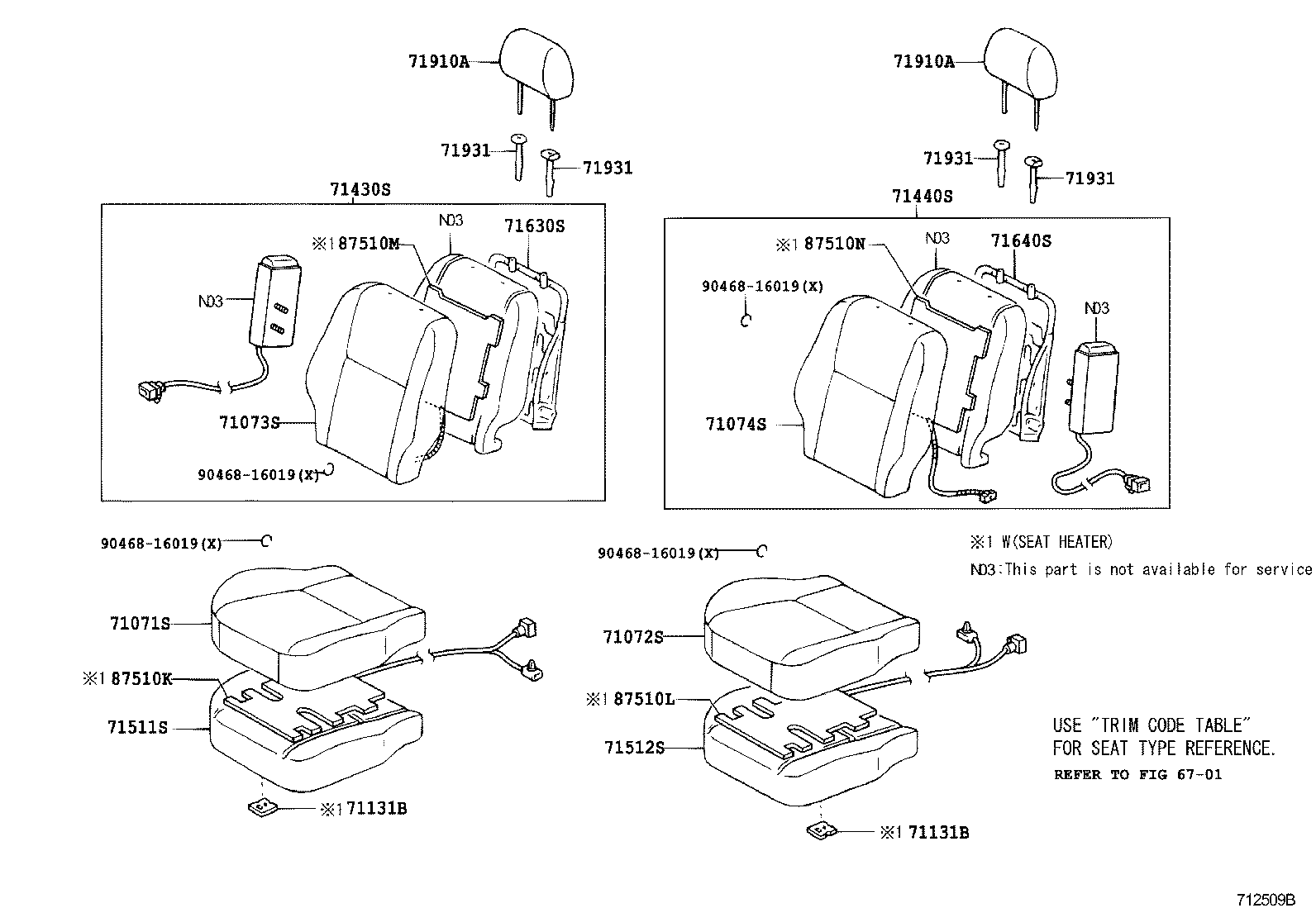

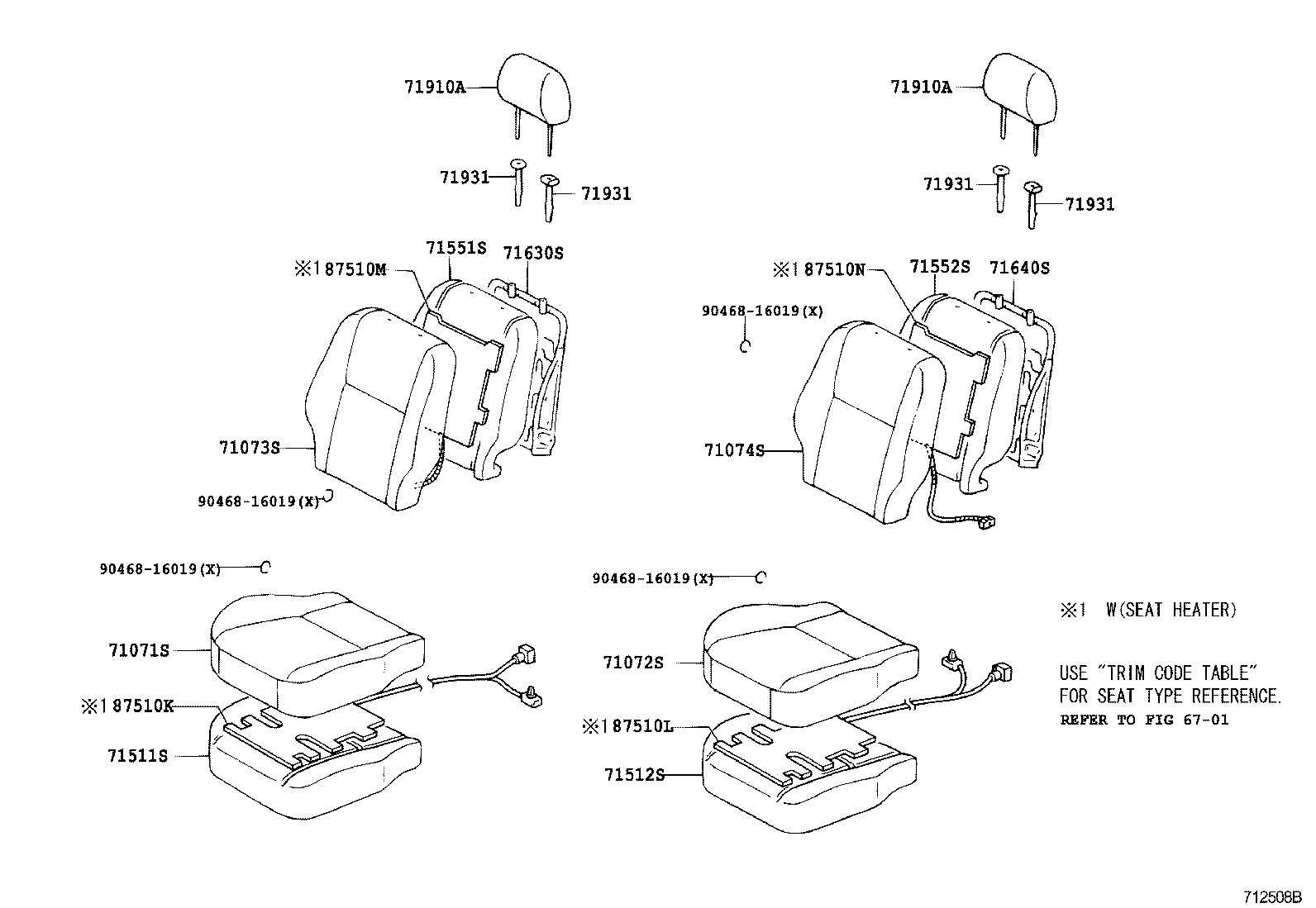

ILLUST NO. 1 OF 2(0209-0405)JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1N720B0 |
CDE120,ZZE12#..JPP..TERRA DK.GRAY,TRIM1# |
1 | ||
| 71071-1N720J0 |
CDE120,ZZE12#..JPP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 71071-1N780J0 |
CDE120,ZZE12#..JPP..TERRA W(SRS SIDE AIR BAG),DK.BLUE,TRIM8# |
1 | ||
| 71071-12A21B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71071-12A20B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71071-1N780B0 |
CDE120,ZZE12#..JPP..TERRA W(SRS SIDE AIR BAG),DK.GRAY,TRIM1# |
1 | ||
| 71071-12A01B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71071-12A00B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-1N720B0 |
CDE120,ZZE12#..JPP..TERRA DK.GRAY,TRIM1# |
1 | ||
| 71072-1K570B0 |
CDE120,ZZE12#..JPP..TERRA W(SRS SIDE AIR BAG),DK.GRAY,TRIM1# |
1 | ||
| 71071-1N720J0 |
CDE120,ZZE12#..JPP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 71072-12A20B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71072-1K570J0 |
CDE120,ZZE12#..JPP..TERRA W(SRS SIDE AIR BAG),DK.BLUE,TRIM8# |
1 | ||
| 71072-12A21B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71072-12A01B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71072-12A00B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1N550B0 |
ZZE12#..JPP..TERRA DK.GRAY,TRIM1# |
1 | ||
| 71073-1N550J0 |
ZZE12#..JPP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 71073-1N560B0 |
CDE120,ZZE12#..JPP..TERRA W(SRS SIDE AIR BAG),DK.GRAY,TRIM1# |
1 | ||
| 71073-1N560J0 |
CDE120,ZZE12#..JPP..TERRA W(SRS SIDE AIR BAG),DK.BLUE,TRIM8# |
1 | ||
| 71073-12A10B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71073-12A11B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71073-1N671B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71073-1N670B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-1N550B0 |
ZZE12#..JPP..TERRA DK.GRAY,TRIM1# |
1 | ||
| 71074-1L080J0 |
CDE120,ZZE12#..JPP..TERRA W(SRS SIDE AIR BAG),DK.BLUE,TRIM8# |
1 | ||
| 71074-1L080B0 |
CDE120,ZZE12#..JPP..TERRA W(SRS SIDE AIR BAG),DK.GRAY,TRIM1# |
1 | ||
| 71074-12A20B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71073-1N550J0 |
ZZE12#..JPP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 71074-12A21B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71074-12A00B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71074-12A01B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-12840 |
ZZE12#..JPP..RHD |
1 | ||
| 71511-1A080 |
CDE120,ZZE12#..JPP |
2 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-1A080 |
CDE120,ZZE12#..JPP |
2 | ||
| 71502-12030 |
ZZE12#..JPP..RHD |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-12790 |
CDE120,ZZE12#..JPP |
2 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-12790 |
CDE120,ZZE12#..JPP |
2 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-02070 |
CDE120,ZZE12#..JPP |
1 | ||
| 71630-12730 |
CDE120,ZZE12#..JPP |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-02040 |
CDE120,ZZE12#..JPP |
1 | ||
| 71640-12520 |
CDE120,ZZE12#..JPP |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1E240B0 |
CDE120,ZZE12#..JPP..TERRA DARK GRAY,TRIM1# |
2 | ||
| 71910-12A20B0 |
NDE120,ZZE12#..JPP SEAT = TYPE B OR TYPE C OR TYPE D-*104,DK.GRAY,TRIM1# |
2 | ||
| 71910-1E240B2 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
2 | ||
| 71910-1E240J0 |
CDE120,ZZE12#..JPP..TERRA DK.BLUE,TRIM8# |
2 | ||
| 71910-12A21B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE B OR TYPE C OR TYPE D-*104,DK.GRAY,TRIM1# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1E240B0 |
CDE120,ZZE12#..JPP..TERRA DARK GRAY,TRIM1# |
2 | ||
| 71910-12A20B0 |
NDE120,ZZE12#..JPP SEAT = TYPE B OR TYPE C OR TYPE D-*104,DK.GRAY,TRIM1# |
2 | ||
| 71910-1E240B2 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
2 | ||
| 71910-1E240J0 |
CDE120,ZZE12#..JPP..TERRA DK.BLUE,TRIM8# |
2 | ||
| 71910-12A21B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE B OR TYPE C OR TYPE D-*104,DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010J0 |
CDE120,ZZE12#..JPP..TERRA W(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71930-47010B2 |
CDE120,ZZE12#..JPP W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NDE120,ZZE12#..JPP W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010J0 |
CDE120,ZZE12#..JPP..TERRA W/O(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71931-47010B2 |
CDE120,ZZE12#..JPP W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NDE120,ZZE12#..JPP W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010J0 |
CDE120,ZZE12#..JPP..TERRA W(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71930-47010B2 |
CDE120,ZZE12#..JPP W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NDE120,ZZE12#..JPP W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010J0 |
CDE120,ZZE12#..JPP..TERRA W/O(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71931-47010B2 |
CDE120,ZZE12#..JPP W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NDE120,ZZE12#..JPP W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010J0 |
CDE120,ZZE12#..JPP..TERRA W(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71930-47010B2 |
CDE120,ZZE12#..JPP W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NDE120,ZZE12#..JPP W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010J0 |
CDE120,ZZE12#..JPP..TERRA W/O(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71931-47010B2 |
CDE120,ZZE12#..JPP W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NDE120,ZZE12#..JPP W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010J0 |
CDE120,ZZE12#..JPP..TERRA W(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71930-47010B2 |
CDE120,ZZE12#..JPP W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NDE120,ZZE12#..JPP W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010J0 |
CDE120,ZZE12#..JPP..TERRA W/O(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71931-47010B2 |
CDE120,ZZE12#..JPP W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NDE120,ZZE12#..JPP W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90468-16019 | ||||
| Linked diagrams | ||||
| 6701 | ||||

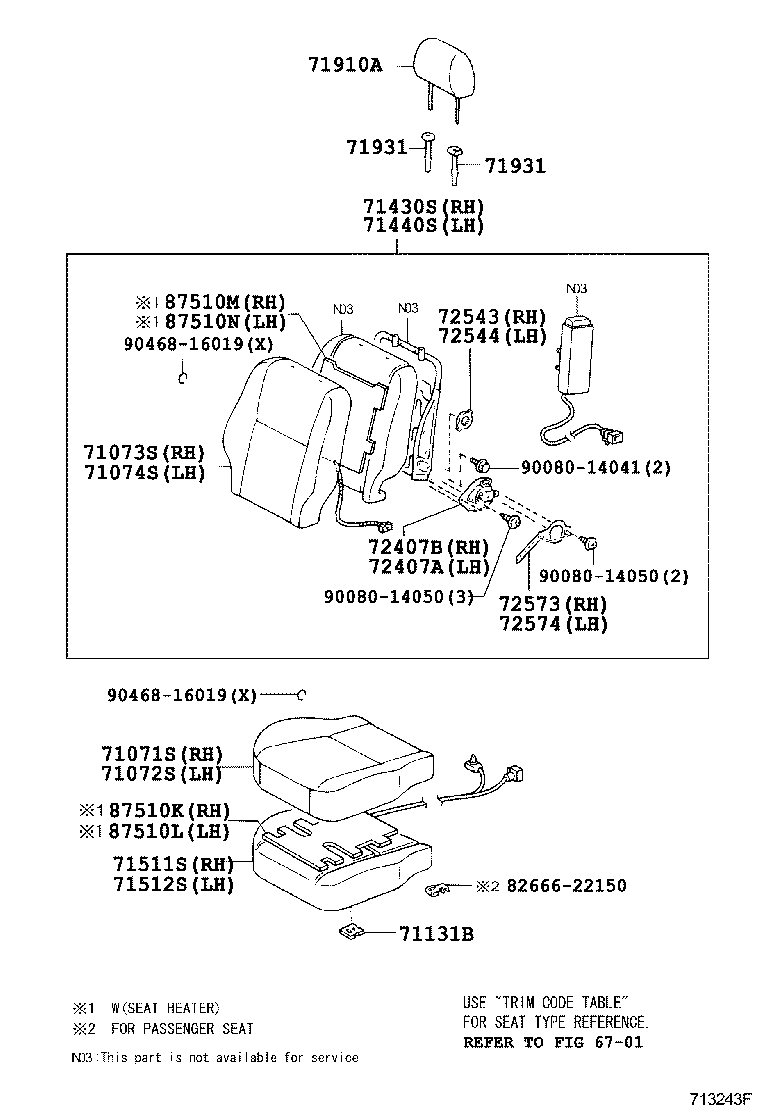

ILLUST NO. 1 OF 2(0209-0405)JPP
W(SRS SIDE AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1N720B0 |
CDE120,ZZE12#..JPP..TERRA DK.GRAY,TRIM1# |
1 | ||
| 71071-1N720J0 |
CDE120,ZZE12#..JPP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 71071-1N780J0 |
CDE120,ZZE12#..JPP..TERRA W(SRS SIDE AIR BAG),DK.BLUE,TRIM8# |
1 | ||
| 71071-12A21B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71071-12A20B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71071-1N780B0 |
CDE120,ZZE12#..JPP..TERRA W(SRS SIDE AIR BAG),DK.GRAY,TRIM1# |
1 | ||
| 71071-12A01B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71071-12A00B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-1N720B0 |
CDE120,ZZE12#..JPP..TERRA DK.GRAY,TRIM1# |
1 | ||
| 71072-1K570B0 |
CDE120,ZZE12#..JPP..TERRA W(SRS SIDE AIR BAG),DK.GRAY,TRIM1# |
1 | ||
| 71071-1N720J0 |
CDE120,ZZE12#..JPP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 71072-12A20B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71072-1K570J0 |
CDE120,ZZE12#..JPP..TERRA W(SRS SIDE AIR BAG),DK.BLUE,TRIM8# |
1 | ||
| 71072-12A21B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71072-12A01B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71072-12A00B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1N550B0 |
ZZE12#..JPP..TERRA DK.GRAY,TRIM1# |
1 | ||
| 71073-1N550J0 |
ZZE12#..JPP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 71073-1N560B0 |
CDE120,ZZE12#..JPP..TERRA W(SRS SIDE AIR BAG),DK.GRAY,TRIM1# |
1 | ||
| 71073-1N560J0 |
CDE120,ZZE12#..JPP..TERRA W(SRS SIDE AIR BAG),DK.BLUE,TRIM8# |
1 | ||
| 71073-12A10B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71073-12A11B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71073-1N671B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71073-1N670B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-1N550B0 |
ZZE12#..JPP..TERRA DK.GRAY,TRIM1# |
1 | ||
| 71074-1L080J0 |
CDE120,ZZE12#..JPP..TERRA W(SRS SIDE AIR BAG),DK.BLUE,TRIM8# |
1 | ||
| 71074-1L080B0 |
CDE120,ZZE12#..JPP..TERRA W(SRS SIDE AIR BAG),DK.GRAY,TRIM1# |
1 | ||
| 71074-12A20B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71073-1N550J0 |
ZZE12#..JPP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 71074-12A21B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71074-12A00B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71074-12A01B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71131B - PLATE, FRONT SEAT CUSHION, NO.1 | ||||
| 71131-13020 |
NDE120,ZZE12#..JPP |
2 | ||
| 71131B - PLATE, FRONT SEAT CUSHION, NO.1 | ||||
| 71131-13020 |
NDE120,ZZE12#..JPP |
2 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1N090B0 |
CDE120,ZZE12#..JPP..TERRA W(SRS SIDE AIR BAG),DK.GRAY,TRIM1# |
1 | ||
| 71430-1N090J0 |
CDE120,ZZE12#..JPP..TERRA W(SRS SIDE AIR BAG),DK.BLUE,TRIM8# |
1 | ||
| 71040-12720B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71040-12700B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1L640J0 |
CDE120,ZZE12#..JPP..TERRA W(SRS SIDE AIR BAG),DK.BLUE,TRIM8# |
1 | ||
| 71440-1L640B0 |
CDE120,ZZE12#..JPP..TERRA W(SRS SIDE AIR BAG),DK.GRAY,TRIM1# |
1 | ||
| 71440-12A00B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71440-12A20B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-12840 |
ZZE12#..JPP..RHD |
1 | ||
| 71511-1A080 |
CDE120,ZZE12#..JPP |
2 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-1A080 |
CDE120,ZZE12#..JPP |
2 | ||
| 71502-12030 |
ZZE12#..JPP..RHD |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-02070 |
CDE120,ZZE12#..JPP |
1 | ||
| 71630-12730 |
CDE120,ZZE12#..JPP |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-02040 |
CDE120,ZZE12#..JPP |
1 | ||
| 71640-12520 |
CDE120,ZZE12#..JPP |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1E240B0 |
CDE120,ZZE12#..JPP..TERRA DARK GRAY,TRIM1# |
2 | ||
| 71910-12A20B0 |
NDE120,ZZE12#..JPP SEAT = TYPE B OR TYPE C OR TYPE D-*104,DK.GRAY,TRIM1# |
2 | ||
| 71910-1E240B2 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
2 | ||
| 71910-1E240J0 |
CDE120,ZZE12#..JPP..TERRA DK.BLUE,TRIM8# |
2 | ||
| 71910-12A21B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE B OR TYPE C OR TYPE D-*104,DK.GRAY,TRIM1# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1E240B0 |
CDE120,ZZE12#..JPP..TERRA DARK GRAY,TRIM1# |
2 | ||
| 71910-12A20B0 |
NDE120,ZZE12#..JPP SEAT = TYPE B OR TYPE C OR TYPE D-*104,DK.GRAY,TRIM1# |
2 | ||
| 71910-1E240B2 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
2 | ||
| 71910-1E240J0 |
CDE120,ZZE12#..JPP..TERRA DK.BLUE,TRIM8# |
2 | ||
| 71910-12A21B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE B OR TYPE C OR TYPE D-*104,DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010J0 |
CDE120,ZZE12#..JPP..TERRA W(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71930-47010B2 |
CDE120,ZZE12#..JPP W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NDE120,ZZE12#..JPP W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010J0 |
CDE120,ZZE12#..JPP..TERRA W/O(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71931-47010B2 |
CDE120,ZZE12#..JPP W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NDE120,ZZE12#..JPP W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010J0 |
CDE120,ZZE12#..JPP..TERRA W(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71930-47010B2 |
CDE120,ZZE12#..JPP W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NDE120,ZZE12#..JPP W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010J0 |
CDE120,ZZE12#..JPP..TERRA W/O(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71931-47010B2 |
CDE120,ZZE12#..JPP W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NDE120,ZZE12#..JPP W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010J0 |
CDE120,ZZE12#..JPP..TERRA W(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71930-47010B2 |
CDE120,ZZE12#..JPP W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NDE120,ZZE12#..JPP W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010J0 |
CDE120,ZZE12#..JPP..TERRA W/O(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71931-47010B2 |
CDE120,ZZE12#..JPP W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NDE120,ZZE12#..JPP W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010J0 |
CDE120,ZZE12#..JPP..TERRA W(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71930-47010B2 |
CDE120,ZZE12#..JPP W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NDE120,ZZE12#..JPP W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010J0 |
CDE120,ZZE12#..JPP..TERRA W/O(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71931-47010B2 |
CDE120,ZZE12#..JPP W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NDE120,ZZE12#..JPP W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90468-16019 | ||||
| Linked diagrams | ||||
| 6701 | ||||

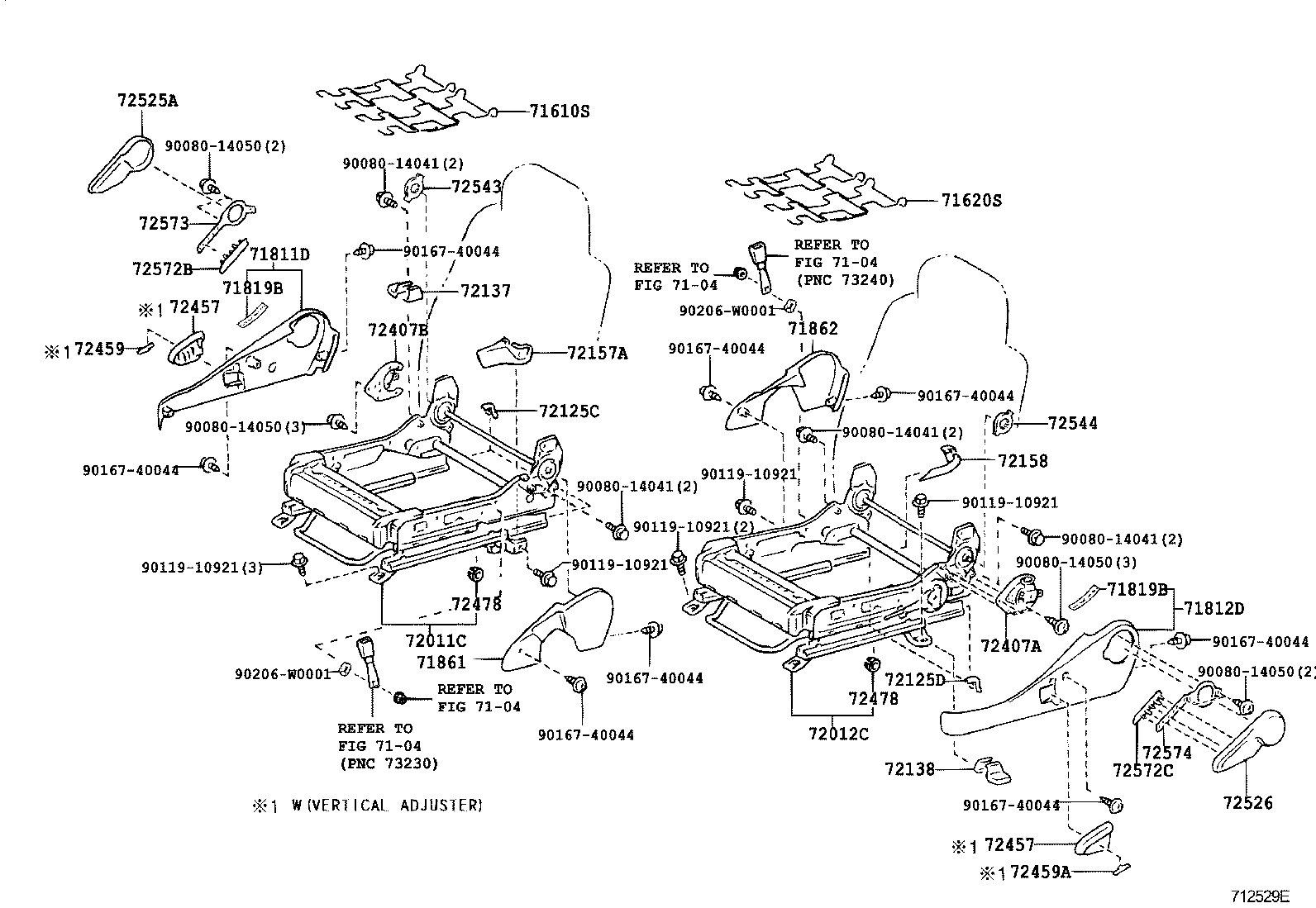

ILLUST NO. 2 OF 2(0209-0405)JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71051-02010 |
NDE120,ZZE12#..JPP |
1 | ||
| 71051-02010 |
CDE120,ZZE12#..JPP |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71051-02010 |
NDE120,ZZE12#..JPP |
1 | ||
| 71051-02010 |
CDE120,ZZE12#..JPP |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-02100B0 |
ZZE12#..JPP..RHD DK.GRAY,TRIM1# |
1 | ||
| 71811-02120B0 |
ZZE12#..JPP..RHD W(SRS SIDE AIR BAG),DK.GRAY,TRIM1# |
1 | ||
| 71811-02120B0 |
ZZE12#..JPP..RHD DK.GRAY,TRIM1# |
1 | ||
| 71811-02120J0 |
ZZE12#..JPP..RHD..TERRA W(SRS SIDE AIR BAG),DK.BLUE,TRIM8# |
1 | ||
| 71811-02100J0 |
ZZE12#..JPP..RHD..TERRA DK.BLUE,TRIM8# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-02110J0 |
ZZE12#..JPP..RHD..TERRA DK.BLUE,TRIM8# |
1 | ||
| 71812-02110B0 |
ZZE12#..JPP..RHD DK.GRAY,TRIM1# |
1 | ||
| 71812-02130B0 |
ZZE12#..JPP..RHD W(SRS SIDE AIR BAG),DK.GRAY,TRIM1# |
1 | ||
| 71812-02130B0 |
ZZE12#..JPP..RHD DK.GRAY,TRIM1# |
1 | ||
| 71812-02130J0 |
ZZE12#..JPP..RHD..TERRA W(SRS SIDE AIR BAG),DK.BLUE,TRIM8# |
1 | ||
| 71819B - LABEL, SIDE AIR BAG NAME | ||||
| 71819-12020P3 |
NDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
2 | ||
| 71819-12020 |
CDE120,ZZE12#..JPP |
2 | ||
| 71819B - LABEL, SIDE AIR BAG NAME | ||||
| 71819-12020P3 |
NDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
2 | ||
| 71819-12020 |
CDE120,ZZE12#..JPP |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-02050B0 |
NDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 71861-02050J0 |
CDE120,ZZE12#..JPP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 71861-02050B0 |
CDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-02050B0 |
NDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 71862-02050B0 |
CDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 71862-02050J0 |
CDE120,ZZE12#..JPP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 72010-0W030 |
ZZE12#..JPP..RHD |
1 | ||
| 72010-0W020 |
ZZE12#..JPP..RHD |
1 | ||
| 72010-0W021 |
ZZE12#..JPP..RHD |
1 | ||
| 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH | ||||
| 72020-0W011 |
ZZE12#..JPP..RHD |
1 | ||
| 72020-0W010 |
ZZE12#..JPP..RHD |
1 | ||
| 72020-0W030 |
ZZE12#..JPP..RHD |
1 | ||
| 72125C - COVER, SEAT TRACK LOCK PLATE, NO.1 | ||||
| 72125-02010 |
NDE120,ZZE12#..JPP |
2 | ||
| 72125-02010 |
CDE120,ZZE12#..JPP |
4 | ||
| 72125D - COVER, SEAT TRACK, UPPER REAR NO.2 | ||||
| 72125-02010 |
NDE120,ZZE12#..JPP |
2 | ||
| 72125-02010 |
CDE120,ZZE12#..JPP |
4 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-02040 |
NDE120,ZZE12#..JPP |
1 | ||
| 72137-02040 |
CDE120,ZZE12#..JPP |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-02040 |
CDE120,ZZE12#..JPP |
1 | ||
| 72138-02040 |
NDE120,ZZE12#..JPP |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-02040 |
NDE120,ZZE12#..JPP |
1 | ||
| 72157-02040 |
CDE120,ZZE12#..JPP |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-02040 |
CDE120,ZZE12#..JPP |
1 | ||
| 72158-02040 |
NDE120,ZZE12#..JPP |
1 | ||
| 72407A - HOUSING SUB-ASSY, FRONT SEAT RECLINING, LH | ||||
| 72407-02020 |
NDE120,ZZE12#..JPP |
1 | ||
| 72407-02020 |
CDE120,ZZE12#..JPP |
1 | ||
| 72407B - HOUSING SUB-ASSY, FRONT SEAT RECLINING RH | ||||
| 72407-02010 |
CDE120,ZZE12#..JPP |
1 | ||
| 72407-02010 |
NDE120,ZZE12#..JPP |
1 | ||
| 72457 - KNOB, VERTICAL SEAT ADJUSTER | ||||
| 72457-02030J0 |
ZZE12#..JPP..RHD..TERRA DK.BLUE,TRIM8# |
1 | ||
| 72457-02030B0 |
ZZE12#..JPP..RHD DK.GRAY,TRIM1# |
1 | ||
| 72457-0F010B0 |
ZZE12#..JPP..RHD DK.GRAY,TRIM1# |
1 | ||
| 72457 - KNOB, VERTICAL SEAT ADJUSTER | ||||
| 72457-02030J0 |
ZZE12#..JPP..RHD..TERRA DK.BLUE,TRIM8# |
1 | ||
| 72457-02030B0 |
ZZE12#..JPP..RHD DK.GRAY,TRIM1# |
1 | ||
| 72457-0F010B0 |
ZZE12#..JPP..RHD DK.GRAY,TRIM1# |
1 | ||
| 72459 - CAP, VERTICAL SEAT ADJUSTER KNOB | ||||
| 72459-02010J0 |
ZZE12#..JPP..RHD..TERRA DK.BLUE,TRIM8# |
1 | ||
| 72459-02010B1 |
ZZE12#..JPP..RHD DK.GRAY,TRIM1# |
1 | ||
| 72459-02010B1 |
ZZE12#..JPP..RHD DK.GRAY,TRIM1# |
1 | ||
| 72478 - BUSH, VERTICAL ADJUSTER | ||||
| 72478-02010 |
ZZE12#..JPP..RHD..TERRA |
2 | ||
| 72478-02010 |
CDE120,ZZE12#..JPP |
4 | ||
| 72478 - BUSH, VERTICAL ADJUSTER | ||||
| 72478-02010 |
ZZE12#..JPP..RHD..TERRA |
2 | ||
| 72478-02010 |
CDE120,ZZE12#..JPP |
4 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-02041B0 |
CDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 72525-02040J0 |
CDE120,ZZE12#..JPP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 72525-02041J0 |
CDE120,ZZE12#..JPP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 72525-0F010B0 |
NDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 72525-02040B0 |
CDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-02040B0 |
CDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 72526-02040J0 |
CDE120,ZZE12#..JPP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 72526-0F010B0 |
NDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 72526-02041J0 |
CDE120,ZZE12#..JPP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 72526-02041B0 |
CDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 72543 - PLATE, RECLINING CONTROL, RH | ||||
| 72543-02010 |
NDE120,ZZE12#..JPP |
1 | ||
| 72543-02010 |
CDE120,ZZE12#..JPP |
2 | ||
| 72544 - PLATE, RECLINING CONTROL, LH | ||||
| 72543-02010 |
CDE120,ZZE12#..JPP |
2 | ||
| 72543-02010 |
NDE120,ZZE12#..JPP |
1 | ||
| 72572B - CAP, RECLINING ADJUSTER KNOB, RH | ||||
| 72572-02010 |
CDE120,ZZE12#..JPP |
1 | ||
| 72572-02010 |
NDE120,ZZE12#..JPP |
1 | ||
| 72572C - CAP, RECLINING ADJUSTER KNOB, LH | ||||
| 72572-02020 |
CDE120,ZZE12#..JPP |
1 | ||
| 72572-02020 |
NDE120,ZZE12#..JPP |
1 | ||
| 72573 - LEVER, RECLINING CONTROL, RH | ||||
| 72573-02010 |
CDE120,ZZE12#..JPP |
1 | ||
| 72573-02010 |
NDE120,ZZE12#..JPP |
1 | ||
| 72574 - LEVER, RECLINING CONTROL, LH | ||||
| 72574-02010 |
CDE120,ZZE12#..JPP |
1 | ||
| 72574-02010 |
NDE120,ZZE12#..JPP |
1 | ||
| Common parts | ||||
| 90080-14041 | ||||
| 90080-14050 | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| 90206-W0001 | ||||
| Linked diagrams | ||||
| 7104 | ||||

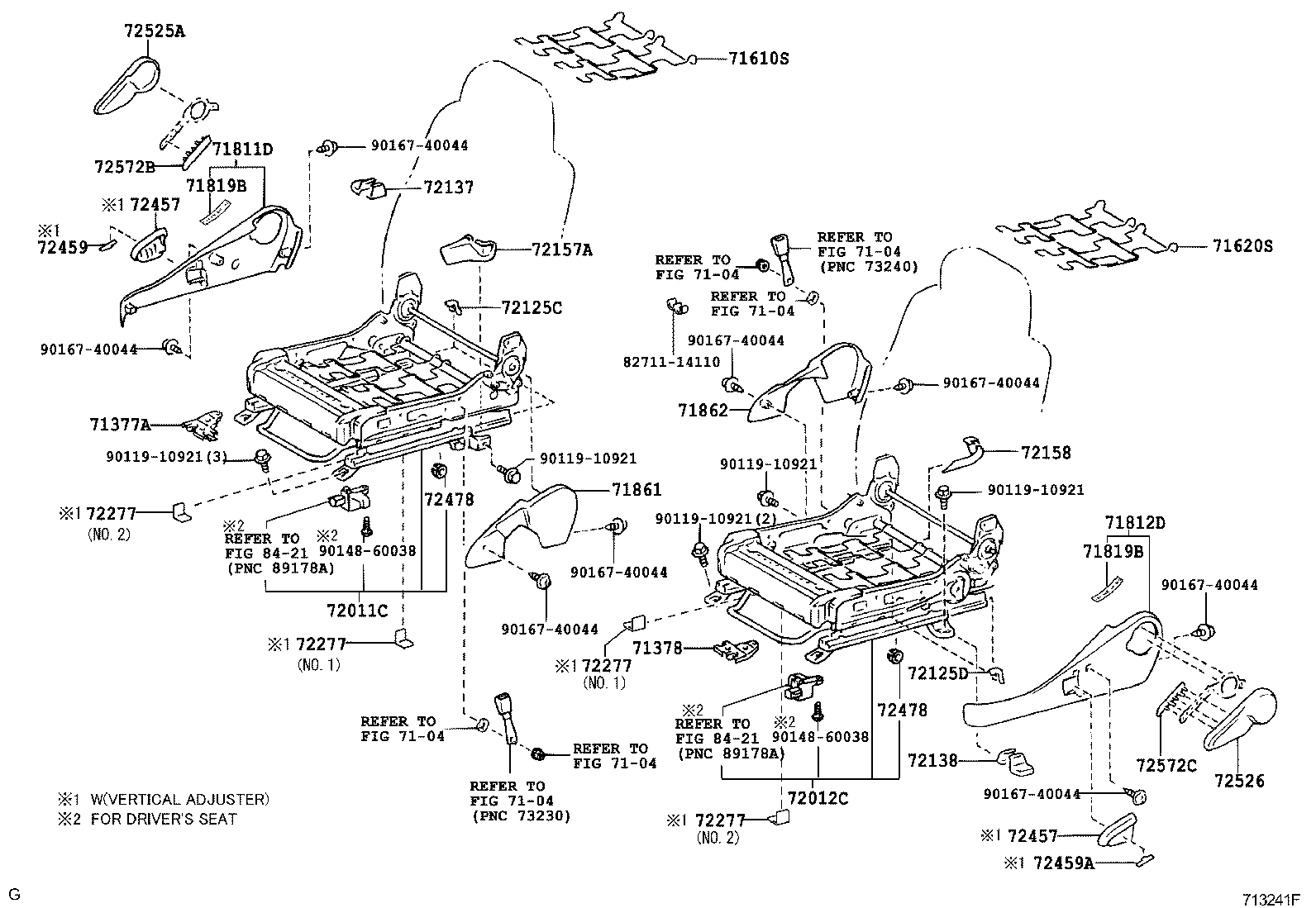

ILLUST NO. 2 OF 2(0405- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71377A - BRACKET, FRONT SEAT, RH | ||||
| 71377-12010 |
NDE120,ZZE12#..JPP |
1 | ||
| 71378 - BRACKET, FRONT SEAT, LH | ||||
| 71377-12010 |
NDE120,ZZE12#..JPP |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71051-02010 |
NDE120,ZZE12#..JPP |
1 | ||
| 71051-02010 |
CDE120,ZZE12#..JPP |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71051-02010 |
NDE120,ZZE12#..JPP |
1 | ||
| 71051-02010 |
CDE120,ZZE12#..JPP |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-02100B0 |
ZZE12#..JPP..RHD DK.GRAY,TRIM1# |
1 | ||
| 71811-02120B0 |
ZZE12#..JPP..RHD W(SRS SIDE AIR BAG),DK.GRAY,TRIM1# |
1 | ||
| 71811-02120B0 |
ZZE12#..JPP..RHD DK.GRAY,TRIM1# |
1 | ||
| 71811-02120J0 |
ZZE12#..JPP..RHD..TERRA W(SRS SIDE AIR BAG),DK.BLUE,TRIM8# |
1 | ||
| 71811-02100J0 |
ZZE12#..JPP..RHD..TERRA DK.BLUE,TRIM8# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-02110J0 |
ZZE12#..JPP..RHD..TERRA DK.BLUE,TRIM8# |
1 | ||
| 71812-02110B0 |
ZZE12#..JPP..RHD DK.GRAY,TRIM1# |
1 | ||
| 71812-02130B0 |
ZZE12#..JPP..RHD W(SRS SIDE AIR BAG),DK.GRAY,TRIM1# |
1 | ||
| 71812-02130B0 |
ZZE12#..JPP..RHD DK.GRAY,TRIM1# |
1 | ||
| 71812-02130J0 |
ZZE12#..JPP..RHD..TERRA W(SRS SIDE AIR BAG),DK.BLUE,TRIM8# |
1 | ||
| 71819B - LABEL, SIDE AIR BAG NAME | ||||
| 71819-12020P3 |
NDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
2 | ||
| 71819-12020 |
CDE120,ZZE12#..JPP |
2 | ||
| 71819B - LABEL, SIDE AIR BAG NAME | ||||
| 71819-12020P3 |
NDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
2 | ||
| 71819-12020 |
CDE120,ZZE12#..JPP |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-02050B0 |
NDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 71861-02050J0 |
CDE120,ZZE12#..JPP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 71861-02050B0 |
CDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-02050B0 |
NDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 71862-02050B0 |
CDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 71862-02050J0 |
CDE120,ZZE12#..JPP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 72010-0W030 |
ZZE12#..JPP..RHD |
1 | ||
| 72010-0W020 |
ZZE12#..JPP..RHD |
1 | ||
| 72010-0W021 |
ZZE12#..JPP..RHD |
1 | ||
| 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH | ||||
| 72020-0W011 |
ZZE12#..JPP..RHD |
1 | ||
| 72020-0W010 |
ZZE12#..JPP..RHD |
1 | ||
| 72020-0W030 |
ZZE12#..JPP..RHD |
1 | ||
| 72125C - COVER, SEAT TRACK LOCK PLATE, NO.1 | ||||
| 72125-02010 |
NDE120,ZZE12#..JPP |
2 | ||
| 72125-02010 |
CDE120,ZZE12#..JPP |
4 | ||
| 72125D - COVER, SEAT TRACK, UPPER REAR NO.2 | ||||
| 72125-02010 |
NDE120,ZZE12#..JPP |
2 | ||
| 72125-02010 |
CDE120,ZZE12#..JPP |
4 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-02040 |
NDE120,ZZE12#..JPP |
1 | ||
| 72137-02040 |
CDE120,ZZE12#..JPP |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-02040 |
NDE120,ZZE12#..JPP |
1 | ||
| 72138-02040 |
CDE120,ZZE12#..JPP |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-02040 |
NDE120,ZZE12#..JPP |
1 | ||
| 72157-02040 |
CDE120,ZZE12#..JPP |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-02040 |
CDE120,ZZE12#..JPP |
1 | ||
| 72158-02040 |
NDE120,ZZE12#..JPP |
1 | ||
| 72277 - PROTECTOR, SEAT SLIDE POSITION SENSOR, | ||||
| 72277-02020 |
NDE120,ZZE12#..JPP NO.1 |
1 | ||
| 72277-02030 |
NDE120,ZZE12#..JPP NO.2 |
1 | ||
| 72277 - PROTECTOR, SEAT SLIDE POSITION SENSOR, | ||||
| 72277-02020 |
NDE120,ZZE12#..JPP NO.1 |
1 | ||
| 72277-02030 |
NDE120,ZZE12#..JPP NO.2 |
1 | ||
| 72277 - PROTECTOR, SEAT SLIDE POSITION SENSOR, | ||||
| 72277-02020 |
NDE120,ZZE12#..JPP NO.1 |
1 | ||
| 72277-02030 |
NDE120,ZZE12#..JPP NO.2 |
1 | ||
| 72277 - PROTECTOR, SEAT SLIDE POSITION SENSOR, | ||||
| 72277-02020 |
NDE120,ZZE12#..JPP NO.1 |
1 | ||
| 72277-02030 |
NDE120,ZZE12#..JPP NO.2 |
1 | ||
| 72457 - KNOB, VERTICAL SEAT ADJUSTER | ||||
| 72457-02030J0 |
ZZE12#..JPP..RHD..TERRA DK.BLUE,TRIM8# |
1 | ||
| 72457-02030B0 |
ZZE12#..JPP..RHD DK.GRAY,TRIM1# |
1 | ||
| 72457-0F010B0 |
ZZE12#..JPP..RHD DK.GRAY,TRIM1# |
1 | ||
| 72457 - KNOB, VERTICAL SEAT ADJUSTER | ||||
| 72457-02030J0 |
ZZE12#..JPP..RHD..TERRA DK.BLUE,TRIM8# |
1 | ||
| 72457-02030B0 |
ZZE12#..JPP..RHD DK.GRAY,TRIM1# |
1 | ||
| 72457-0F010B0 |
ZZE12#..JPP..RHD DK.GRAY,TRIM1# |
1 | ||
| 72459 - CAP, VERTICAL SEAT ADJUSTER KNOB | ||||
| 72459-02010J0 |
ZZE12#..JPP..RHD..TERRA DK.BLUE,TRIM8# |
1 | ||
| 72459-02010B1 |
ZZE12#..JPP..RHD DK.GRAY,TRIM1# |
1 | ||
| 72459-02010B1 |
ZZE12#..JPP..RHD DK.GRAY,TRIM1# |
1 | ||
| 72478 - BUSH, VERTICAL ADJUSTER | ||||
| 72478-02010 |
ZZE12#..JPP..RHD..TERRA |
2 | ||
| 72478-02010 |
CDE120,ZZE12#..JPP |
4 | ||
| 72478 - BUSH, VERTICAL ADJUSTER | ||||
| 72478-02010 |
ZZE12#..JPP..RHD..TERRA |
2 | ||
| 72478-02010 |
CDE120,ZZE12#..JPP |
4 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-02041B0 |
CDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 72525-02040J0 |
CDE120,ZZE12#..JPP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 72525-02041J0 |
CDE120,ZZE12#..JPP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 72525-0F010B0 |
NDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 72525-02040B0 |
CDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-02040B0 |
CDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 72526-02040J0 |
CDE120,ZZE12#..JPP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 72526-0F010B0 |
NDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 72526-02041J0 |
CDE120,ZZE12#..JPP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 72526-02041B0 |
CDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 72572B - CAP, RECLINING ADJUSTER KNOB, RH | ||||
| 72572-02010 |
CDE120,ZZE12#..JPP |
1 | ||
| 72572-02010 |
NDE120,ZZE12#..JPP |
1 | ||
| 72572C - CAP, RECLINING ADJUSTER KNOB, LH | ||||
| 72572-02020 |
CDE120,ZZE12#..JPP |
1 | ||
| 72572-02020 |
NDE120,ZZE12#..JPP |
1 | ||
| Common parts | ||||
| 82711-14110 | ||||
| 90119-10921 | ||||
| 90148-60038 | ||||
| 90167-40044 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8421 | ||||
ILLUST NO. 1 OF 2(0405- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1N720B0 |
CDE120,ZZE12#..JPP..TERRA DK.GRAY,TRIM1# |
1 | ||
| 71071-1N720J0 |
CDE120,ZZE12#..JPP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 71071-1N780J0 |
CDE120,ZZE12#..JPP..TERRA W(SRS SIDE AIR BAG),DK.BLUE,TRIM8# |
1 | ||
| 71071-12A21B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71071-12A20B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71071-1N780B0 |
CDE120,ZZE12#..JPP..TERRA W(SRS SIDE AIR BAG),DK.GRAY,TRIM1# |
1 | ||
| 71071-12A01B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71071-12A00B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-1N720B0 |
CDE120,ZZE12#..JPP..TERRA DK.GRAY,TRIM1# |
1 | ||
| 71072-1K570B0 |
CDE120,ZZE12#..JPP..TERRA W(SRS SIDE AIR BAG),DK.GRAY,TRIM1# |
1 | ||
| 71071-1N720J0 |
CDE120,ZZE12#..JPP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 71072-12A20B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71072-1K570J0 |
CDE120,ZZE12#..JPP..TERRA W(SRS SIDE AIR BAG),DK.BLUE,TRIM8# |
1 | ||
| 71072-12A21B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71072-12A01B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71072-12A00B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1N550B0 |
ZZE12#..JPP..TERRA DK.GRAY,TRIM1# |
1 | ||
| 71073-1N550J0 |
ZZE12#..JPP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 71073-1N560B0 |
CDE120,ZZE12#..JPP..TERRA W(SRS SIDE AIR BAG),DK.GRAY,TRIM1# |
1 | ||
| 71073-1N560J0 |
CDE120,ZZE12#..JPP..TERRA W(SRS SIDE AIR BAG),DK.BLUE,TRIM8# |
1 | ||
| 71073-12A10B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71073-12A11B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71073-1N671B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71073-1N670B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-1N550B0 |
ZZE12#..JPP..TERRA DK.GRAY,TRIM1# |
1 | ||
| 71074-1L080J0 |
CDE120,ZZE12#..JPP..TERRA W(SRS SIDE AIR BAG),DK.BLUE,TRIM8# |
1 | ||
| 71074-1L080B0 |
CDE120,ZZE12#..JPP..TERRA W(SRS SIDE AIR BAG),DK.GRAY,TRIM1# |
1 | ||
| 71074-12A20B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71073-1N550J0 |
ZZE12#..JPP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 71074-12A21B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71074-12A00B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71074-12A01B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71131B - PLATE, FRONT SEAT CUSHION, NO.1 | ||||
| 71131-13020 |
NDE120,ZZE12#..JPP |
2 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1N090B0 |
CDE120,ZZE12#..JPP..TERRA W(SRS SIDE AIR BAG),DK.GRAY,TRIM1# |
1 | ||
| 71430-1N090J0 |
CDE120,ZZE12#..JPP..TERRA W(SRS SIDE AIR BAG),DK.BLUE,TRIM8# |
1 | ||
| 71040-12720B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71040-12700B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1L640J0 |
CDE120,ZZE12#..JPP..TERRA W(SRS SIDE AIR BAG),DK.BLUE,TRIM8# |
1 | ||
| 71440-1L640B0 |
CDE120,ZZE12#..JPP..TERRA W(SRS SIDE AIR BAG),DK.GRAY,TRIM1# |
1 | ||
| 71440-12A00B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71440-12A20B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-12840 |
ZZE12#..JPP..RHD |
1 | ||
| 71511-1A080 |
CDE120,ZZE12#..JPP |
2 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-1A080 |
CDE120,ZZE12#..JPP |
2 | ||
| 71502-12030 |
ZZE12#..JPP..RHD |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1E240B0 |
CDE120,ZZE12#..JPP..TERRA DARK GRAY,TRIM1# |
2 | ||
| 71910-12A20B0 |
NDE120,ZZE12#..JPP SEAT = TYPE B OR TYPE C OR TYPE D-*104,DK.GRAY,TRIM1# |
2 | ||
| 71910-1E240B2 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
2 | ||
| 71910-1E240J0 |
CDE120,ZZE12#..JPP..TERRA DK.BLUE,TRIM8# |
2 | ||
| 71910-12A21B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE B OR TYPE C OR TYPE D-*104,DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010J0 |
CDE120,ZZE12#..JPP..TERRA W(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71930-47010B2 |
CDE120,ZZE12#..JPP W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NDE120,ZZE12#..JPP W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010J0 |
CDE120,ZZE12#..JPP..TERRA W/O(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71931-47010B2 |
CDE120,ZZE12#..JPP W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NDE120,ZZE12#..JPP W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010J0 |
CDE120,ZZE12#..JPP..TERRA W(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71930-47010B2 |
CDE120,ZZE12#..JPP W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NDE120,ZZE12#..JPP W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010J0 |
CDE120,ZZE12#..JPP..TERRA W/O(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71931-47010B2 |
CDE120,ZZE12#..JPP W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NDE120,ZZE12#..JPP W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 72407A - HOUSING SUB-ASSY, FRONT SEAT RECLINING, LH | ||||
| 72407-02020 |
NDE120,ZZE12#..JPP |
1 | ||
| 72407-02020 |
CDE120,ZZE12#..JPP |
1 | ||
| 72407B - HOUSING SUB-ASSY, FRONT SEAT RECLINING RH | ||||
| 72407-02010 |
CDE120,ZZE12#..JPP |
1 | ||
| 72407-02010 |
NDE120,ZZE12#..JPP |
1 | ||
| 72543 - PLATE, RECLINING CONTROL, RH | ||||
| 72543-02010 |
NDE120,ZZE12#..JPP |
1 | ||
| 72543-02010 |
CDE120,ZZE12#..JPP |
2 | ||
| 72544 - PLATE, RECLINING CONTROL, LH | ||||
| 72543-02010 |
CDE120,ZZE12#..JPP |
2 | ||
| 72543-02010 |
NDE120,ZZE12#..JPP |
1 | ||
| 72573 - LEVER, RECLINING CONTROL, RH | ||||
| 72573-02010 |
CDE120,ZZE12#..JPP |
1 | ||
| 72573-02010 |
NDE120,ZZE12#..JPP |
1 | ||
| 72574 - LEVER, RECLINING CONTROL, LH | ||||
| 72574-02010 |
CDE120,ZZE12#..JPP |
1 | ||
| 72574-02010 |
NDE120,ZZE12#..JPP |
1 | ||
| Common parts | ||||
| 82666-22150 | ||||
| 90080-14041 | ||||
| 90080-14050 | ||||
| 90468-16019 | ||||
| Linked diagrams | ||||
| 6701 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
