Toyota Corolla hb (jpp) ZZE121 BACK DOOR PANEL & GLASS

ZZE121R-AHMDKW (2002)

Toyota Corolla Hb (Jpp)

Production Sep 2002 - Oct 2006

Engine 3ZZFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

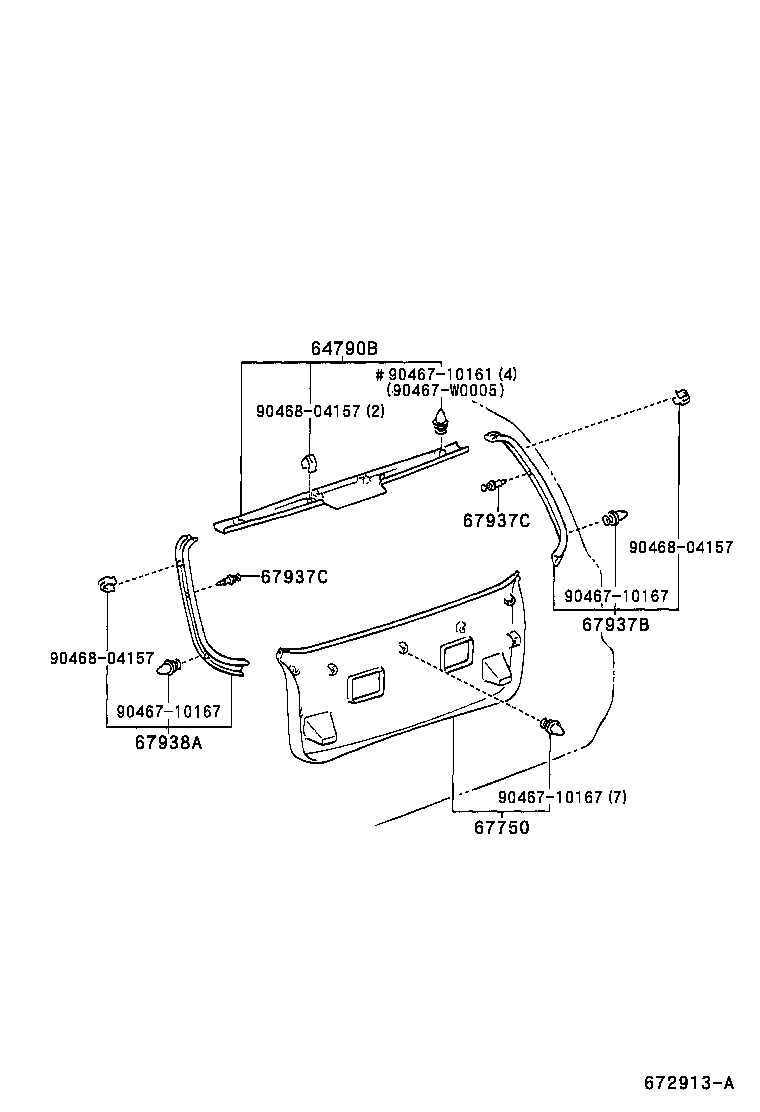

Click highlighted areas on diagram

Part #	Description	Period	Qty
64790B - PANEL ASSY, BACK DOOR TRIM, UPPER
64790-13040B0	NDE120,ZZE12#..JPP DK.GRAY,TRIM1#	05/2004 - 12/2999	1
64790-02010B0	CDE120,ZZE12#..JPP..TERRA DK.GRAY,TRIM1#,8#	09/2002 - 05/2004	1
67750 - BOARD ASSY, BACK DOOR TRIM
67750-13090B0	CDE120,ZZE12#..JPP..TERRA DK.GRAY,TRIM1#,8#	09/2002 - 05/2004	1
67750-13090B0	NDE120,ZZE12#..JPP DK.GRAY,TRIM1#	05/2004 - 12/2999	1
67937B - GARNISH, BACK DOOR SIDE, RH
67937-13010B0	NDE120,ZZE12#..JPP DK.GRAY,TRIM1#	05/2004 - 12/2999	1
67937-13010B0	CDE120,ZZE12#..JPP..TERRA DK.GRAY,TRIM1#,8#	09/2002 - 05/2004	1
67937C - CLIP(FOR BACK DOOR SIDE GARNISH)
64338-13010	NDE120,ZZE12#..JPP	05/2004 - 12/2999	2
64338-13010	CDE120,ZZE12#..JPP	09/2002 - 05/2004	2
67937C - CLIP(FOR BACK DOOR SIDE GARNISH)
64338-13010	NDE120,ZZE12#..JPP	05/2004 - 12/2999	2
64338-13010	CDE120,ZZE12#..JPP	09/2002 - 05/2004	2
67938A - GARNISH, BACK DOOR SIDE, LH
67938-13010B0	CDE120,ZZE12#..JPP..TERRA DK.GRAY,TRIM1#,8#	09/2002 - 05/2004	1
67938-13010B0	NDE120,ZZE12#..JPP DK.GRAY,TRIM1#	05/2004 - 12/2999	1
Common parts
90467-10161
90467-10167
90467-W0005
90468-04157

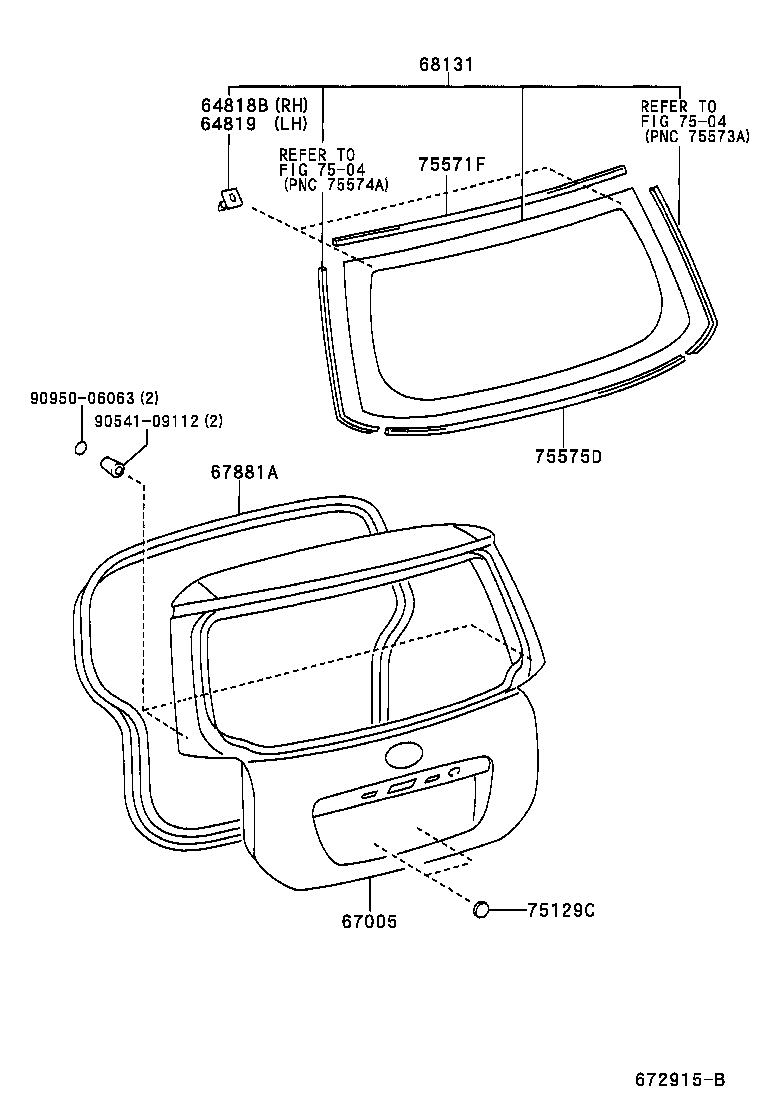

Click highlighted areas on diagram

Part #	Description	Period	Qty
64818B - SPACER, BACK DOOR GLASS, NO.1
64818-13060	CDE120,ZZE12#..JPP	01/2003 - 05/2004	1
64818-13060	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
64819 - SPACER, BACK WINDOW GLASS, NO.2
64819-13040	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
64819-13040	CDE120,ZZE12#..JPP	01/2003 - 05/2004	1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-1F890	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
67005-1F890	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
67881A - WEATHERSTRIP, BACK DOOR
67881-13241	CDE120,ZZE12#..JPP	09/2003 - 05/2004	1
67881-13240	CDE120,ZZE12#..JPP	09/2002 - 09/2003	1
67881-13241	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
68131 - GLASS, BACK DOOR
68105-13120	CDE120,ZZE12#..JPP *EHT,T=3.1,GREEN	09/2002 - 01/2003	1
68105-13121	CDE120,ZZE12#..JPP *EHT,T=3.1,GREEN	01/2003 - 05/2004	1
68105-13121	NDE120,ZZE12#..JPP *EHT,T=3.1,GREEN	05/2004 - 12/2999	1
75129C - CUSHION, REAR LICENCE PLATE
75129-40010	CDE120,ZZE12#..JPP	01/2004 - 05/2004	1
75129-40010	NDE120,ZZE12#..JPP	05/2004 - 12/2999	2
75571F - MOULDIMG, BACK DOOR WINDOW
75571-13160	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
64813-52010	ZZE12#..JPP	05/2004 - 12/2999	1
75575D - MOULDING, BACK WINDOW, LOWER
75575-13050	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
75575-13050	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
Common parts
90541-09112
90950-06063
Linked diagrams
7504
