ZZE121R-AHMDKW (2002)
Toyota Corolla Hb (Jpp)

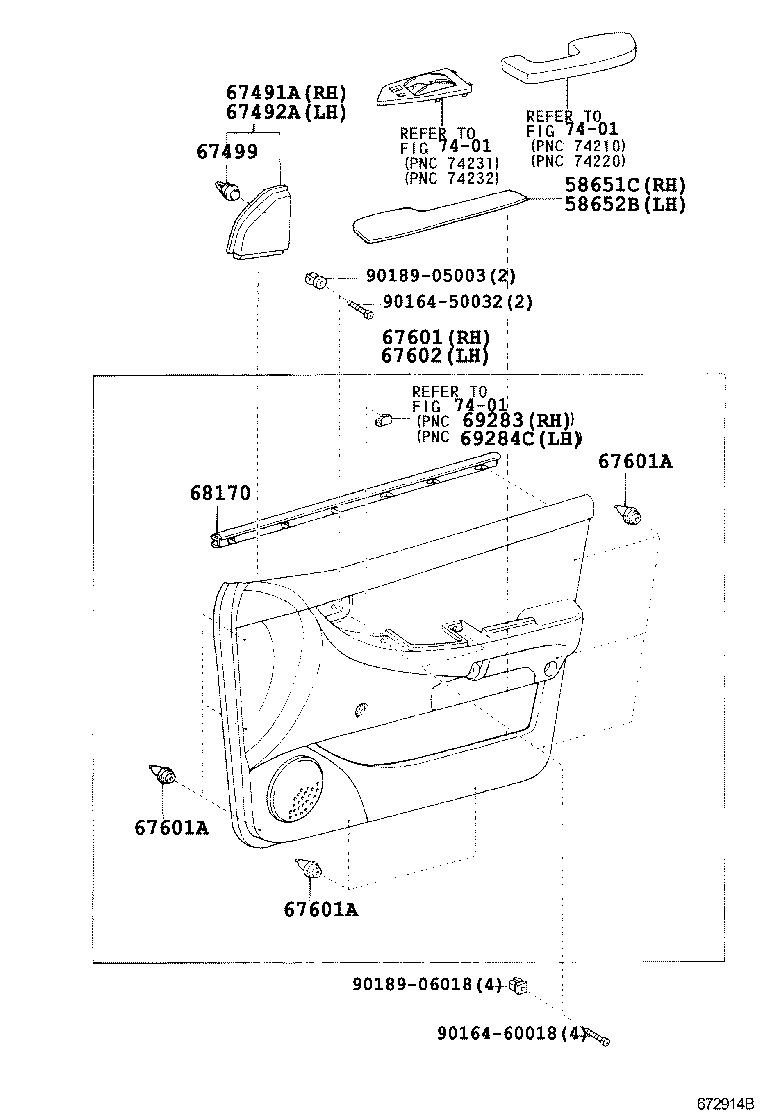

ILLUST NO. 1 OF 3(0209- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58651C - PLATE, FRONT DOOR MAT, RH | ||||
| 58651-02070J0 |
CDE120,ZZE12#..JPP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 58651-02070B0 |
NDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 58651-02070B0 |
CDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 58652B - PLATE, FRONT DOOR MAT, LH | ||||
| 58652-02050B0 |
NDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 58652-02050B0 |
CDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 58652-02050J0 |
CDE120,ZZE12#..JPP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-12460 |
CDE120,ZZE12#..JPP..TERRA |
1 | ||
| 67491-12470 |
CDE120,ZZE12#..JPP..TERRA W(MANUAL REMOTE CONTOROL MIRROR) |
1 | ||
| 67491-12470 |
NDE120,ZZE12#..JPP..TERRA W(MANUAL REMOTE CONTOROL MIRROR) |
1 | ||
| 67491-12480 |
ZZE121..JPP..TERRA W(TWEETER SPEAKER) |
1 | ||
| 67491-12460 |
NDE120,ZZE12#..JPP..TERRA |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-12470 |
NDE120,ZZE12#..JPP..TERRA W(MANUAL REMOTE CONTOROL MIRROR) |
1 | ||
| 67492-12480 |
ZZE121..JPP..TERRA W(TWEETER SPEAKER) |
1 | ||
| 67492-12470 |
CDE120,ZZE12#..JPP..TERRA W(MANUAL REMOTE CONTOROL MIRROR) |
1 | ||
| 67492-12460 |
CDE120,ZZE12#..JPP..TERRA |
1 | ||
| 67492-12460 |
NDE120,ZZE12#..JPP..TERRA |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67771-12060 |
NDE120,ZZE12#..JPP |
2 | ||
| 67771-12060 |
CDE120,ZZE12#..JPP |
2 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-13030J0 |
CDE120,ZZE12#..JPP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 67610-13A00B0 |
NDE120,ZZE12#..JPP..TERRA DOOR TRIM=TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 67650-13020B1 |
NDE120,ZZE12#..JPP..TERRA DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 67650-13020J0 |
CDE120,ZZE12#..JPP..TERRA W(POWER WINDOW),DK.BLUE,TRIM8# |
1 | ||
| 67650-13030B0 |
CDE120,ZZE12#..JPP..TERRA DK.GRAY,TRIM1# |
1 | ||
| 67650-13020B0 |
CDE120,ZZE12#..JPP..TERRA W(POWER WINDOW),DK.GRAY,TRIM1# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-10161 |
CDE120,ZZE12#..JPP |
16 | ||
| 90467-10161 |
NDE120,ZZE12#..JPP |
16 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-10161 |
CDE120,ZZE12#..JPP |
16 | ||
| 90467-10161 |
NDE120,ZZE12#..JPP |
16 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-10161 |
CDE120,ZZE12#..JPP |
16 | ||
| 90467-10161 |
NDE120,ZZE12#..JPP |
16 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67660-13020B1 |
NDE120,ZZE12#..JPP..TERRA DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 67660-13020B0 |
CDE120,ZZE12#..JPP..TERRA W(POWER WINDOW),DK.GRAY,TRIM1# |
1 | ||
| 67660-13030B0 |
CDE120,ZZE12#..JPP..TERRA DK.GRAY,TRIM1# |
1 | ||
| 67620-1F010B0 |
NDE120,ZZE12#..JPP..TERRA DOOR TRIM=TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 67660-13030J0 |
CDE120,ZZE12#..JPP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 67660-13020J0 |
CDE120,ZZE12#..JPP..TERRA W(POWER WINDOW),DK.BLUE,TRIM8# |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68172-12240 |
CDE120,ZZE12#..JPP LH |
1 | ||
| 68171-12320 |
CDE120,ZZE12#..JPP RH |
1 | ||
| 68171-12320 |
NDE120,ZZE12#..JPP RH |
1 | ||
| 68172-12240 |
NDE120,ZZE12#..JPP LH |
1 | ||
| Common parts | ||||
| 90164-50032 | ||||
| 90164-60018 | ||||
| 90189-05003 | ||||
| 90189-06018 | ||||
| Linked diagrams | ||||
| 7401 | ||||

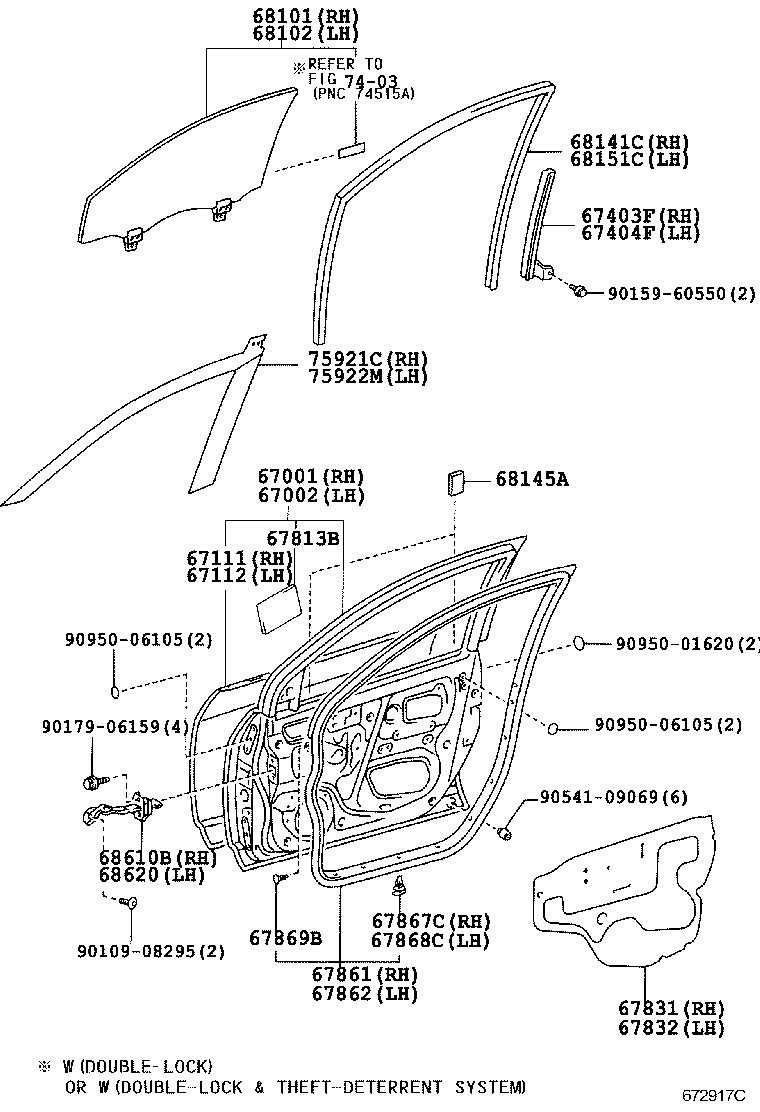

ILLUST NO. 2 OF 3(0209- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-13150 |
NDE120,ZZE12#..JPP |
1 | ||
| 67001-13150 |
CDE120,ZZE12#..JPP |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-13130 |
CDE120,ZZE12#..JPP |
1 | ||
| 67002-13130 |
NDE120,ZZE12#..JPP |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-12670 |
NDE120,ZZE12#..JPP |
1 | ||
| 67111-12670 |
CDE120,ZZE12#..JPP |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-12660 |
NDE120,ZZE12#..JPP |
1 | ||
| 67112-12660 |
CDE120,ZZE12#..JPP |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-12220 |
CDE120,ZZE12#..JPP |
1 | ||
| 67403-12220 |
NDE120,ZZE12#..JPP |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-12200 |
CDE120,ZZE12#..JPP |
1 | ||
| 67404-12200 |
NDE120,ZZE12#..JPP |
1 | ||
| 67813B - PACKING, DOOR PROTECTOR | ||||
| 67817-47010 |
NDE120,ZZE12#..JPP |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-12640 |
NDE120,ZZE12#..JPP |
1 | ||
| 67831-12640 |
CDE120,ZZE12#..JPP |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-12420 |
CDE120,ZZE12#..JPP |
1 | ||
| 67832-12420 |
NDE120,ZZE12#..JPP |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-1A020 |
CDE120,ZZE12#..JPP |
1 | ||
| 67861-1A020 |
NDE120,ZZE12#..JPP |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-12870 |
NDE120,ZZE12#..JPP |
1 | ||
| 67862-12870 |
CDE120,ZZE12#..JPP |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
CDE120,ZZE12#..JPP |
14 | ||
| 67867-12150 |
NDE120,ZZE12#..JPP |
14 | ||
| 67867-12150 |
NDE120,ZZE12#..JPP |
14 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
CDE120,ZZE12#..JPP |
14 | ||
| 67867-12150 |
NDE120,ZZE12#..JPP |
14 | ||
| 67867-12150 |
NDE120,ZZE12#..JPP |
14 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-12050 |
NDE120,ZZE12#..JPP |
2 | ||
| 67869-12050 |
CDE120,ZZE12#..JPP |
2 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-12A30 |
ZZE12#..JPP..RHD *TT,T=3.5,GREEN,W(DOUBLE-LOCK) |
1 | ||
| 68101-1A510 |
NDE120,ZZE12#..JPP *TT,T=3.5,GREEN |
1 | ||
| 68101-1A510 |
CDE120,ZZE12#..JPP *TT,T=3.5,GREEN |
1 | ||
| 68101-12A30 |
ZZE12#..JPP..RHD *TT,T=3.5,GREEN,W(DOUBLE-LOCK) |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-1A500 |
CDE120,ZZE12#..JPP *TT,T=3.5,GREEN |
1 | ||
| 68102-1A500 |
NDE120,ZZE12#..JPP *TT,T=3.5,GREEN |
1 | ||
| 68102-12A30 |
ZZE12#..JPP..RHD *TT,T=3.5,GREEN,W(DOUBLE-LOCK) |
1 | ||
| 68102-12A30 |
ZZE12#..JPP..RHD *TT,T=3.5,GREEN,W(DOUBLE-LOCK) |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-12511 |
CDE120,ZZE12#..JPP |
1 | ||
| 68141-12512 |
NDE120,ZZE12#..JPP |
1 | ||
| 68141-12511 |
NDE120,ZZE12#..JPP |
1 | ||
| 68145A - CUSHION, FRONT DOOR WINDOW | ||||
| 69759-12110 |
CDE120,ZZE12#..JPP |
4 | ||
| 69759-12110 |
NDE120,ZZE12#..JPP |
4 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-12211 |
NDE120,ZZE12#..JPP |
1 | ||
| 68151-12211 |
CDE120,ZZE12#..JPP |
1 | ||
| 68151-12212 |
NDE120,ZZE12#..JPP |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-12170 |
NDE120,ZZE12#..JPP |
1 | ||
| 68610-12170 |
CDE120,ZZE12#..JPP |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68620-12100 |
CDE120,ZZE12#..JPP |
1 | ||
| 68620-12100 |
NDE120,ZZE12#..JPP |
1 | ||
| 75921C - TAPE, BLACK OUT, NO.1 RH | ||||
| 75921-12032 |
CDE120,ZZE12#..JPP |
1 | ||
| 75921-12032 |
NDE120,ZZE12#..JPP |
1 | ||
| 75921-12031 |
CDE120,ZZE12#..JPP |
1 | ||
| 75922M - TAPE, BLACK OUT, NO.1 LH | ||||
| 75922-12032 |
CDE120,ZZE12#..JPP |
1 | ||
| 75922-12031 |
CDE120,ZZE12#..JPP |
1 | ||
| 75922-12032 |
NDE120,ZZE12#..JPP |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90159-60550 | ||||
| 90179-06159 | ||||
| 90541-09069 | ||||
| 90950-01620 | ||||
| 90950-06105 | ||||
| Linked diagrams | ||||
| 7403 | ||||
ILLUST NO. 3 OF 3(0405- )JPP

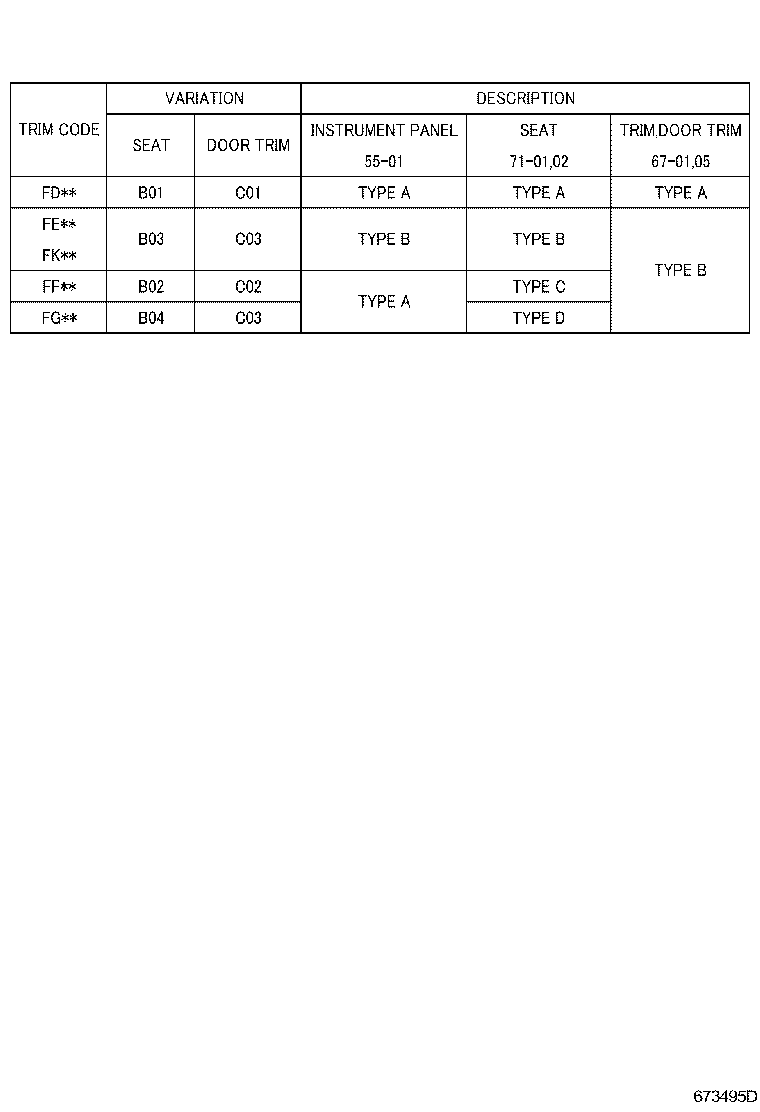

TRIM CODE TABLE
