ZZE121R-AHMDKW (2002)
Toyota Corolla Hb (Jpp)

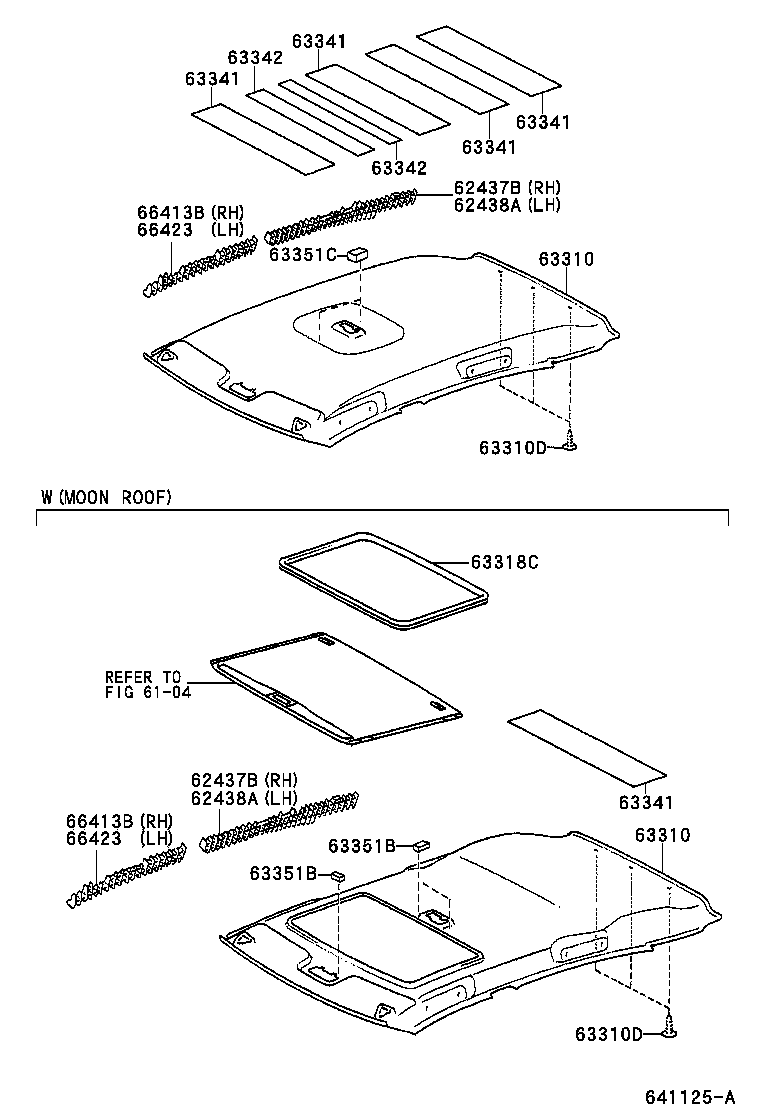

(0209-0302)JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62437B - PAD, ROOF SIDE RAIL, REAR RH | ||||
| 62437-13010 |
CDE120,ZZE12#..JPP |
1 | ||
| 62437-13010 |
NDE120,ZZE12#..JPP |
1 | ||
| 62437B - PAD, ROOF SIDE RAIL, REAR RH | ||||
| 62437-13010 |
CDE120,ZZE12#..JPP |
1 | ||
| 62437-13010 |
NDE120,ZZE12#..JPP |
1 | ||
| 62438A - PAD, ROOF SIDE RAIL, REAR LH | ||||
| 62438-13010 |
NDE120,ZZE12#..JPP |
1 | ||
| 62438-13010 |
CDE120,ZZE12#..JPP |
1 | ||
| 62438A - PAD, ROOF SIDE RAIL, REAR LH | ||||
| 62438-13010 |
NDE120,ZZE12#..JPP |
1 | ||
| 62438-13010 |
CDE120,ZZE12#..JPP |
1 | ||
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-02300B1 |
CDE120,ZZE12#..JPP..TERRA W(MOON ROOF),LT.GRAY,TRIM1#,8# |
1 | ||
| 63310-13660B0 |
CDE120,ZZE12#..JPP..TERRA LT.GRAY,TRIM1#,8# |
1 | ||
| 63310-13671B0 |
CDE120,ZZE12#..JPP..TERRA W(MOON ROOF),LT.GRAY,TRIM1#,8# |
1 | ||
| 63310-13670B0 |
CDE120,ZZE12#..JPP..TERRA W(MOON ROOF),LT.GRAY,TRIM1#,8# |
1 | ||
| 63310-13661B0 |
CDE120,ZZE12#..JPP..TERRA LT.GRAY,TRIM1#,8# |
1 | ||
| 63310-02500B0 |
CDE120,ZZE12#..JPP..TERRA W(MOON ROOF & SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1#,8# |
1 | ||
| 63310-13671B0 |
NDE120,ZZE12#..JPP W(MOON ROOF),LT.GRAY,TRIM1# |
1 | ||
| 63310-13661B0 |
NDE120,ZZE12#..JPP LT.GRAY,TRIM1# |
1 | ||
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-02300B1 |
CDE120,ZZE12#..JPP..TERRA W(MOON ROOF),LT.GRAY,TRIM1#,8# |
1 | ||
| 63310-13660B0 |
CDE120,ZZE12#..JPP..TERRA LT.GRAY,TRIM1#,8# |
1 | ||
| 63310-13671B0 |
CDE120,ZZE12#..JPP..TERRA W(MOON ROOF),LT.GRAY,TRIM1#,8# |
1 | ||
| 63310-13670B0 |
CDE120,ZZE12#..JPP..TERRA W(MOON ROOF),LT.GRAY,TRIM1#,8# |
1 | ||
| 63310-13661B0 |
CDE120,ZZE12#..JPP..TERRA LT.GRAY,TRIM1#,8# |
1 | ||
| 63310-02500B0 |
CDE120,ZZE12#..JPP..TERRA W(MOON ROOF & SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1#,8# |
1 | ||
| 63310-13671B0 |
NDE120,ZZE12#..JPP W(MOON ROOF),LT.GRAY,TRIM1# |
1 | ||
| 63310-13661B0 |
NDE120,ZZE12#..JPP LT.GRAY,TRIM1# |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-05021P4 |
CDE120,ZZE12#..JPP..TERRA LT.GRAY,TRIM1#,8# |
3 | ||
| 90467-05021P4 |
NDE120,ZZE12#..JPP LT.GRAY,TRIM1# |
3 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-05021P4 |
CDE120,ZZE12#..JPP..TERRA LT.GRAY,TRIM1#,8# |
3 | ||
| 90467-05021P4 |
NDE120,ZZE12#..JPP LT.GRAY,TRIM1# |
3 | ||
| 63318C - MOULDING, SUN ROOF OPENING TRIM | ||||
| 63318-52010B0 |
CDE120,ZZE12#..JPP..TERRA L=2185,LT.GRAY,TRIM1#,8# |
1 | ||
| 63318-52010B0 |
NDE120,ZZE12#..JPP L=2185,LT.GRAY,TRIM1# |
1 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-13130 |
NDE120,ZZE12#..JPP W(MOON ROOF) |
1 | ||
| 63341-13130 |
CDE120,ZZE12#..JPP W(MOON ROOF) |
1 | ||
| 63341-13130 |
NDE120,ZZE12#..JPP |
4 | ||
| 63341-13130 |
CDE120,ZZE12#..JPP |
4 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-13130 |
NDE120,ZZE12#..JPP W(MOON ROOF) |
1 | ||
| 63341-13130 |
CDE120,ZZE12#..JPP W(MOON ROOF) |
1 | ||
| 63341-13130 |
NDE120,ZZE12#..JPP |
4 | ||
| 63341-13130 |
CDE120,ZZE12#..JPP |
4 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-13130 |
NDE120,ZZE12#..JPP W(MOON ROOF) |
1 | ||
| 63341-13130 |
CDE120,ZZE12#..JPP W(MOON ROOF) |
1 | ||
| 63341-13130 |
NDE120,ZZE12#..JPP |
4 | ||
| 63341-13130 |
CDE120,ZZE12#..JPP |
4 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-13130 |
NDE120,ZZE12#..JPP W(MOON ROOF) |
1 | ||
| 63341-13130 |
CDE120,ZZE12#..JPP W(MOON ROOF) |
1 | ||
| 63341-13130 |
NDE120,ZZE12#..JPP |
4 | ||
| 63341-13130 |
CDE120,ZZE12#..JPP |
4 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-13130 |
NDE120,ZZE12#..JPP W(MOON ROOF) |
1 | ||
| 63341-13130 |
CDE120,ZZE12#..JPP W(MOON ROOF) |
1 | ||
| 63341-13130 |
NDE120,ZZE12#..JPP |
4 | ||
| 63341-13130 |
CDE120,ZZE12#..JPP |
4 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-13190 |
NDE120,ZZE12#..JPP |
2 | ||
| 63342-13190 |
CDE120,ZZE12#..JPP |
2 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-13190 |
NDE120,ZZE12#..JPP |
2 | ||
| 63342-13190 |
CDE120,ZZE12#..JPP |
2 | ||
| 63351B - PAD, ROOF HEADLINING | ||||
| 63351-02100 |
CDE120,ZZE12#..JPP |
3 | ||
| 63351-13030 |
CDE120,ZZE12#..JPP |
3 | ||
| 63351-13030 |
NDE120,ZZE12#..JPP |
3 | ||
| 63351B - PAD, ROOF HEADLINING | ||||
| 63351-02100 |
CDE120,ZZE12#..JPP |
3 | ||
| 63351-13030 |
CDE120,ZZE12#..JPP |
3 | ||
| 63351-13030 |
NDE120,ZZE12#..JPP |
3 | ||
| 63351C - PAD, ROOF HEADLINING | ||||
| 63351-13020 |
NDE120,ZZE12#..JPP |
2 | ||
| 63351-13020 |
CDE120,ZZE12#..JPP |
2 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-12010 |
CDE120,ZZE12#..JPP |
1 | ||
| 66413-12010 |
NDE120,ZZE12#..JPP |
1 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-12010 |
CDE120,ZZE12#..JPP |
1 | ||
| 66413-12010 |
NDE120,ZZE12#..JPP |
1 | ||
| 66423 - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-12010 |
NDE120,ZZE12#..JPP |
1 | ||
| 66423-12010 |
CDE120,ZZE12#..JPP |
1 | ||
| 66423 - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-12010 |
NDE120,ZZE12#..JPP |
1 | ||
| 66423-12010 |
CDE120,ZZE12#..JPP |
1 | ||
| Linked diagrams | ||||
| 6104 | ||||

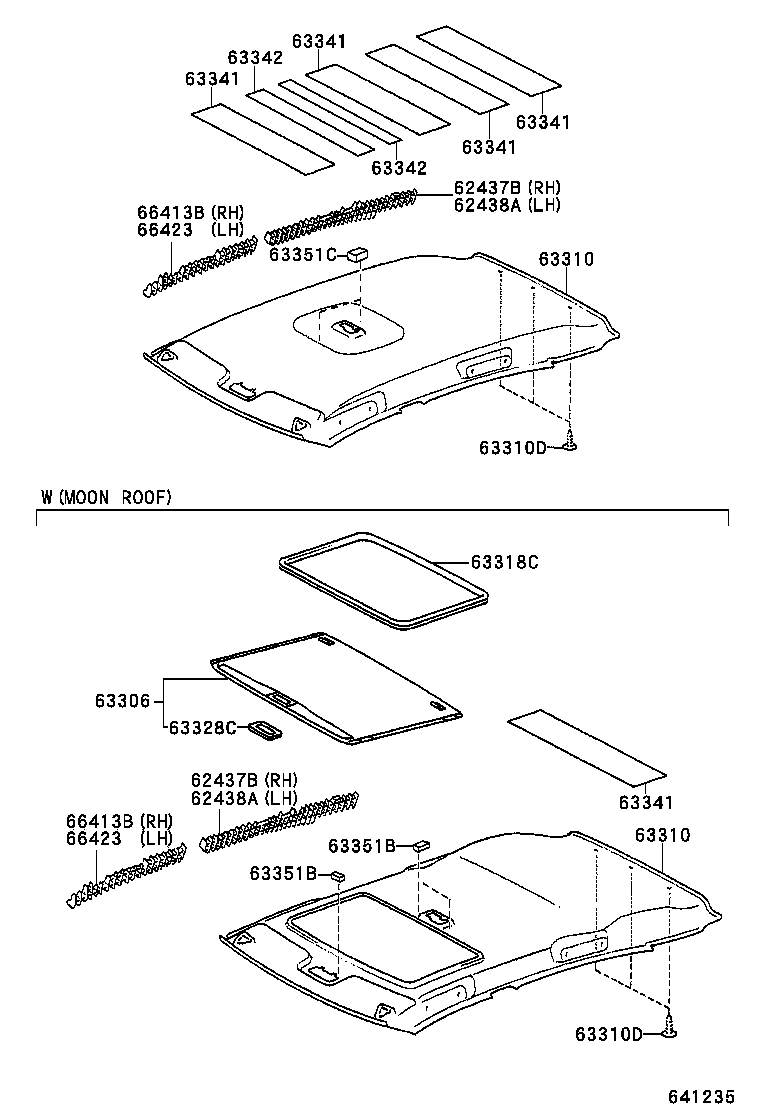

(0302- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62437B - PAD, ROOF SIDE RAIL, REAR RH | ||||
| 62437-13010 |
CDE120,ZZE12#..JPP |
1 | ||
| 62437-13010 |
NDE120,ZZE12#..JPP |
1 | ||
| 62437B - PAD, ROOF SIDE RAIL, REAR RH | ||||
| 62437-13010 |
CDE120,ZZE12#..JPP |
1 | ||
| 62437-13010 |
NDE120,ZZE12#..JPP |
1 | ||
| 62438A - PAD, ROOF SIDE RAIL, REAR LH | ||||
| 62438-13010 |
NDE120,ZZE12#..JPP |
1 | ||
| 62438-13010 |
CDE120,ZZE12#..JPP |
1 | ||
| 62438A - PAD, ROOF SIDE RAIL, REAR LH | ||||
| 62438-13010 |
NDE120,ZZE12#..JPP |
1 | ||
| 62438-13010 |
CDE120,ZZE12#..JPP |
1 | ||
| 63306 - TRIM SUB-ASSY, SUNSHADE | ||||
| 63306-13041B0 |
CDE120,ZZE12#..JPP..TERRA LT.GRAY,TRIM1#,8# |
1 | ||
| 63306-13040B0 |
CDE120,ZZE12#..JPP..TERRA LT.GRAY,TRIM1#,8# |
1 | ||
| 63306-13041B0 |
NDE120,ZZE12#..JPP LT.GRAY,TRIM1# |
1 | ||
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-02300B1 |
CDE120,ZZE12#..JPP..TERRA W(MOON ROOF),LT.GRAY,TRIM1#,8# |
1 | ||
| 63310-13660B0 |
CDE120,ZZE12#..JPP..TERRA LT.GRAY,TRIM1#,8# |
1 | ||
| 63310-13671B0 |
CDE120,ZZE12#..JPP..TERRA W(MOON ROOF),LT.GRAY,TRIM1#,8# |
1 | ||
| 63310-13670B0 |
CDE120,ZZE12#..JPP..TERRA W(MOON ROOF),LT.GRAY,TRIM1#,8# |
1 | ||
| 63310-13661B0 |
CDE120,ZZE12#..JPP..TERRA LT.GRAY,TRIM1#,8# |
1 | ||
| 63310-02500B0 |
CDE120,ZZE12#..JPP..TERRA W(MOON ROOF & SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1#,8# |
1 | ||
| 63310-13671B0 |
NDE120,ZZE12#..JPP W(MOON ROOF),LT.GRAY,TRIM1# |
1 | ||
| 63310-13661B0 |
NDE120,ZZE12#..JPP LT.GRAY,TRIM1# |
1 | ||
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-02300B1 |
CDE120,ZZE12#..JPP..TERRA W(MOON ROOF),LT.GRAY,TRIM1#,8# |
1 | ||
| 63310-13660B0 |
CDE120,ZZE12#..JPP..TERRA LT.GRAY,TRIM1#,8# |
1 | ||
| 63310-13671B0 |
CDE120,ZZE12#..JPP..TERRA W(MOON ROOF),LT.GRAY,TRIM1#,8# |
1 | ||
| 63310-13670B0 |
CDE120,ZZE12#..JPP..TERRA W(MOON ROOF),LT.GRAY,TRIM1#,8# |
1 | ||
| 63310-13661B0 |
CDE120,ZZE12#..JPP..TERRA LT.GRAY,TRIM1#,8# |
1 | ||
| 63310-02500B0 |
CDE120,ZZE12#..JPP..TERRA W(MOON ROOF & SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1#,8# |
1 | ||
| 63310-13671B0 |
NDE120,ZZE12#..JPP W(MOON ROOF),LT.GRAY,TRIM1# |
1 | ||
| 63310-13661B0 |
NDE120,ZZE12#..JPP LT.GRAY,TRIM1# |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-05021P4 |
CDE120,ZZE12#..JPP..TERRA LT.GRAY,TRIM1#,8# |
3 | ||
| 90467-05021P4 |
NDE120,ZZE12#..JPP LT.GRAY,TRIM1# |
3 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-05021P4 |
CDE120,ZZE12#..JPP..TERRA LT.GRAY,TRIM1#,8# |
3 | ||
| 90467-05021P4 |
NDE120,ZZE12#..JPP LT.GRAY,TRIM1# |
3 | ||
| 63318C - MOULDING, SUN ROOF OPENING TRIM | ||||
| 63318-52010B0 |
CDE120,ZZE12#..JPP..TERRA L=2185,LT.GRAY,TRIM1#,8# |
1 | ||
| 63318-52010B0 |
NDE120,ZZE12#..JPP L=2185,LT.GRAY,TRIM1# |
1 | ||
| 63328C - KNOB, SUNSHADE TRIM | ||||
| 63328-12030B7 |
CDE120,ZZE12#..JPP..TERRA LT.GRAY,TRIM1#,8# |
1 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-13130 |
NDE120,ZZE12#..JPP W(MOON ROOF) |
1 | ||
| 63341-13130 |
CDE120,ZZE12#..JPP W(MOON ROOF) |
1 | ||
| 63341-13130 |
NDE120,ZZE12#..JPP |
4 | ||
| 63341-13130 |
CDE120,ZZE12#..JPP |
4 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-13130 |
NDE120,ZZE12#..JPP W(MOON ROOF) |
1 | ||
| 63341-13130 |
CDE120,ZZE12#..JPP W(MOON ROOF) |
1 | ||
| 63341-13130 |
NDE120,ZZE12#..JPP |
4 | ||
| 63341-13130 |
CDE120,ZZE12#..JPP |
4 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-13130 |
NDE120,ZZE12#..JPP W(MOON ROOF) |
1 | ||
| 63341-13130 |
CDE120,ZZE12#..JPP W(MOON ROOF) |
1 | ||
| 63341-13130 |
NDE120,ZZE12#..JPP |
4 | ||
| 63341-13130 |
CDE120,ZZE12#..JPP |
4 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-13130 |
NDE120,ZZE12#..JPP W(MOON ROOF) |
1 | ||
| 63341-13130 |
CDE120,ZZE12#..JPP W(MOON ROOF) |
1 | ||
| 63341-13130 |
NDE120,ZZE12#..JPP |
4 | ||
| 63341-13130 |
CDE120,ZZE12#..JPP |
4 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-13130 |
NDE120,ZZE12#..JPP W(MOON ROOF) |
1 | ||
| 63341-13130 |
CDE120,ZZE12#..JPP W(MOON ROOF) |
1 | ||
| 63341-13130 |
NDE120,ZZE12#..JPP |
4 | ||
| 63341-13130 |
CDE120,ZZE12#..JPP |
4 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-13190 |
NDE120,ZZE12#..JPP |
2 | ||
| 63342-13190 |
CDE120,ZZE12#..JPP |
2 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-13190 |
NDE120,ZZE12#..JPP |
2 | ||
| 63342-13190 |
CDE120,ZZE12#..JPP |
2 | ||
| 63351B - PAD, ROOF HEADLINING | ||||
| 63351-02100 |
CDE120,ZZE12#..JPP |
3 | ||
| 63351-13030 |
CDE120,ZZE12#..JPP |
3 | ||
| 63351-13030 |
NDE120,ZZE12#..JPP |
3 | ||
| 63351B - PAD, ROOF HEADLINING | ||||
| 63351-02100 |
CDE120,ZZE12#..JPP |
3 | ||
| 63351-13030 |
CDE120,ZZE12#..JPP |
3 | ||
| 63351-13030 |
NDE120,ZZE12#..JPP |
3 | ||
| 63351C - PAD, ROOF HEADLINING | ||||
| 63351-13020 |
NDE120,ZZE12#..JPP |
2 | ||
| 63351-13020 |
CDE120,ZZE12#..JPP |
2 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-12010 |
CDE120,ZZE12#..JPP |
1 | ||
| 66413-12010 |
NDE120,ZZE12#..JPP |
1 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-12010 |
CDE120,ZZE12#..JPP |
1 | ||
| 66413-12010 |
NDE120,ZZE12#..JPP |
1 | ||
| 66423 - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-12010 |
NDE120,ZZE12#..JPP |
1 | ||
| 66423-12010 |
CDE120,ZZE12#..JPP |
1 | ||
| 66423 - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-12010 |
NDE120,ZZE12#..JPP |
1 | ||
| 66423-12010 |
CDE120,ZZE12#..JPP |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
