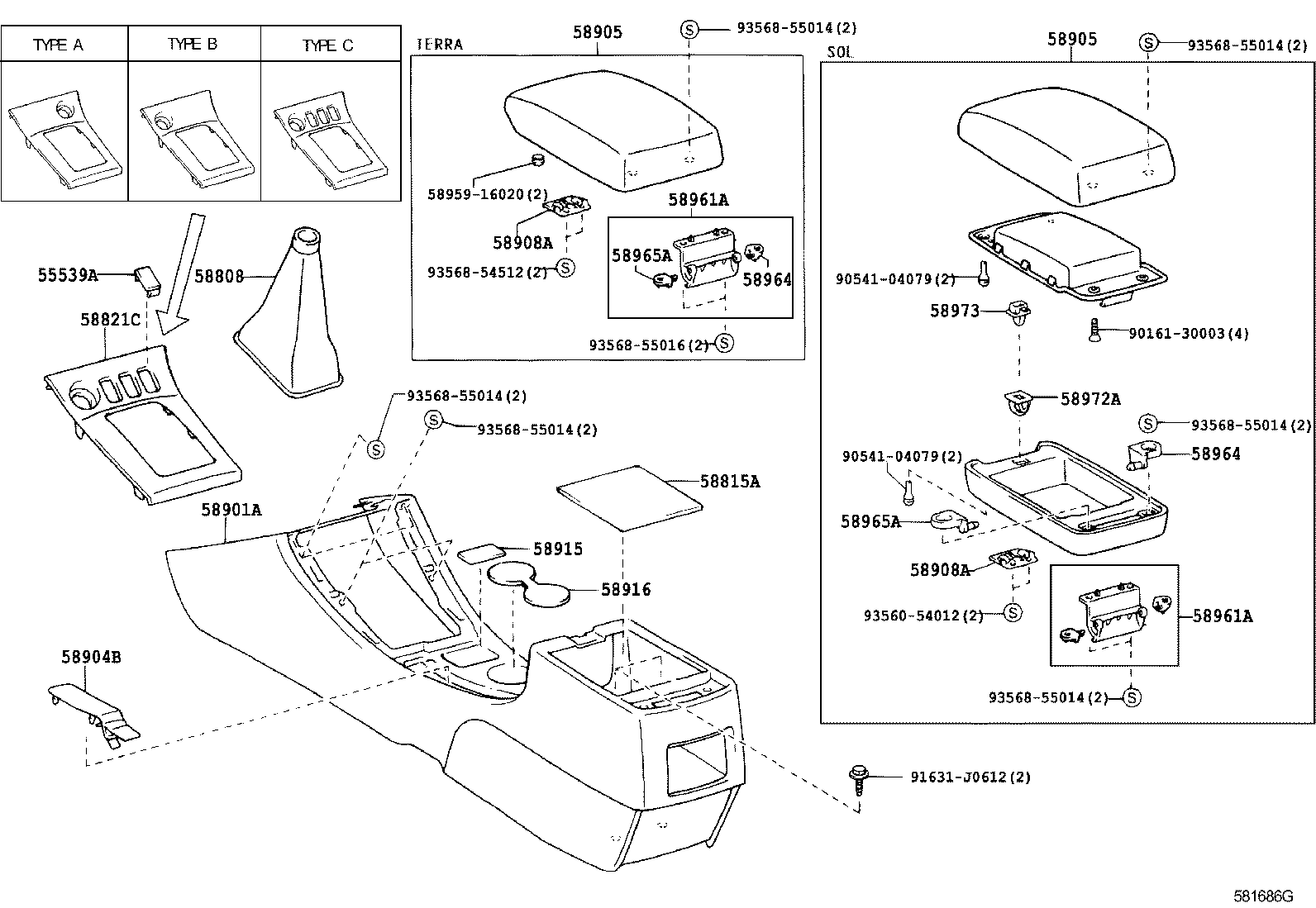

Toyota Corolla hb (jpp) ZZE121 CONSOLE BOX & BRACKET

Part #	Description	Period	Qty
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-02080B0	NDE120,ZZE12#..JPP..5F DK.GRAY,TRIM1#	05/2004 - 12/2999	1
58808-02080B0	CDE120,ZZE12#..JPP..5F..TERRA DK.GRAY,TRIM1#,8#	09/2002 - 05/2004	1
58815A - CARPET, CONSOLE BOX
58815-12060	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
58815-12060	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
58821C - PANEL, CONSOLE, UPPER
58821-02120B1	ZZE12#..JPP..RHD..TERRA TYPE A:REFER TO ILLUSTRATION & INSTRUMENT PANEL=TYPE B-*104,DARK GRAY ME.,TRIM1#	05/2004 - 08/2005	1
58821-02110B0	ZZE12#..JPP..RHD..TERRA TYPE A:REFER TO ILLUSTRATION,DARK GRAY,TRIM1#,8#	09/2002 - 05/2004	1
58821-02110B0	ZZE12#..JPP..RHD..TERRA TYPE A:REFER TO ILLUSTRATION & INSTRUMENT PANEL=TYPE A-*104,DARK GRAY,TRIM1#	05/2004 - 12/2999	1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58901-12470B0	ZZE12#..JPP..RHD DK.GRAY,TRIM1#	09/2002 - 05/2004	1
58901-12470J0	ZZE12#..JPP..RHD..TERRA DK.BLUE,TRIM8#	09/2002 - 05/2004	1
58901-12471B0	ZZE12#..JPP..RHD DK.GRAY,TRIM1#	05/2004 - 12/2999	1
58904B - COVER SUB-ASSY, PARKING BRAKE HOLE
58904-12030J0	ZZE12#..JPP..RHD..TERRA DK.BLUE,TRIM8#	09/2002 - 05/2004	1
58904-12050B1	ZZE12#..JPP..RHD DK.GRAY,TRIM1#	09/2002 - 05/2004	1
58904-12050B1	ZZE12#..JPP..RHD DK.GRAY,TRIM1#	05/2004 - 12/2999	1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-12410B5	CDE120,ZZE12#..JPP..TERRA DK.GRAY,TRIM1#	09/2002 - 05/2004	1
58905-12410J0	CDE120,ZZE12#..JPP..TERRA DK.BLUE,TRIM8#	09/2002 - 05/2004	1
58905-12410B5	NDE120,ZZE12#..JPP..TERRA DK.GRAY,TRIM1#	05/2004 - 12/2999	1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-12410B5	CDE120,ZZE12#..JPP..TERRA DK.GRAY,TRIM1#	09/2002 - 05/2004	1
58905-12410J0	CDE120,ZZE12#..JPP..TERRA DK.BLUE,TRIM8#	09/2002 - 05/2004	1
58905-12410B5	NDE120,ZZE12#..JPP..TERRA DK.GRAY,TRIM1#	05/2004 - 12/2999	1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-33030	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
58908-33030	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-33030	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
58908-33030	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
58915 - PANEL, BOX BOTTOM
58915-02010B0	CDE120,ZZE12#..JPP DK.GRAY,TRIM1#	09/2002 - 05/2004	1
58915-02010J0	CDE120,ZZE12#..JPP..TERRA DK.BLUE,TRIM8#	09/2002 - 05/2004	1
58915-02010B0	NDE120,ZZE12#..JPP DK.GRAY,TRIM1#	05/2004 - 12/2999	1
58916 - MAT, BOX BOTTOM
58916-02050B0	CDE120,ZZE12#..JPP DK.GRAY,TRIM1#	09/2002 - 05/2004	1
58916-02050J0	CDE120,ZZE12#..JPP..TERRA DK.BLUE,TRIM8#	09/2002 - 05/2004	1
58916-02050B0	NDE120,ZZE12#..JPP DK.GRAY,TRIM1#	05/2004 - 12/2999	1
58961A - HINGE, CONSOLE COMPARTMENT DOOR MALE
58907-12050	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
58907-12050	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
58961A - HINGE, CONSOLE COMPARTMENT DOOR MALE
58907-12050	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
58907-12050	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-20030	NDE120,ZZE12#..JPP..TERRA	05/2004 - 10/2006	1
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-20030	NDE120,ZZE12#..JPP..TERRA	05/2004 - 10/2006	1
58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2
58965-20040	NDE120,ZZE12#..JPP..TERRA	05/2004 - 10/2006	1
58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2
58965-20040	NDE120,ZZE12#..JPP..TERRA	05/2004 - 10/2006	1
Common parts
58959-16020
90161-30003
90541-04079
91631-J0612
93560-54012
93568-54512
93568-55014
93568-55016

ZZE121R-AHMDKW (2002)

(0209- )JPP
