ZZE121R-AHMDKW (2002)
Toyota Corolla Hb (Jpp)

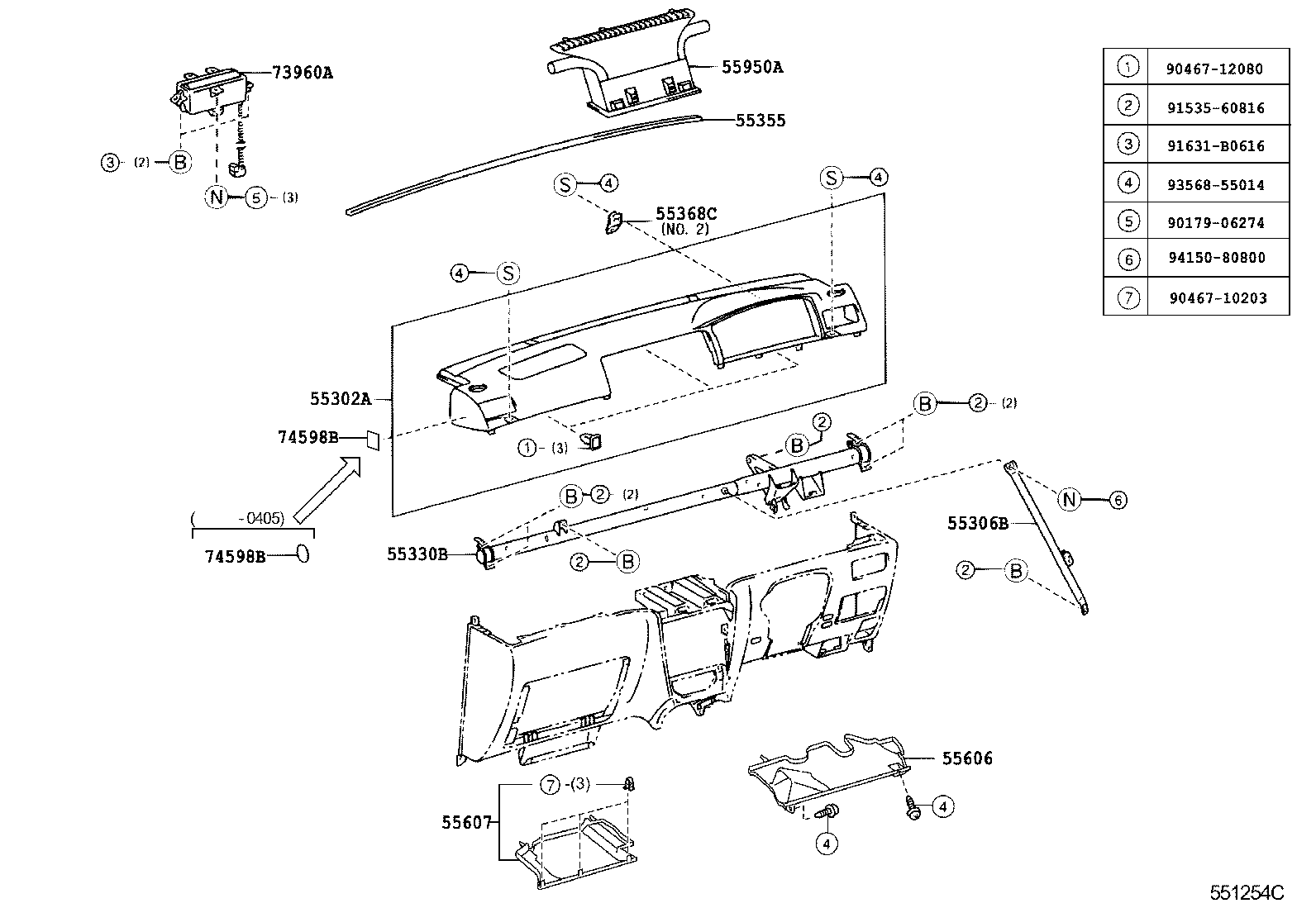

ILLUST NO. 1 OF 2(0209- )JPP..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-12010B0 |
ZZE12#..JPP..RHD..TERRA DK.GRAY,TRIM1#,8# |
1 | ||
| 55302-12010B0 |
ZZE12#..JPP..RHD DK.GRAY,TRIM1# |
1 | ||
| 55306B - BRACE SUB-ASSY, INSTRUMENT PANEL TO COWL | ||||
| 55306-02150 |
ZZE12#..JPP..RHD |
1 | ||
| 55306-02060 |
ZZE12#..JPP..RHD |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-12461 |
ZZE12#..JPP..RHD |
1 | ||
| 55330-12440 |
ZZE12#..JPP..RHD |
1 | ||
| 55330-12441 |
ZZE12#..JPP..RHD |
1 | ||
| 55330-12460 |
ZZE12#..JPP..RHD |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-52012 |
NDE120,ZZE12#..JPP |
1 | ||
| 55355-52012 |
CDE120,ZZE12#..JPP |
1 | ||
| 55368C - BRACKET, METER MOUNTING | ||||
| 55362-12050 |
CDE120,ZZE12#..JPP NO.1 |
2 | ||
| 55368-12090 |
NDE120,ZZE12#..JPP NO.2 |
1 | ||
| 55362-12050 |
NDE120,ZZE12#..JPP NO.1 |
2 | ||
| 55368-12090 |
CDE120,ZZE12#..JPP NO.2 |
1 | ||
| 55362-12050 |
NDE120,ZZE12#..JPP NO.1 |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-02010 |
ZZE12#..JPP..RHD |
1 | ||
| 55606-02010 |
ZZE12#..JPP..RHD |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-02040 |
ZZE12#..JPP..RHD |
1 | ||
| 55607-02010 |
ZZE12#..JPP..RHD |
1 | ||
| 55950A - NOZZLE ASSY, DEFROSTER | ||||
| 55950-02080 |
ZZE12#..JPP..RHD |
1 | ||
| 55950-02080 |
ZZE12#..JPP..RHD |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-12070 |
ZZE12#..JPP..RHD |
1 | ||
| 73960-12030 |
ZZE12#..JPP..RHD |
1 | ||
| 74598B - LABEL, PASSENGER AIR BAG CAUTION | ||||
| 74598-30040 |
CDE120,ZZE12#..JPP |
1 | ||
| 74598-12010 |
NDE120,ZZE12#..JPP |
1 | ||
| 74598B - LABEL, PASSENGER AIR BAG CAUTION | ||||
| 74598-30040 |
CDE120,ZZE12#..JPP |
1 | ||
| 74598-12010 |
NDE120,ZZE12#..JPP |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 91535-60816 | ||||
| 91631-B0616 | ||||
| 93568-55014 | ||||
| 94150-80800 | ||||

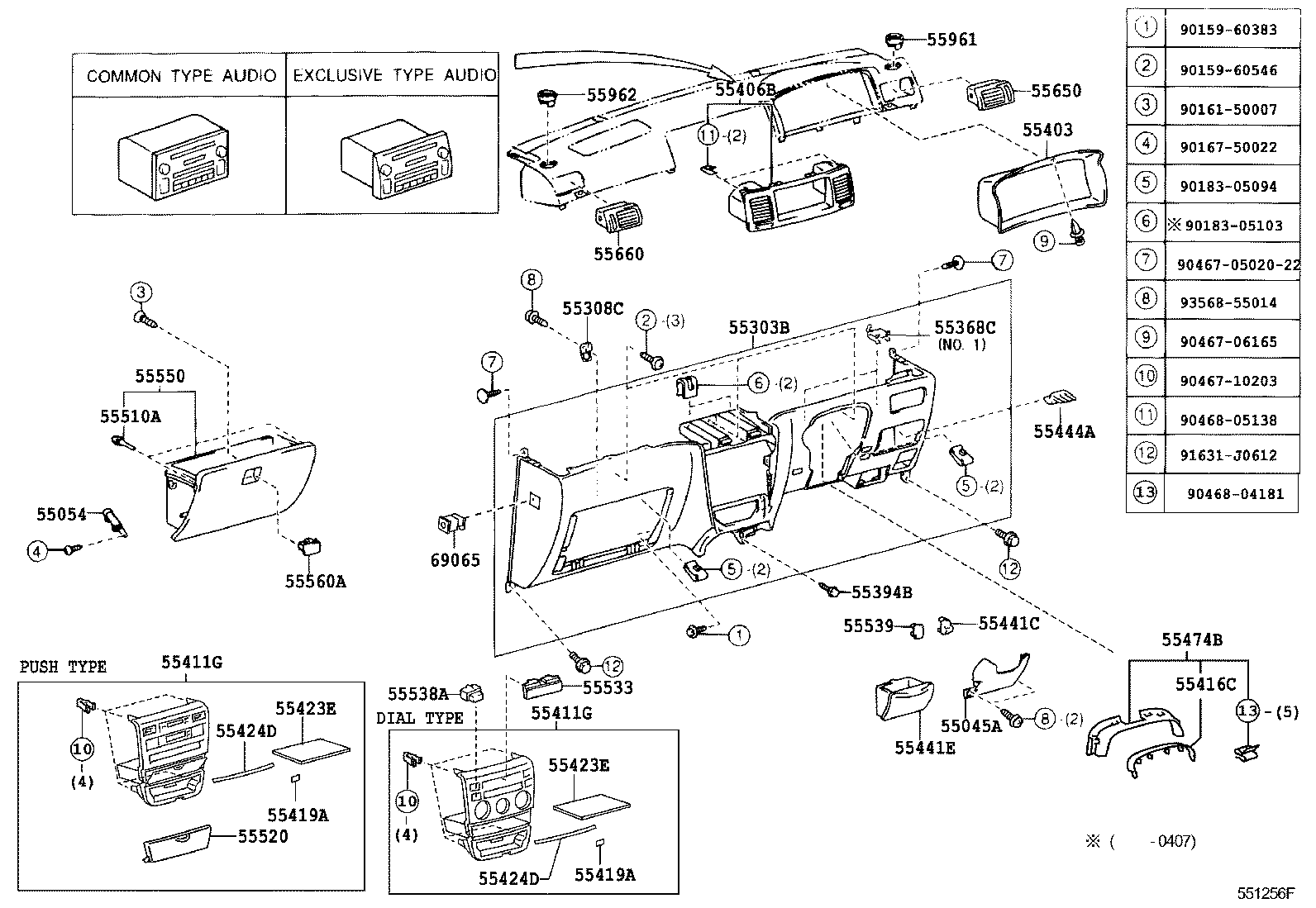

ILLUST NO. 2 OF 2(0405- )JPP..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045A - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER RH | ||||
| 55045-12290J0 |
ZZE12#..JPP..RHD..TERRA DK.BLUE,TRIM8# |
1 | ||
| 55045-12290B0 |
ZZE12#..JPP..RHD DK.GRAY,TRIM1# |
1 | ||
| 55045-12320B0 |
ZZE12#..JPP..RHD DK.GRAY,TRIM1# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-12010 |
NDE120,ZZE12#..JPP |
1 | ||
| 55054-12010 |
CDE120,ZZE12#..JPP |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-12290B0 |
ZZE12#..JPP..RHD DK.GRAY,TRIM1# |
1 | ||
| 55303-12310B0 |
ZZE12#..JPP..RHD DK.GRAY,TRIM1# |
1 | ||
| 55303-12290J0 |
ZZE12#..JPP..RHD..TERRA DK.BLUE,TRIM8# |
1 | ||
| 55303-12311B0 |
ZZE12#..JPP..RHD DK.GRAY,TRIM1# |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-12300 |
CDE120,ZZE12#..JPP |
1 | ||
| 55308-12300 |
NDE120,ZZE12#..JPP |
1 | ||
| 55368C - BRACKET, METER MOUNTING | ||||
| 55362-12050 |
CDE120,ZZE12#..JPP NO.1 |
2 | ||
| 55368-12090 |
NDE120,ZZE12#..JPP NO.2 |
1 | ||
| 55362-12050 |
NDE120,ZZE12#..JPP NO.1 |
2 | ||
| 55368-12090 |
CDE120,ZZE12#..JPP NO.2 |
1 | ||
| 55362-12050 |
NDE120,ZZE12#..JPP NO.1 |
2 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 55394-12020 |
NDE120,ZZE12#..JPP OD=7 |
1 | ||
| 55394-12020 |
CDE120,ZZE12#..JPP |
1 | ||
| 55394-12010 |
NDE120,ZZE12#..JPP OD=6 |
1 | ||
| 55403 - HOOD SUB-ASSY, METER | ||||
| 55403-12030 |
ZZE12#..JPP..RHD |
1 | ||
| 55403-12030 |
ZZE12#..JPP..RHD |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-02060B0 |
ZZE12#..JPP REFER TO ILLUSTRATION : EXCLUSIVE TYPE AUDIO,DK.GRAY,TRIM1# |
1 | ||
| 55406-02060B0 |
CDE120,ZZE12#..JPP..TERRA REFER TO ILLUSTRATION : EXCLUSIVE TYPE AUDIO,DK.GRAY,TRIM1#,8# |
1 | ||
| 55406-02070B0 |
CDE120,ZZE121..JPP..TERRA REFER TO ILLUSTRATION : COMMON TYPE AUDIO,DK.GRAY,TRIM1#,8# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55420-02120B1 |
CDE120,ZZE12#..JPP..TERRA DIAL TYPE,DK.GRAY,TRIM1#,8# |
1 | ||
| 55420-12350B0 |
NDE120,ZZE12#..JPP..TERRA INSTRUMENT PANEL=TYPE B-*104;DIAL TYPE,DARK GRAY,TRIM1# |
1 | ||
| 55420-12300B0 |
NDE120,ZZE12#..JPP..TERRA INSTRUMENT PANEL=TYPE A-*104;DIAL TYPE,DARK GRAY,TRIM1# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55420-02120B1 |
CDE120,ZZE12#..JPP..TERRA DIAL TYPE,DK.GRAY,TRIM1#,8# |
1 | ||
| 55420-12350B0 |
NDE120,ZZE12#..JPP..TERRA INSTRUMENT PANEL=TYPE B-*104;DIAL TYPE,DARK GRAY,TRIM1# |
1 | ||
| 55420-12300B0 |
NDE120,ZZE12#..JPP..TERRA INSTRUMENT PANEL=TYPE A-*104;DIAL TYPE,DARK GRAY,TRIM1# |
1 | ||
| 55416C - RETAINER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55416-02010 |
NDE120,ZZE12#..JPP |
1 | ||
| 55419A - CUSHION, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55419-02120 |
CDE120,ZZE12#..JPP DIAL TYPE |
3 | ||
| 55419-32020 |
NDE120,ZZE12#..JPP |
3 | ||
| 55419A - CUSHION, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55419-02120 |
CDE120,ZZE12#..JPP DIAL TYPE |
3 | ||
| 55419-32020 |
NDE120,ZZE12#..JPP |
3 | ||
| 55423E - CUSHION, CENTER CLUSTER, NO.1 | ||||
| 55423-12070 |
NDE120,ZZE12#..JPP |
1 | ||
| 55423-02010 |
CDE120,ZZE12#..JPP DIAL TYPE |
1 | ||
| 55423E - CUSHION, CENTER CLUSTER, NO.1 | ||||
| 55423-12070 |
NDE120,ZZE12#..JPP |
1 | ||
| 55423-02010 |
CDE120,ZZE12#..JPP DIAL TYPE |
1 | ||
| 55424D - CUSHION, CENTER CLUSTER, NO.2 | ||||
| 55424-12020 |
NDE120,ZZE12#..JPP |
1 | ||
| 55424-02010 |
CDE120,ZZE12#..JPP DIAL TYPE |
1 | ||
| 55424D - CUSHION, CENTER CLUSTER, NO.2 | ||||
| 55424-12020 |
NDE120,ZZE12#..JPP |
1 | ||
| 55424-02010 |
CDE120,ZZE12#..JPP DIAL TYPE |
1 | ||
| 55441C - BOX, INSTRUMENT PANEL COIN | ||||
| 55441-20140B7 |
NDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 55441-20140B7 |
CDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 55441-20140J1 |
CDE120,ZZE12#..JPP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 55441E - BOX, INSTRUMENT PANEL | ||||
| 55441-12150J0 |
CDE120,ZZE12#..JPP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 55441-12150B1 |
CDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 55441-12150B1 |
NDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 55444A - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-13040 |
CDE120,ZZE12#..JPP |
1 | ||
| 55444-13040 |
NDE120,ZZE12#..JPP |
1 | ||
| 55474B - GARNISH, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55470-02010 |
ZZE12#..JPP..RHD |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-04002 |
NDE120,ZZE12#..JPP |
2 | ||
| 90541-04002 |
CDE120,ZZE12#..JPP |
2 | ||
| 55533 - COVER, AUTO CLOCK HOLE | ||||
| 55533-13010 |
NDE120,ZZE12#..JPP..TERRA |
1 | ||
| 55533-13010 |
CDE120,ZZE12#..JPP |
1 | ||
| 55538A - COVER, COOLER SWITCH HOLE | ||||
| 55538-12100 |
NDE120,ZZE12#..JPP..TERRA |
1 | ||
| 55538-12100 |
CDE120,ZZE12#..JPP |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010P3 |
NDE120,ZZE12#..JPP..TERRA DK.GRAY,TRIM1# |
1 | ||
| 55539-32010P3 |
CDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 55539-32010J1 |
CDE120,ZZE12#..JPP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-12411B0 |
NDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 55550-12410B0 |
CDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 55550-12410J0 |
CDE120,ZZE12#..JPP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55506-33030B0 |
NDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 55506-33030B0 |
CDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 55506-33030J0 |
CDE120,ZZE12#..JPP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-02020B0 |
CDE120,ZZE12#..JPP..TERRA DK.GRAY,TRIM1#,8# |
1 | ||
| 55650-02020B0 |
NDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-02040B0 |
CDE120,ZZE12#..JPP..TERRA DK.GRAY,TRIM1#,8# |
1 | ||
| 55660-02040B0 |
NDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-12220B0 |
CDE120,ZZE12#..JPP..TERRA DK.GRAY,TRIM1#,8# |
1 | ||
| 55961-12220B0 |
NDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55961-12220B0 |
CDE120,ZZE12#..JPP..TERRA DK.GRAY,TRIM1#,8# |
1 | ||
| 55961-12220B0 |
NDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 69065 - CYLINDER SUB-ASSY, AIR BAG CUT OFF SW | ||||
| 69065-12370 |
NDE120,ZZE12#..JPP |
1 | ||
| Common parts | ||||
| 90159-60383 | ||||
| 90159-60546 | ||||
| 90161-50007 | ||||
| 90167-50022 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90467-0502022 | ||||
| 90467-06165 | ||||
| 90467-10203 | ||||
| 90468-04181 | ||||
| 90468-05138 | ||||
| 91631-J0612 | ||||
| 93568-55014 | ||||

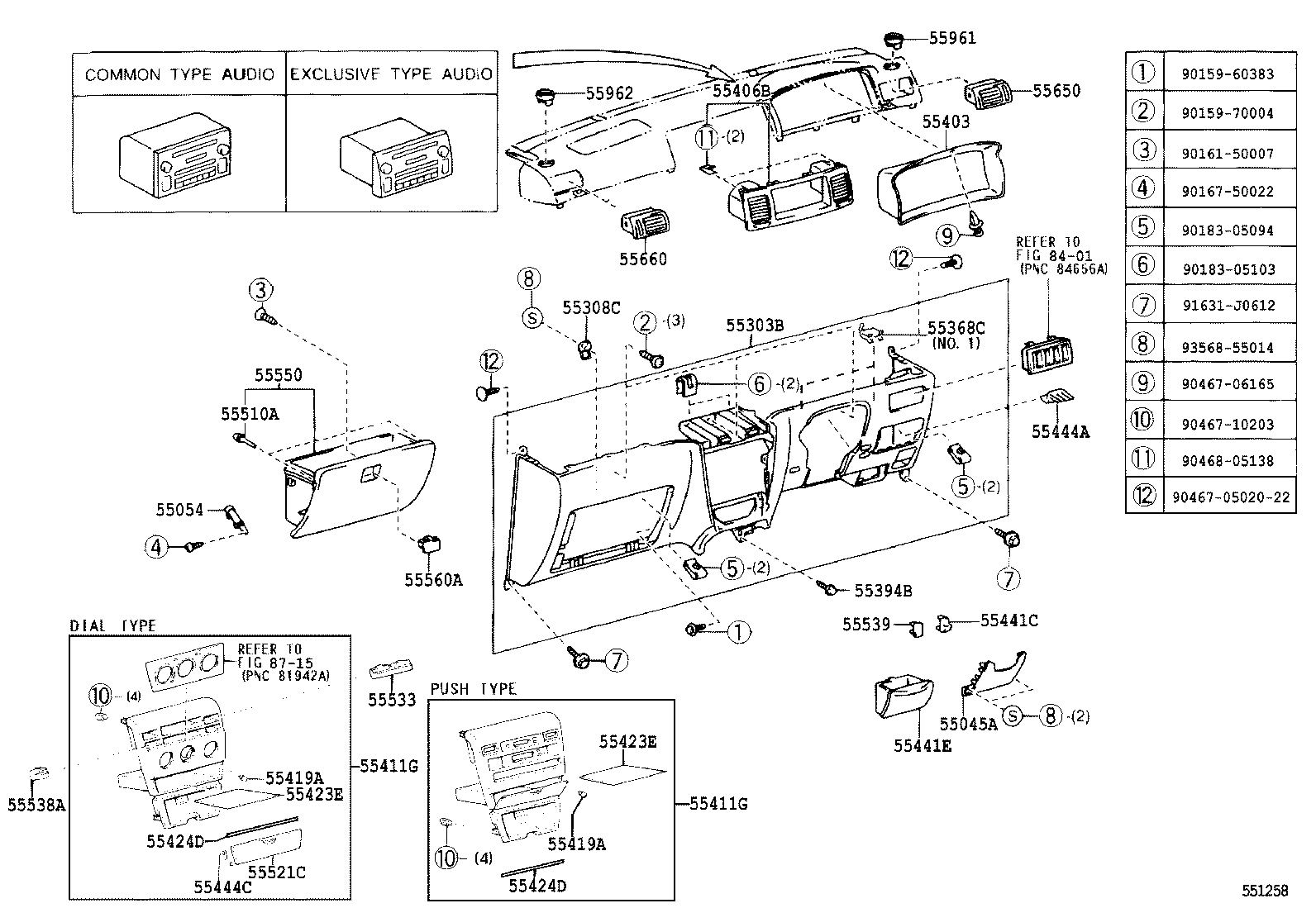

ILLUST NO. 2 OF 2(0209-0405)JPP..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045A - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER RH | ||||
| 55045-12290J0 |
ZZE12#..JPP..RHD..TERRA DK.BLUE,TRIM8# |
1 | ||
| 55045-12290B0 |
ZZE12#..JPP..RHD DK.GRAY,TRIM1# |
1 | ||
| 55045-12320B0 |
ZZE12#..JPP..RHD DK.GRAY,TRIM1# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-12010 |
CDE120,ZZE12#..JPP |
1 | ||
| 55054-12010 |
NDE120,ZZE12#..JPP |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-12290B0 |
ZZE12#..JPP..RHD DK.GRAY,TRIM1# |
1 | ||
| 55303-12310B0 |
ZZE12#..JPP..RHD DK.GRAY,TRIM1# |
1 | ||
| 55303-12290J0 |
ZZE12#..JPP..RHD..TERRA DK.BLUE,TRIM8# |
1 | ||
| 55303-12311B0 |
ZZE12#..JPP..RHD DK.GRAY,TRIM1# |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-12300 |
CDE120,ZZE12#..JPP |
1 | ||
| 55308-12300 |
NDE120,ZZE12#..JPP |
1 | ||
| 55368C - BRACKET, METER MOUNTING | ||||
| 55362-12050 |
CDE120,ZZE12#..JPP NO.1 |
2 | ||
| 55368-12090 |
NDE120,ZZE12#..JPP NO.2 |
1 | ||
| 55362-12050 |
NDE120,ZZE12#..JPP NO.1 |
2 | ||
| 55368-12090 |
CDE120,ZZE12#..JPP NO.2 |
1 | ||
| 55362-12050 |
NDE120,ZZE12#..JPP NO.1 |
2 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 55394-12020 |
NDE120,ZZE12#..JPP OD=7 |
1 | ||
| 55394-12020 |
CDE120,ZZE12#..JPP |
1 | ||
| 55394-12010 |
NDE120,ZZE12#..JPP OD=6 |
1 | ||
| 55403 - HOOD SUB-ASSY, METER | ||||
| 55403-12030 |
ZZE12#..JPP..RHD |
1 | ||
| 55403-12030 |
ZZE12#..JPP..RHD |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-02060B0 |
ZZE12#..JPP REFER TO ILLUSTRATION : EXCLUSIVE TYPE AUDIO,DK.GRAY,TRIM1# |
1 | ||
| 55406-02060B0 |
CDE120,ZZE12#..JPP..TERRA REFER TO ILLUSTRATION : EXCLUSIVE TYPE AUDIO,DK.GRAY,TRIM1#,8# |
1 | ||
| 55406-02070B0 |
CDE120,ZZE121..JPP..TERRA REFER TO ILLUSTRATION : COMMON TYPE AUDIO,DK.GRAY,TRIM1#,8# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55420-02120B1 |
CDE120,ZZE12#..JPP..TERRA DIAL TYPE,DK.GRAY,TRIM1#,8# |
1 | ||
| 55420-12350B0 |
NDE120,ZZE12#..JPP..TERRA INSTRUMENT PANEL=TYPE B-*104;DIAL TYPE,DARK GRAY,TRIM1# |
1 | ||
| 55420-12300B0 |
NDE120,ZZE12#..JPP..TERRA INSTRUMENT PANEL=TYPE A-*104;DIAL TYPE,DARK GRAY,TRIM1# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55420-02120B1 |
CDE120,ZZE12#..JPP..TERRA DIAL TYPE,DK.GRAY,TRIM1#,8# |
1 | ||
| 55420-12350B0 |
NDE120,ZZE12#..JPP..TERRA INSTRUMENT PANEL=TYPE B-*104;DIAL TYPE,DARK GRAY,TRIM1# |
1 | ||
| 55420-12300B0 |
NDE120,ZZE12#..JPP..TERRA INSTRUMENT PANEL=TYPE A-*104;DIAL TYPE,DARK GRAY,TRIM1# |
1 | ||
| 55419A - CUSHION, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55419-02120 |
CDE120,ZZE12#..JPP DIAL TYPE |
3 | ||
| 55419-32020 |
NDE120,ZZE12#..JPP |
3 | ||
| 55419A - CUSHION, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55419-02120 |
CDE120,ZZE12#..JPP DIAL TYPE |
3 | ||
| 55419-32020 |
NDE120,ZZE12#..JPP |
3 | ||
| 55423E - CUSHION, CENTER CLUSTER, NO.1 | ||||
| 55423-12070 |
NDE120,ZZE12#..JPP |
1 | ||
| 55423-02010 |
CDE120,ZZE12#..JPP DIAL TYPE |
1 | ||
| 55423E - CUSHION, CENTER CLUSTER, NO.1 | ||||
| 55423-12070 |
NDE120,ZZE12#..JPP |
1 | ||
| 55423-02010 |
CDE120,ZZE12#..JPP DIAL TYPE |
1 | ||
| 55424D - CUSHION, CENTER CLUSTER, NO.2 | ||||
| 55424-12020 |
NDE120,ZZE12#..JPP |
1 | ||
| 55424-02010 |
CDE120,ZZE12#..JPP DIAL TYPE |
1 | ||
| 55424D - CUSHION, CENTER CLUSTER, NO.2 | ||||
| 55424-12020 |
NDE120,ZZE12#..JPP |
1 | ||
| 55424-02010 |
CDE120,ZZE12#..JPP DIAL TYPE |
1 | ||
| 55441C - BOX, INSTRUMENT PANEL COIN | ||||
| 55441-20140B7 |
NDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 55441-20140B7 |
CDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 55441-20140J1 |
CDE120,ZZE12#..JPP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 55441E - BOX, INSTRUMENT PANEL | ||||
| 55441-12150J0 |
CDE120,ZZE12#..JPP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 55441-12150B1 |
CDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 55441-12150B1 |
NDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 55444A - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-13040 |
CDE120,ZZE12#..JPP |
1 | ||
| 55444-13040 |
NDE120,ZZE12#..JPP |
1 | ||
| 55444C - SPRING, INSTRUMENT PANEL BOX | ||||
| 55445-02050 |
CDE120,ZZE12#..JPP |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-04002 |
NDE120,ZZE12#..JPP |
2 | ||
| 90541-04002 |
CDE120,ZZE12#..JPP |
2 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55520-02060B0 |
CDE120,ZZE12#..JPP..TERRA DARK GRAY,TRIM1#,8# |
1 | ||
| 55533 - COVER, AUTO CLOCK HOLE | ||||
| 55533-13010 |
NDE120,ZZE12#..JPP..TERRA |
1 | ||
| 55533-13010 |
CDE120,ZZE12#..JPP |
1 | ||
| 55538A - COVER, COOLER SWITCH HOLE | ||||
| 55538-12100 |
NDE120,ZZE12#..JPP..TERRA |
1 | ||
| 55538-12100 |
CDE120,ZZE12#..JPP |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010P3 |
NDE120,ZZE12#..JPP..TERRA DK.GRAY,TRIM1# |
1 | ||
| 55539-32010P3 |
CDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 55539-32010J1 |
CDE120,ZZE12#..JPP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-12411B0 |
NDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 55550-12410B0 |
CDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 55550-12410J0 |
CDE120,ZZE12#..JPP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55506-33030B0 |
NDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 55506-33030B0 |
CDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 55506-33030J0 |
CDE120,ZZE12#..JPP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-02020B0 |
CDE120,ZZE12#..JPP..TERRA DK.GRAY,TRIM1#,8# |
1 | ||
| 55650-02020B0 |
NDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-02040B0 |
CDE120,ZZE12#..JPP..TERRA DK.GRAY,TRIM1#,8# |
1 | ||
| 55660-02040B0 |
NDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-12220B0 |
CDE120,ZZE12#..JPP..TERRA DK.GRAY,TRIM1#,8# |
1 | ||
| 55961-12220B0 |
NDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55961-12220B0 |
CDE120,ZZE12#..JPP..TERRA DK.GRAY,TRIM1#,8# |
1 | ||
| 55961-12220B0 |
NDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90159-60383 | ||||
| 90159-70004 | ||||
| 90161-50007 | ||||
| 90167-50022 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90467-0502022 | ||||
| 90467-06165 | ||||
| 90467-10203 | ||||
| 90468-05138 | ||||
| 91631-J0612 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8715 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
