Toyota Corolla hb (jpp) ZZE121 HOOD & FRONT FENDER

ZZE121R-AHMDKW (2002)

Toyota Corolla Hb (Jpp)

Production Sep 2002 - Oct 2006

Engine 3ZZFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0209- )JPP

Click highlighted areas on diagram

Part #	Description	Period	Qty
53301 - HOOD SUB-ASSY
53301-13060	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
53301-13060	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
53341B - INSULATOR, HOOD
53341-13041	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
53341-13040	CDE120,ZZE12#..JPP	09/2002 - 04/2003	1
53341-13041	CDE120,ZZE12#..JPP	04/2003 - 05/2004	1
53341C - CLIP(FOR HOOD INSULATOR)
90467-08124	CDE120,ZZE12#..JPP	09/2002 - 05/2004	8
90467-08124	NDE120,ZZE12#..JPP	05/2004 - 12/2999	8
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-13030	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
53381-13030	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011	NDE120,ZZE12#..JPP	05/2004 - 12/2999	8
90467-08011	CDE120,ZZE12#..JPP	09/2002 - 05/2004	8
53801 - FENDER SUB-ASSY, FRONT RH
53811-13090	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
53811-13090	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
53802 - FENDER SUB-ASSY, FRONT LH
53812-13080	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
53812-13080	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH
53827-12050	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
53827-12050	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
53828K - PROTECTOR, FRONT FENDER SIDE PANEL, LH
53828-12050	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
53828-12050	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
53834C - PLATE, FRONT FENDER SUPPORT, RH
53834-12120	CDE120,ZZE12#..JPP	12/2003 - 05/2004	1
53834-12120	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
53834D - PLATE, FRONT FENDER SUPPORT, LH
53834-12120	CDE120,ZZE12#..JPP	12/2003 - 05/2004	1
53834-12120	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
53878C - SPACER, FRONT FENDER
53878-12010	CDE120,ZZE12#..JPP	12/2003 - 05/2004	2
53878-12010	NDE120,ZZE12#..JPP	05/2004 - 12/2999	2
53882P - SEAL, FRONT FENDER, RH
53882-16030	NDE120,ZZE12#..JPP	05/2004 - 12/2999	3
53882-16030	CDE120,ZZE12#..JPP	09/2002 - 05/2004	3
53883K - SEAL, FRONT FENDER, LH
53882-16030	NDE120,ZZE12#..JPP	05/2004 - 12/2999	3
53882-16030	CDE120,ZZE12#..JPP	09/2002 - 05/2004	3
Common parts
90119-06137
90541-15019
90950-06125

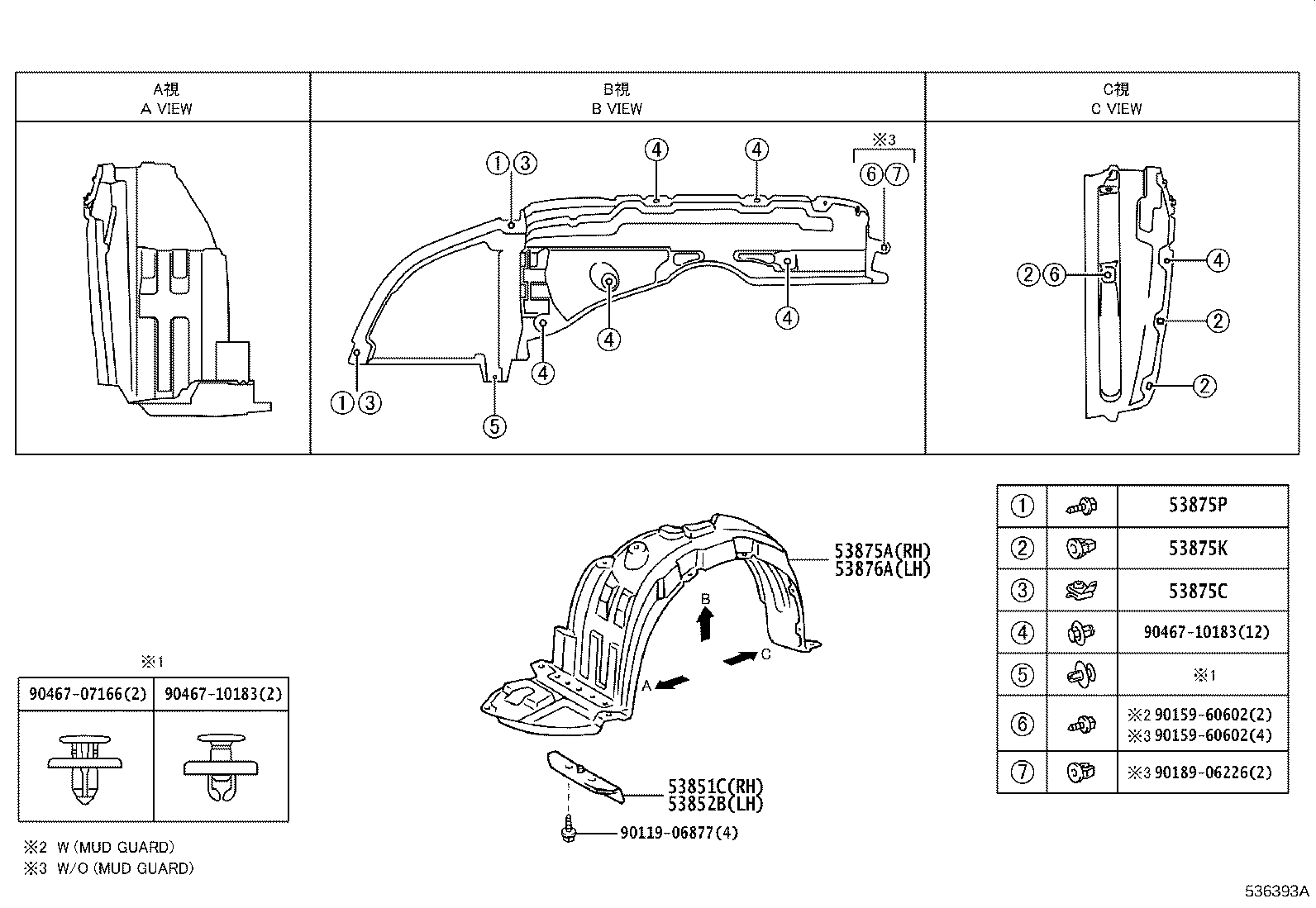

ILLUST NO. 2 OF 2(0209- )JPP

Click highlighted areas on diagram

FENDER LINER

Part #	Description	Period	Qty
53851C - PAD, FRONT WHEEL OPENING EXTENSION, NO.1
53851-13040	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
53851-13040	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH
53852-13010	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
53852-13010	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
53875A - LINER, FRONT FENDER, RH
53875-13060	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
53875-13050	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
53875C - CLIP, FRONT FENDER LINER
90467-05138	NDE120,ZZE12#..JPP	05/2004 - 10/2006	4
90467-05138	CDE120,ZZE12#..JPP	10/2002 - 05/2004	4
53875K - GROMMET, SCREW
90189-06013	NDE120,ZZE12#..JPP	05/2004 - 10/2006	6
90189-06013	CDE120,ZZE12#..JPP	09/2002 - 05/2004	6
53875P - SCREW, NO.1
90159-60488	NDE120,ZZE12#..JPP	05/2004 - 10/2006	4
90159-60488	CDE120,ZZE12#..JPP	09/2002 - 05/2004	4
53876A - LINER, FRONT FENDER, LH
53876-13060	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
53876-13050	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
Common parts
90119-06877
90159-60602
90189-06226
90467-07166
90467-10183
