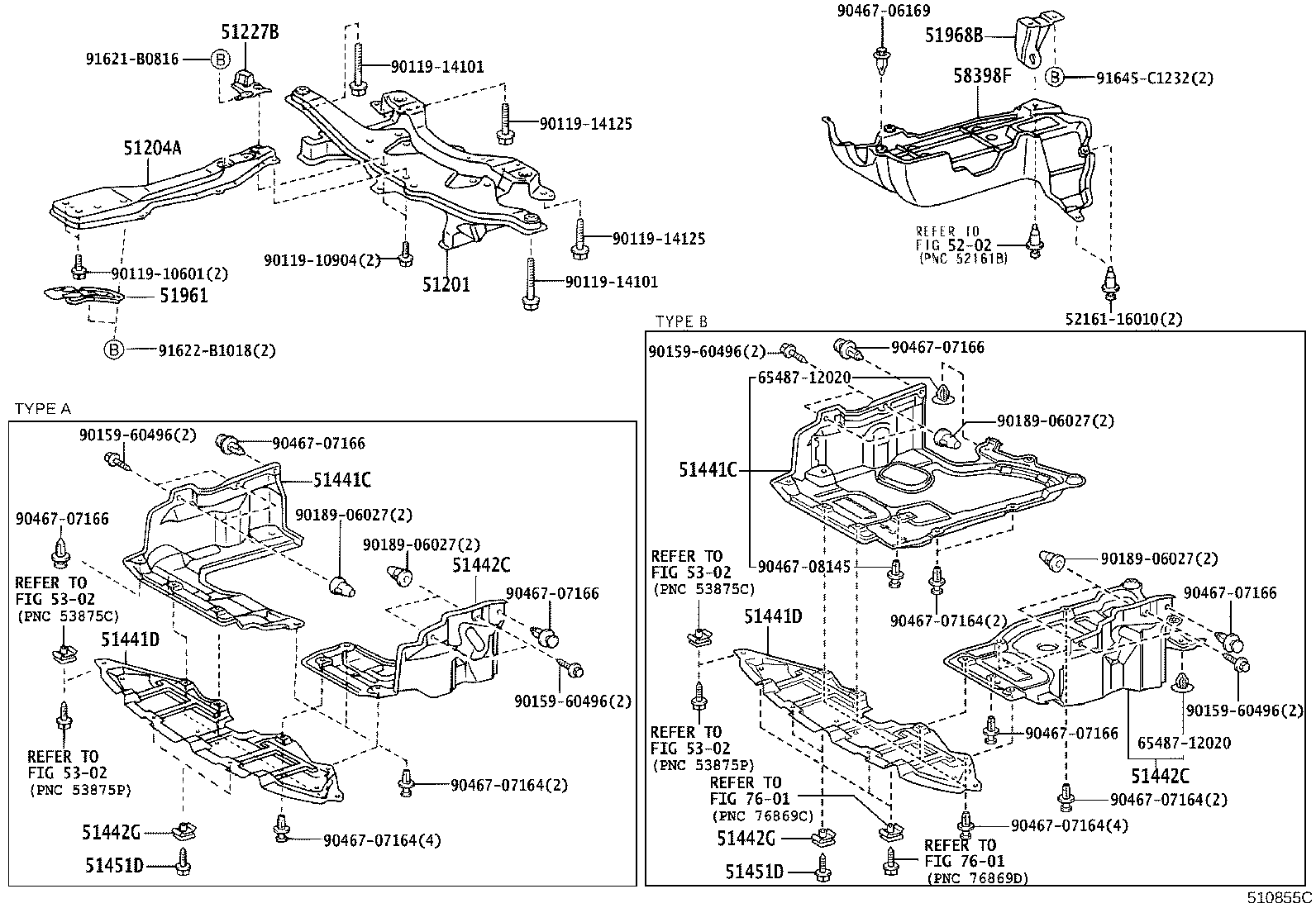

Toyota Corolla hb (jpp) ZZE121 SUSPENSION CROSSMEMBER & UNDER COVER

Part #	Description	Period	Qty
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-20350	CDE120,ZZE12#..JPP	09/2002 - 03/2003	1
51201-20351	ZZE12#..JPP	03/2003 - 05/2004	1
51201-20351	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
51204A - MEMBER SUB-ASSY, ENGINE MOUNTING, CENTER
51204-12150	ZZE12#..JPP	09/2002 - 05/2004	1
51204-12150	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
51227B - DAMPER, FRONT SUSPENSION MEMBER DYNAMIC
51227-12081	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
51227-12080	CDE120,ZZE12#..JPP	09/2002 - 08/2003	1
51227-12081	ZZE12#..JPP	08/2003 - 05/2004	1
51441C - COVER, ENGINE UNDER, RH
51410-12040	ZZE12#..JPP TYPE A:REFER TO ILLUSTRATION	05/2004 - 12/2999	1
51410-12040	ZZE12#..JPP TYPE A:REFER TO ILLUSTRATION	09/2002 - 05/2004	1
51441C - COVER, ENGINE UNDER, RH
51410-12040	ZZE12#..JPP TYPE A:REFER TO ILLUSTRATION	05/2004 - 12/2999	1
51410-12040	ZZE12#..JPP TYPE A:REFER TO ILLUSTRATION	09/2002 - 05/2004	1
51441D - COVER, ENGINE UNDER
51451-13030	ZZE12#..JPP	09/2002 - 05/2004	1
51451-13030	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
51441D - COVER, ENGINE UNDER
51451-13030	ZZE12#..JPP	09/2002 - 05/2004	1
51451-13030	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
51442C - COVER, ENGINE UNDER, LH
51420-12030	ZZE12#..JPP..5F TYPE A:REFER TO ILLUSTRATION	05/2004 - 12/2999	1
51420-12030	ZZE12#..JPP..5F TYPE A:REFER TO ILLUSTRATION	09/2002 - 05/2004	1
51442C - COVER, ENGINE UNDER, LH
51420-12030	ZZE12#..JPP..5F TYPE A:REFER TO ILLUSTRATION	05/2004 - 12/2999	1
51420-12030	ZZE12#..JPP..5F TYPE A:REFER TO ILLUSTRATION	09/2002 - 05/2004	1
51442G - CLIP, ENGINE UNDER COVER, NO.1
90467-05138	CDE120,ZZE12#..JPP	09/2002 - 05/2004	2
90467-05138	NDE120,ZZE12#..JPP	05/2004 - 10/2006	2
51442G - CLIP, ENGINE UNDER COVER, NO.1
90467-05138	CDE120,ZZE12#..JPP	09/2002 - 05/2004	2
90467-05138	NDE120,ZZE12#..JPP	05/2004 - 10/2006	2
51451D - SCREW, NO.1
90159-60488	CDE120,ZZE12#..JPP	09/2002 - 05/2004	2
90159-60488	NDE120,ZZE12#..JPP	05/2004 - 10/2006	2
51451D - SCREW, NO.1
90159-60488	CDE120,ZZE12#..JPP	09/2002 - 05/2004	2
90159-60488	NDE120,ZZE12#..JPP	05/2004 - 10/2006	2
51961 - HOOK, NO.1
51960-13010	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
51960-13010	ZZE12#..JPP	09/2002 - 05/2004	1
51968B - HOOK, TRANSPORT, REAR LH
51968-13040	ZZE12#..JPP	09/2002 - 05/2004	1
51968-13040	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
58398F - COVER, FLOOR UNDER, NO.1
58398-02010	ZZE12#..JPP	09/2002 - 05/2004	1
58398-02010	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
Common parts
52161-16010
65487-12020
90119-10601
90119-10904
90119-14101
90119-14125
90159-60496
90189-06027
90467-06169
90467-07164
90467-07166
90467-08145
91621-B0816
91622-B1018
91645-C1232
Linked diagrams
5202
5302
7601

ZZE121R-AHMDKW (2002)

(0209- )JPP
