ZZE121R-AHMDKW (2002)
Toyota Corolla Hb (Jpp)

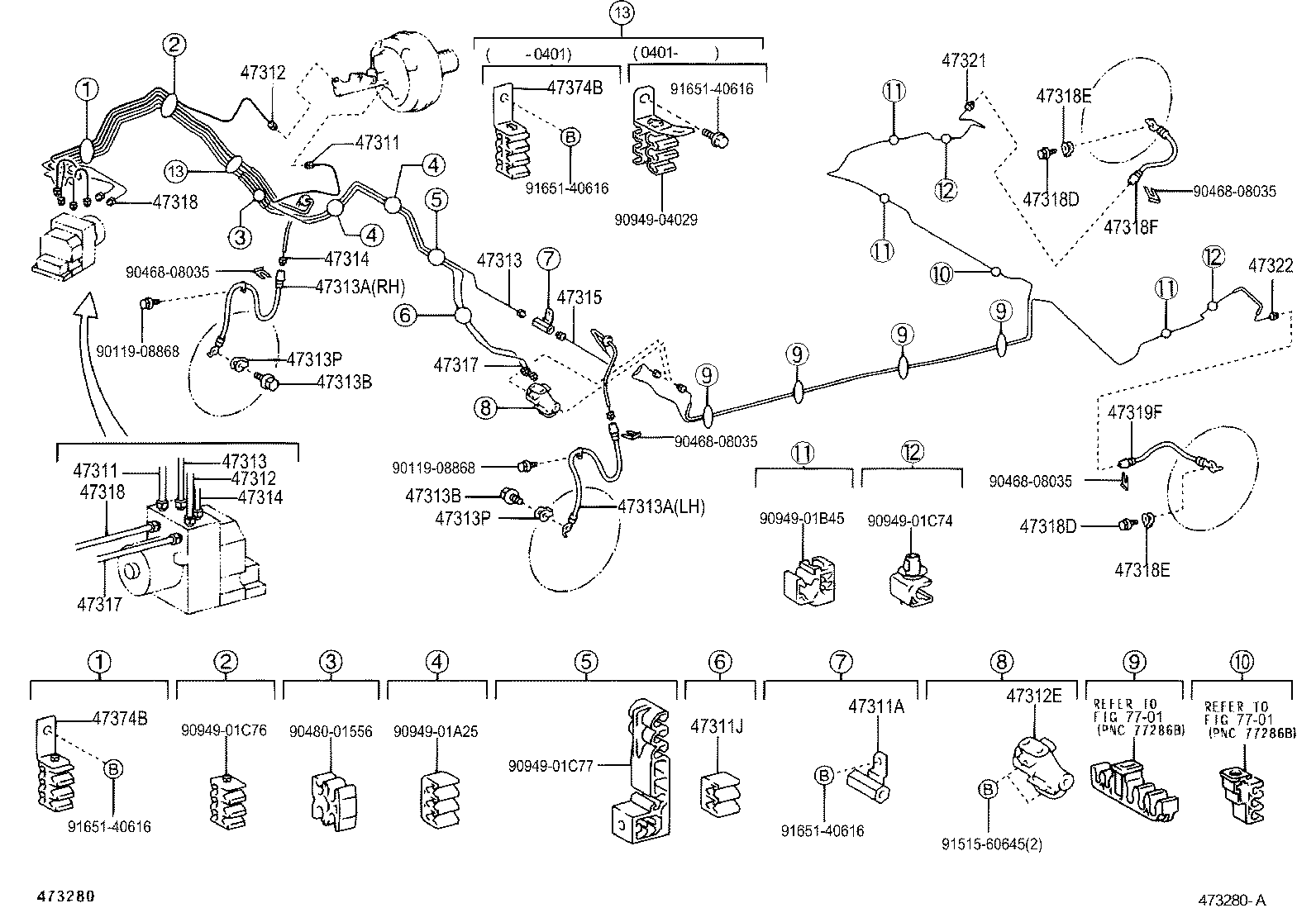

ILLUST NO. 1 OF 2(0209- )JPP..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-13060 |
ZZE12#..JPP..RHD |
1 | ||
| 47311-13070 |
ZZE121..JPP..RHD W(VSC) |
1 | ||
| 47311-13060 |
ZZE12#..JPP..RHD |
1 | ||
| 47311-13070 |
ZZE12#..JPP..RHD W(VSC) |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-13060 |
ZZE12#..JPP..RHD |
1 | ||
| 47311-13070 |
ZZE121..JPP..RHD W(VSC) |
1 | ||
| 47311-13060 |
ZZE12#..JPP..RHD |
1 | ||
| 47311-13070 |
ZZE12#..JPP..RHD W(VSC) |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90412-10227 |
ZZE12#..JPP..RHD |
1 | ||
| 90412-10227 |
ZZE12#..JPP..RHD |
1 | ||
| 47311J - GROMMET, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90480-01620 |
CDE120,ZZE12#..JPP |
1 | ||
| 90480-01620 |
NDE120,ZZE12#..JPP |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-13050 |
ZZE12#..JPP..RHD |
1 | ||
| 47312-13050 |
ZZE12#..JPP..RHD |
1 | ||
| 47312-13060 |
ZZE121..JPP..RHD W(VSC) |
1 | ||
| 47312-13060 |
ZZE12#..JPP..RHD W(VSC) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-13050 |
ZZE12#..JPP..RHD |
1 | ||
| 47312-13050 |
ZZE12#..JPP..RHD |
1 | ||
| 47312-13060 |
ZZE121..JPP..RHD W(VSC) |
1 | ||
| 47312-13060 |
ZZE12#..JPP..RHD W(VSC) |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10640 |
CDE120,ZZE12#..JPP |
1 | ||
| 90412-10640 |
NDE120,ZZE12#..JPP |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-13030 |
ZZE12#..JPP..RHD |
1 | ||
| 47313-13030 |
ZZE12#..JPP..RHD |
1 | ||
| 47313-13040 |
ZZE12#..JPP..RHD W(VSC) |
1 | ||
| 47313-13040 |
ZZE121..JPP..RHD W(VSC) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-13030 |
ZZE12#..JPP..RHD |
1 | ||
| 47313-13030 |
ZZE12#..JPP..RHD |
1 | ||
| 47313-13040 |
ZZE12#..JPP..RHD W(VSC) |
1 | ||
| 47313-13040 |
ZZE121..JPP..RHD W(VSC) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02D23 |
NDE120,ZZE12#..JPP LH |
1 | ||
| 90947-02D22 |
NDE120,ZZE12#..JPP RH |
1 | ||
| 90947-02D22 |
CDE120,ZZE12#..JPP RH |
1 | ||
| 90947-02D23 |
CDE120,ZZE12#..JPP LH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02D23 |
NDE120,ZZE12#..JPP LH |
1 | ||
| 90947-02D22 |
NDE120,ZZE12#..JPP RH |
1 | ||
| 90947-02D22 |
CDE120,ZZE12#..JPP RH |
1 | ||
| 90947-02D23 |
CDE120,ZZE12#..JPP LH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
CDE120,ZZE12#..JPP |
2 | ||
| 90401-10058 |
NDE120,ZZE12#..JPP |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
CDE120,ZZE12#..JPP |
2 | ||
| 90401-10058 |
NDE120,ZZE12#..JPP |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
CDE120,ZZE12#..JPP |
2 | ||
| 47389-50020 |
NDE120,ZZE12#..JPP |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
CDE120,ZZE12#..JPP |
2 | ||
| 47389-50020 |
NDE120,ZZE12#..JPP |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-13050 |
NDE120,ZZE12#..JPP |
1 | ||
| 47314-13050 |
CDE120,ZZE12#..JPP |
1 | ||
| 47314-13060 |
ZZE121..JPP..RHD W(VSC) |
1 | ||
| 47314-13060 |
ZZE12#..JPP..RHD W(VSC) |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-13050 |
CDE120,ZZE12#..JPP |
1 | ||
| 47314-13060 |
ZZE121..JPP..RHD W(VSC) |
1 | ||
| 47314-13050 |
NDE120,ZZE12#..JPP |
1 | ||
| 47314-13060 |
ZZE12#..JPP..RHD W(VSC) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-13080 |
ZZE12#..JPP..RHD |
1 | ||
| 47315-13080 |
ZZE12#..JPP..RHD |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-13030 |
ZZE12#..JPP..RHD |
1 | ||
| 47317-13040 |
ZZE121..JPP..RHD W(VSC) |
1 | ||
| 47317-13040 |
ZZE12#..JPP..RHD W(VSC) |
1 | ||
| 47317-13030 |
ZZE12#..JPP..RHD |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-13030 |
ZZE12#..JPP..RHD |
1 | ||
| 47317-13040 |
ZZE121..JPP..RHD W(VSC) |
1 | ||
| 47317-13040 |
ZZE12#..JPP..RHD W(VSC) |
1 | ||
| 47317-13030 |
ZZE12#..JPP..RHD |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-13080 |
ZZE121..JPP..RHD W(VSC) |
1 | ||
| 47318-13070 |
ZZE12#..JPP..RHD |
1 | ||
| 47318-13080 |
ZZE12#..JPP..RHD W(VSC) |
1 | ||
| 47318-13070 |
ZZE12#..JPP..RHD |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-13080 |
ZZE121..JPP..RHD W(VSC) |
1 | ||
| 47318-13070 |
ZZE12#..JPP..RHD |
1 | ||
| 47318-13080 |
ZZE12#..JPP..RHD W(VSC) |
1 | ||
| 47318-13070 |
ZZE12#..JPP..RHD |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10045 |
NDE120,ZZE12#..JPP |
2 | ||
| 90401-10058 |
CDE120,ZZE12#..JPP |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10045 |
NDE120,ZZE12#..JPP |
2 | ||
| 90401-10058 |
CDE120,ZZE12#..JPP |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
NDE120,ZZE12#..JPP |
2 | ||
| 47389-50020 |
CDE120,ZZE12#..JPP |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
NDE120,ZZE12#..JPP |
2 | ||
| 47389-50020 |
CDE120,ZZE12#..JPP |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02E88 |
CDE120,ZZE12#..JPP |
1 | ||
| 90947-02E88 |
NDE120,ZZE12#..JPP |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02E88 |
NDE120,ZZE12#..JPP |
1 | ||
| 90947-02E88 |
CDE120,ZZE12#..JPP |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-13170 |
NDE120,ZZE12#..JPP |
1 | ||
| 47321-13170 |
CDE120,ZZE12#..JPP |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-13210 |
CDE120,ZZE12#..JPP |
1 | ||
| 47322-13210 |
NDE120,ZZE12#..JPP |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47374-12050 |
CDE120,ZZE12#..JPP |
2 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47374-12050 |
CDE120,ZZE12#..JPP |
2 | ||
| Common parts | ||||
| 90119-08868 | ||||
| 90468-08035 | ||||
| 90480-01556 | ||||
| 90949-01970 | ||||
| 90949-01A25 | ||||
| 90949-01B45 | ||||
| 90949-01C74 | ||||
| 90949-01C77 | ||||
| 90949-04030 | ||||
| 91515-60645 | ||||
| 91651-40616 | ||||
| Linked diagrams | ||||
| 7701 | ||||

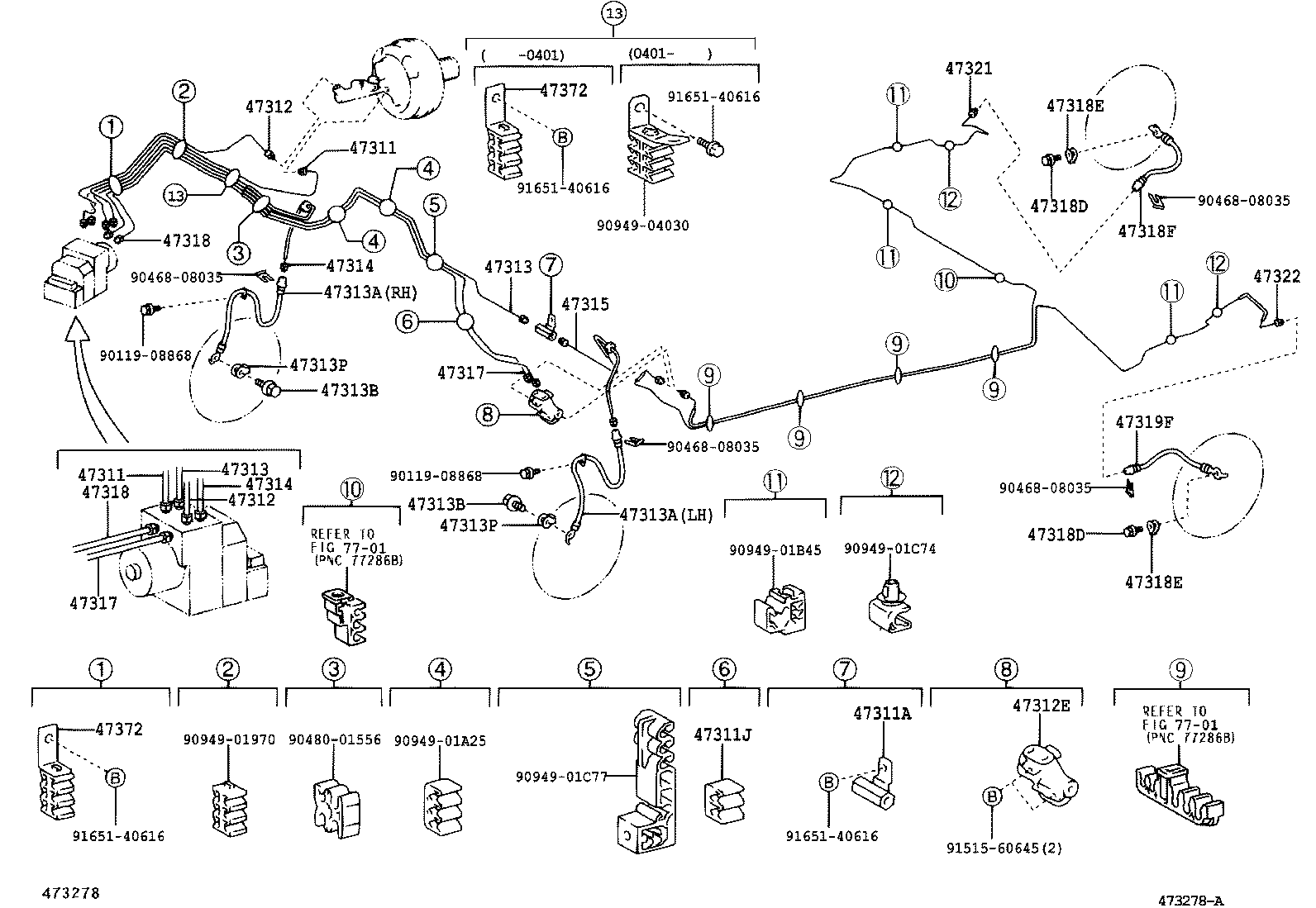

ILLUST NO. 1 OF 2(0209-0405)ZZE121..JPP..RHD ; (0405- )JPP..RHD
W(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-13060 |
ZZE12#..JPP..RHD |
1 | ||
| 47311-13070 |
ZZE121..JPP..RHD W(VSC) |
1 | ||
| 47311-13060 |
ZZE12#..JPP..RHD |
1 | ||
| 47311-13070 |
ZZE12#..JPP..RHD W(VSC) |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-13060 |
ZZE12#..JPP..RHD |
1 | ||
| 47311-13070 |
ZZE121..JPP..RHD W(VSC) |
1 | ||
| 47311-13060 |
ZZE12#..JPP..RHD |
1 | ||
| 47311-13070 |
ZZE12#..JPP..RHD W(VSC) |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90412-10227 |
ZZE12#..JPP..RHD |
1 | ||
| 90412-10227 |
ZZE12#..JPP..RHD |
1 | ||
| 47311J - GROMMET, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90480-01620 |
CDE120,ZZE12#..JPP |
1 | ||
| 90480-01620 |
NDE120,ZZE12#..JPP |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-13050 |
ZZE12#..JPP..RHD |
1 | ||
| 47312-13050 |
ZZE12#..JPP..RHD |
1 | ||
| 47312-13060 |
ZZE121..JPP..RHD W(VSC) |
1 | ||
| 47312-13060 |
ZZE12#..JPP..RHD W(VSC) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-13050 |
ZZE12#..JPP..RHD |
1 | ||
| 47312-13050 |
ZZE12#..JPP..RHD |
1 | ||
| 47312-13060 |
ZZE121..JPP..RHD W(VSC) |
1 | ||
| 47312-13060 |
ZZE12#..JPP..RHD W(VSC) |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10640 |
CDE120,ZZE12#..JPP |
1 | ||
| 90412-10640 |
NDE120,ZZE12#..JPP |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-13030 |
ZZE12#..JPP..RHD |
1 | ||
| 47313-13030 |
ZZE12#..JPP..RHD |
1 | ||
| 47313-13040 |
ZZE12#..JPP..RHD W(VSC) |
1 | ||
| 47313-13040 |
ZZE121..JPP..RHD W(VSC) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-13030 |
ZZE12#..JPP..RHD |
1 | ||
| 47313-13030 |
ZZE12#..JPP..RHD |
1 | ||
| 47313-13040 |
ZZE12#..JPP..RHD W(VSC) |
1 | ||
| 47313-13040 |
ZZE121..JPP..RHD W(VSC) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02D23 |
NDE120,ZZE12#..JPP LH |
1 | ||
| 90947-02D22 |
NDE120,ZZE12#..JPP RH |
1 | ||
| 90947-02D22 |
CDE120,ZZE12#..JPP RH |
1 | ||
| 90947-02D23 |
CDE120,ZZE12#..JPP LH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02D23 |
NDE120,ZZE12#..JPP LH |
1 | ||
| 90947-02D22 |
NDE120,ZZE12#..JPP RH |
1 | ||
| 90947-02D22 |
CDE120,ZZE12#..JPP RH |
1 | ||
| 90947-02D23 |
CDE120,ZZE12#..JPP LH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
CDE120,ZZE12#..JPP |
2 | ||
| 90401-10058 |
NDE120,ZZE12#..JPP |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
CDE120,ZZE12#..JPP |
2 | ||
| 90401-10058 |
NDE120,ZZE12#..JPP |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
CDE120,ZZE12#..JPP |
2 | ||
| 47389-50020 |
NDE120,ZZE12#..JPP |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
CDE120,ZZE12#..JPP |
2 | ||
| 47389-50020 |
NDE120,ZZE12#..JPP |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-13050 |
CDE120,ZZE12#..JPP |
1 | ||
| 47314-13060 |
ZZE121..JPP..RHD W(VSC) |
1 | ||
| 47314-13050 |
NDE120,ZZE12#..JPP |
1 | ||
| 47314-13060 |
ZZE12#..JPP..RHD W(VSC) |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-13050 |
CDE120,ZZE12#..JPP |
1 | ||
| 47314-13060 |
ZZE121..JPP..RHD W(VSC) |
1 | ||
| 47314-13050 |
NDE120,ZZE12#..JPP |
1 | ||
| 47314-13060 |
ZZE12#..JPP..RHD W(VSC) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-13080 |
ZZE12#..JPP..RHD |
1 | ||
| 47315-13080 |
ZZE12#..JPP..RHD |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-13030 |
ZZE12#..JPP..RHD |
1 | ||
| 47317-13040 |
ZZE121..JPP..RHD W(VSC) |
1 | ||
| 47317-13040 |
ZZE12#..JPP..RHD W(VSC) |
1 | ||
| 47317-13030 |
ZZE12#..JPP..RHD |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-13030 |
ZZE12#..JPP..RHD |
1 | ||
| 47317-13040 |
ZZE121..JPP..RHD W(VSC) |
1 | ||
| 47317-13040 |
ZZE12#..JPP..RHD W(VSC) |
1 | ||
| 47317-13030 |
ZZE12#..JPP..RHD |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-13080 |
ZZE121..JPP..RHD W(VSC) |
1 | ||
| 47318-13070 |
ZZE12#..JPP..RHD |
1 | ||
| 47318-13070 |
ZZE12#..JPP..RHD |
1 | ||
| 47318-13080 |
ZZE12#..JPP..RHD W(VSC) |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-13080 |
ZZE121..JPP..RHD W(VSC) |
1 | ||
| 47318-13070 |
ZZE12#..JPP..RHD |
1 | ||
| 47318-13080 |
ZZE12#..JPP..RHD W(VSC) |
1 | ||
| 47318-13070 |
ZZE12#..JPP..RHD |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10045 |
NDE120,ZZE12#..JPP |
2 | ||
| 90401-10058 |
CDE120,ZZE12#..JPP |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10045 |
NDE120,ZZE12#..JPP |
2 | ||
| 90401-10058 |
CDE120,ZZE12#..JPP |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
NDE120,ZZE12#..JPP |
2 | ||
| 47389-50020 |
CDE120,ZZE12#..JPP |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
NDE120,ZZE12#..JPP |
2 | ||
| 47389-50020 |
CDE120,ZZE12#..JPP |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02E88 |
NDE120,ZZE12#..JPP |
1 | ||
| 90947-02E88 |
CDE120,ZZE12#..JPP |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02E88 |
NDE120,ZZE12#..JPP |
1 | ||
| 90947-02E88 |
CDE120,ZZE12#..JPP |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-13170 |
NDE120,ZZE12#..JPP |
1 | ||
| 47321-13170 |
CDE120,ZZE12#..JPP |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-13210 |
CDE120,ZZE12#..JPP |
1 | ||
| 47322-13210 |
NDE120,ZZE12#..JPP |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47374-13020 |
ZZE121..JPP |
2 | ||
| 47374-13020 |
ZZE12#..JPP..RHD |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47374-13020 |
ZZE121..JPP |
2 | ||
| 47374-13020 |
ZZE12#..JPP..RHD |
1 | ||
| Common parts | ||||
| 90119-08868 | ||||
| 90468-08035 | ||||
| 90480-01556 | ||||
| 90949-01A25 | ||||
| 90949-01B45 | ||||
| 90949-01C74 | ||||
| 90949-01C76 | ||||
| 90949-01C77 | ||||
| 90949-04029 | ||||
| 91515-60645 | ||||
| 91651-40616 | ||||
| Linked diagrams | ||||
| 7701 | ||||

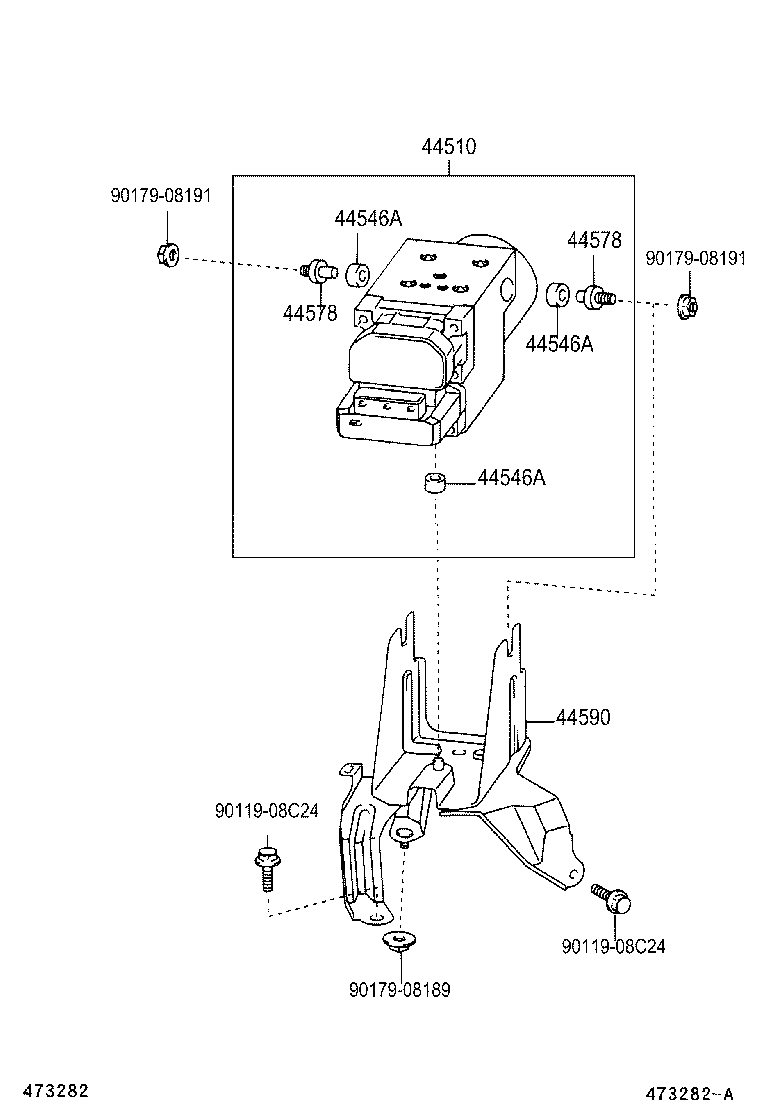

ILLUST NO. 2 OF 2(0209- )JPP
W/O(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-02030 |
NDE120,ZZE12#..JPP |
1 | ||
| 44050-02030 |
CDE120,ZZE12#..JPP |
1 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-05020 |
CDE120,ZZE12#..JPP |
3 | ||
| 44546-12100 |
ZZE121..JPP W(VSC) |
3 | ||
| 44546-05020 |
NDE120,ZZE12#..JPP |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-05020 |
CDE120,ZZE12#..JPP |
3 | ||
| 44546-12100 |
ZZE121..JPP W(VSC) |
3 | ||
| 44546-05020 |
NDE120,ZZE12#..JPP |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-05020 |
CDE120,ZZE12#..JPP |
3 | ||
| 44546-12100 |
ZZE121..JPP W(VSC) |
3 | ||
| 44546-05020 |
NDE120,ZZE12#..JPP |
3 | ||
| 44578 - BOLT, BRAKE ACTUATOR CUSHION | ||||
| 44578-05020 |
NDE120,ZZE12#..JPP |
2 | ||
| 44578-05020 |
CDE120,ZZE12#..JPP |
2 | ||
| 44578 - BOLT, BRAKE ACTUATOR CUSHION | ||||
| 44578-05020 |
NDE120,ZZE12#..JPP |
2 | ||
| 44578-05020 |
CDE120,ZZE12#..JPP |
2 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-02020 |
CDE120,ZZE12#..JPP |
1 | ||
| 44590-05030 |
ZZE121..JPP W(VSC) |
1 | ||
| 44590-02030 |
ZZE121..JPP W(VSC) |
1 | ||
| 44590-02020 |
NDE120,ZZE12#..JPP |
1 | ||
| 44590-05030 |
ZZE12#..JPP..RHD W(VSC) |
1 | ||
| Common parts | ||||
| 90119-08C24 | ||||
| 90179-08189 | ||||
| 90179-08191 | ||||

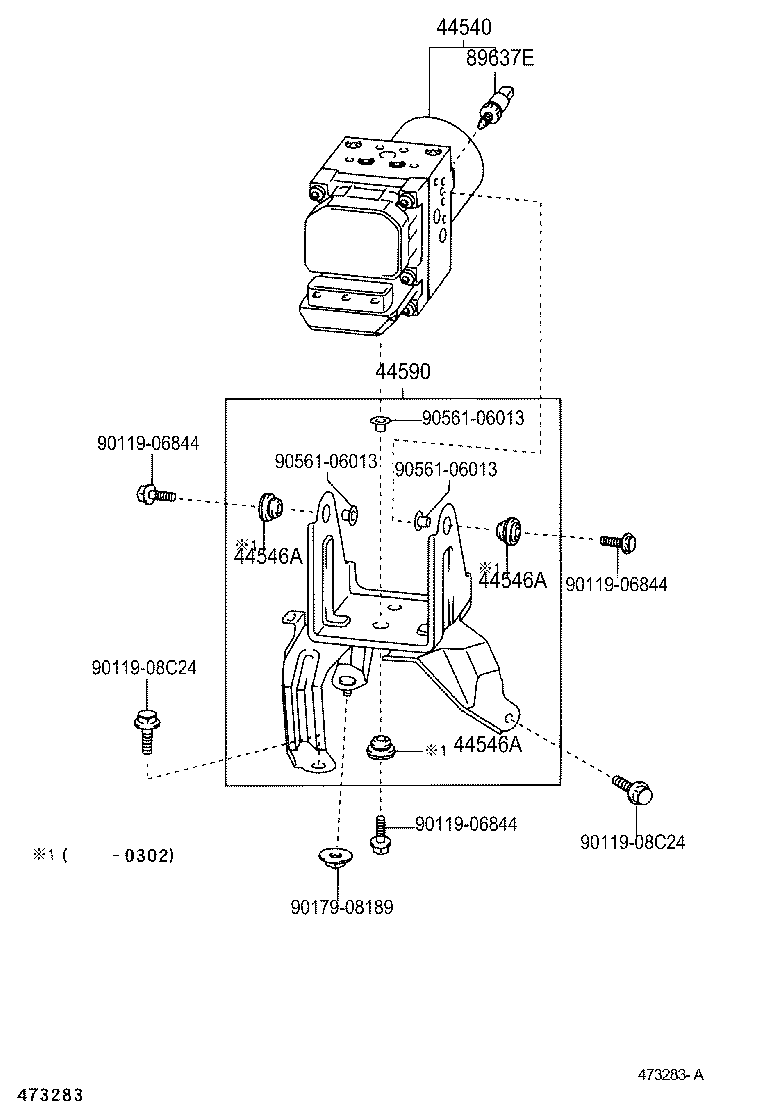

ILLUST NO. 2 OF 2(0209-0405)ZZE121..JPP ; (0405- )JPP
W(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44540 - ACTUATOR ASSY, ABS & TRACTION | ||||
| 44050-02100 |
ZZE121..JPP..RHD |
1 | ||
| 44050-02051 |
ZZE121..JPP |
1 | ||
| 44050-02050 |
ZZE121..JPP |
1 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-05020 |
CDE120,ZZE12#..JPP |
3 | ||
| 44546-12100 |
ZZE121..JPP W(VSC) |
3 | ||
| 44546-05020 |
NDE120,ZZE12#..JPP |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-05020 |
CDE120,ZZE12#..JPP |
3 | ||
| 44546-12100 |
ZZE121..JPP W(VSC) |
3 | ||
| 44546-05020 |
NDE120,ZZE12#..JPP |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-05020 |
CDE120,ZZE12#..JPP |
3 | ||
| 44546-12100 |
ZZE121..JPP W(VSC) |
3 | ||
| 44546-05020 |
NDE120,ZZE12#..JPP |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-02020 |
NDE120,ZZE12#..JPP |
1 | ||
| 44590-02020 |
CDE120,ZZE12#..JPP |
1 | ||
| 44590-05030 |
ZZE121..JPP W(VSC) |
1 | ||
| 44590-02030 |
ZZE121..JPP W(VSC) |
1 | ||
| 44590-05030 |
ZZE12#..JPP..RHD W(VSC) |
1 | ||
| 89637E - SENSOR, OIL PRESSURE | ||||
| 89637-07010 |
ZZE121..JPP |
1 | ||
| 89637-07010 |
ZZE12#..JPP..RHD |
1 | ||
| Common parts | ||||
| 90119-06844 | ||||
| 90119-08C24 | ||||
| 90179-08189 | ||||
| 90561-06013 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
