Toyota Corolla hb (jpp) ZZE121 FRONT DISC BRAKE CALIPER & DUST COVER

Manufacturers Home
Toyota
EU
COROLLA HB (JPP)
ZZE121R-AHMDKW (2002)
4705 - FRONT DISC BRAKE CALIPER & DUST COVER

ZZE121R-AHMDKW (2002)

Toyota Corolla Hb (Jpp)

Production Sep 2002 - Oct 2006

Engine 3ZZFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

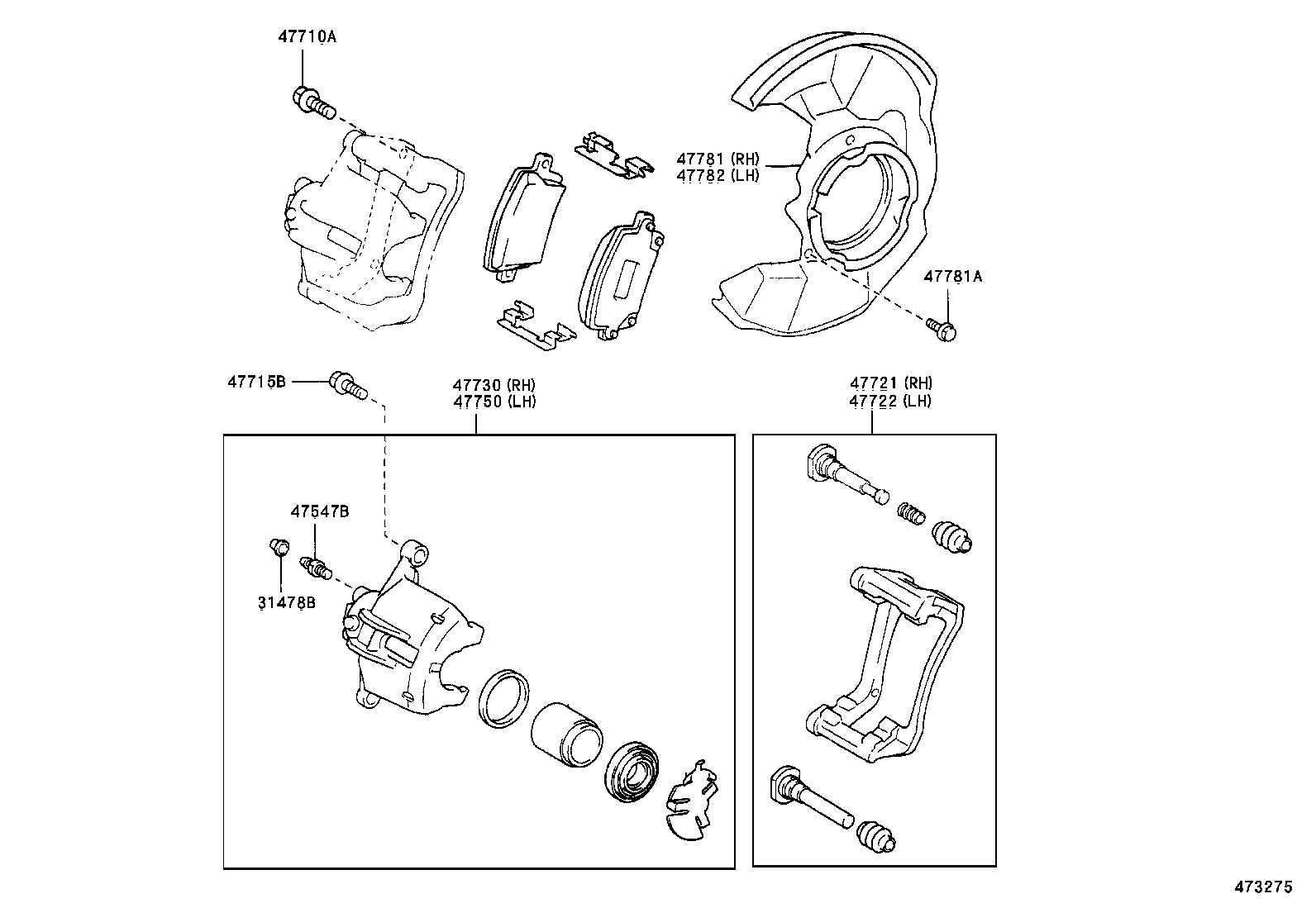

ILLUST NO. 1 OF 2(0209- )CDE120,ZZE12#..JPP

Click highlighted areas on diagram

Part #	Description	Period	Qty
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
47548-02010	CDE120,ZZE12#..JPP	09/2002 - 05/2004	2
47548-02010	NDE120,ZZE12#..JPP	05/2004 - 12/2999	2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-05011	CDE120,ZZE12#..JPP	09/2002 - 05/2004	2
90080-93014	NDE120,ZZE12#..JPP	05/2004 - 10/2004	2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90105-12208	NDE120,ZZE12#..JPP *12-1.25PX29.5-23	05/2004 - 12/2999	4
90105-12208	CDE120,ZZE12#..JPP *12-1.25PX29.5-23	09/2002 - 05/2004	4
47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
90080-10190	CDE120,ZZE12#..JPP	09/2002 - 05/2004	4
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-09160	ZZE12#..JPP	09/2002 - 05/2004	1
47721-09160	ZZE12#..JPP	05/2004 - 10/2006	1
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47721-09170	ZZE12#..JPP	09/2002 - 05/2004	1
47721-09170	ZZE12#..JPP	05/2004 - 10/2006	1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-02100	NDE120,ZZE12#..JPP	05/2004 - 09/2006	1
47730-02100	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-02100	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
47750-02100	NDE120,ZZE12#..JPP	05/2004 - 09/2006	1
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-12240	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
47781-12240	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
90119-06227	CDE120,ZZE12#..JPP	09/2002 - 05/2004	6
90119-06227	NDE120,ZZE12#..JPP	05/2004 - 12/2999	6
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-12240	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
47782-12240	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1

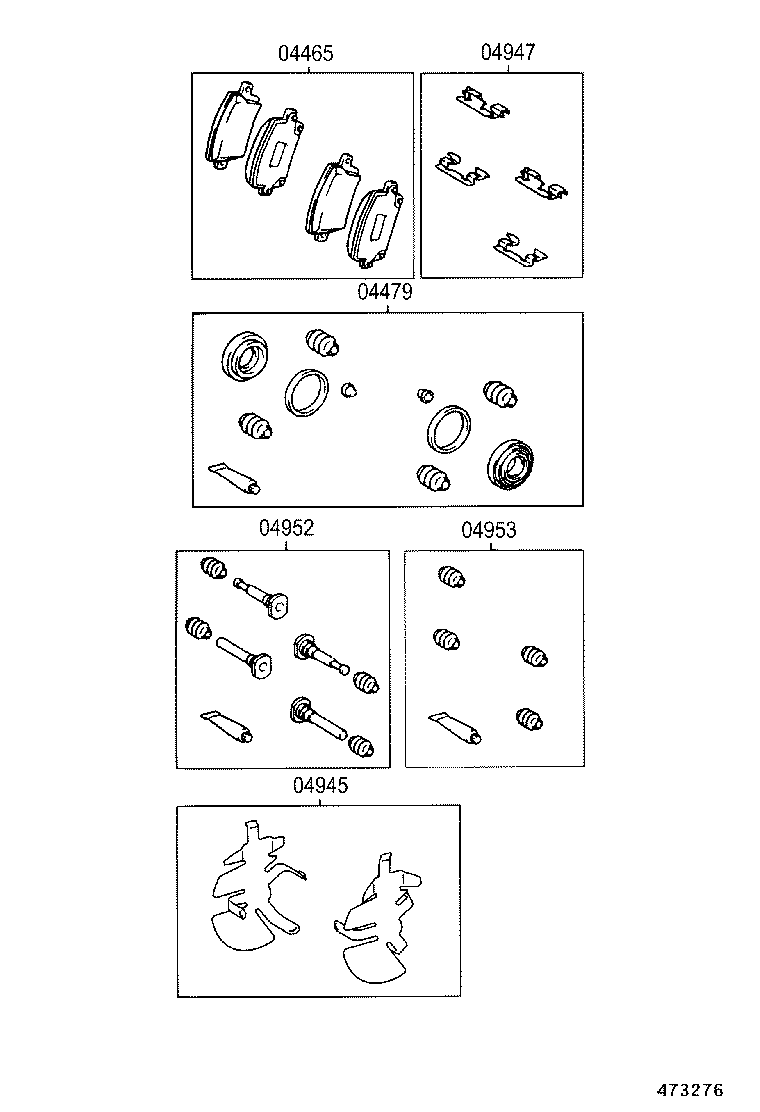

ILLUST NO. 2 OF 2(0209- )JPP

Click highlighted areas on diagram

Part #	Description	Period	Qty
04465 - PAD KIT, DISC BRAKE, FRONT
04465-02130	CDE120,ZZE12#..JPP MARK TRW PAGID 648	09/2002 - 05/2004	1
04465-02130	NDE120,ZZE12#..JPP MARK TRW PAGID 648	05/2004 - 12/2999	1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-02080	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
04479-02080	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-02070	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
04945-02080	ZZE12#..JPP	09/2002 - 02/2004	1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-02050	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
04947-02050	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
04952 - PIN KIT, FRONT DISC BRAKE CYLINDER SLIDE
04952-02030	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
04952-02030	ZZE12#..JPP	05/2004 - 12/2999	1
04953 - BOOT KIT, FRONT DISC BRAKE CYLINDER SLIDE PIN
04953-02030	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
04953-02030	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1

ZZE121R-AHMDKW (2002)

ILLUST NO. 1 OF 2(0209- )CDE120,ZZE12#..JPP

ILLUST NO. 2 OF 2(0209- )JPP
