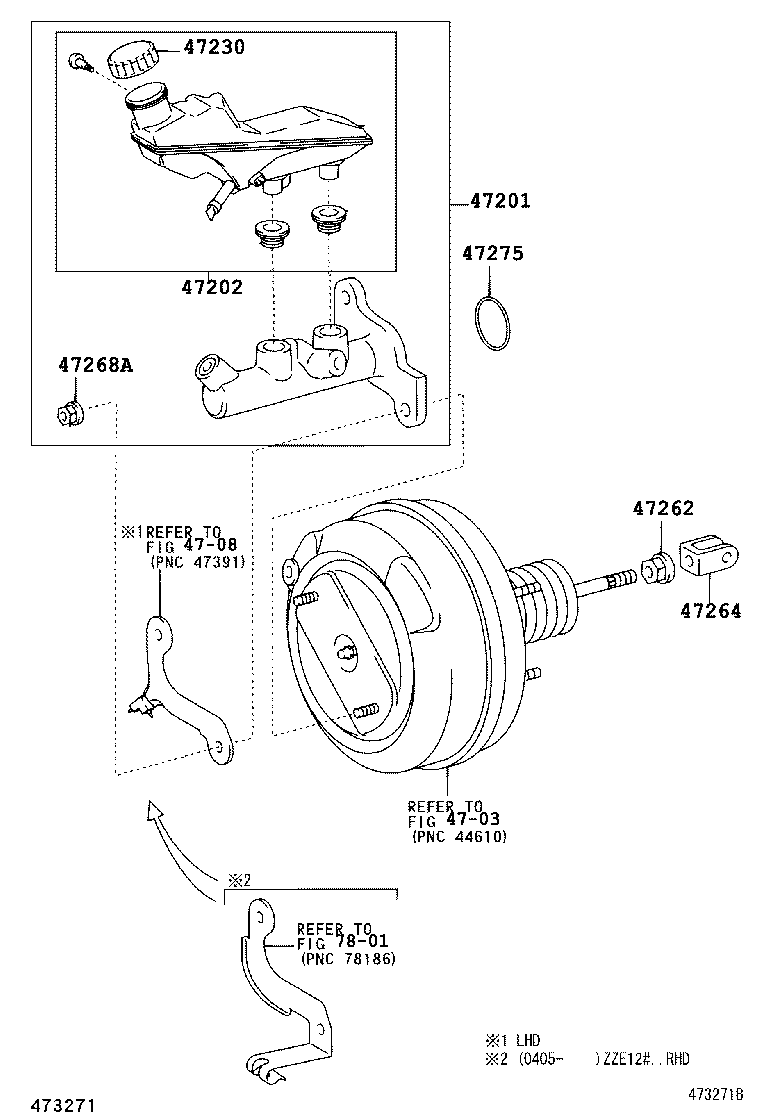

Toyota Corolla hb (jpp) ZZE121 BRAKE MASTER CYLINDER

Part #	Description	Period	Qty
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-09050	ZZE121..JPP..RHD W(VSC)	09/2002 - 05/2004	1
47201-09040	ZZE12#..JPP..RHD	05/2004 - 10/2006	1
47201-09050	ZZE12#..JPP..RHD W(VSC)	05/2004 - 10/2005	1
47201-09040	ZZE12#..JPP..RHD	09/2002 - 05/2004	1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-09010	ZZE12#..JPP..RHD	09/2002 - 05/2004	1
47220-09010	ZZE12#..JPP..RHD	05/2004 - 12/2999	1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-02100	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
47230-02100	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
47262 - NUT, MASTER CYLINDER PUSH ROD
47262-02010	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-02050	ZZE12#..JPP..RHD	05/2004 - 12/2999	1
47264-02050	ZZE12#..JPP..RHD	09/2002 - 05/2004	1
47268A - NUT, BRAKE MASTER CYLINDER
47268-02010	CDE120,ZZE12#..JPP	09/2002 - 05/2004	2
47275 - GASKET, BRAKE MASTER CYLINDER
47275-02010	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
47275-02010	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
Linked diagrams
4703
4708
7801

ZZE121R-AHMDKW (2002)
