Toyota Corolla hb (jpp) ZZE121 FRONT STEERING GEAR & LINK

Manufacturers Home
Toyota
EU
COROLLA HB (JPP)
ZZE121R-AHMDKW (2002)
4505 - FRONT STEERING GEAR & LINK

ZZE121R-AHMDKW (2002)

Toyota Corolla Hb (Jpp)

Production Sep 2002 - Oct 2006

Engine 3ZZFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

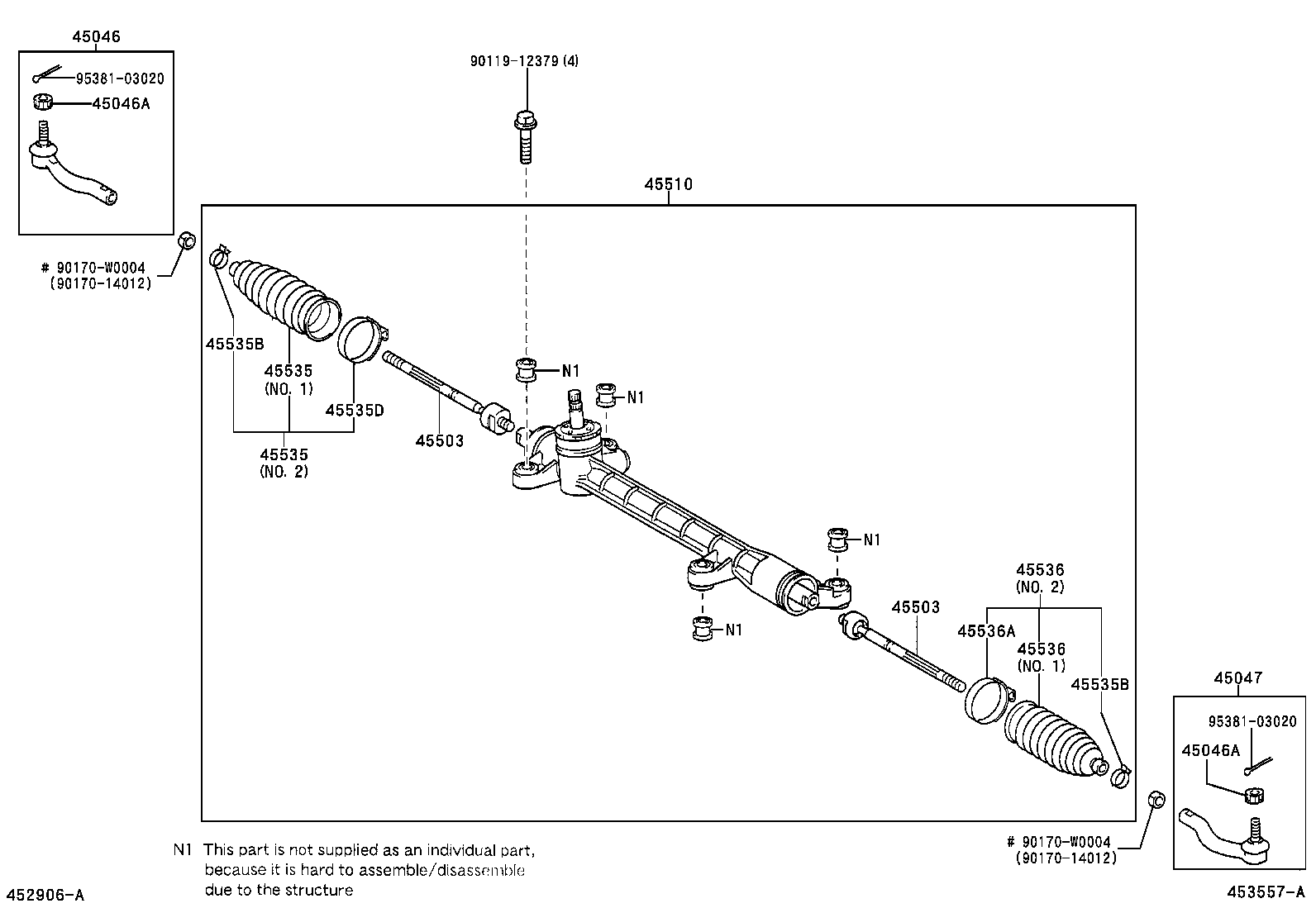

(0209-0405)JPP..RHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
45046 - END SUB-ASSY, TIE ROD, RH
45046-09360	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
45046-09360	CDE120,ZZE12#..JPP	10/2003 - 05/2004	1
45046-19265	CDE120,ZZE12#..JPP	09/2002 - 10/2003	1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028	NDE120,ZZE12#..JPP	05/2004 - 12/2999	2
90171-12028	CDE120,ZZE12#..JPP	09/2002 - 05/2004	2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028	NDE120,ZZE12#..JPP	05/2004 - 12/2999	2
90171-12028	CDE120,ZZE12#..JPP	09/2002 - 05/2004	2
45047 - END SUB-ASSY, TIE ROD, LH
45047-19115	CDE120,ZZE12#..JPP	09/2002 - 10/2003	1
45047-09150	CDE120,ZZE12#..JPP	10/2003 - 05/2004	1
45047-09150	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
45503 - END SUB-ASSY, STEERING RACK
45503-12130	CDE120,ZZE12#..JPP	09/2002 - 10/2003	2
45503-02080	CDE120,ZZE12#..JPP	10/2003 - 05/2004	2
45503-02080	NDE120,ZZE12#..JPP	05/2004 - 12/2999	2
45503 - END SUB-ASSY, STEERING RACK
45503-12130	CDE120,ZZE12#..JPP	09/2002 - 10/2003	2
45503-02080	CDE120,ZZE12#..JPP	10/2003 - 05/2004	2
45503-02080	NDE120,ZZE12#..JPP	05/2004 - 12/2999	2
45510 - GEAR ASSY, STEERING
45510-02060	ZZE12#..JPP..RHD	09/2002 - 05/2004	1
45510-02060	ZZE12#..JPP..RHD	05/2004 - 12/2999	1
45535 - BOOT, STEERING RACK, NO.1
45535-02050	CDE120,ZZE12#..JPP NO.1	09/2002 - 05/2004	1
45535-02050	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
45535-09040	CDE120,ZZE12#..JPP NO.2	09/2002 - 05/2004	1
45535 - BOOT, STEERING RACK, NO.1
45535-02050	CDE120,ZZE12#..JPP NO.1	09/2002 - 05/2004	1
45535-02050	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
45535-09040	CDE120,ZZE12#..JPP NO.2	09/2002 - 05/2004	1
45535B - CLIP(FOR STEERING RACK BOOT)
90466-22003	NDE120,ZZE12#..JPP	05/2004 - 12/2999	2
90466-22003	CDE120,ZZE12#..JPP	09/2002 - 05/2004	2
45535B - CLIP(FOR STEERING RACK BOOT)
90466-22003	NDE120,ZZE12#..JPP	05/2004 - 12/2999	2
90466-22003	CDE120,ZZE12#..JPP	09/2002 - 05/2004	2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
90460-57006	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
90460-57006	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
45536 - BOOT, STEERING RACK, NO.2
45535-02050	CDE120,ZZE12#..JPP NO.1	09/2002 - 05/2004	1
45535-09040	CDE120,ZZE12#..JPP NO.2	09/2002 - 05/2004	1
45535-02050	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
45536 - BOOT, STEERING RACK, NO.2
45535-02050	CDE120,ZZE12#..JPP NO.1	09/2002 - 05/2004	1
45535-09040	CDE120,ZZE12#..JPP NO.2	09/2002 - 05/2004	1
45535-02050	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
90460-57006	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
90460-57006	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
Common parts
90119-12379
90170-14012
90170-W0004
95381-03020

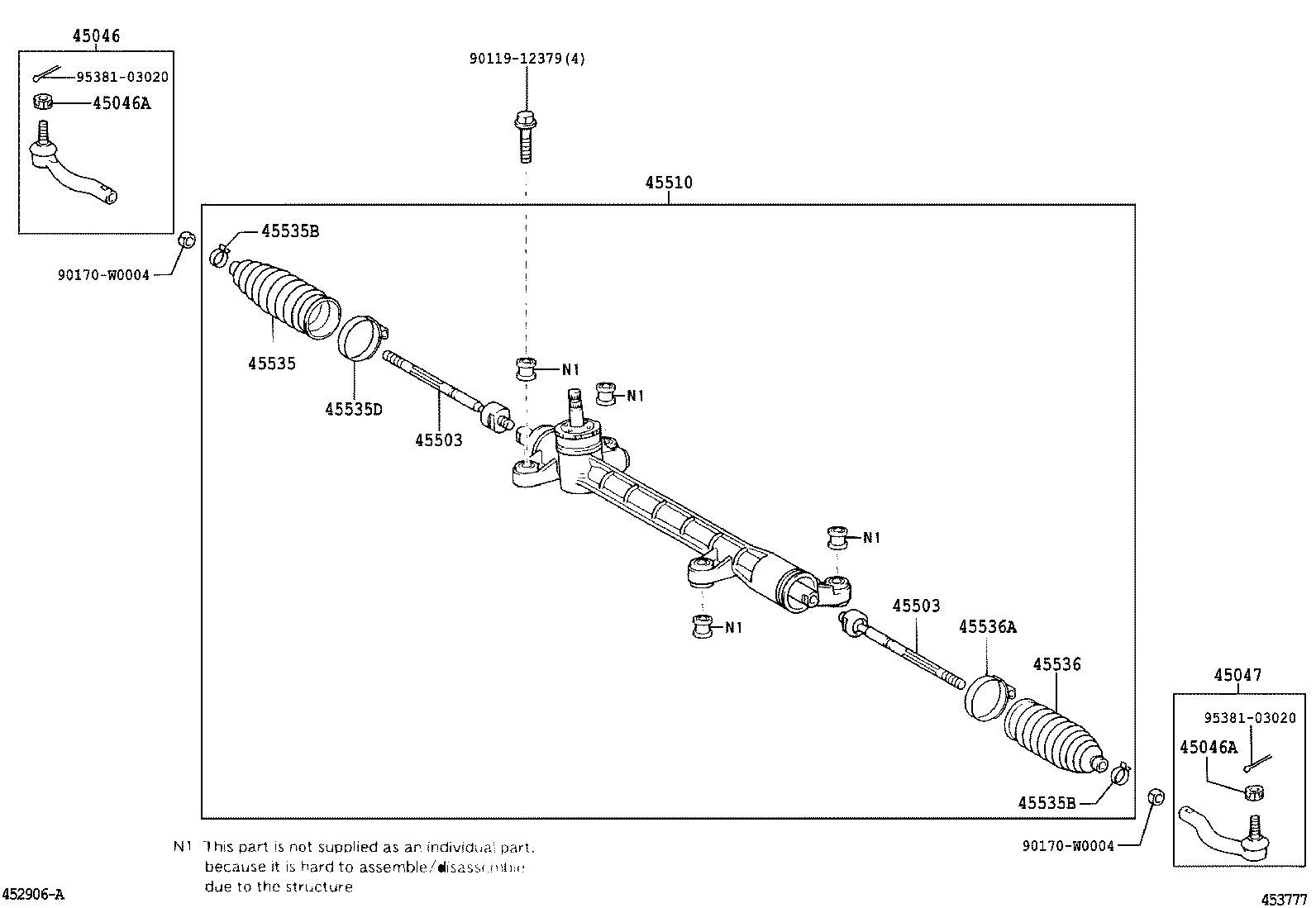

(0405- )JPP..RHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
45046 - END SUB-ASSY, TIE ROD, RH
45046-09360	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
45046-09360	CDE120,ZZE12#..JPP	10/2003 - 05/2004	1
45046-19265	CDE120,ZZE12#..JPP	09/2002 - 10/2003	1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028	NDE120,ZZE12#..JPP	05/2004 - 12/2999	2
90171-12028	CDE120,ZZE12#..JPP	09/2002 - 05/2004	2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028	NDE120,ZZE12#..JPP	05/2004 - 12/2999	2
90171-12028	CDE120,ZZE12#..JPP	09/2002 - 05/2004	2
45047 - END SUB-ASSY, TIE ROD, LH
45047-19115	CDE120,ZZE12#..JPP	09/2002 - 10/2003	1
45047-09150	CDE120,ZZE12#..JPP	10/2003 - 05/2004	1
45047-09150	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
45503 - END SUB-ASSY, STEERING RACK
45503-12130	CDE120,ZZE12#..JPP	09/2002 - 10/2003	2
45503-02080	CDE120,ZZE12#..JPP	10/2003 - 05/2004	2
45503-02080	NDE120,ZZE12#..JPP	05/2004 - 12/2999	2
45503 - END SUB-ASSY, STEERING RACK
45503-12130	CDE120,ZZE12#..JPP	09/2002 - 10/2003	2
45503-02080	CDE120,ZZE12#..JPP	10/2003 - 05/2004	2
45503-02080	NDE120,ZZE12#..JPP	05/2004 - 12/2999	2
45510 - GEAR ASSY, STEERING
45510-02060	ZZE12#..JPP..RHD	09/2002 - 05/2004	1
45510-02060	ZZE12#..JPP..RHD	05/2004 - 12/2999	1
45535 - BOOT, STEERING RACK, NO.1
45535-02050	CDE120,ZZE12#..JPP NO.1	09/2002 - 05/2004	1
45535-02050	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
45535-09040	CDE120,ZZE12#..JPP NO.2	09/2002 - 05/2004	1
45535B - CLIP(FOR STEERING RACK BOOT)
90466-22003	NDE120,ZZE12#..JPP	05/2004 - 12/2999	2
90466-22003	CDE120,ZZE12#..JPP	09/2002 - 05/2004	2
45535B - CLIP(FOR STEERING RACK BOOT)
90466-22003	NDE120,ZZE12#..JPP	05/2004 - 12/2999	2
90466-22003	CDE120,ZZE12#..JPP	09/2002 - 05/2004	2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
90460-57006	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
90460-57006	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
45536 - BOOT, STEERING RACK, NO.2
45535-02050	CDE120,ZZE12#..JPP NO.1	09/2002 - 05/2004	1
45535-09040	CDE120,ZZE12#..JPP NO.2	09/2002 - 05/2004	1
45535-02050	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
90460-57006	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
90460-57006	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
Common parts
90119-12379
90170-W0004
95381-03020

ZZE121R-AHMDKW (2002)

(0209-0405)JPP..RHD

(0405- )JPP..RHD
