Toyota Corolla hb (jpp) ZZE121 STEERING COLUMN & SHAFT

ZZE121R-AHMDKW (2002)

Toyota Corolla Hb (Jpp)

Production Sep 2002 - Oct 2006

Engine 3ZZFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

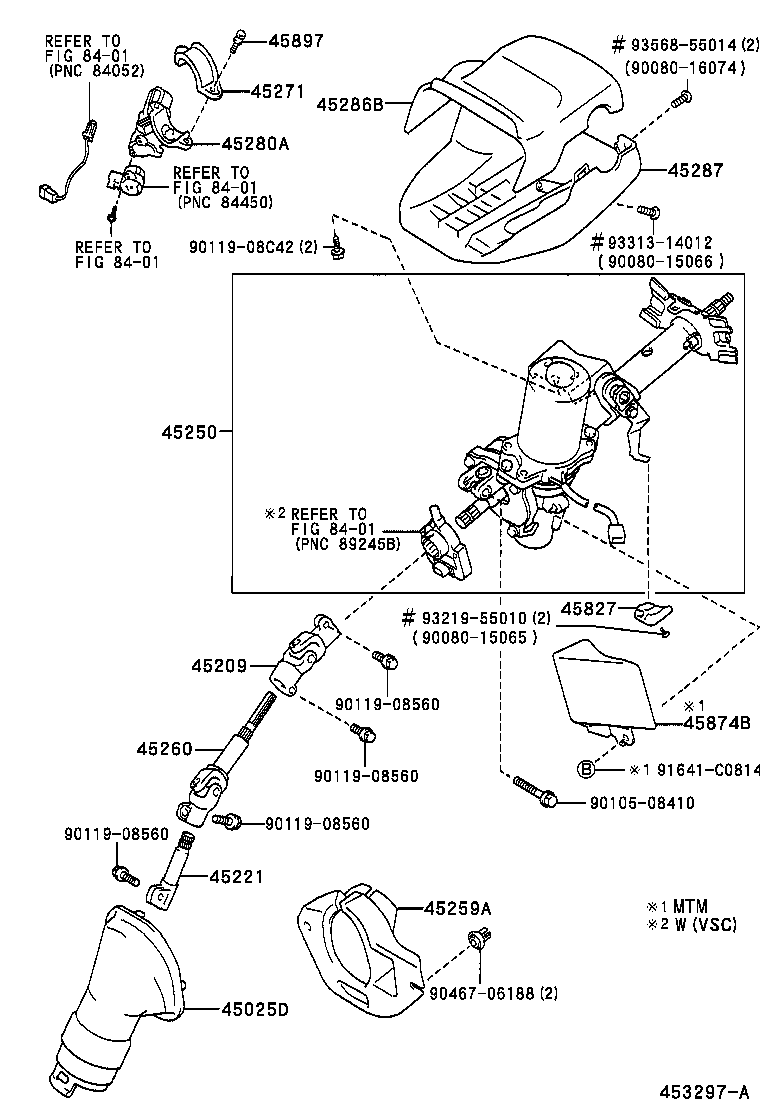

(0209-0405)JPP..RHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-13050	ZZE12#..JPP..RHD	09/2002 - 05/2004	1
45025-13050	ZZE12#..JPP..RHD	05/2004 - 12/2999	1
45209 - YOKE SUB-ASSY, STEERING SLIDING
45209-02020	ZZE12#..JPP..RHD	05/2004 - 12/2999	1
45209-02020	ZZE12#..JPP..RHD	09/2002 - 05/2004	1
45221 - SHAFT, STEERING INTERMEDIATE
45221-02020	CDE120,ZZE12#..JPP	09/2002 - 09/2003	1
45221-02021	CDE120,ZZE12#..JPP	09/2003 - 05/2004	1
45221-02022	NDE120,ZZE12#..JPP	07/2004 - 12/2999	1
45221-02020	ZZE12#..JPP	05/2004 - 06/2004	1
45250 - COLUMN ASSY, STEERING
45250-02310	ZZE12#..JPP..RHD	09/2002 - 05/2004	1
45250-02330	ZZE121..JPP..RHD W(VSC)	09/2002 - 05/2004	1
45250-02470	ZZE12#..JPP..RHD	05/2004 - 12/2999	1
45250-02490	ZZE12#..JPP..RHD W(VSC)	05/2004 - 10/2005	1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45259-02030	ZZE12#..JPP..RHD	09/2002 - 05/2004	1
45259-02030	ZZE12#..JPP..RHD	05/2004 - 12/2999	1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-02030	ZZE12#..JPP..RHD	09/2002 - 05/2004	1
45260-02031	ZZE12#..JPP..RHD	05/2004 - 12/2999	1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-16020	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
45271-16020	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-02050	CDE120,ZZE12#..JPP..5F	09/2002 - 05/2004	1
45280-02050	NDE120,ZZE12#..JPP..5F	05/2004 - 12/2999	1
45286B - COVER, STEERING COLUMN, UPR
45286-02180B0	CDE120,ZZE12#..JPP..TERRA DK.GRAY,TRIM1#,8#	09/2002 - 04/2003	1
45286-02220B0	NDE120,ZZE12#..JPP DK.GRAY,TRIM1#	05/2004 - 12/2999	1
45286-02181B0	CDE120,ZZE12#..JPP..TERRA DK.GRAY,TRIM1#,8#	04/2003 - 05/2004	1
45287 - COVER, STEERING COLUMN, LWR
45024-02011B0	CDE120,ZZE12#..JPP..TERRA DK.GRAY,TRIM1#,8#	04/2003 - 05/2004	1
45024-02010B0	CDE120,ZZE12#..JPP..TERRA DK.GRAY,TRIM1#,8#	09/2002 - 04/2003	1
45287-02170B0	NDE120,ZZE12#..JPP DK.GRAY,TRIM1#	05/2004 - 12/2999	1
45827 - KNOB, STEERING TILT LEVER
45827-02020	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
45874B - PROTECTOR, STEERING COLUMN, NO.1
45874-13060	ZZE12#..JPP..RHD..5F	05/2004 - 12/2999	1
45874-13020	ZZE12#..JPP..RHD..5F	09/2002 - 05/2004	1
45897 - BOLT, STEERING LOCK SET
45897-12020	CDE120,ZZE12#..JPP	09/2002 - 05/2004	2
45897-12020	NDE120,ZZE12#..JPP	05/2004 - 12/2999	2
Common parts
90080-15065
90080-15066
90080-16074
90105-08410
90119-08560
90119-08C42
90467-06188
91641-C0814
93219-55010
93313-14012
93568-55014
Linked diagrams
8401

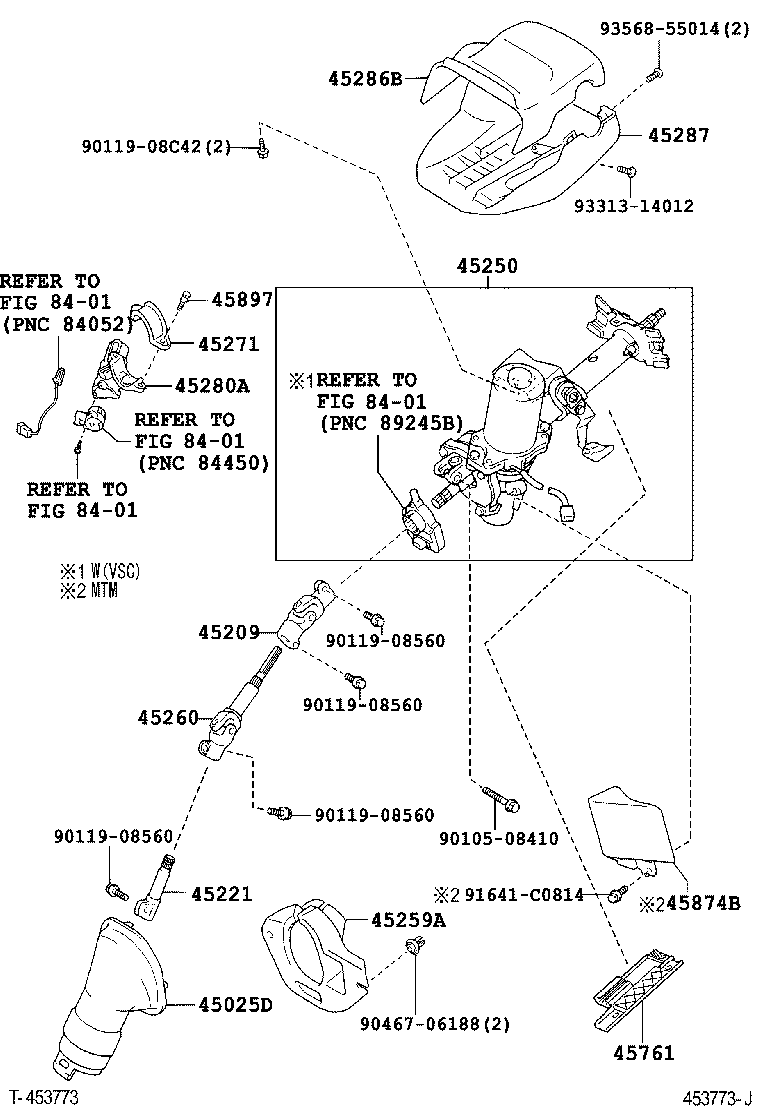

(0405- )JPP..RHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-13050	ZZE12#..JPP..RHD	09/2002 - 05/2004	1
45025-13050	ZZE12#..JPP..RHD	05/2004 - 12/2999	1
45209 - YOKE SUB-ASSY, STEERING SLIDING
45209-02020	ZZE12#..JPP..RHD	05/2004 - 12/2999	1
45209-02020	ZZE12#..JPP..RHD	09/2002 - 05/2004	1
45221 - SHAFT, STEERING INTERMEDIATE
45221-02020	CDE120,ZZE12#..JPP	09/2002 - 09/2003	1
45221-02021	CDE120,ZZE12#..JPP	09/2003 - 05/2004	1
45221-02022	NDE120,ZZE12#..JPP	07/2004 - 12/2999	1
45221-02020	ZZE12#..JPP	05/2004 - 06/2004	1
45250 - COLUMN ASSY, STEERING
45250-02310	ZZE12#..JPP..RHD	09/2002 - 05/2004	1
45250-02330	ZZE121..JPP..RHD W(VSC)	09/2002 - 05/2004	1
45250-02470	ZZE12#..JPP..RHD	05/2004 - 12/2999	1
45250-02490	ZZE12#..JPP..RHD W(VSC)	05/2004 - 10/2005	1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45259-02030	ZZE12#..JPP..RHD	09/2002 - 05/2004	1
45259-02030	ZZE12#..JPP..RHD	05/2004 - 12/2999	1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-02030	ZZE12#..JPP..RHD	09/2002 - 05/2004	1
45260-02031	ZZE12#..JPP..RHD	05/2004 - 12/2999	1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-16020	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
45271-16020	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-02050	CDE120,ZZE12#..JPP..5F	09/2002 - 05/2004	1
45280-02050	NDE120,ZZE12#..JPP..5F	05/2004 - 12/2999	1
45286B - COVER, STEERING COLUMN, UPR
45286-02180B0	CDE120,ZZE12#..JPP..TERRA DK.GRAY,TRIM1#,8#	09/2002 - 04/2003	1
45286-02220B0	NDE120,ZZE12#..JPP DK.GRAY,TRIM1#	05/2004 - 12/2999	1
45286-02181B0	CDE120,ZZE12#..JPP..TERRA DK.GRAY,TRIM1#,8#	04/2003 - 05/2004	1
45287 - COVER, STEERING COLUMN, LWR
45024-02011B0	CDE120,ZZE12#..JPP..TERRA DK.GRAY,TRIM1#,8#	04/2003 - 05/2004	1
45024-02010B0	CDE120,ZZE12#..JPP..TERRA DK.GRAY,TRIM1#,8#	09/2002 - 04/2003	1
45287-02170B0	NDE120,ZZE12#..JPP DK.GRAY,TRIM1#	05/2004 - 12/2999	1
45761 - SLIDER, TELESCOPIC STEERING
45761-02010	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
45874B - PROTECTOR, STEERING COLUMN, NO.1
45874-13060	ZZE12#..JPP..RHD..5F	05/2004 - 12/2999	1
45874-13020	ZZE12#..JPP..RHD..5F	09/2002 - 05/2004	1
45897 - BOLT, STEERING LOCK SET
45897-12020	CDE120,ZZE12#..JPP	09/2002 - 05/2004	2
45897-12020	NDE120,ZZE12#..JPP	05/2004 - 12/2999	2
Common parts
90105-08410
90119-08560
90119-08C42
90467-06188
91641-C0814
93313-14012
93568-55014
Linked diagrams
8401

ZZE121R-AHMDKW (2002)

(0209-0405)JPP..RHD

(0405- )JPP..RHD
