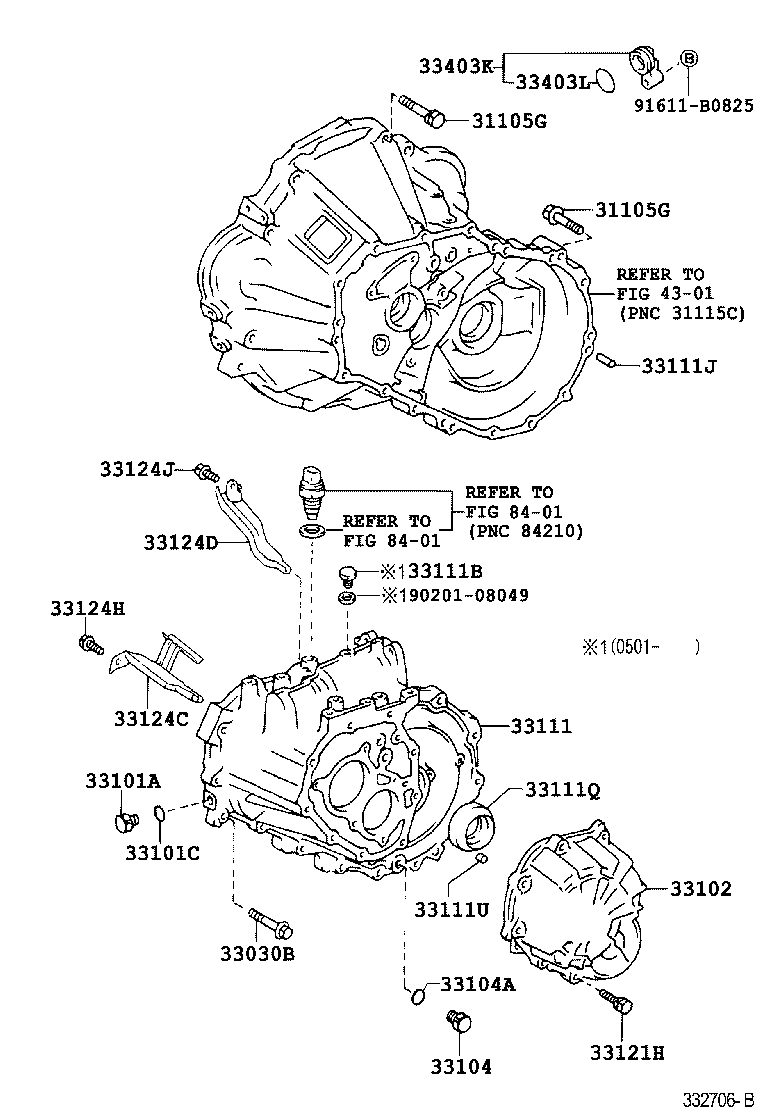

Toyota Corolla hb (jpp) ZZE121 CLUTCH HOUSING & TRANSMISSION CASE (MTM)

Part #	Description	Period	Qty
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
91619-61255	ZZE12#..JPP..5F *12-1.25PX55-30	09/2002 - 05/2004	2
91642-81055	ZZE12#..JPP..5F *10-1.25PX55-30	09/2002 - 05/2004	2
91619-61255	ZZE12#..JPP..5F *12-1.25PX55-30	05/2004 - 12/2999	2
91642-81055	ZZE12#..JPP..5F *10-1.25PX55-30	05/2004 - 12/2999	2
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
91619-61255	ZZE12#..JPP..5F *12-1.25PX55-30	09/2002 - 05/2004	2
91642-81055	ZZE12#..JPP..5F *10-1.25PX55-30	09/2002 - 05/2004	2
91619-61255	ZZE12#..JPP..5F *12-1.25PX55-30	05/2004 - 12/2999	2
91642-81055	ZZE12#..JPP..5F *10-1.25PX55-30	05/2004 - 12/2999	2
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
90105-08086	ZZE121..JPP..5F *8-1.25PX45-27.5	09/2002 - 05/2004	3
90105-08086	ZZE121..JPP..5F *8-1.25PX45-27.5	05/2004 - 06/2004	3
90105-08353	ZZE121..JPP..5F *8-1.25PX50-30	09/2002 - 05/2004	13
90105-08353	NDE120,ZZE121..JPP..5F *8-1.25PX50-30	05/2004 - 12/2999	13
90105-08430	NDE120,ZZE121..JPP..5F *8-1.25PX45-27.5	06/2004 - 12/2999	3
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18006	NDE120,ZZE12#..JPP..5F	05/2004 - 06/2005	1
90341-18033	NDE120,ZZE12#..JPP..5F	06/2005 - 12/2999	1
90341-18006	ZZE12#..JPP..5F	09/2002 - 05/2004	1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008	NDE120,ZZE12#..JPP..5F	05/2004 - 12/2999	1
90430-18008	CDE120,ZZE12#..JPP..5F	09/2002 - 05/2004	1
33102 - COVER SUB-ASSY, MANUAL TRANSMISSION CASE
33102-12021	NDE120,ZZE121..JPP..5F	05/2004 - 12/2999	1
33102-12021	ZZE121..JPP..5F	09/2002 - 04/2004	1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006	CDE120,ZZE12#..JPP..5F	09/2002 - 05/2004	1
90341-18006	NDE120,ZZE12#..JPP..5F	05/2004 - 06/2005	1
90341-18033	NDE120,ZZE12#..JPP..5F	06/2005 - 12/2999	1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008	CDE120,ZZE12#..JPP..5F	09/2002 - 05/2004	1
90430-18008	NDE120,ZZE12#..JPP..5F	05/2004 - 12/2999	1
33111 - CASE, MANUAL TRANSMISSION
33111-16063	ZZE121..JPP..5F	09/2002 - 05/2004	1
33111-17101	NDE120,ZZE121..JPP..5F	05/2004 - 01/2005	1
33111-17102	NDE120,ZZE121..JPP..5F	01/2005 - 12/2999	1
33111B - BOLT, STUD OR BOLT(FOR TRANSMISSION CASE)
90101-08166	NDE120,ZZE121..JPP..5F *8-1.25PX14-12	01/2005 - 12/2999	1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054	NDE120,ZZE12#..JPP..5F L=23,OD=8	05/2004 - 12/2999	4
90250-08054	CDE120,ZZE12#..JPP..5F L=23,OD=8	09/2002 - 05/2004	4
33111Q - SEAL, OIL(FOR TRANSMISSION CASE)
90311-34028	ZZE12#..JPP..5F	09/2002 - 05/2004	1
90311-34028	ZZE12#..JPP..5F	05/2004 - 12/2999	1
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-11001	ZZE121..JPP..5F L=11,OD=11	09/2002 - 05/2004	2
90253-11001	NDE120,ZZE121..JPP..5F L=11,OD=11	05/2004 - 12/2999	2
33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER)
91611-60835	ZZE121..JPP..5F	09/2002 - 05/2004	9
90119-08782	NDE120,ZZE121..JPP..5F	03/2006 - 12/2999	9
91611-60835	NDE120,ZZE121..JPP..5F	05/2004 - 03/2006	9
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-20050	ZZE121..JPP..5F	09/2002 - 05/2004	1
33124-20050	NDE120,ZZE121..JPP..5F	05/2004 - 12/2999	1
33124D - PIPE, OIL RECEIVER, NO.2(MTM)
33124-12021	ZZE121..JPP..5F	09/2002 - 05/2004	1
33124-12021	NDE120,ZZE121..JPP..5F	05/2004 - 12/2999	1
33124H - BOLT(FOR OIL RECEIVER PIPE)
91611-G0820	NDE120,ZZE121..JPP..5F	05/2004 - 12/2999	1
91611-G0820	ZZE12#..JPP..5F	09/2002 - 05/2004	1
33124J - BOLT, W/WASHER
91611-G0820	ZZE12#..JPP..5F	09/2002 - 05/2004	1
91611-G0820	NDE120,ZZE121..JPP..5F	05/2004 - 12/2999	1
33403K - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE
33403-35230	NDE120,ZZE12#..JPP..5F	05/2004 - 12/2999	1
33403-35230	ZZE12#..JPP..5F	09/2002 - 05/2004	1
33403L - RING, O
96711-24030	ZZE12#..JPP..5F	05/2004 - 12/2999	1
96711-24030	ZZE12#..JPP..5F	09/2002 - 05/2004	1
Common parts
90201-08049
91611-B0825
Linked diagrams
4301
8401

ZZE121R-AHMDKW (2002)

(0209- )ZZE121..JPP..5F
