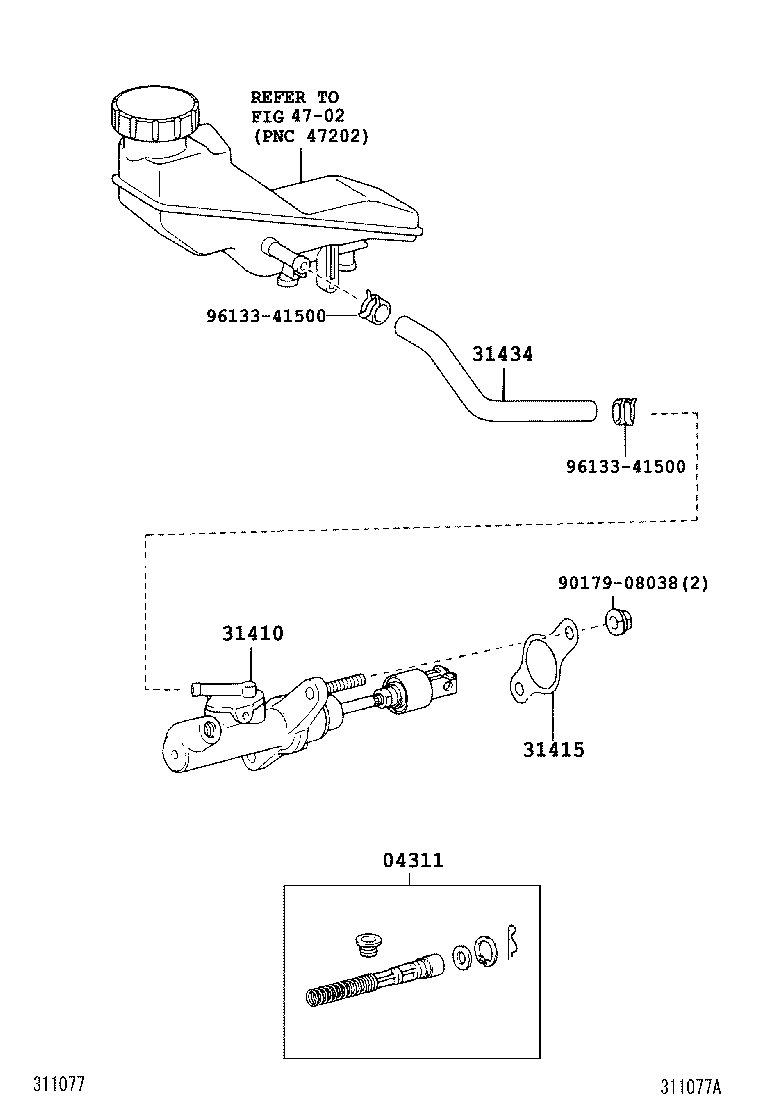

Toyota Corolla hb (jpp) ZZE121 CLUTCH MASTER CYLINDER

Part #	Description	Period	Qty
04311 - CYLINDER KIT, CLUTCH MASTER
04311-12110	ZZE12#..JPP..5F	09/2002 - 05/2004	1
04311-12110	NDE120,ZZE12#..JPP..5F	05/2004 - 12/2999	1
31410 - CYLINDER ASSY, CLUTCH MASTER
31420-12010	ZZE12#..JPP..RHD..5F	05/2004 - 12/2999	1
31420-12010	ZZE12#..JPP..RHD..5F	09/2002 - 05/2004	1
31415 - GASKET, CLUTCH MASTER CYLINDER
31415-10010	NDE120,ZZE12#..JPP..5F	05/2004 - 12/2999	1
31415-10010	ZZE12#..JPP..5F	09/2002 - 05/2004	1
31434 - TUBE, CLUTCH RESERVOIR
31434-12030	ZZE12#..JPP..RHD..5F	09/2002 - 05/2004	1
31434-12030	ZZE12#..JPP..RHD..5F	05/2004 - 12/2999	1
Common parts
90179-08038
96133-41500
Linked diagrams
4702

ZZE121R-AHMDKW (2002)
