3102 - CLUTCH PEDAL & FLEXIBLE HOSE

ZZE121R-AHMDKW (2002)

Toyota Corolla Hb (Jpp)

Production Sep 2002 - Oct 2006

Engine 3ZZFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

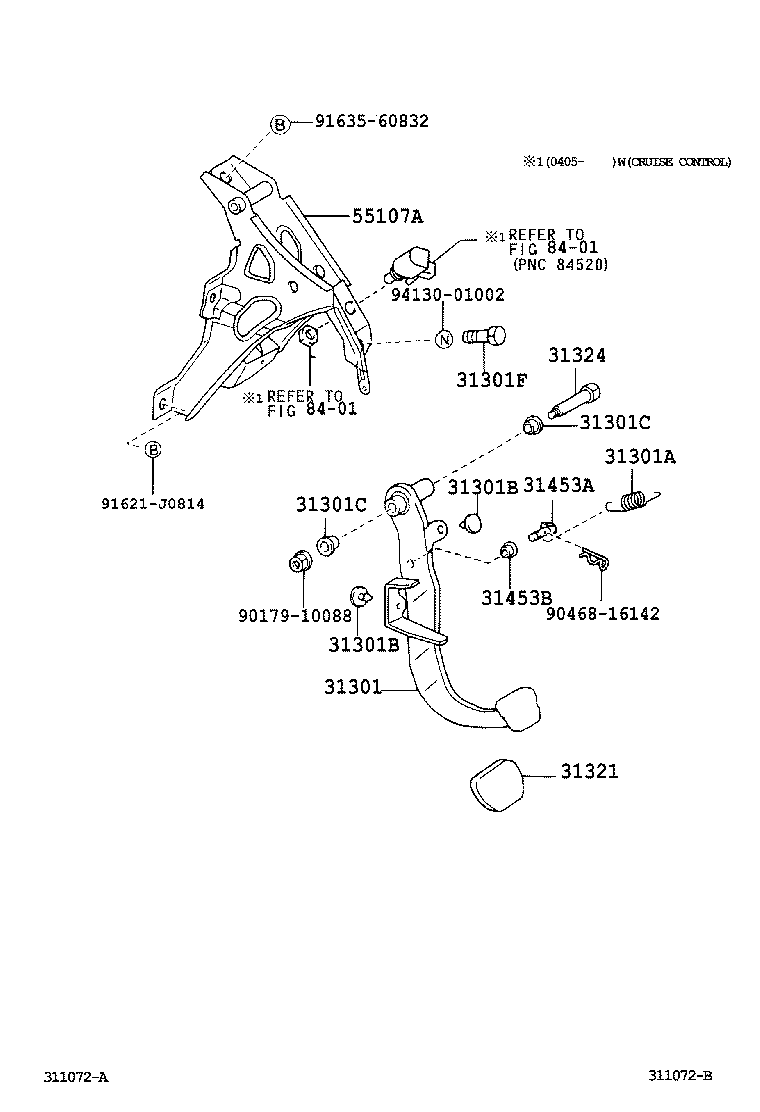

ILLUST NO. 1 OF 2(0209- )JPP..RHD..5F

Click highlighted areas on diagram

Part #	Description	Period	Qty
31301 - PEDAL SUB-ASSY, CLUTCH
31301-02050	ZZE12#..JPP..RHD..5F	09/2002 - 08/2003	1
31301-05090	ZZE12#..JPP..RHD..5F	08/2003 - 05/2004	1
31301-05090	ZZE12#..JPP..RHD..5F	05/2004 - 12/2999	1
31301A - SPRING(FOR CLUTCH PEDAL)
90507-14050	ZZE12#..JPP..RHD..5F	09/2002 - 05/2004	1
90507-14050	ZZE12#..JPP..RHD..5F	05/2004 - 12/2999	1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036	ZZE12#..JPP..RHD..5F	05/2004 - 12/2999	2
90541-06036	ZZE12#..JPP..RHD..5F	09/2002 - 05/2004	2
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036	ZZE12#..JPP..RHD..5F	05/2004 - 12/2999	2
90541-06036	ZZE12#..JPP..RHD..5F	09/2002 - 05/2004	2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015	CDE120,ZZE12#..JPP..5F	09/2002 - 05/2004	2
90386-13015	NDE120,ZZE12#..JPP..5F	05/2004 - 12/2999	2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015	CDE120,ZZE12#..JPP..5F	09/2002 - 05/2004	2
90386-13015	NDE120,ZZE12#..JPP..5F	05/2004 - 12/2999	2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369	CDE120,ZZE12#..JPP..5F	09/2002 - 05/2004	1
90101-10369	NDE120,ZZE12#..JPP..5F	05/2004 - 12/2999	1
31321 - PAD, CLUTCH PEDAL
31321-52010	CDE120,ZZE12#..JPP..5F	09/2002 - 05/2004	1
31321-52010	NDE120,ZZE12#..JPP..5F	05/2004 - 12/2999	1
31324 - SHAFT, CLUTCH PEDAL
90109-10167	CDE120,ZZE12#..JPP..5F	09/2002 - 05/2004	1
90109-10167	NDE120,ZZE12#..JPP..5F	05/2004 - 12/2999	1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08243	CDE120,ZZE12#..JPP..5F L=30	09/2002 - 05/2004	1
90249-08243	NDE120,ZZE12#..JPP..5F L=30	05/2004 - 12/2999	1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002	CDE120,ZZE12#..JPP..5F	09/2002 - 05/2004	1
90386-08002	NDE120,ZZE12#..JPP..5F	05/2004 - 12/2999	1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-02050	ZZE12#..JPP..RHD..5F	09/2002 - 05/2004	1
55107-02050	ZZE12#..JPP..RHD..5F	05/2004 - 12/2999	1
Common parts
90179-10088
90468-16142
91621-J0814
91635-60832
94130-01002
Linked diagrams
8401

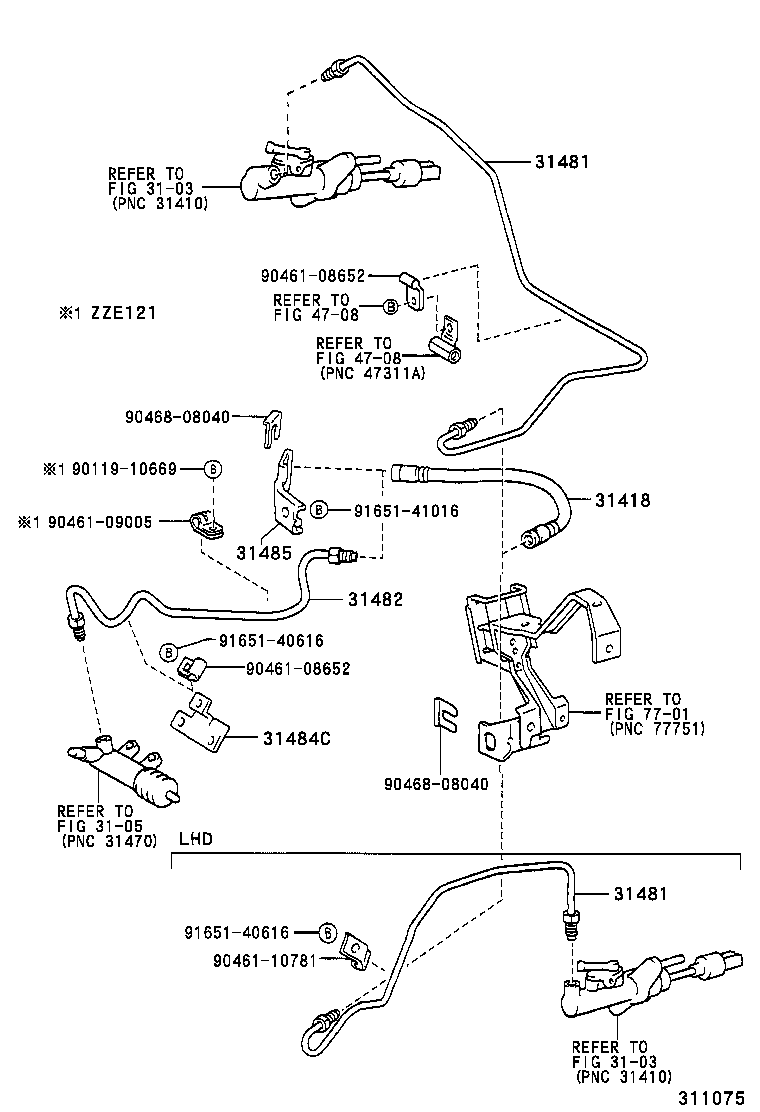

ILLUST NO. 2 OF 2(0209- )ZZE12#..JPP..5F

Click highlighted areas on diagram

Part #	Description	Period	Qty
31418 - HOSE, CLUTCH
90947-02D20	NDE120,ZZE12#..JPP..5F	05/2004 - 12/2999	1
90947-02D20	ZZE12#..JPP..5F	09/2002 - 05/2004	1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-13030	ZZE12#..JPP..RHD..5F	05/2004 - 12/2999	1
31481-13030	ZZE12#..JPP..RHD..5F	09/2002 - 05/2004	1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-13030	ZZE12#..JPP..RHD..5F	05/2004 - 12/2999	1
31481-13030	ZZE12#..JPP..RHD..5F	09/2002 - 05/2004	1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-13020	ZZE12#..JPP..5F	09/2002 - 05/2004	1
31482-13020	ZZE12#..JPP..5F	05/2004 - 12/2999	1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-20460	ZZE12#..JPP..5F	09/2002 - 05/2004	1
31484-20460	ZZE12#..JPP..5F	05/2004 - 12/2999	1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-12430	ZZE12#..JPP..5F	09/2002 - 05/2004	1
31484-12430	ZZE12#..JPP..5F	05/2004 - 12/2999	1
Common parts
90119-10669
90461-08652
90461-09005
90461-10781
90468-08040
91651-40616
91651-41016
Linked diagrams
3103
3105
4708
7701
