ZZE121R-AHMDKW (2002)
Toyota Corolla Hb (Jpp)
ILLUST NO. 2 OF 2(0209- )3ZZFE,4ZZFE..JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23217A - FILTER, FUEL PUMP | ||||
| 23217-23010 |
3ZZFE,4ZZFE..ZZE12#..JPP |
1 | ||
| 23217-23010 |
3ZZFE,4ZZFE..ZZE12#..JPP |
1 | ||
| 23217-0D090 |
3ZZFE,4ZZFE..ZZE12#..JPP |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23221-22030 |
3ZZFE,4ZZFE..ZZE12#..JPP |
1 | ||
| 23221-22030 |
3ZZFE,4ZZFE..ZZE12#..JPP |
1 | ||
| 23225 - SPACER, FUEL PUMP | ||||
| 23225-21010 |
3ZZFE,4ZZFE..ZZE12#..JPP |
1 | ||
| 23225-21010 |
3ZZFE,4ZZFE..ZZE12#..JPP |
1 | ||
| 23229 - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
3ZZFE,4ZZFE..ZZE12#..JPP |
1 | ||
| 23229-16010 |
3ZZFE,4ZZFE..ZZE12#..JPP |
1 | ||
| 23239B - SEAL, FUEL PUMP FILTER | ||||
| 23239-21010 |
3ZZFE,4ZZFE..ZZE12#..JPP |
1 | ||
| 23239-21010 |
3ZZFE,4ZZFE..ZZE12#..JPP |
1 | ||
| 23249 - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-46180 |
3ZZFE,4ZZFE..ZZE12#..JPP |
1 | ||
| 23249-46180 |
3ZZFE,4ZZFE..ZZE12#..JPP |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-22010 |
3ZZFE,4ZZFE..ZZE12#..JPP |
1 | ||
| 23280-22010 |
3ZZFE,4ZZFE..ZZE12#..JPP |
1 | ||
| 23280E - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07020 |
3ZZFE,4ZZFE..ZZE12#..JPP |
1 | ||
| 90301-07020 |
3ZZFE,4ZZFE..ZZE12#..JPP |
1 | ||
| 23300Z - FILTER, FUEL(FOR FUEL TANK) | ||||
| 23300-21010 |
3ZZFE,4ZZFE..ZZE12#..JPP |
1 | ||
| 23300-21010 |
3ZZFE,4ZZFE..ZZE12#..JPP |
1 | ||
| Linked diagrams | ||||
| 7701 | ||||
ILLUST NO. 1 OF 2(0209-0405)3ZZFE..JPP ; (0209- )4ZZFE..JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-22150 |
3ZZFE,4ZZFE..ZZE12#..JPP |
1 | ||
| 22030-22051 |
3ZZFE..ZZE121..JPP MARK 22030-22051 |
1 | ||
| 22030-22050 |
3ZZFE..ZZE121..JPP MARK 22030-22050 |
1 | ||
| 22215 - GASKET, THROTTLE BODY COVER | ||||
| 22215-74400 |
3ZZFE,4ZZFE..ZZE12#..JPP |
1 | ||
| 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) | ||||
| 22270-22050 |
3ZZFE,4ZZFE..ZZE12#..JPP |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-22070 |
3ZZFE,4ZZFE..ZZE12#..JPP |
1 | ||
| 22271-0D060 |
3ZZFE..ZZE121..JPP (L) |
1 | ||
| 22271-21060 |
3ZZFE..ZZE121..JPP (J) |
1 | ||
| 22271-0D060 |
3ZZFE..ZZE121..JPP |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-0D020 |
3ZZFE,4ZZFE..ZZE12#..JPP BOSCH |
4 | ||
| 23209-0D030 |
3ZZFE,4ZZFE..ZZE12#..JPP DENSO |
4 | ||
| 23209-0D030 |
3ZZFE,4ZZFE..ZZE12#..JPP DENSO |
4 | ||
| 23209-0D020 |
3ZZFE,4ZZFE..ZZE12#..JPP BOSCH |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07030 |
3ZZFE,4ZZFE..ZZE12#..JPP |
4 | ||
| 90301-07030 |
3ZZFE,4ZZFE..ZZE12#..JPP |
4 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90080-48058 |
3ZZFE,4ZZFE..ZZE12#..JPP |
4 | ||
| 90080-48058 |
3ZZFE,4ZZFE..ZZE12#..JPP |
4 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-22010 |
3ZZFE,4ZZFE..ZZE12#..JPP |
4 | ||
| 23291-22010 |
3ZZFE,4ZZFE..ZZE12#..JPP |
4 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-22030 |
3ZZFE,4ZZFE..ZZE12#..JPP |
1 | ||
| 23807-22030 |
3ZZFE,4ZZFE..ZZE12#..JPP |
1 | ||
| 23807V - SPACER, NO.1(FOR DELIVERY PIPE) | ||||
| 90561-08055 |
3ZZFE,4ZZFE..ZZE12#..JPP |
2 | ||
| 90561-08055 |
3ZZFE,4ZZFE..ZZE12#..JPP |
2 | ||
| 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) | ||||
| 23841-28010 |
3ZZFE,4ZZFE..ZZE12#..JPP |
1 | ||
| 23841-28010 |
3ZZFE,4ZZFE..ZZE12#..JPP |
1 | ||
| 23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI) | ||||
| 23842-22020 |
3ZZFE,4ZZFE..ZZE12#..JPP |
1 | ||
| 23842-22020 |
3ZZFE,4ZZFE..ZZE12#..JPP |
1 | ||
| 23901 - TUBE SUB-ASSY, FUEL | ||||
| 23901-22140 |
3ZZFE,4ZZFE..ZZE12#..JPP |
1 | ||
| 23901-22140 |
3ZZFE,4ZZFE..ZZE12#..JPP |
1 | ||
| Common parts | ||||
| 90079-11057 | ||||
| 90079-15315 | ||||
| 90126-08028 | ||||
| 91511-80614 | ||||
| 91511-C0850 | ||||
| 91511-J0840 | ||||
| 94150-80801 | ||||
| Linked diagrams | ||||
| 8404 | ||||

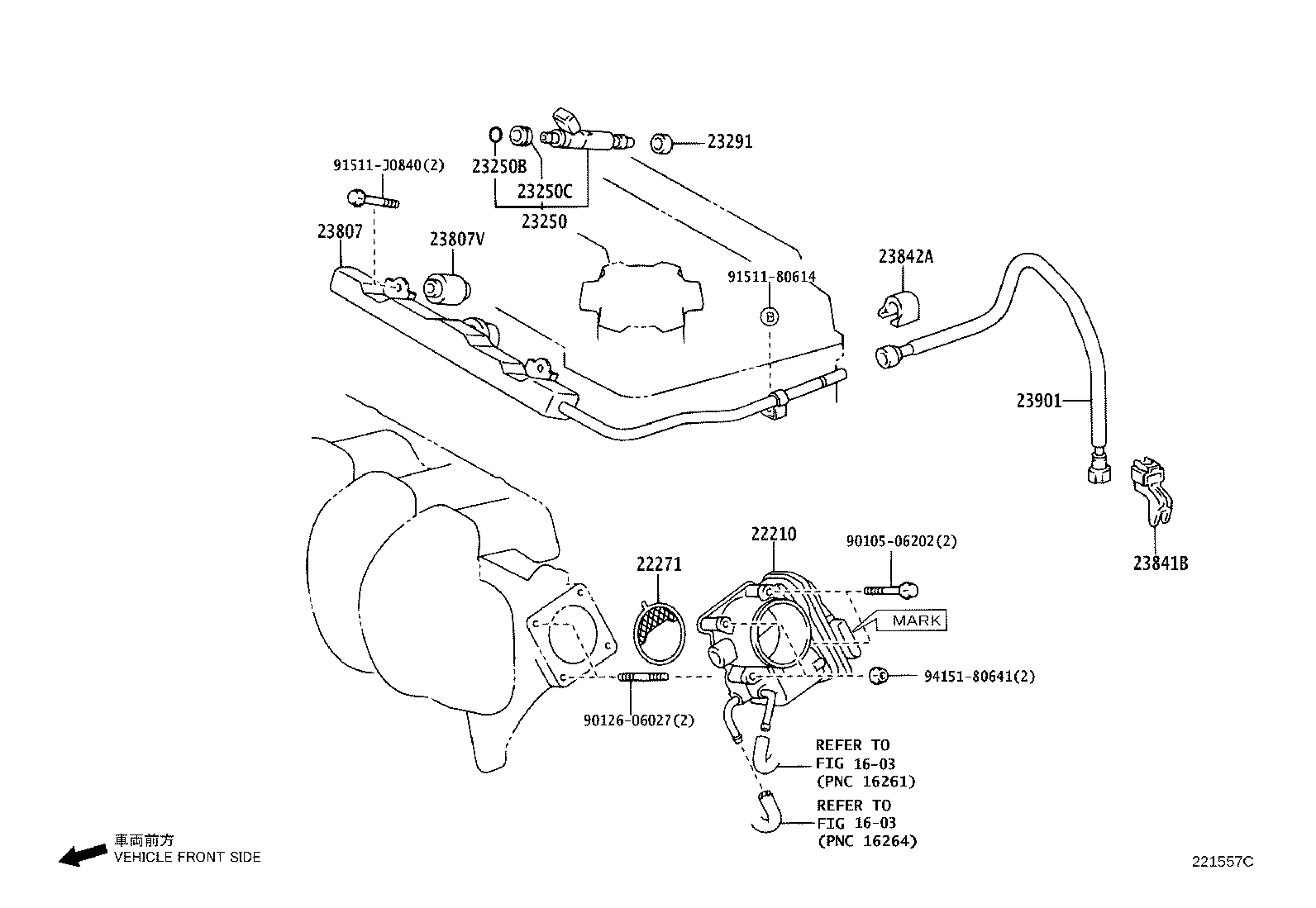

ILLUST NO. 1 OF 2(0405- )3ZZFE..JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-22150 |
3ZZFE,4ZZFE..ZZE12#..JPP |
1 | ||
| 22030-22051 |
3ZZFE..ZZE121..JPP MARK 22030-22051 |
1 | ||
| 22030-22050 |
3ZZFE..ZZE121..JPP MARK 22030-22050 |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-22070 |
3ZZFE,4ZZFE..ZZE12#..JPP |
1 | ||
| 22271-0D060 |
3ZZFE..ZZE121..JPP (L) |
1 | ||
| 22271-21060 |
3ZZFE..ZZE121..JPP (J) |
1 | ||
| 22271-0D060 |
3ZZFE..ZZE121..JPP |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-0D020 |
3ZZFE,4ZZFE..ZZE12#..JPP BOSCH |
4 | ||
| 23209-0D030 |
3ZZFE,4ZZFE..ZZE12#..JPP DENSO |
4 | ||
| 23209-0D030 |
3ZZFE,4ZZFE..ZZE12#..JPP DENSO |
4 | ||
| 23209-0D020 |
3ZZFE,4ZZFE..ZZE12#..JPP BOSCH |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07030 |
3ZZFE,4ZZFE..ZZE12#..JPP |
4 | ||
| 90301-07030 |
3ZZFE,4ZZFE..ZZE12#..JPP |
4 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90080-48058 |
3ZZFE,4ZZFE..ZZE12#..JPP |
4 | ||
| 90080-48058 |
3ZZFE,4ZZFE..ZZE12#..JPP |
4 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-22010 |
3ZZFE,4ZZFE..ZZE12#..JPP |
4 | ||
| 23291-22010 |
3ZZFE,4ZZFE..ZZE12#..JPP |
4 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-22030 |
3ZZFE,4ZZFE..ZZE12#..JPP |
1 | ||
| 23807-22030 |
3ZZFE,4ZZFE..ZZE12#..JPP |
1 | ||
| 23807V - SPACER, NO.1(FOR DELIVERY PIPE) | ||||
| 90561-08055 |
3ZZFE,4ZZFE..ZZE12#..JPP |
2 | ||
| 90561-08055 |
3ZZFE,4ZZFE..ZZE12#..JPP |
2 | ||
| 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) | ||||
| 23841-28010 |
3ZZFE,4ZZFE..ZZE12#..JPP |
1 | ||
| 23841-28010 |
3ZZFE,4ZZFE..ZZE12#..JPP |
1 | ||
| 23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI) | ||||
| 23842-22020 |
3ZZFE,4ZZFE..ZZE12#..JPP |
1 | ||
| 23842-22020 |
3ZZFE,4ZZFE..ZZE12#..JPP |
1 | ||
| 23901 - TUBE SUB-ASSY, FUEL | ||||
| 23901-22140 |
3ZZFE,4ZZFE..ZZE12#..JPP |
1 | ||
| 23901-22140 |
3ZZFE,4ZZFE..ZZE12#..JPP |
1 | ||
| Common parts | ||||
| 90105-06202 | ||||
| 90126-06027 | ||||
| 91511-80614 | ||||
| 91511-J0840 | ||||
| 94151-80641 | ||||
| Linked diagrams | ||||
| 1603 | ||||
