Toyota Corolla hb (jpp) ZZE121 AIR CLEANER

ZZE121R-AHMDKW (2002)

Toyota Corolla Hb (Jpp)

Production Sep 2002 - Oct 2006

Engine 3ZZFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

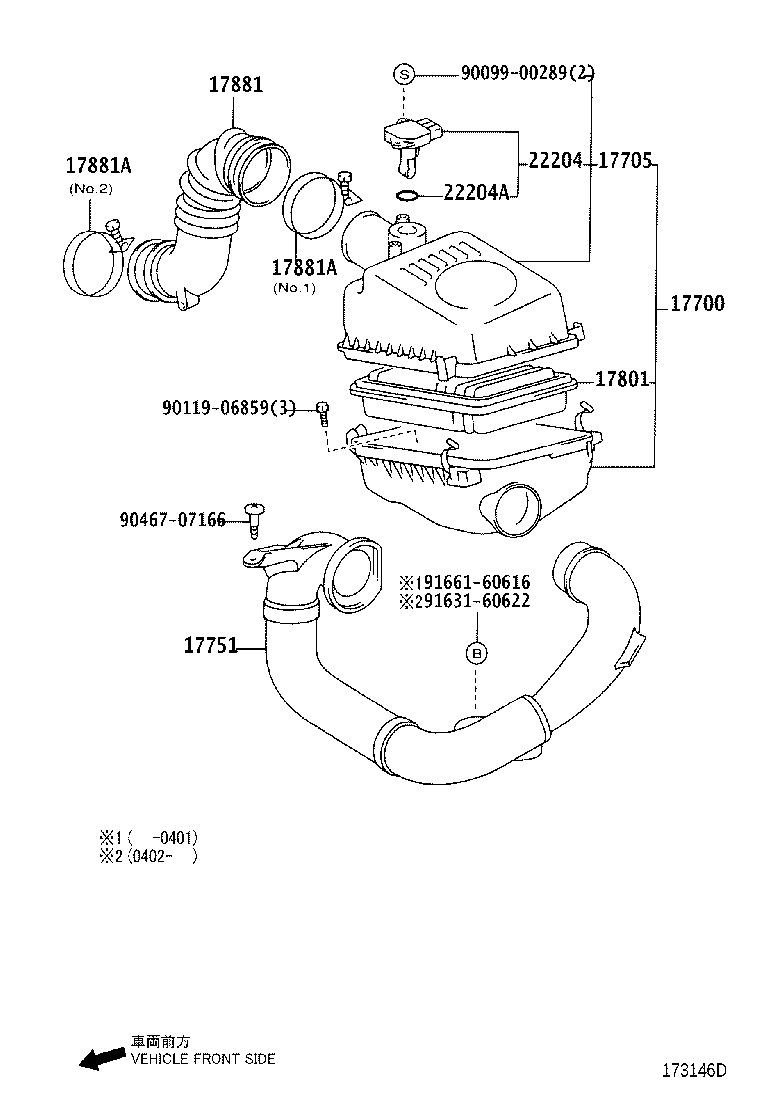

(0209-0405)3ZZFE,4ZZFE..JPP

Click highlighted areas on diagram

Part #	Description	Period	Qty
17700 - CLEANER ASSY, AIR
17700-22120	3ZZFE,4ZZFE..ZZE12#..JPP	05/2004 - 12/2999	1
17700-22120	3ZZFE,4ZZFE..ZZE12#..JPP	09/2002 - 05/2004	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-22120	3ZZFE,4ZZFE..ZZE12#..JPP	09/2002 - 05/2004	1
17705-22120	3ZZFE,4ZZFE..ZZE12#..JPP	05/2004 - 12/2999	1
17751 - INLET, AIR CLEANER, NO.1
17751-21140	3ZZFE,4ZZFE..ZZE12#..JPP	05/2004 - 12/2999	1
17751-0D030	3ZZFE,4ZZFE..ZZE12#..JPP	09/2002 - 05/2004	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-22020	3ZZFE,4ZZFE..ZZE12#..JPP	05/2004 - 12/2999	1
17801-22020	3ZZFE,4ZZFE..ZZE12#..JPP	09/2002 - 05/2004	1
17881 - HOSE, AIR CLEANER, NO.1
17881-22130	3ZZFE..ZZE121..JPP	05/2004 - 12/2999	1
17881-22070	3ZZFE,4ZZFE..ZZE12#..JPP	09/2002 - 05/2004	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10730	3ZZFE,4ZZFE..ZZE12#..JPP NO.2	09/2002 - 05/2004	1
96111-10800	3ZZFE,4ZZFE..ZZE12#..JPP NO.1	09/2002 - 05/2004	1
96111-10800	3ZZFE,4ZZFE..ZZE12#..JPP NO.1	05/2004 - 12/2999	1
96111-10670	3ZZFE..ZZE121..JPP NO.2	05/2004 - 12/2999	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10730	3ZZFE,4ZZFE..ZZE12#..JPP NO.2	09/2002 - 05/2004	1
96111-10800	3ZZFE,4ZZFE..ZZE12#..JPP NO.1	09/2002 - 05/2004	1
96111-10800	3ZZFE,4ZZFE..ZZE12#..JPP NO.1	05/2004 - 12/2999	1
96111-10670	3ZZFE..ZZE121..JPP NO.2	05/2004 - 12/2999	1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-22010	3ZZFE,4ZZFE..ZZE12#..JPP	09/2002 - 05/2004	1
22204-22010	3ZZFE,4ZZFE..ZZE12#..JPP	05/2004 - 12/2999	1
22204A - RING, O(FOR INTAKE AIR FLOW METER)
90099-14141	3ZZFE,4ZZFE..ZZE12#..JPP	05/2004 - 12/2999	1
90099-14141	3ZZFE,4ZZFE..ZZE12#..JPP	09/2002 - 05/2004	1
Common parts
90099-00289
90119-06859
90467-07166
91631-60622
91661-60616

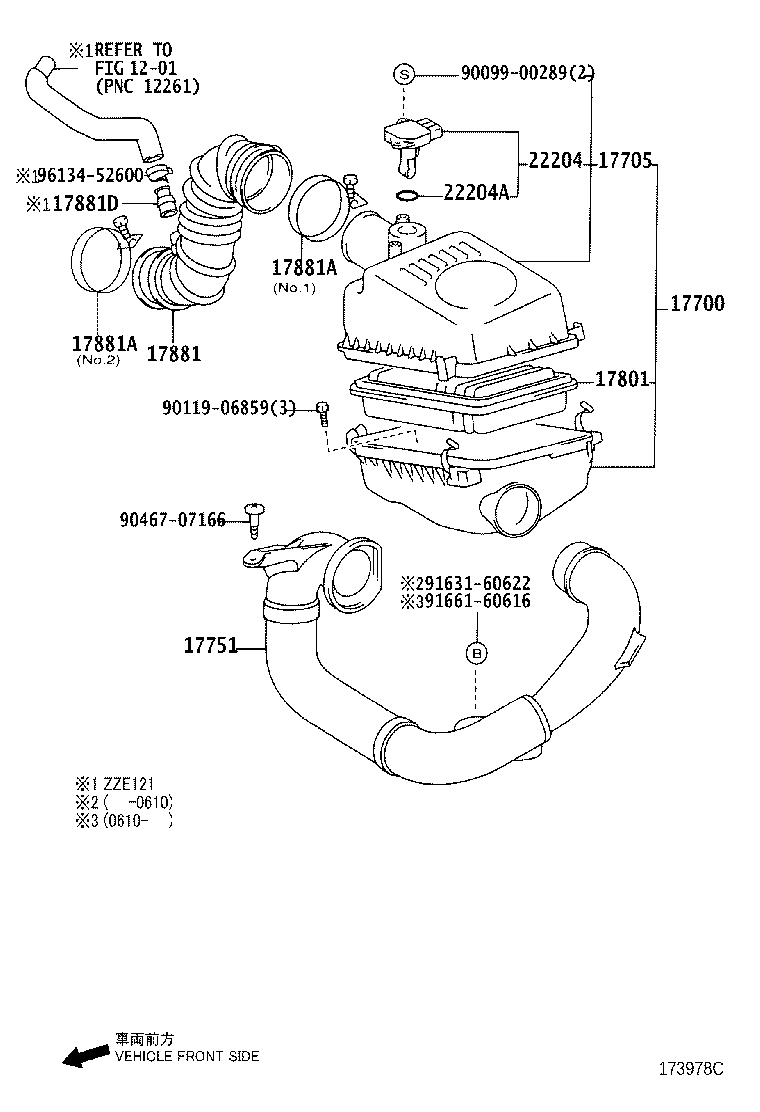

(0405- )3ZZFE,4ZZFE..JPP

Click highlighted areas on diagram

Part #	Description	Period	Qty
17700 - CLEANER ASSY, AIR
17700-22120	3ZZFE,4ZZFE..ZZE12#..JPP	05/2004 - 12/2999	1
17700-22120	3ZZFE,4ZZFE..ZZE12#..JPP	09/2002 - 05/2004	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-22120	3ZZFE,4ZZFE..ZZE12#..JPP	09/2002 - 05/2004	1
17705-22120	3ZZFE,4ZZFE..ZZE12#..JPP	05/2004 - 12/2999	1
17751 - INLET, AIR CLEANER, NO.1
17751-21140	3ZZFE,4ZZFE..ZZE12#..JPP	05/2004 - 12/2999	1
17751-0D030	3ZZFE,4ZZFE..ZZE12#..JPP	09/2002 - 05/2004	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-22020	3ZZFE,4ZZFE..ZZE12#..JPP	05/2004 - 12/2999	1
17801-22020	3ZZFE,4ZZFE..ZZE12#..JPP	09/2002 - 05/2004	1
17881 - HOSE, AIR CLEANER, NO.1
17881-22130	3ZZFE..ZZE121..JPP	05/2004 - 12/2999	1
17881-22070	3ZZFE,4ZZFE..ZZE12#..JPP	09/2002 - 05/2004	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10730	3ZZFE,4ZZFE..ZZE12#..JPP NO.2	09/2002 - 05/2004	1
96111-10800	3ZZFE,4ZZFE..ZZE12#..JPP NO.1	09/2002 - 05/2004	1
96111-10800	3ZZFE,4ZZFE..ZZE12#..JPP NO.1	05/2004 - 12/2999	1
96111-10670	3ZZFE..ZZE121..JPP NO.2	05/2004 - 12/2999	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10730	3ZZFE,4ZZFE..ZZE12#..JPP NO.2	09/2002 - 05/2004	1
96111-10800	3ZZFE,4ZZFE..ZZE12#..JPP NO.1	09/2002 - 05/2004	1
96111-10800	3ZZFE,4ZZFE..ZZE12#..JPP NO.1	05/2004 - 12/2999	1
96111-10670	3ZZFE..ZZE121..JPP NO.2	05/2004 - 12/2999	1
17881D - TUBE, UNION(FOG AIR CLEANER HOSE)
90406-28001	3ZZFE..ZZE121..JPP	05/2004 - 12/2999	1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-22010	3ZZFE,4ZZFE..ZZE12#..JPP	09/2002 - 05/2004	1
22204-22010	3ZZFE,4ZZFE..ZZE12#..JPP	05/2004 - 12/2999	1
22204A - RING, O(FOR INTAKE AIR FLOW METER)
90099-14141	3ZZFE,4ZZFE..ZZE12#..JPP	05/2004 - 12/2999	1
90099-14141	3ZZFE,4ZZFE..ZZE12#..JPP	09/2002 - 05/2004	1
Common parts
90099-00289
90119-06859
90467-07166
91631-60622
91661-60616
96134-52600
Linked diagrams
1201

ZZE121R-AHMDKW (2002)

(0209-0405)3ZZFE,4ZZFE..JPP

(0405- )3ZZFE,4ZZFE..JPP
