ZZE121R-AHMDKW (2002)

Toyota Corolla Hb (Jpp)

Production Sep 2002 - Oct 2006
Engine 3ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0209- )3ZZFE,4ZZFE..JPP

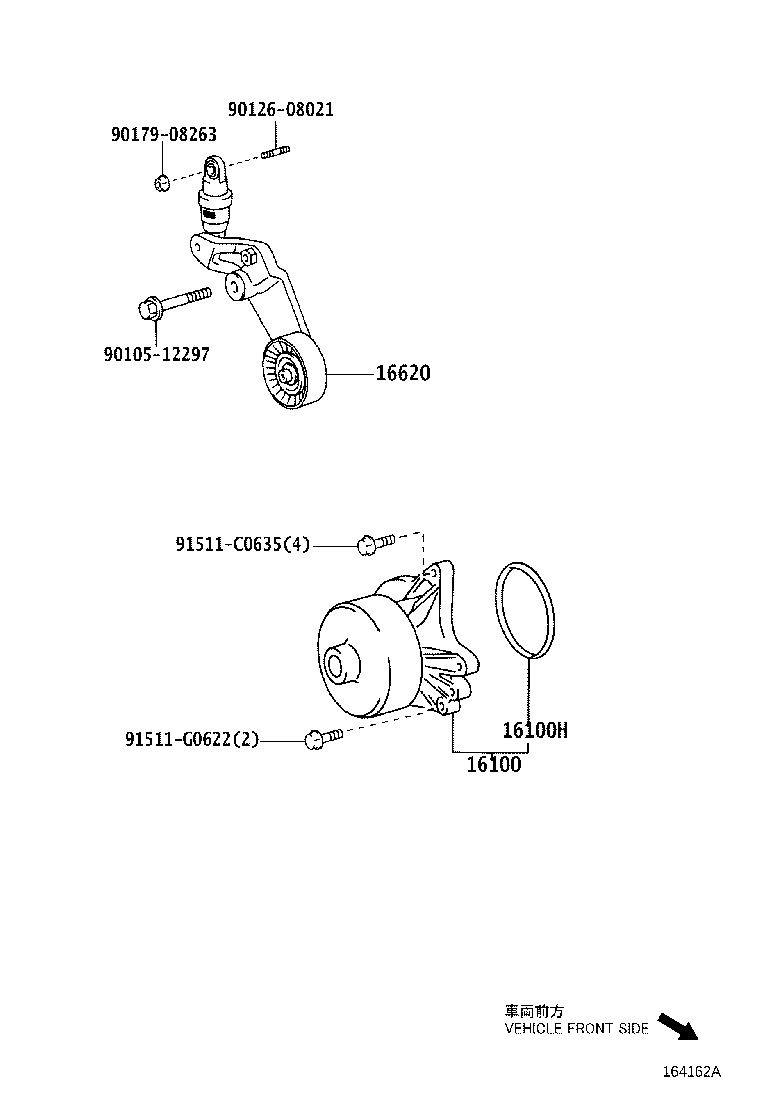

Click highlighted areas on diagram

diagram 16100 16100H 16620 9010512297 9012608021 9017908263 91511C0635 91511G0622
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-29415

3ZZFE,4ZZFE..ZZE12#..JPP

 1
16100-29095

3ZZFE,4ZZFE..ZZE12#..JPP

 1
16100H - RING, O(FOR WATER PUMP)
90301-69006

3ZZFE,4ZZFE..ZZE12#..JPP

 1
90301-69006

3ZZFE,4ZZFE..ZZE12#..JPP

 1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-22012

3ZZFE,4ZZFE..ZZE12#..JPP

 1
16620-22012

3ZZFE,4ZZFE..ZZE12#..JPP

 1
16620-22011

3ZZFE,4ZZFE..ZZE12#..JPP

 1
16620-22013

3ZZFE,4ZZFE..ZZE12#..JPP

 1
Common parts
90105-12297
90126-08021
90179-08263
91511-C0635
91511-G0622
