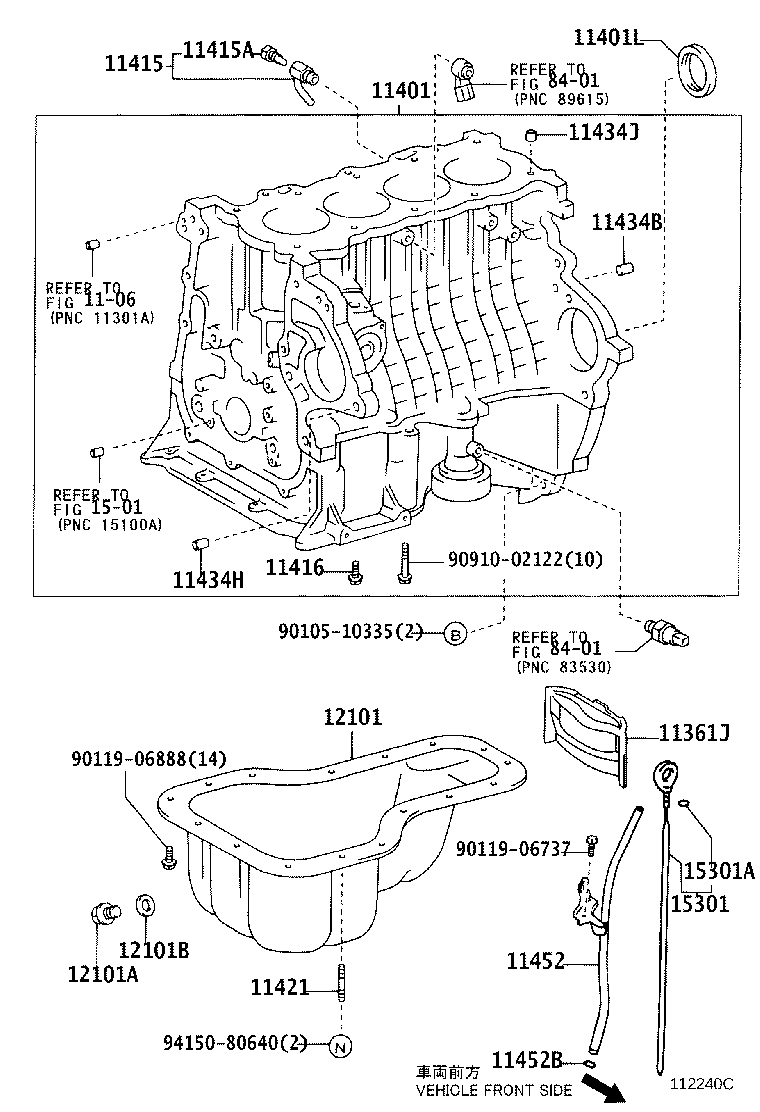

Toyota Corolla hb (jpp) ZZE121 CYLINDER BLOCK

Part #	Description	Period	Qty
11361J - COVER, FLYWHEEL HOUSING UNDER
11361-22021	3ZZFE,4ZZFE..ZZE12#..JPP	05/2004 - 12/2999	1
11361-22021	3ZZFE,4ZZFE..ZZE12#..JPP	09/2002 - 05/2004	1
11401 - BLOCK SUB-ASSY, CYLINDER
11410-29155	3ZZFE..ZZE121..JPP	05/2004 - 12/2999	1
11410-29057	3ZZFE..ZZE121..JPP	09/2002 - 12/2002	1
11410-29155	3ZZFE..ZZE121..JPP	12/2002 - 05/2004	1
11401L - SEAL, ENGINE REAR OIL
90311-76001	3ZZFE,4ZZFE..ZZE12#..JPP	09/2002 - 05/2004	1
90311-76001	3ZZFE,4ZZFE..ZZE12#..JPP	05/2004 - 12/2999	1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09107	3ZZFE,4ZZFE..ZZE12#..JPP	09/2002 - 05/2004	1
90910-09107	3ZZFE,4ZZFE..ZZE12#..JPP	05/2004 - 12/2999	1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09087	3ZZFE,4ZZFE..ZZE12#..JPP	09/2002 - 05/2004	1
90910-09087	3ZZFE,4ZZFE..ZZE12#..JPP	05/2004 - 12/2999	1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
91511-K0840	3ZZFE,4ZZFE..ZZE12#..JPP	09/2002 - 05/2004	10
91511-K0840	3ZZFE,4ZZFE..ZZE12#..JPP	05/2004 - 12/2999	10
11421 - BOLT, STUD(FOR OIL PAN)
90126-06010	3ZZFE,4ZZFE..ZZE12#..JPP	09/2002 - 05/2004	2
90126-06010	3ZZFE,4ZZFE..ZZE12#..JPP	05/2004 - 12/2999	2
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113	3ZZFE,4ZZFE..ZZE12#..JPP L=22,OD=10	09/2002 - 05/2004	2
90250-10113	3ZZFE,4ZZFE..ZZE12#..JPP L=22,OD=10	05/2004 - 12/2999	2
11434H - PIN, RING (FOR TIMING BELT COVER SET)
90253-14003	3ZZFE,4ZZFE..ZZE12#..JPP	09/2002 - 05/2004	1
90253-14003	3ZZFE,4ZZFE..ZZE12#..JPP	05/2004 - 12/2999	1
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-13017	3ZZFE,4ZZFE..ZZE12#..JPP	09/2002 - 05/2004	2
90253-13017	3ZZFE,4ZZFE..ZZE12#..JPP	05/2004 - 12/2999	2
11452 - GUIDE, OIL LEVEL GAGE
11452-22030	3ZZFE,4ZZFE..ZZE12#..JPP	09/2002 - 05/2004	1
11452-22030	3ZZFE,4ZZFE..ZZE12#..JPP	05/2004 - 12/2999	1
11452B - RING, O(FOR OIL LEVEL GAGE GUIDE)
96721-19010	3ZZFE,4ZZFE..ZZE12#..JPP	05/2004 - 12/2999	1
96721-19010	3ZZFE,4ZZFE..ZZE12#..JPP	09/2002 - 05/2004	1
12101 - PAN SUB-ASSY, OIL
12101-22024	3ZZFE,4ZZFE..ZZE12#..JPP	09/2002 - 05/2004	1
12101-22024	3ZZFE,4ZZFE..ZZE12#..JPP	05/2004 - 12/2999	1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012	3ZZFE,4ZZFE..ZZE12#..JPP	05/2004 - 12/2999	1
90341-12012	3ZZFE,4ZZFE..ZZE12#..JPP	09/2002 - 05/2004	1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031	3ZZFE,4ZZFE..ZZE12#..JPP	05/2004 - 12/2999	1
90430-12031	3ZZFE,4ZZFE..ZZE12#..JPP	09/2002 - 05/2004	1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-22050	3ZZFE,4ZZFE..ZZE12#..JPP	07/2005 - 12/2999	1
15301-22030	3ZZFE,4ZZFE..ZZE12#..JPP	09/2002 - 05/2004	1
15301-22030	3ZZFE,4ZZFE..ZZE12#..JPP	05/2004 - 07/2005	1
15301A - RING, O(FOR OIL LEVEL GAGE)
96741-19005	3ZZFE,4ZZFE..ZZE12#..JPP	05/2004 - 12/2999	1
96741-19005	3ZZFE,4ZZFE..ZZE12#..JPP	10/2002 - 05/2004	1
Common parts
90105-10335
90119-06737
90119-06888
90910-02122
94150-80640
Linked diagrams
1106
1501
8401

ZZE121R-AHMDKW (2002)

(0209- )3ZZFE,4ZZFE..JPP
