Toyota Corolla hb (jpp) ZZE121 REAR BUMPER & BUMPER STAY

Manufacturers Home
Toyota
EU
COROLLA HB (JPP)
ZZE121L-AHPDKW (2002)
5202 - REAR BUMPER & BUMPER STAY

ZZE121L-AHPDKW (2002)

Toyota Corolla Hb (Jpp)

Production Sep 2002 - Oct 2006

Engine 3ZZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(0209-0405)JPP

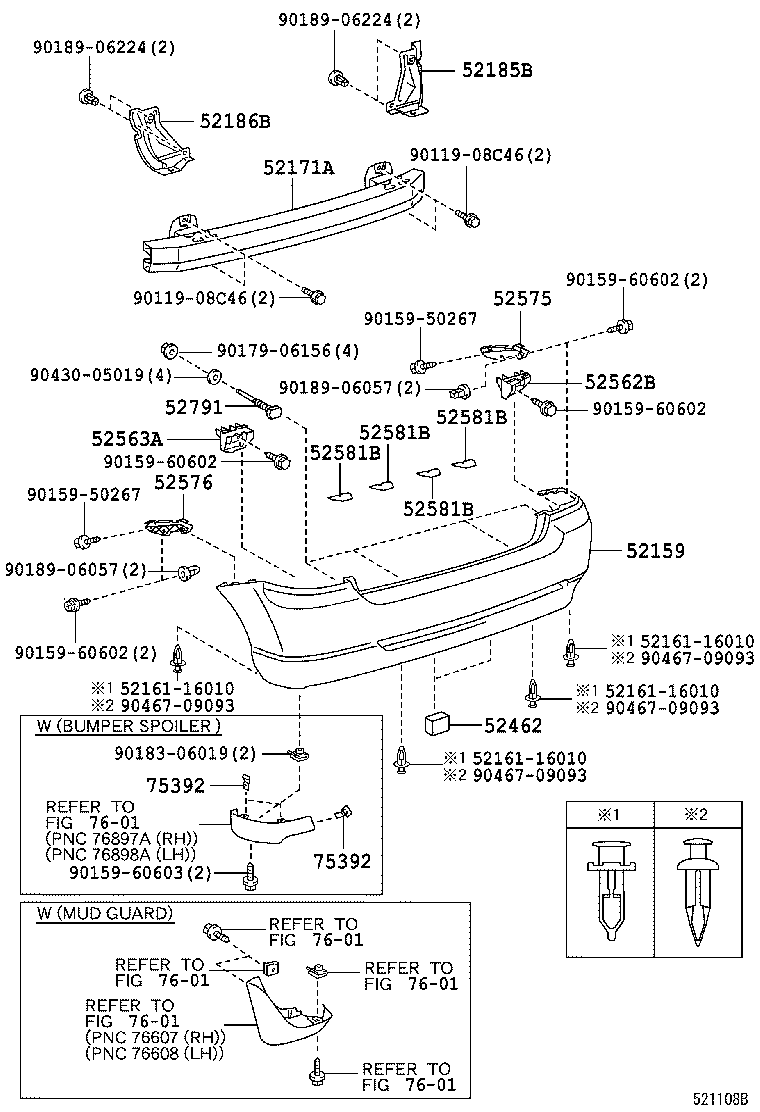

Click highlighted areas on diagram

Part #	Description	Period	Qty
52159 - COVER, REAR BUMPER
52159-13908	NDE120,ZZE12#..JPP..TERRA PAINT REQ.,W(BUMPER SPOILER)	05/2004 - 10/2005	1
52159-13907	CDE120,ZZE12#..JPP PAINT REQ.	09/2002 - 05/2004	1
52159-13913	NDE120,ZZE12#..JPP PAINT REQ.	05/2004 - 10/2006	1
52171A - REINFORCEMENT, REAR BUMPER, NO.1
52023-02060	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
52023-12210	NDE120,ZZE12#..JPP	05/2004 - 10/2006	1
52185B - BRACKET, REAR BUMPER SIDE MOUNTING, RH
52185-13080	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
52185-13080	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
52186B - BRACKET, REAR BUMPER SIDE MOUNTING, LH
52186-13040	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
52186-13040	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
52562B - RETAINER, REAR BUMPER, UPPER RH
52562-13030	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
52562-13030	NDE120,ZZE12#..JPP	05/2004 - 10/2006	1
52563A - RETAINER, REAR BUMPER, UPPER LH
52563-13020	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
52563-13020	NDE120,ZZE12#..JPP	05/2004 - 10/2006	1
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-13030	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
52575-13050	NDE120,ZZE12#..JPP	05/2004 - 10/2006	1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-13030	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
52576-13050	NDE120,ZZE12#..JPP	05/2004 - 10/2006	1
52581B - PROTECTOR, REAR BUMPER
52581-13030	CDE120,ZZE12#..JPP	09/2002 - 05/2004	4
52581-13030	NDE120,ZZE12#..JPP	05/2004 - 10/2006	4
52791 - BOLT, BUMPER MOULDING SET, NO.1
52791-12040	CDE120,ZZE12#..JPP	09/2002 - 05/2004	4
52791-12040	NDE120,ZZE12#..JPP	05/2004 - 10/2006	4
Common parts
90119-08B46
90159-50267
90159-60602
90179-06156
90189-06057
90189-06224
90430-05019
90467-09093
Linked diagrams
7601

(0405- )JPP

Click highlighted areas on diagram

Part #	Description	Period	Qty
52159 - COVER, REAR BUMPER
52159-13908	NDE120,ZZE12#..JPP..TERRA PAINT REQ.,W(BUMPER SPOILER)	05/2004 - 10/2005	1
52159-13907	CDE120,ZZE12#..JPP PAINT REQ.	09/2002 - 05/2004	1
52159-13913	NDE120,ZZE12#..JPP PAINT REQ.	05/2004 - 10/2006	1
52171A - REINFORCEMENT, REAR BUMPER, NO.1
52023-02060	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
52023-12210	NDE120,ZZE12#..JPP	05/2004 - 10/2006	1
52185B - BRACKET, REAR BUMPER SIDE MOUNTING, RH
52185-13080	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
52185-13080	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
52186B - BRACKET, REAR BUMPER SIDE MOUNTING, LH
52186-13040	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
52186-13040	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
52462 - PAD, REAR BUMPER, RH
52462-13020	NDE120,ZZE12#..JPP	05/2004 - 10/2006	2
52562B - RETAINER, REAR BUMPER, UPPER RH
52562-13030	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
52562-13030	NDE120,ZZE12#..JPP	05/2004 - 10/2006	1
52563A - RETAINER, REAR BUMPER, UPPER LH
52563-13020	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
52563-13020	NDE120,ZZE12#..JPP	05/2004 - 10/2006	1
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-13030	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
52575-13050	NDE120,ZZE12#..JPP	05/2004 - 10/2006	1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-13030	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
52576-13050	NDE120,ZZE12#..JPP	05/2004 - 10/2006	1
52581B - PROTECTOR, REAR BUMPER
52581-13030	CDE120,ZZE12#..JPP	09/2002 - 05/2004	4
52581-13030	NDE120,ZZE12#..JPP	05/2004 - 10/2006	4
52581B - PROTECTOR, REAR BUMPER
52581-13030	CDE120,ZZE12#..JPP	09/2002 - 05/2004	4
52581-13030	NDE120,ZZE12#..JPP	05/2004 - 10/2006	4
52581B - PROTECTOR, REAR BUMPER
52581-13030	CDE120,ZZE12#..JPP	09/2002 - 05/2004	4
52581-13030	NDE120,ZZE12#..JPP	05/2004 - 10/2006	4
52581B - PROTECTOR, REAR BUMPER
52581-13030	CDE120,ZZE12#..JPP	09/2002 - 05/2004	4
52581-13030	NDE120,ZZE12#..JPP	05/2004 - 10/2006	4
52791 - BOLT, BUMPER MOULDING SET, NO.1
52791-12040	CDE120,ZZE12#..JPP	09/2002 - 05/2004	4
52791-12040	NDE120,ZZE12#..JPP	05/2004 - 10/2006	4
75392 - RETAINER, OUTSIDE MOULDING
75392-35200	NDE120,ZZE12#..JPP..TERRA	05/2004 - 10/2005	6
75392 - RETAINER, OUTSIDE MOULDING
75392-35200	NDE120,ZZE12#..JPP..TERRA	05/2004 - 10/2005	6
Common parts
52161-16010
90119-08C46
90159-50267
90159-60602
90159-60603
90179-06156
90183-06019
90189-06057
90189-06224
90430-05019
90467-09093
Linked diagrams
7601

ZZE121L-AHPDKW (2002)

(0209-0405)JPP

(0405- )JPP
