Toyota Corolla hb (jpp) ZZE121 PARKING BRAKE & CABLE

ZZE121L-AHPDKW (2002)

Toyota Corolla Hb (Jpp)

Production Sep 2002 - Oct 2006

Engine 3ZZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

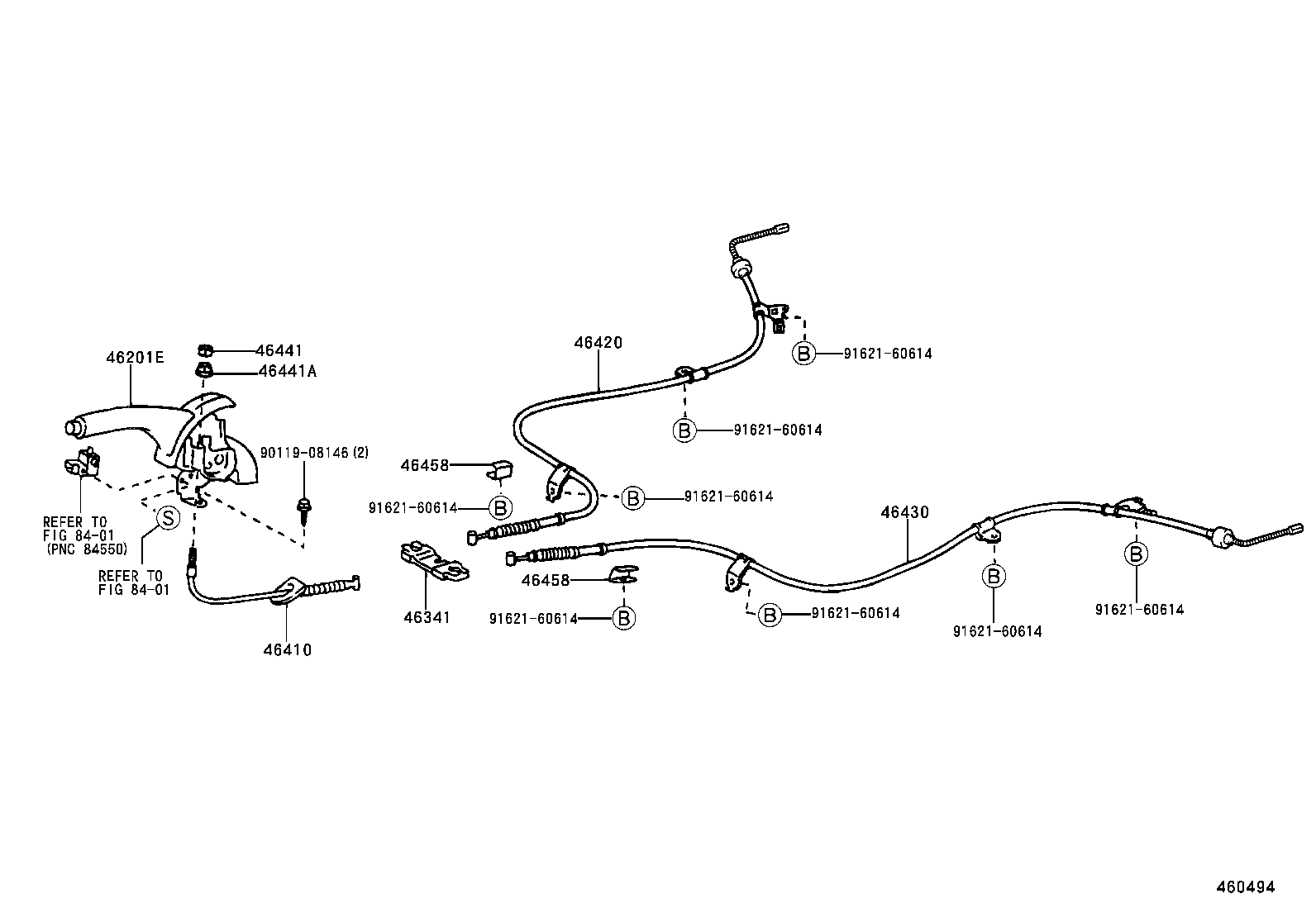

Click highlighted areas on diagram

Part #	Description	Period	Qty
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-12330B0	CDE120,ZZE12#..JPP..LHD..TERRA DK.GRAY,TRIM1#,8#	09/2002 - 05/2004	1
46201-12330B0	NDE120,ZZE12#..JPP..LHD DK.GRAY,TRIM1#	05/2004 - 12/2999	1
46341 - EQUALIZER, PARKING BRAKE
46341-20070	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
46341-20070	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-12270	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
46410-12270	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-12541	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
46420-12541	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-12441	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
46430-12441	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
46441 - NUT, WIRE ADJUSTING, NO.1
90179-06299	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
90179-06299	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
46441A - NUT, WIRE ADJUSTING, NO.2
46441-12010	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
46441-12010	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
46458 - RETAINER, CABLE
46458-28010	CDE120,ZZE12#..JPP	09/2002 - 05/2004	2
46458-28010	NDE120,ZZE12#..JPP	05/2004 - 12/2999	2
46458 - RETAINER, CABLE
46458-28010	CDE120,ZZE12#..JPP	09/2002 - 05/2004	2
46458-28010	NDE120,ZZE12#..JPP	05/2004 - 12/2999	2
Common parts
90119-08146
91621-60614
Linked diagrams
8401

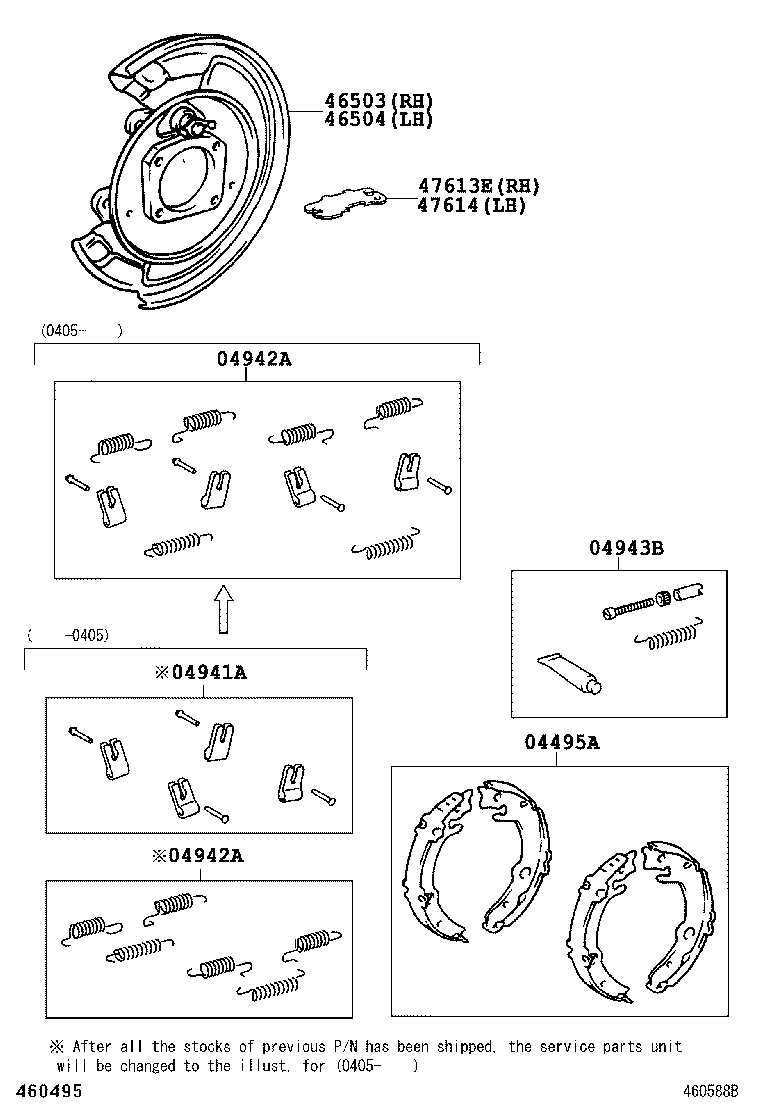

Click highlighted areas on diagram

Part #	Description	Period	Qty
04495A - SHOE KIT, PARKING BRAKE
04495-02120	NDE120,ZZE12#..JPP	05/2004 - 10/2006	1
04495-02120	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
04941A - SPRING KIT, PARKING BRAKE SHOE HOLD DOWN
04941-02020	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
04942A - SPRING KIT, PARKING BRAKE
04942-02020	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
04942-02050	NDE120,ZZE12#..JPP	05/2004 - 10/2006	1
04942A - SPRING KIT, PARKING BRAKE
04942-02020	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
04942-02050	NDE120,ZZE12#..JPP	05/2004 - 10/2006	1
04943B - ADJUSTER KIT, PARKING BRAKE
04943-02020	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
04943-02020	NDE120,ZZE12#..JPP	05/2004 - 10/2006	1
46503 - PLATE SUB-ASSY, PARKING BRAKE, RH
46503-02020	ZZE12#..JPP	05/2004 - 12/2999	1
46503-02020	ZZE12#..JPP	09/2002 - 05/2004	1
46504 - PLATE SUB-ASSY, PARKING BRAKE, LH
46504-02020	ZZE12#..JPP	09/2002 - 05/2004	1
46504-02020	ZZE12#..JPP	05/2004 - 12/2999	1
47613E - STRUT, PARKING BRAKE SHOE, RH
47613-02050	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
47613-02050	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
47614 - STRUT, PARKING BRAKE SHOE, LH
47613-02050	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
47613-02050	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
