ZZE121L-AHPDKW (2002)
Toyota Corolla Hb (Jpp)
Production
Sep 2002
-
Oct 2006
Engine
3ZZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0209- )JPP

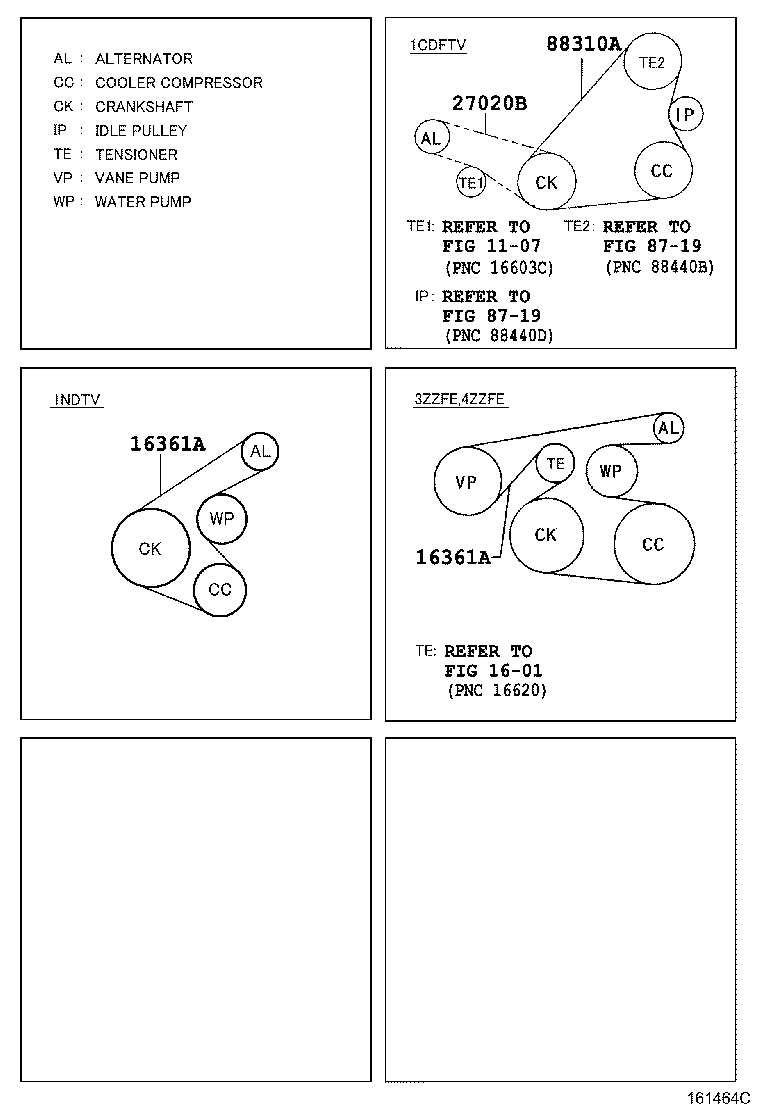

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 90916-02539 |
3ZZFE,4ZZFE..ZZE12#..JPP..TERRA |
1 | ||
| 90916-02539 |
3ZZFE,4ZZFE..ZZE12#..JPP |
1 | ||
| 90916-02516 |
3ZZFE,4ZZFE..ZZE12#..JPP W(AIR CONDITIONER) |
1 | ||
| 90916-02546 |
3ZZFE,4ZZFE..ZZE12#..JPP..TERRA W(DEALER OPTION AIR CONDITIONER) |
1 | ||
| 90916-02516 |
3ZZFE,4ZZFE..ZZE12#..JPP W(AIR CONDITIONER) |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 90916-02539 |
3ZZFE,4ZZFE..ZZE12#..JPP..TERRA |
1 | ||
| 90916-02539 |
3ZZFE,4ZZFE..ZZE12#..JPP |
1 | ||
| 90916-02516 |
3ZZFE,4ZZFE..ZZE12#..JPP W(AIR CONDITIONER) |
1 | ||
| 90916-02546 |
3ZZFE,4ZZFE..ZZE12#..JPP..TERRA W(DEALER OPTION AIR CONDITIONER) |
1 | ||
| 90916-02516 |
3ZZFE,4ZZFE..ZZE12#..JPP W(AIR CONDITIONER) |
1 | ||
| Linked diagrams | ||||
| 1107 | ||||
| 1601 | ||||
| 8719 | ||||
