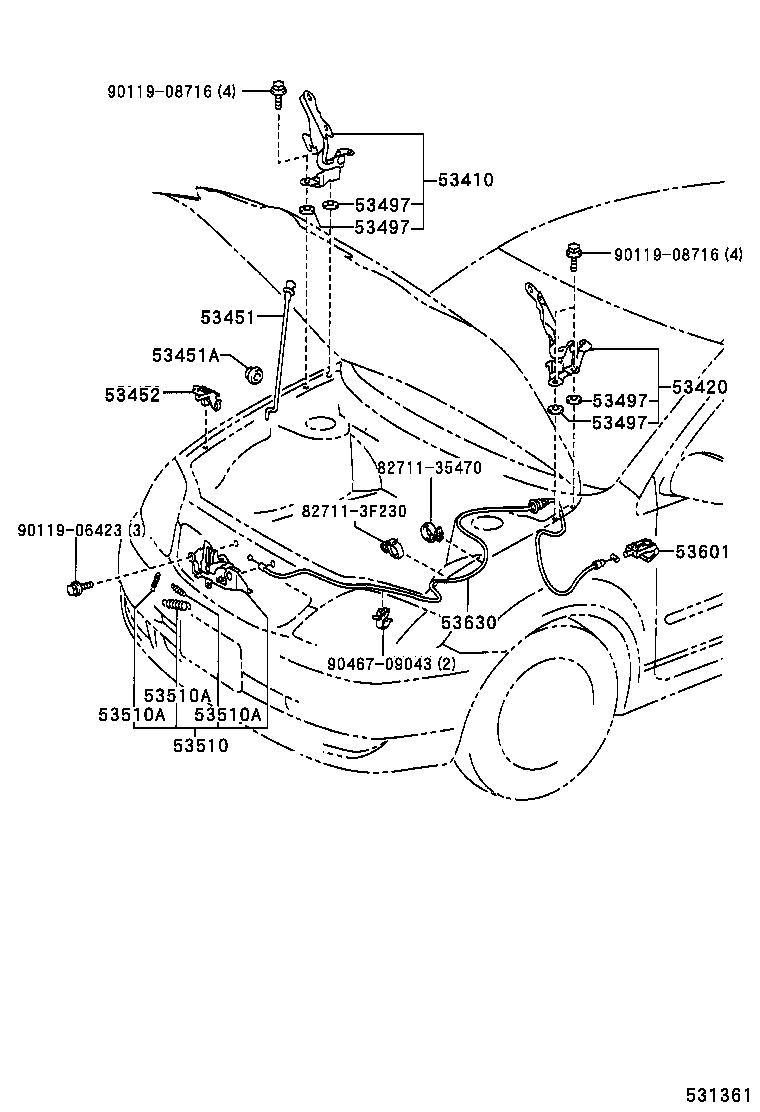

Toyota Corolla hb (jpp) ZZE121 HOOD LOCK & HINGE

Part #	Description	Period	Qty
53410 - HINGE ASSY, HOOD, RH
53410-12410	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
53410-12410	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
53420 - HINGE ASSY, HOOD, LH
53420-12330	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
53420-12330	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
53451 - ROD, HOOD SUPPORT
53440-12030	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
53440-12030	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
53451A - GROMMET(FOR HOOD SUPPORT ROD)
90480-15034	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
90480-15034	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
53452 - HOLDER, HOOD STAY
53452-02020	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
53452-02020	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
53497 - PAD, HOOD HINGE, NO.1
53497-12050	CDE120,ZZE12#..JPP T=1.0	09/2002 - 05/2004	4
53497-20070	NDE120,ZZE12#..JPP T=2.0	05/2004 - 12/2999	4
53497-20070	CDE120,ZZE12#..JPP T=2.0	09/2002 - 05/2004	4
53497-42010	NDE120,ZZE12#..JPP T=0.5	05/2004 - 12/2999	4
53497 - PAD, HOOD HINGE, NO.1
53497-12050	CDE120,ZZE12#..JPP T=1.0	09/2002 - 05/2004	4
53497-20070	NDE120,ZZE12#..JPP T=2.0	05/2004 - 12/2999	4
53497-20070	CDE120,ZZE12#..JPP T=2.0	09/2002 - 05/2004	4
53497-42010	NDE120,ZZE12#..JPP T=0.5	05/2004 - 12/2999	4
53497 - PAD, HOOD HINGE, NO.1
53497-12050	CDE120,ZZE12#..JPP T=1.0	09/2002 - 05/2004	4
53497-20070	NDE120,ZZE12#..JPP T=2.0	05/2004 - 12/2999	4
53497-20070	CDE120,ZZE12#..JPP T=2.0	09/2002 - 05/2004	4
53497-42010	NDE120,ZZE12#..JPP T=0.5	05/2004 - 12/2999	4
53497 - PAD, HOOD HINGE, NO.1
53497-12050	CDE120,ZZE12#..JPP T=1.0	09/2002 - 05/2004	4
53497-20070	NDE120,ZZE12#..JPP T=2.0	05/2004 - 12/2999	4
53497-20070	CDE120,ZZE12#..JPP T=2.0	09/2002 - 05/2004	4
53497-42010	NDE120,ZZE12#..JPP T=0.5	05/2004 - 12/2999	4
53510 - LOCK ASSY, HOOD
53510-02200	CDE120,ZZE12#..JPP..LHD	09/2002 - 05/2004	1
53510-02200	NDE120,ZZE12#..JPP..LHD	05/2004 - 09/2006	1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90080-50258	CDE120,ZZE12#..JPP WD=1.6,CW=15	09/2002 - 05/2004	1
90080-50365	NDE120,ZZE12#..JPP..LHD WD=1.8,CW=16	05/2004 - 09/2006	1
90080-50265	CDE120,ZZE12#..JPP WD=1.2,CW=8.5	09/2002 - 05/2004	1
90080-50266	NDE120,ZZE12#..JPP..LHD WD=0.9,CW=20.75	05/2004 - 09/2006	1
90080-50265	NDE120,ZZE12#..JPP..LHD WD=1.2,CW=8.5	05/2004 - 09/2006	1
90080-50266	CDE120,ZZE12#..JPP WD=0.9,CW=20.75	09/2002 - 05/2004	1
90080-50365	CDE120,ZZE12#..JPP WD=1.8,CW=16	09/2002 - 05/2004	1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90080-50258	CDE120,ZZE12#..JPP WD=1.6,CW=15	09/2002 - 05/2004	1
90080-50365	NDE120,ZZE12#..JPP..LHD WD=1.8,CW=16	05/2004 - 09/2006	1
90080-50265	CDE120,ZZE12#..JPP WD=1.2,CW=8.5	09/2002 - 05/2004	1
90080-50266	NDE120,ZZE12#..JPP..LHD WD=0.9,CW=20.75	05/2004 - 09/2006	1
90080-50265	NDE120,ZZE12#..JPP..LHD WD=1.2,CW=8.5	05/2004 - 09/2006	1
90080-50266	CDE120,ZZE12#..JPP WD=0.9,CW=20.75	09/2002 - 05/2004	1
90080-50365	CDE120,ZZE12#..JPP WD=1.8,CW=16	09/2002 - 05/2004	1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90080-50258	CDE120,ZZE12#..JPP WD=1.6,CW=15	09/2002 - 05/2004	1
90080-50365	NDE120,ZZE12#..JPP..LHD WD=1.8,CW=16	05/2004 - 09/2006	1
90080-50265	CDE120,ZZE12#..JPP WD=1.2,CW=8.5	09/2002 - 05/2004	1
90080-50266	NDE120,ZZE12#..JPP..LHD WD=0.9,CW=20.75	05/2004 - 09/2006	1
90080-50265	NDE120,ZZE12#..JPP..LHD WD=1.2,CW=8.5	05/2004 - 09/2006	1
90080-50266	CDE120,ZZE12#..JPP WD=0.9,CW=20.75	09/2002 - 05/2004	1
90080-50365	CDE120,ZZE12#..JPP WD=1.8,CW=16	09/2002 - 05/2004	1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-52010B3	CDE120,ZZE12#..JPP DK.GRAY,TRIM1#	09/2002 - 05/2004	1
53601-52010A0	CDE120,ZZE12#..JPP..SOL IVORY,TRIM0#	09/2002 - 05/2004	1
53601-52010B3	NDE120,ZZE12#..JPP DK.GRAY,TRIM1#	05/2004 - 12/2999	1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-12510	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
53630-12510	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
Common parts
82711-35470
82711-3F230
90119-06423
90119-08716
90467-09043

ZZE121L-AHMNKW (2002)

(0209- )JPP..LHD
