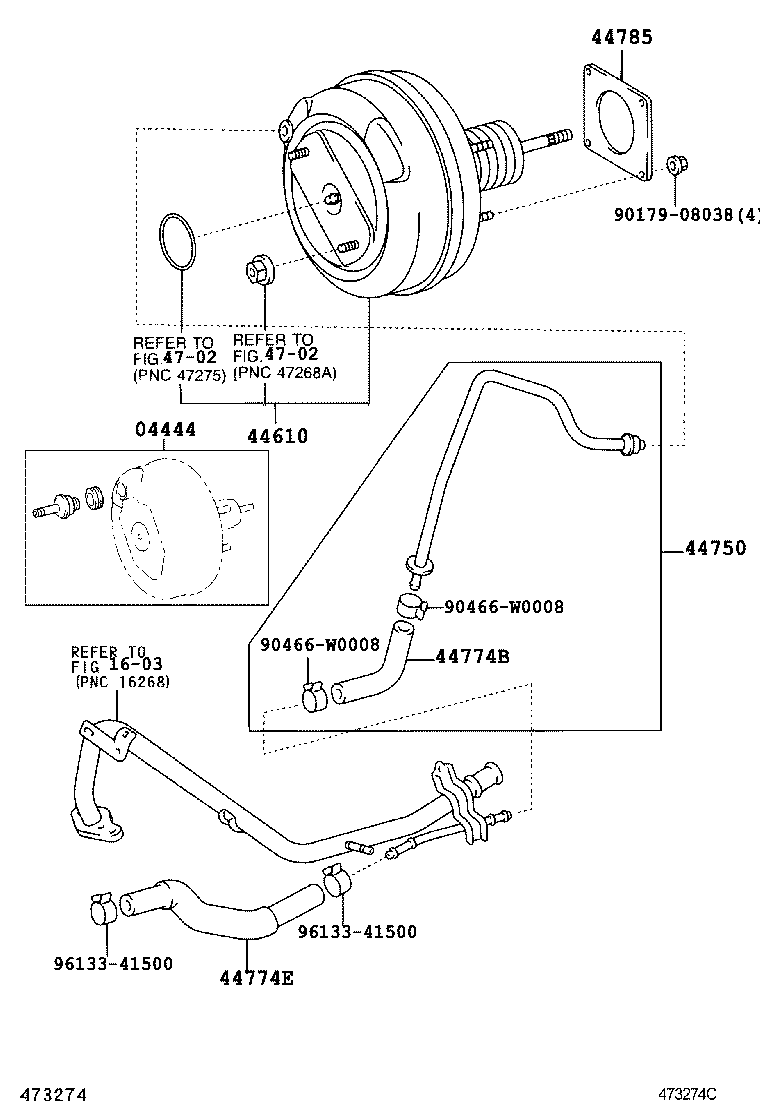

Toyota Corolla hb (jpp) ZZE121 BRAKE BOOSTER & VACUUM TUBE

Part #	Description	Period	Qty
04444 - VALVE KIT, BOOSTER CONTROL
04444-02010	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
44610 - BOOSTER ASSY, BRAKE
44610-09080	ZZE12#..JPP..LHD	09/2002 - 05/2004	1
44610-09080	ZZE12#..JPP..LHD	05/2004 - 10/2006	1
44750 - HOSE ASSY, VACUUM
44750-02150	ZZE12#..JPP..LHD	05/2004 - 12/2999	1
44750-02150	ZZE12#..JPP..LHD	09/2002 - 05/2004	1
44774B - HOSE, UNION TO CONNECTOR TUBE
44774-02040	ZZE12#..JPP..LHD	05/2004 - 12/2999	1
44774-02040	ZZE12#..JPP..LHD	09/2002 - 05/2004	1
44774E - HOSE, UNION TO CONNECTOR TUBE
44774-12470	ZZE12#..JPP	05/2004 - 12/2999	1
44774-12470	ZZE12#..JPP	09/2002 - 05/2004	1
44785 - GASKET, BRAKE BOOSTER
44785-20020	CDE120,ZZE12#..JPP	09/2002 - 05/2004	1
44785-20020	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
Common parts
90179-08038
90466-W0008
96133-41500
Linked diagrams
1603
4702

ZZE121L-AHMDKW (2002)
