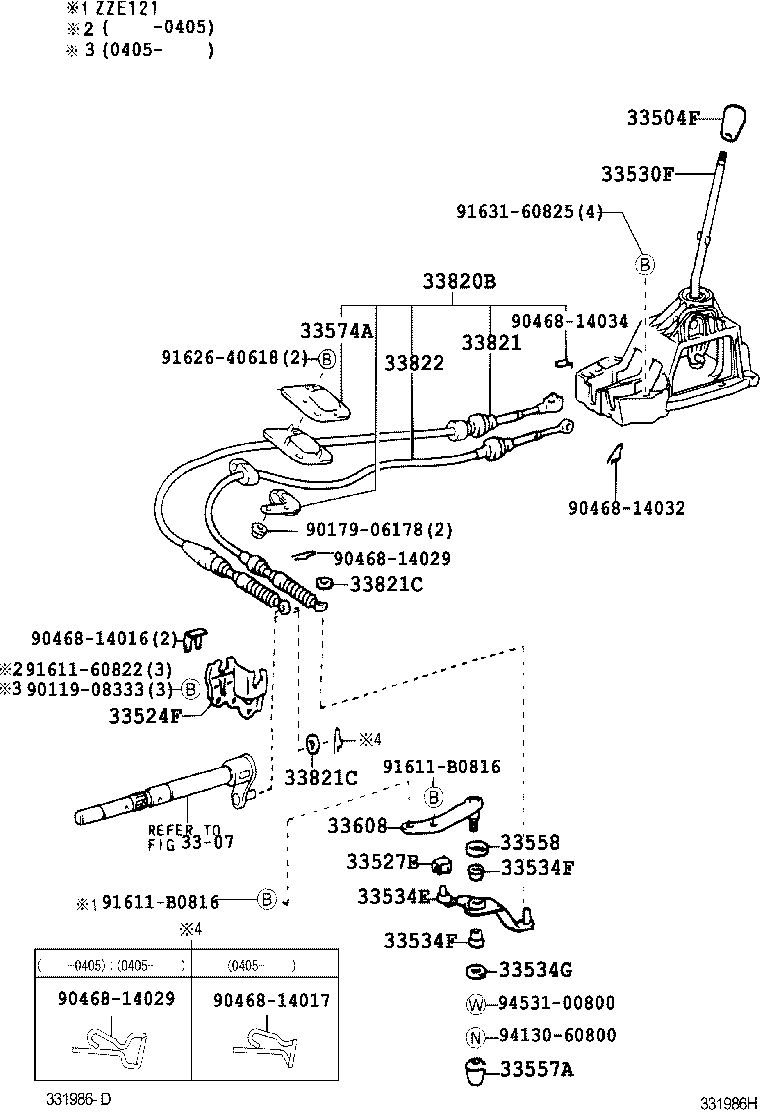

Toyota Corolla hb (jpp) ZZE120 SHIFT LEVER & RETAINER

Part #	Description	Period	Qty
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-13010B0	CDE120,ZZE12#..JPP..5F..TERRA DK.GRAY,TRIM1#,8#	09/2002 - 05/2004	1
33504-13041B0	ZZE12#..JPP..5F..TERRA CHROME PLATED,DK.GRAY,TRIM1#	05/2004 - 10/2005	1
33504-13010B0	NDE120,ZZE12#..JPP..5F..TERRA DK.GRAY,TRIM1#	05/2004 - 12/2999	1
33524F - BRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT
33524-20040	ZZE12#..JPP..5F	05/2004 - 12/2999	1
33524-42020	ZZE12#..JPP..5F	09/2002 - 05/2004	1
33527B - BUSH (FOR CONTROL SHIFT LEVER)
33557-33010	CDE120,ZZE12#..JPP..5F	09/2002 - 05/2004	1
33557-33010	ZZE12#..JPP..5F	05/2004 - 12/2999	1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-02050	ZZE12#..JPP..RHD..5F	09/2002 - 05/2004	1
33530-12870	ZZE12#..JPP..RHD..5F	05/2004 - 12/2999	1
33534E - CRANK, SELECTING BELL, NO.2
33534-42010	ZZE12#..JPP..5F	05/2004 - 12/2999	1
33534-42010	ZZE12#..JPP..5F	09/2002 - 05/2004	1
33534F - BUSH (FOR SELECTING BELLCRANK NO.2)
90386-12022	ZZE12#..JPP..5F	05/2004 - 12/2999	2
90386-12022	CDE120,ZZE12#..JPP..5F	09/2002 - 05/2004	2
33534F - BUSH (FOR SELECTING BELLCRANK NO.2)
90386-12022	ZZE12#..JPP..5F	05/2004 - 12/2999	2
90386-12022	CDE120,ZZE12#..JPP..5F	09/2002 - 05/2004	2
33534G - WASHER, PLATE (FOR SELECTING BELLCRANK NO.2)
90201-08028	ZZE120..JPP	05/2004 - 09/2004	1
90201-08028	CDE120,ZZE12#..JPP..5F	09/2002 - 05/2004	1
33557A - COVER, SELECTING BELLCRANK DUST, NO.1
33557-32010	CDE120,ZZE12#..JPP..5F	09/2002 - 05/2004	1
33557-32010	ZZE12#..JPP..5F	05/2004 - 12/2999	1
33558 - COVER, SELECTING BELLCRANK DUST, NO.2
33558-10030	ZZE12#..JPP..5F	05/2004 - 12/2999	1
33558-10030	CDE120,ZZE12#..JPP..5F	09/2002 - 05/2004	1
33574A - RETAINER, SHIFT CABLE GROMMET, NO.1
33574-12090	ZZE12#..JPP..5F	08/2004 - 12/2999	1
33608 - SUPPORT SUB-ASSY, SELECTING BELLCRANK
33608-12050	ZZE120..JPP	05/2004 - 12/2999	1
33608-12050	ZZE120..JPP	09/2002 - 05/2004	1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-1A140	ZZE12#..JPP..5F	05/2004 - 12/2999	1
33820-12A10	ZZE12#..JPP..5F	09/2002 - 05/2004	1
33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)
33821-1A130	ZZE12#..JPP..5F	08/2004 - 12/2999	1
33821-1A210	ZZE12#..JPP..5F	09/2002 - 12/2003	1
33821-1A141	ZZE12#..JPP..5F	12/2003 - 05/2004	1
33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)
90201-08267	CDE120,ZZE12#..JPP..5F OD=28	11/2002 - 05/2004	2
90201-08077	CDE120,ZZE12#..JPP..5F OD=30	09/2002 - 05/2004	2
90201-08267	ZZE12#..JPP..5F OD=28	05/2004 - 12/2999	2
33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)
90201-08267	CDE120,ZZE12#..JPP..5F OD=28	11/2002 - 05/2004	2
90201-08077	CDE120,ZZE12#..JPP..5F OD=30	09/2002 - 05/2004	2
90201-08267	ZZE12#..JPP..5F OD=28	05/2004 - 12/2999	2
33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)
33822-12430	ZZE12#..JPP..5F	08/2004 - 12/2999	1
33822-12540	ZZE12#..JPP..5F	09/2002 - 05/2004	1
Common parts
90119-08333
90179-06178
90468-14016
90468-14017
90468-14029
90468-14032
90468-14034
91611-60822
91611-B0816
91626-40618
91631-60825
94130-60800
94531-00800
Linked diagrams
3307

ZZE120R-AHMDKW (2002)

(0209- )ZZE12#..JPP..5F
