Toyota Corolla hb (jpp) ZZE120 ACCELERATOR LINK

ZZE120L-AHMNKW (2002)

Toyota Corolla Hb (Jpp)

Production Sep 2002 - Oct 2006

Engine 4ZZFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

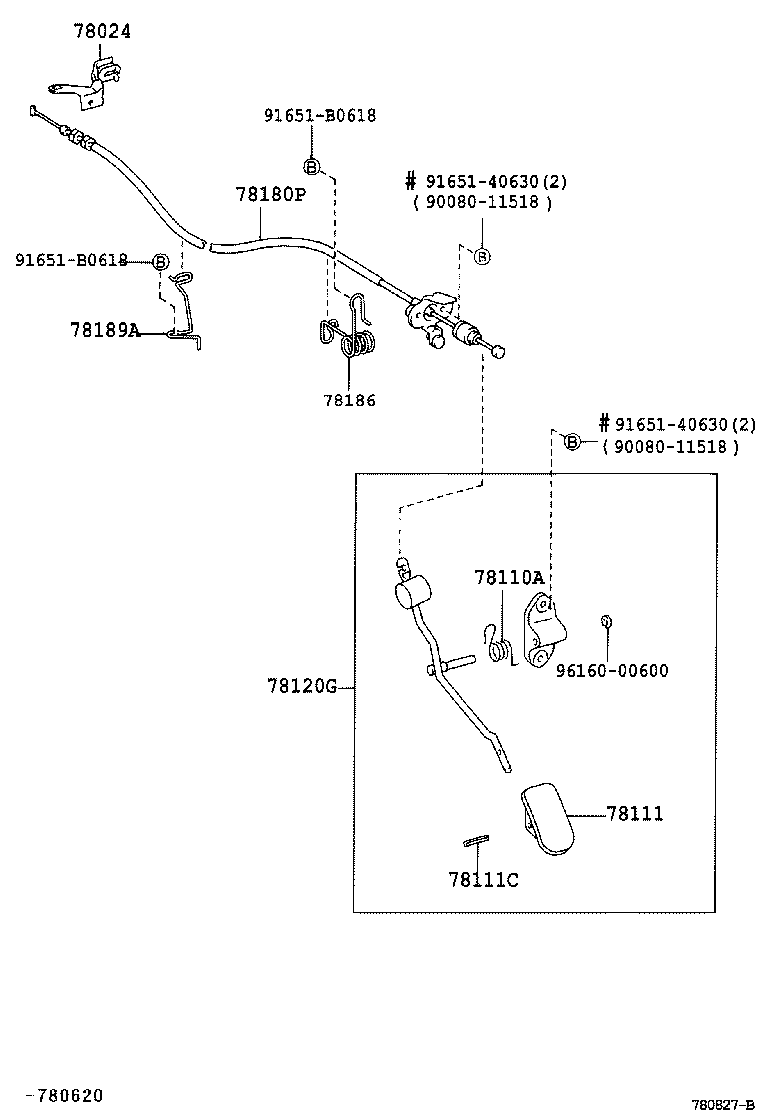

Click highlighted areas on diagram

Part #	Description	Period	Qty
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-12090	ZZE120..JPP	05/2004 - 12/2999	1
78024-12090	ZZE12#..JPP	09/2002 - 05/2004	1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-26036	ZZE12#..JPP..LHD	09/2002 - 05/2004	1
90508-26036	ZZE120..JPP..LHD	05/2004 - 12/2999	1
78111 - PEDAL, ACCELERATOR
78111-20060	ZZE12#..JPP..LHD..5F	09/2002 - 05/2004	1
78111-20060	ZZE120..JPP..LHD	05/2004 - 12/2999	1
78111C - PIN (FOR ACCELERATOR PEDAL)
90254-04019	ZZE120..JPP	05/2004 - 12/2999	1
90254-04019	ZZE120..JPP;ZZE121..JPP..RHD;ZZE121..JPP..LHD..5F	09/2002 - 05/2004	1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-12310	ZZE120..JPP..LHD	05/2004 - 12/2999	1
78120-12310	ZZE12#..JPP..LHD..5F	09/2002 - 05/2004	1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-02250	ZZE12#..JPP..LHD	09/2002 - 10/2002	1
78180-13060	ZZE12#..JPP..LHD	10/2002 - 05/2004	1
78180-13060	ZZE120..JPP..LHD	05/2004 - 10/2005	1
78180-13061	ZZE120..JPP..LHD	10/2005 - 12/2999	1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-13020	ZZE12#..JPP..LHD	09/2002 - 05/2004	1
78186-13040	ZZE120..JPP..LHD	05/2004 - 12/2999	1
78189A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.2
78189-12100	ZZE12#..JPP	09/2002 - 05/2004	1
78189-12100	ZZE120..JPP	05/2004 - 12/2999	1
Common parts
91651-40630
91651-B0618
96160-00600

Click highlighted areas on diagram

Part #	Description	Period	Qty
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-12090	ZZE120..JPP	05/2004 - 12/2999	1
78024-12090	ZZE12#..JPP	09/2002 - 05/2004	1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-26036	ZZE12#..JPP..LHD	09/2002 - 05/2004	1
90508-26036	ZZE120..JPP..LHD	05/2004 - 12/2999	1
78111 - PEDAL, ACCELERATOR
78111-20060	ZZE12#..JPP..LHD..5F	09/2002 - 05/2004	1
78111-20060	ZZE120..JPP..LHD	05/2004 - 12/2999	1
78111C - PIN (FOR ACCELERATOR PEDAL)
90254-04019	ZZE120..JPP	05/2004 - 12/2999	1
90254-04019	ZZE120..JPP;ZZE121..JPP..RHD;ZZE121..JPP..LHD..5F	09/2002 - 05/2004	1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-12310	ZZE120..JPP..LHD	05/2004 - 12/2999	1
78120-12310	ZZE12#..JPP..LHD..5F	09/2002 - 05/2004	1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-02250	ZZE12#..JPP..LHD	09/2002 - 10/2002	1
78180-13060	ZZE12#..JPP..LHD	10/2002 - 05/2004	1
78180-13060	ZZE120..JPP..LHD	05/2004 - 10/2005	1
78180-13061	ZZE120..JPP..LHD	10/2005 - 12/2999	1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-13020	ZZE12#..JPP..LHD	09/2002 - 05/2004	1
78186-13040	ZZE120..JPP..LHD	05/2004 - 12/2999	1
78189A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.2
78189-12100	ZZE12#..JPP	09/2002 - 05/2004	1
78189-12100	ZZE120..JPP	05/2004 - 12/2999	1
Common parts
90080-11518
91651-40630
91651-B0618
96160-00600
