NDE120L-AHMDYW (2004)

Toyota Corolla Hb (Jpp)

Production Aug 2004 - Oct 2006
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )NDE120..JPP

Click highlighted areas on diagram

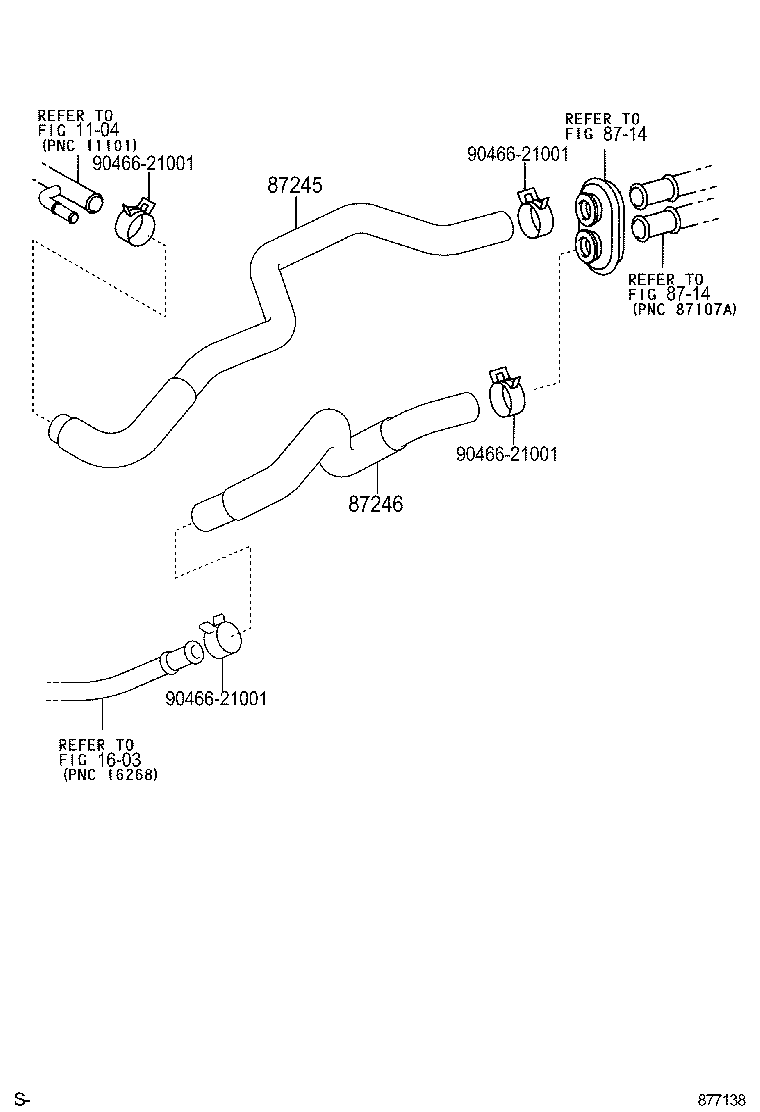

diagram 1104 1603 8714 8714 87245 87246 9046621001 9046621001 9046621001 9046621001
Part # Description Qty Price
87245 - HOSE, HEATER WATER, INLET
87245-12A20

NDE120..JPP

 1
87245-12A40

NDE120..JPP

W(STOVE HEATER)

 1
87246 - HOSE, HEATER WATER, OUTLET
87245-12A30

NDE120..JPP

 1
Common parts
90466-21001
Linked diagrams
1104
1603
8714

(0408- )NDE120..JPP

Click highlighted areas on diagram

W(STOVE HEATER)

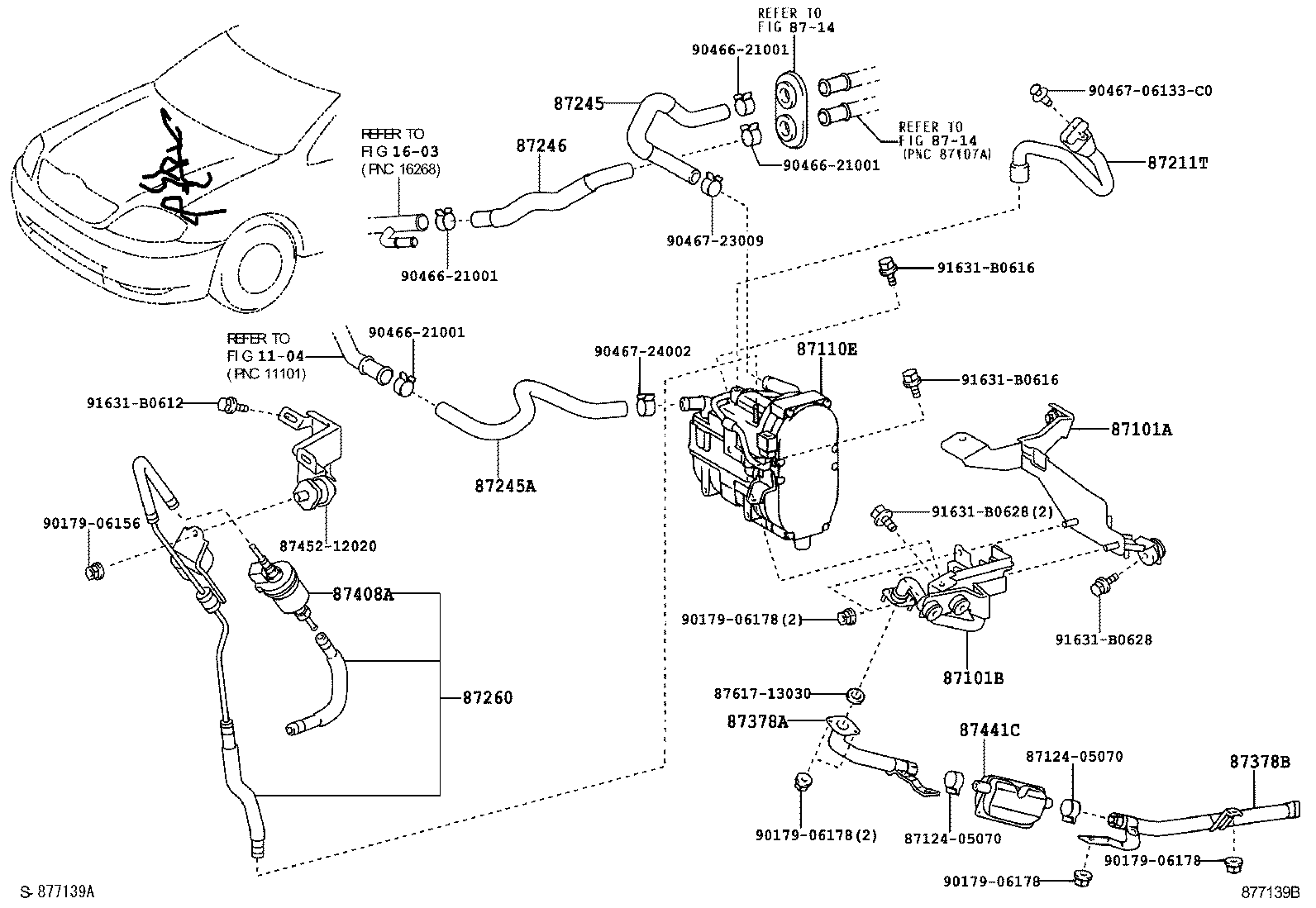

diagram 1104 1603 87101A 87101B 87110E 8712405070 8712405070 8714 8714 87211T 87245 87245A 87246 87260 87378A 87378B 87408A 87441C 8745212020 8761713030 9017906156 9017906178 9017906178 9017906178 9017906178 9046621001 9046621001 9046621001 9046621001 9046706133C0 9046723009 9046724002 91631B0612 91631B0616 91631B0616 91631B0628 91631B0628
Part # Description Qty Price
87101A - BRACKET SUB-ASSY, HEATER NO.1
87101-12060

NDE120..JPP

 1
87101B - BRACKET SUB-ASSY, HEATER NO.2
87101-12070

NDE120..JPP

 1
87110E - HEATER ASSY
87110-02011

NDE120..JPP

 1
87110-02010

NDE120..JPP

 1
87110-02012

NDE120..JPP

 1
87211T - DUCT, AIR
87211-12310

NDE120..JPP

 1
87245 - HOSE, HEATER WATER, INLET
87245-12A20

NDE120..JPP

 1
87245-12A40

NDE120..JPP

W(STOVE HEATER)

 1
87245A - HOSE, HEATER WATER, INLET A
87245-12A50

NDE120..JPP

 1
87245-12A50

NDE120..JPP

 1
87245-12A50

NDE120..JPP

 1
87246 - HOSE, HEATER WATER, OUTLET
87245-12A30

NDE120..JPP

 1
87260 - PUMP ASSY, HEATER
87260-12020

NDE120..JPP

 1
87260-12021

NDE120..JPP

 1
87260-12021

NDE120..JPP

 1
87378A - PIPE, EXHAUST
87378-13010

NDE120..JPP

 1
87378B - PIPE, EXHAUST, NO.2
87378-12050

NDE120..JPP

 1
87408A - PUMP SUB-ASSY, FUEL
87408-0D011

NDE120..JPP

 1
87441C - MUFFLER
87441-05010

NDE120..JPP

 1
Common parts
87124-05070
87452-12020
87617-13030
90179-06156
90179-06178
90466-21001
90467-06133C0
90467-23009
90467-24002
91631-B0612
91631-B0616
91631-B0628
Linked diagrams
1104
1603
8714
