NDE120L-AHMDYW (2004)

Toyota Corolla Hb (Jpp)

Production Aug 2004 - Oct 2006
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

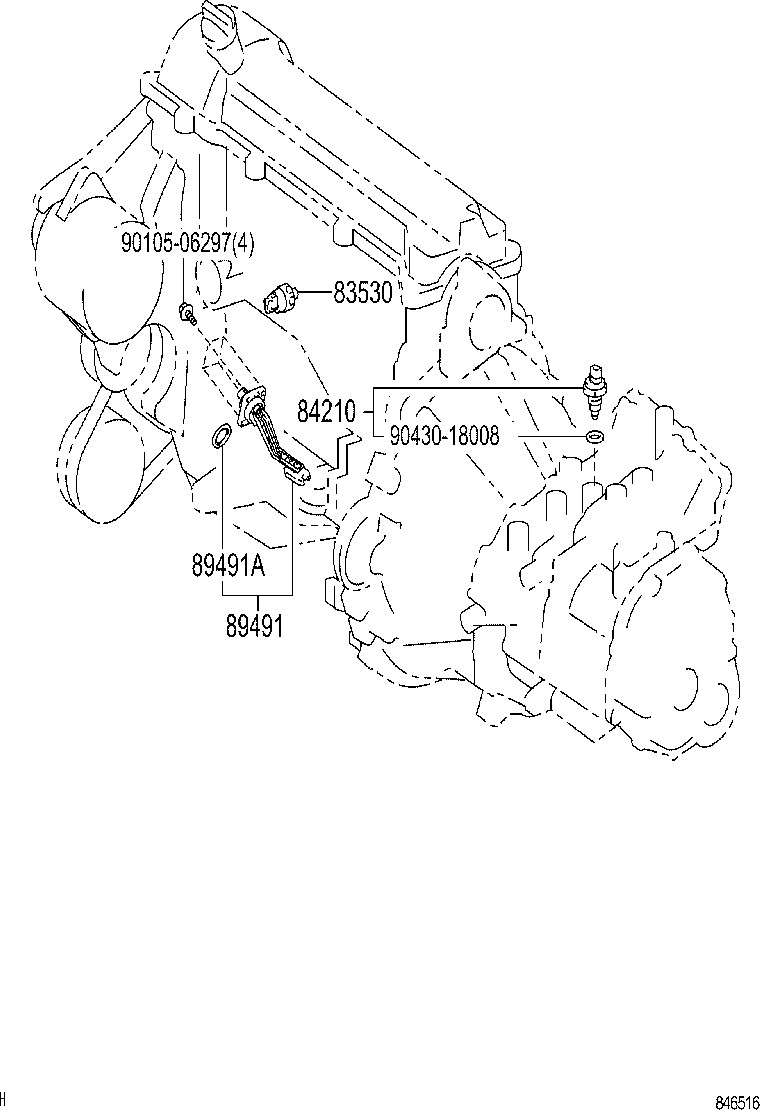

ILLUST NO. 1 OF 7(0408- )NDE120..JPP

Click highlighted areas on diagram

ENGINE & TRANSMISSION

diagram 83530 84210 89491 89491A 9010506297 9043018008
Part # Description Qty Price
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-60010

NDE120..JPP

DENSO

 1
89491 - SENSOR, ENGINE OIL LEVEL
89491-12030

NDE120..JPP

 1
89491A - GASKET, ENGINE OIL LEVEL SENSOR
89493-60010

NDE120..JPP

 1
Common parts
90105-06297
90430-18008

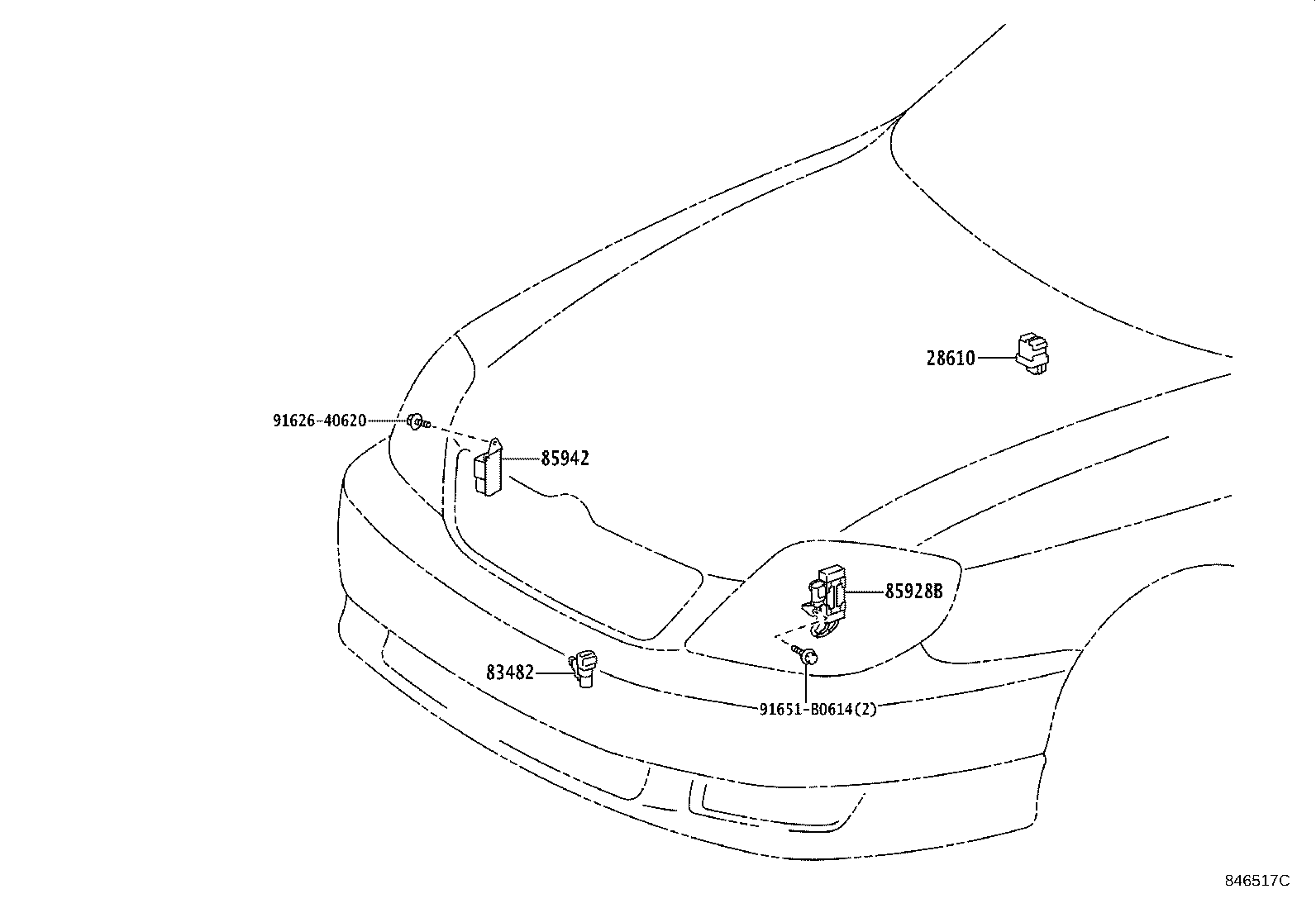

ILLUST NO. 2 OF 7(0408- )NDE120..JPP

Click highlighted areas on diagram

ENGINE ROOM

diagram 28610 83482 85928B 85942 9162640620 91651B0614
Part # Description Qty Price
28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG
28610-67010

1NDTV..NDE120..JPP

 1
85928B - RESISTOR, COOLING FAN
85928-12020

NDE120..JPP

 1
Common parts
91626-40620
91651-B0614

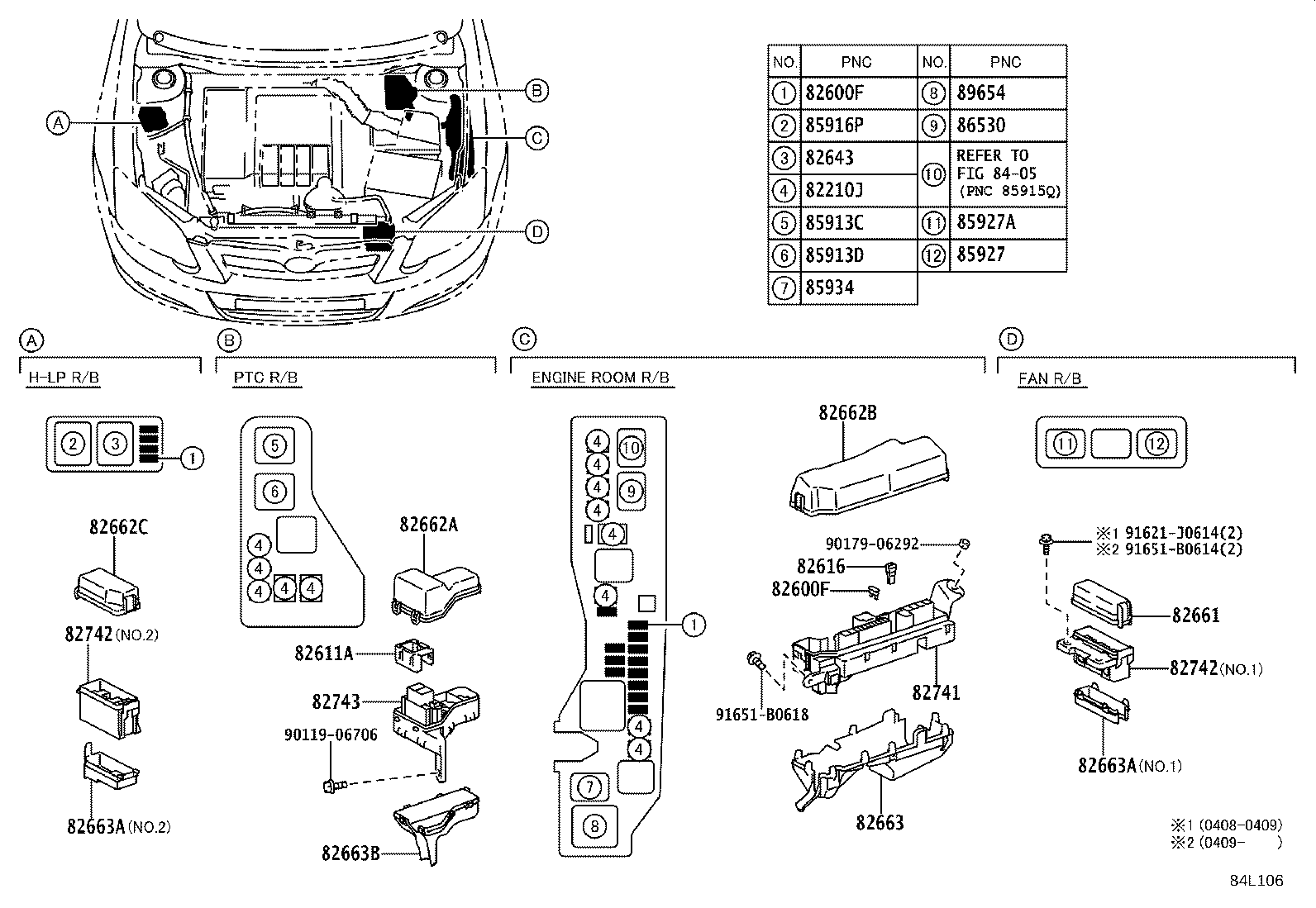

ILLUST NO. 3 OF 7(0408- )NDE120..JPP

Click highlighted areas on diagram

ENGINE ROOM RELAY BLOCK

diagram 82210J 82600F 82600F 82611A 82616 82643 82661 82662A 82662B 82662C 82663 82663A 82663A 82663B 82741 82742 82742 82743 8405 85913C 85913D 85916P 85927 85927A 85934 86530 89654 9011906706 9017906292 91621J0614 91651B0614 91651B0618
Part # Description Qty Price
82210J - FUSIBLE LINK
90982-08203

NDE120..JPP

80A,TERM.:MALE,BLK

 1
90982-08286

NDE120..JPP

140A,TERM.:MALE,RBR

 1
82600F - FUSE, FUSE BLOCK
90080-82022

NDE120..JPP

15A,MINI FUSE,BLUE

 1
90080-82031

NDE120..JPP

5A,MINI FUSE,TAN

 1
90080-82024

NDE120..JPP

30A,MINI FUSE,GREEN

 1
82600F - FUSE, FUSE BLOCK
90080-82022

NDE120..JPP

15A,MINI FUSE,BLUE

 1
90080-82031

NDE120..JPP

5A,MINI FUSE,TAN

 1
90080-82024

NDE120..JPP

30A,MINI FUSE,GREEN

 1
82611A - COVER, FUSE BLOCK, NO.2
82611-13010

NDE120..JPP

 1
82661 - COVER, RELAY BLOCK, NO.1
82662-12040

NDE120..JPP

 1
82662A - COVER, RELAY BLOCK, UPPER, NO.1
82662-12190

NDE120..JPP

 1
82662B - COVER, RELAY BLOCK, UPPER, NO.2
82662-12210

NDE120..JPP

 1
82663 - COVER, RELAY BLOCK, LOWER
82663-02030

NDE120..JPP

 1
82663A - COVER, RELAY BLOCK, LOWER, NO.2
82663-12040

NDE120..JPP

NO.2

 1
82663-12030

NDE120..JPP

NO.1

 1
82663A - COVER, RELAY BLOCK, LOWER, NO.2
82663-12040

NDE120..JPP

NO.2

 1
82663-12030

NDE120..JPP

NO.1

 1
82663B - COVER, RELAY BLOCK, LOWER, NO.3
82663-13020

NDE120..JPP

 1
82741 - BLOCK, ENGINE ROOM RELAY
82741-20060

NDE120..JPP

 1
82742 - BLOCK, ENGINE ROOM RELAY, NO.2
82741-12040

NDE120..JPP

NO.1

 1
82741-12050

NDE120..JPP

NO.2

 1
82742 - BLOCK, ENGINE ROOM RELAY, NO.2
82741-12040

NDE120..JPP

NO.1

 1
82741-12050

NDE120..JPP

NO.2

 1
82743 - BLOCK, ENGINE ROOM RELAY, NO.3
82741-13020

NDE120..JPP

 1
85913C - RELAY, HEATER, NO.1
90987-02025

NDE120..JPP

 1
85913D - RELAY, HEATER, NO.2
90987-02025

NDE120..JPP

 1
Common parts
90119-06706
90179-06292
91621-J0614
91651-B0614
91651-B0618
Linked diagrams
8405
