NDE120L-AHMDYW (2004)

Toyota Corolla Hb (Jpp)

Production Aug 2004 - Oct 2006
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

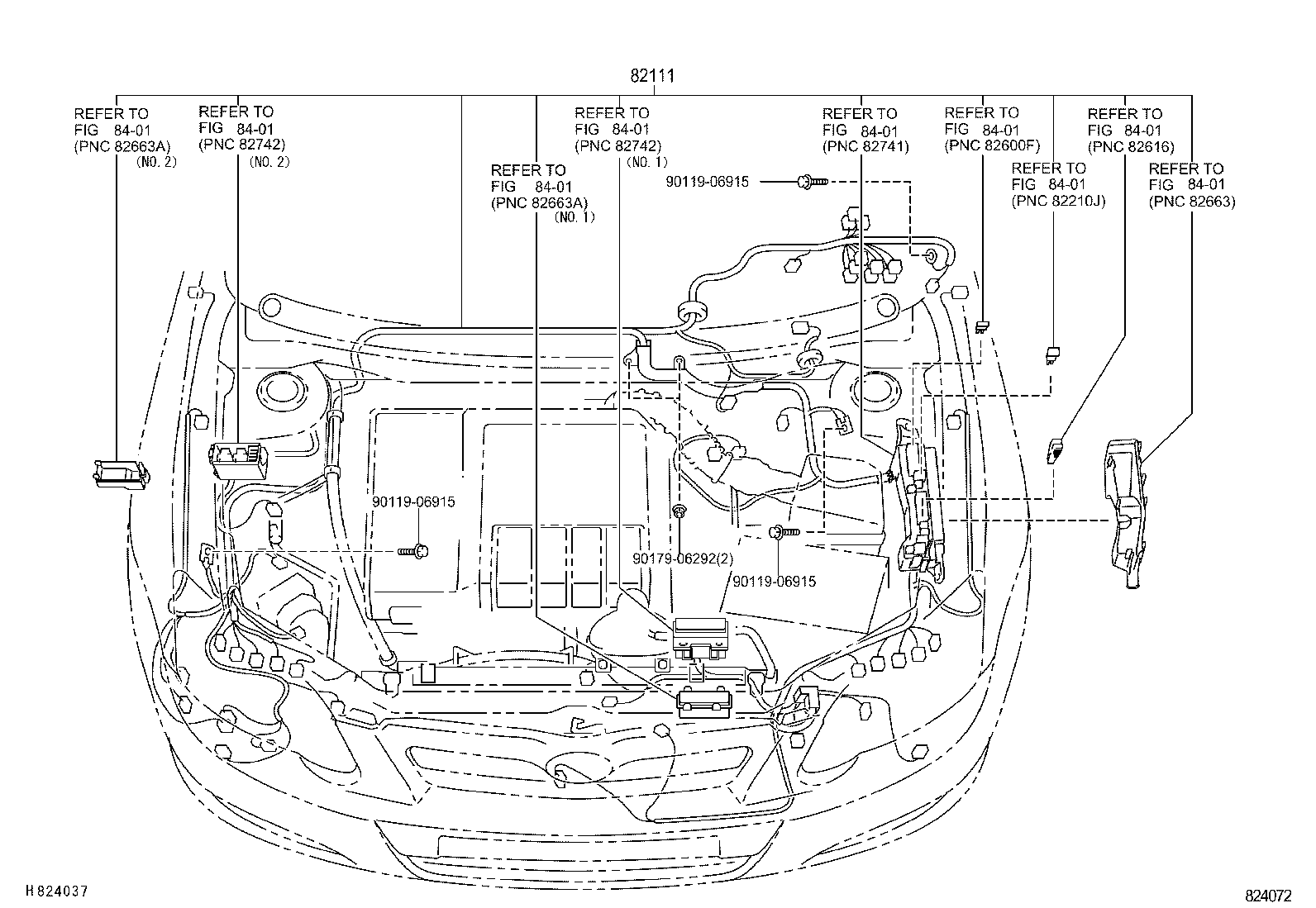

ILLUST NO. 1 OF 7(0408- )NDE120..JPP

Click highlighted areas on diagram

ENGINE ROOM

diagram 82111 8401 8401 8401 8401 8401 8401 8401 8401 8401 9011906915 9011906915 9011906915 9017906292
Part # Description Qty Price
82111 - WIRE, ENGINE ROOM MAIN
82111-12D00

NDE120..JPP

COLD SPEC

 1
82111-12D10

NDE120..JPP

 1
82111-12D40

NDE120..JPP

W(VSC)

 1
82111-12D30

NDE120..JPP

COLD SPEC & W(DAY TIME RUNNING LIGHT SYSTEM)

 1
82111-12D70

NDE120..JPP

COLD SPEC & W(DAY TIME RUNNING LIGHT SYSTEM & VSC)

 1
82111-12D50

NDE120..JPP

COLD SPEC & W(VSC)

 1
Common parts
90119-06915
90179-06292
Linked diagrams
8401

ILLUST NO. 2 OF 7(0408- )NDE120..JPP

Click highlighted areas on diagram

ENGINE

diagram 82121 82823T 82991 8401 8401 8401 8401 9010508096 9011906915 9017906299 9164380614 91651B0825
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-12A70

NDE120..JPP

 1
82121-12A80

NDE120..JPP

COLD SPEC

 1
82991 - WIRE, FUSIBLE LINK REPAIR
82991-12080

NDE120..JPP

 1
Common parts
90105-08096
90119-06915
90179-06299
91643-80614
91651-B0825
Linked diagrams
8401

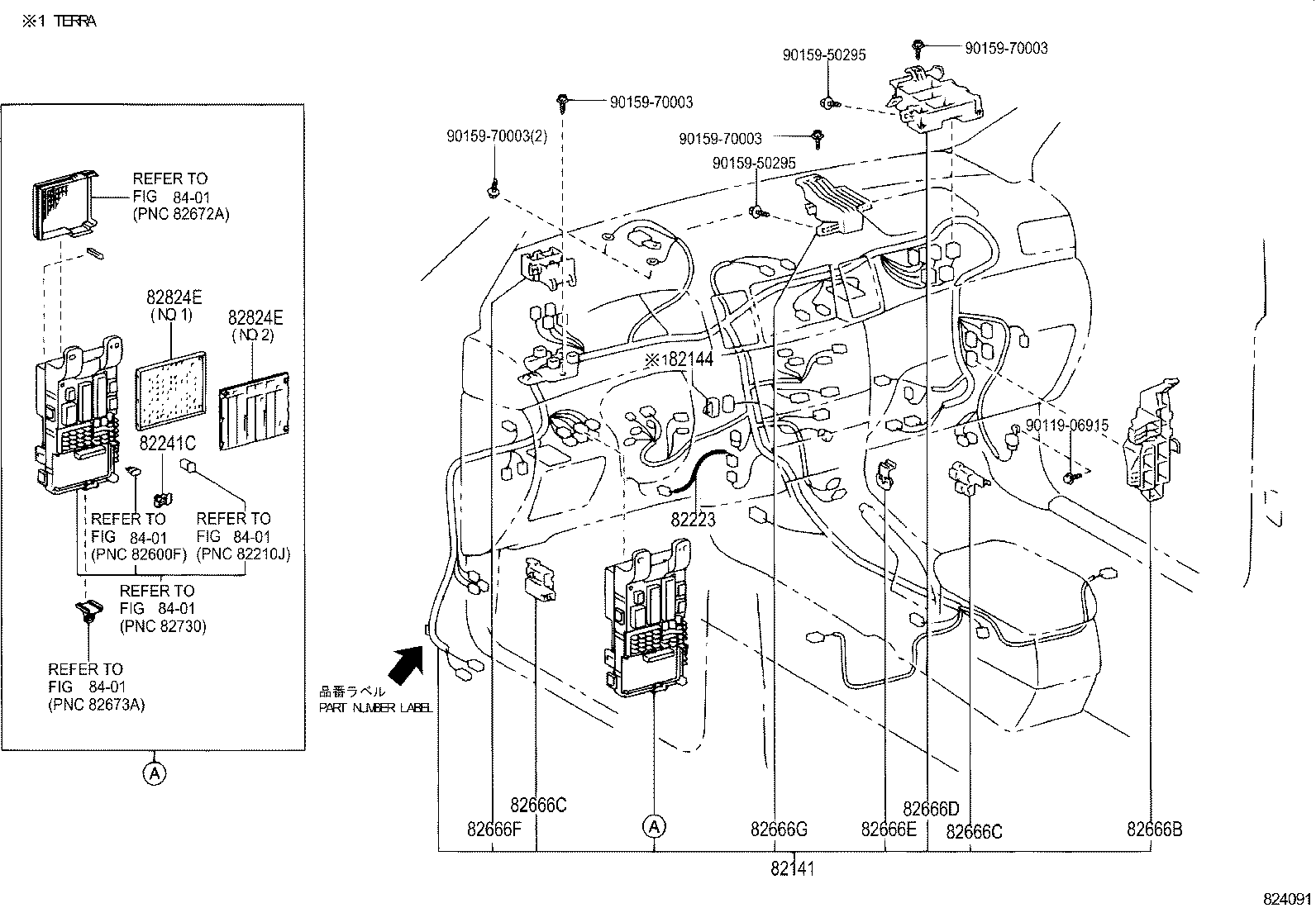

ILLUST NO. 3 OF 7(0408- )NDE120..JPP

Click highlighted areas on diagram

INSTRUMENT PANEL

diagram 82141 82144 82223 82241C 82666B 82666C 82666C 82666D 82666E 82666F 82666G 82824E 82824E 8401 8401 8401 8401 8401 9011906915 9015950295 9015950295 9015970003 9015970003 9015970003 9015970003
Part # Description Qty Price
82141 - WIRE, INSTRUMENT PANEL
82141-12J70

NDE120..JPP..TERRA

PART NUMBER LABEL=82141-12J70

 1
82141-12G90

NDE120..JPP..TERRA

PART NUMBER LABEL=82141-12G90

 1
82141-12J30

NDE120..JPP..TERRA

PART NUMBER LABEL=82141-12J30

 1
82141-12G50

NDE120..JPP..TERRA

PART NUMBER LABEL=82141-12G50

 1
Common parts
90119-06915
90159-50295
90159-70003
Linked diagrams
8401
