NDE120L-AHMDYW (2004)

Toyota Corolla Hb (Jpp)

Production Aug 2004 - Oct 2006
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0408- )NDE120..JPP

Click highlighted areas on diagram

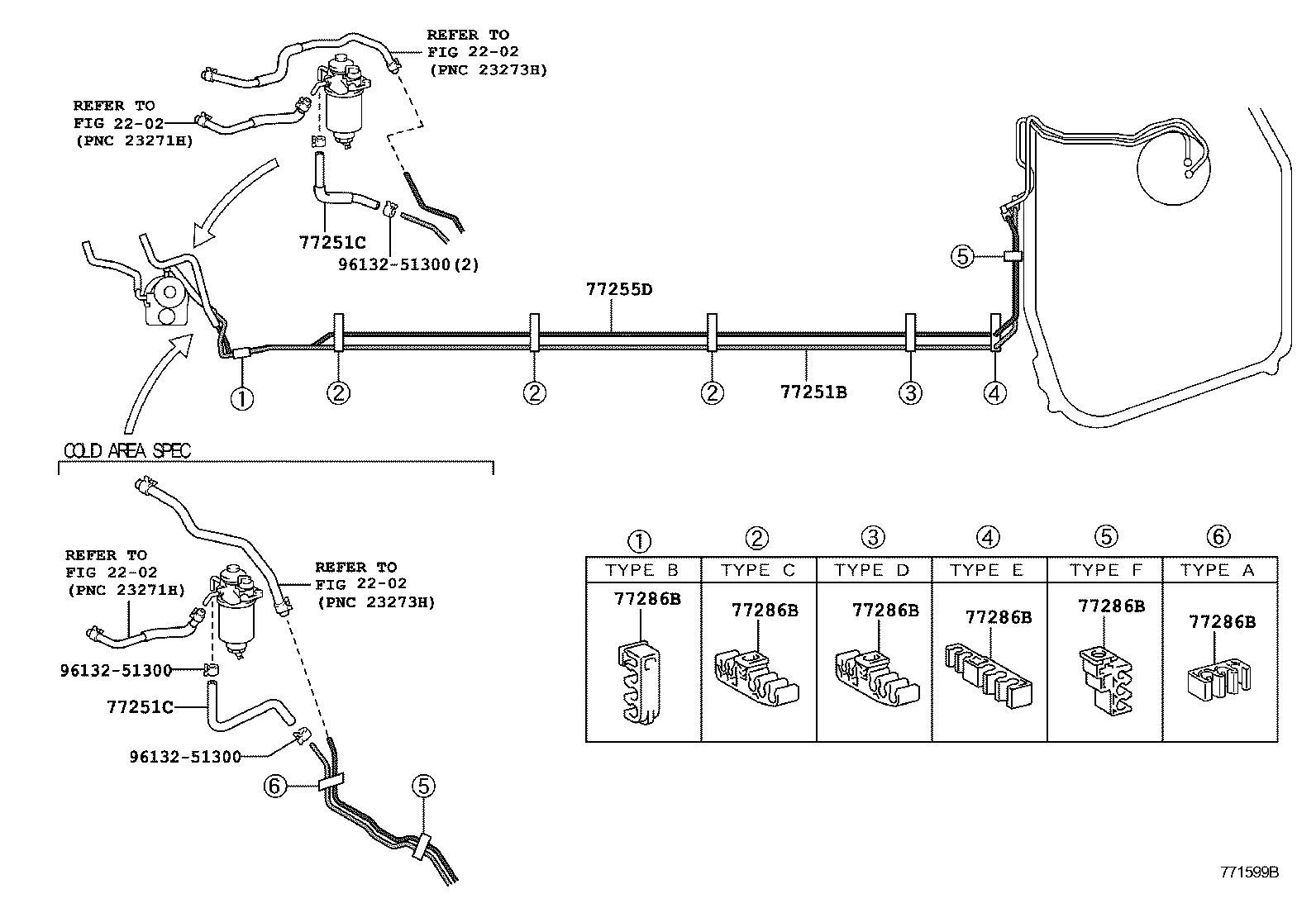

FUEL TUBE

diagram 2202 2202 2202 2202 77251B 77251C 77251C 77255D 77286B 77286B 77286B 77286B 77286B 77286B 9613251300 9613251300 9613251300
Part # Description Qty Price
77251B - TUBE, FUEL MAIN
77251-13230

NDE120..JPP

COLD SPEC

 1
77251-13210

NDE120..JPP

 1
77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)
77259-12280

NDE120..JPP

 1
77259-12290

NDE120..JPP

COLD SPEC

 1
77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)
77259-12280

NDE120..JPP

 1
77259-12290

NDE120..JPP

COLD SPEC

 1
77255D - TUBE, FUEL RETURN
77255-13190

NDE120..JPP

COLD SPEC

 1
77255-13200

NDE120..JPP

 1
Common parts
96132-51300
Linked diagrams
2202
