NDE120L-AHMDYW (2004)

Toyota Corolla Hb (Jpp)

Production Aug 2004 - Oct 2006
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )NDE120..JPP

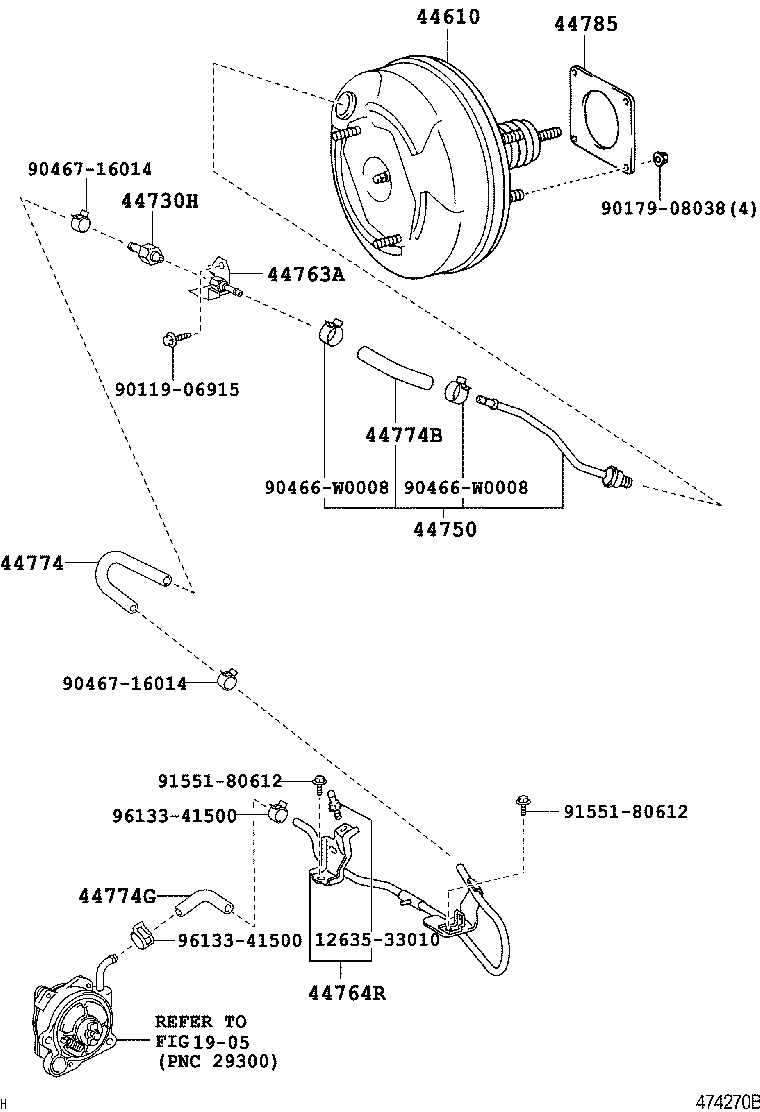

Click highlighted areas on diagram

diagram 1263533010 1905 44610 44730H 44750 44763A 44764R 44774 44774B 44774G 44785 9011906915 9017908038 90466W0008 90466W0008 9046716014 9046716014 9155180612 9155180612 9613341500 9613341500
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-09100

NDE120..JPP

 1
44730H - VALVE ASSY, VACUUM CHECK(FOR VACUUM RESERVOIR)
44730-12080

NDE120..JPP

 1
44750 - HOSE ASSY, VACUUM
44750-02080

NDE120..JPP

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-12370

NDE120..JPP

 1
44764R - TUBE, CONNECTOR TO VACUUM RESERVOIR
44764-12010

NDE120..JPP

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-12480

NDE120..JPP

 1
44774B - HOSE, UNION TO CONNECTOR TUBE
44774-12500

NDE120..JPP

 1
44774G - HOSE, UNION TO SOLENOID
44774-52021

NDE120..JPP

 1
Common parts
12635-33010
90119-06915
90179-08038
90466-W0008
90467-16014
91551-80612
96133-41500
Linked diagrams
1905
