NDE120L-AHMDYW (2004)

Toyota Corolla Hb (Jpp)

Production Aug 2004 - Oct 2006
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

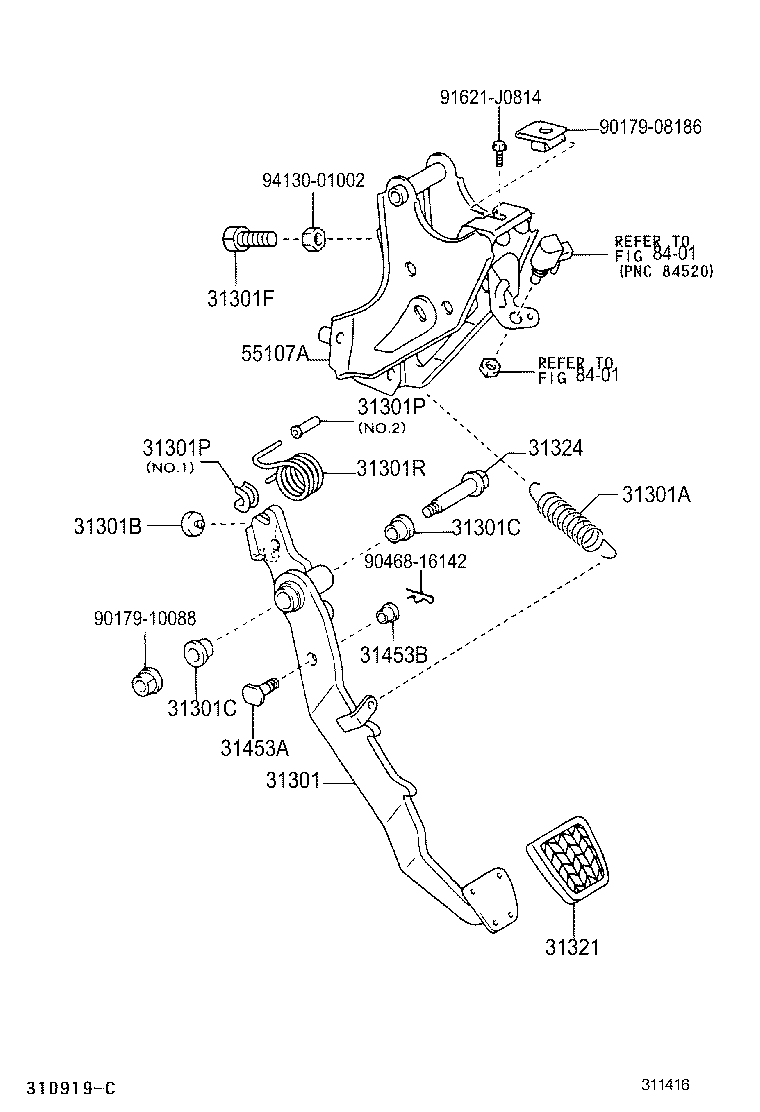

ILLUST NO. 1 OF 2(0408- )NDE120..JPP

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31301P 31301P 31301R 31321 31324 31453A 31453B 55107A 8401 8401 9017908186 9017910088 9046816142 91621J0814 9413001002
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-05060

NDE120..JPP

 1
31301P - BUSH(FOR CLUTCH PEDAL TURNOVER)
90386-05017

NDE120..JPP

NO.1

 1
90389-05019

NDE120..JPP

NO.2

 1
31301P - BUSH(FOR CLUTCH PEDAL TURNOVER)
90386-05017

NDE120..JPP

NO.1

 1
90389-05019

NDE120..JPP

NO.2

 1
31301R - SPRING, COMPRESSION(FOR TURN OVER SPRING SEAT)
90949-03100

NDE120..JPP

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-05080

NDE120..JPP

 1
Common parts
90179-08186
90179-10088
90468-16142
91621-J0814
94130-01002
Linked diagrams
8401

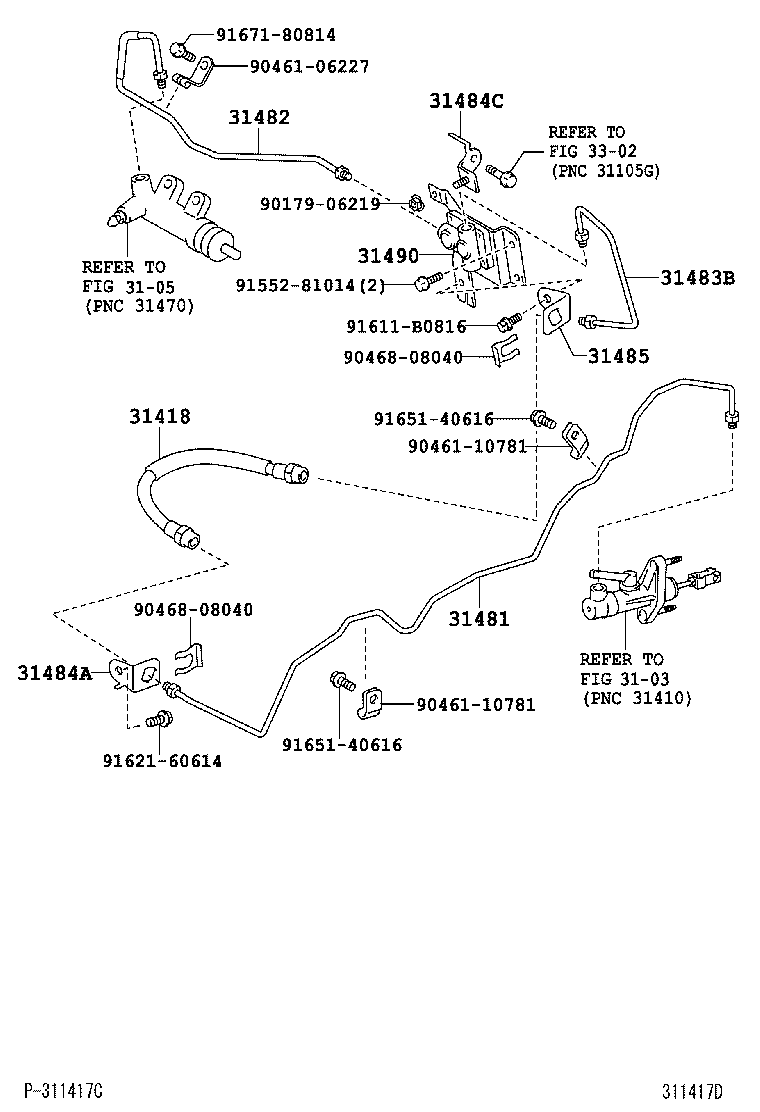

ILLUST NO. 2 OF 2(0408- )NDE120..JPP

Click highlighted areas on diagram

diagram 3103 3105 31418 31481 31482 31483B 31484A 31484C 31485 31490 3302 9017906219 9046106227 9046110781 9046110781 9046808040 9046808040 9155281014 91611B0816 9162160614 9165140616 9165140616 9167180814
Part # Description Qty Price
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-13020

NDE120..JPP

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-12311

NDE120..JPP

 1
31483B - TUBE, ACCUMULATOR TO FLEXIBLE HOSE
31483-12060

NDE120..JPP

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-12380

NDE120..JPP

 1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-12531

NDE120..JPP

 1
31484-12530

NDE120..JPP

 1
31484-12480

NDE120..JPP

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-12460

NDE120..JPP

 1
31490 - ACCUMULATOR ASSY, CLUTCH
31490-12081

NDE120..JPP

 1
31490-12080

NDE120..JPP

 1
Common parts
90179-06219
90461-06227
90461-10781
90468-08040
91552-81014
91611-B0816
91621-60614
91651-40616
91671-80814
Linked diagrams
3103
3105
3302
