NDE120L-AHMDYW (2004)
Toyota Corolla Hb (Jpp)
(0408- )1NDTV..JPP

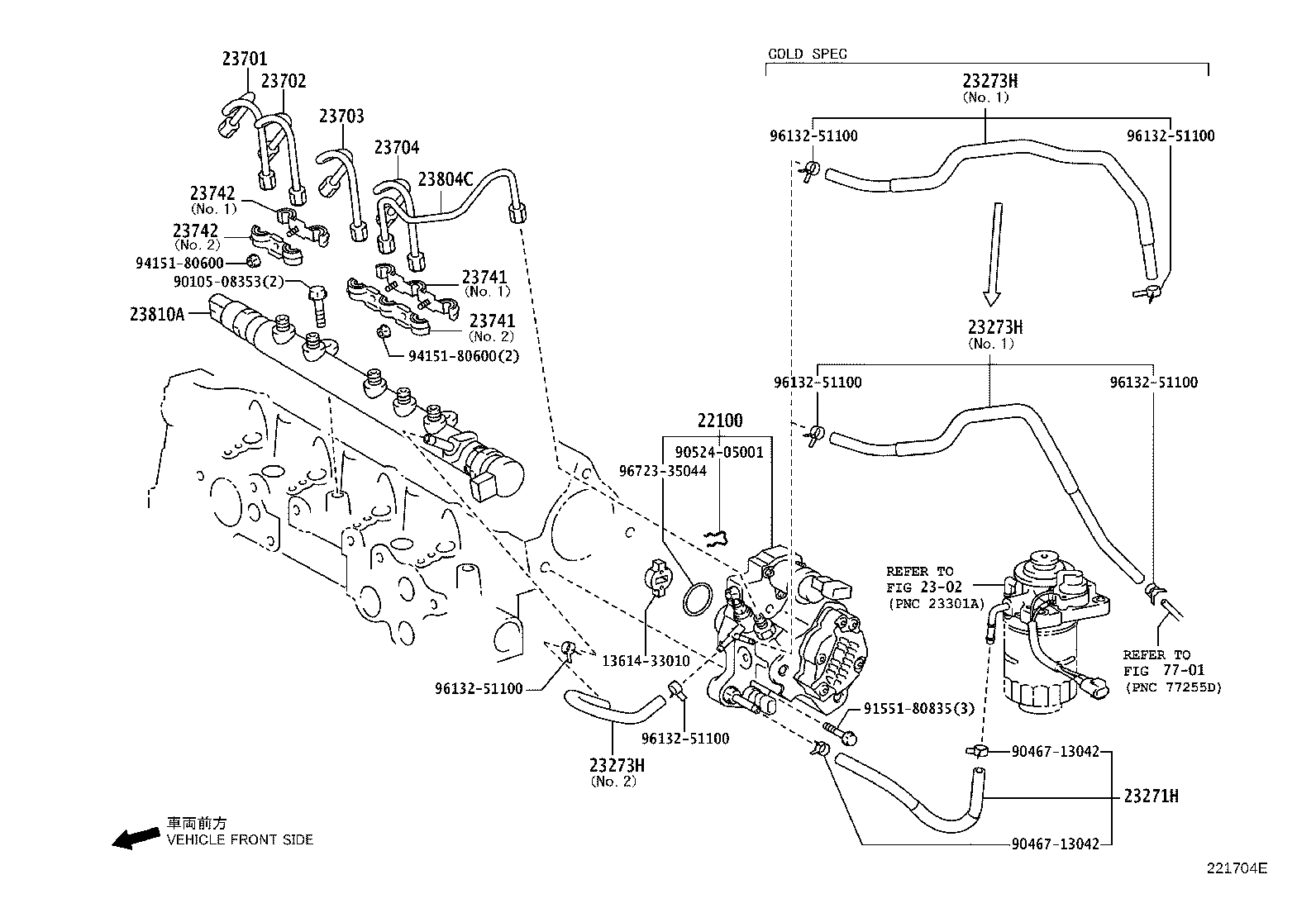

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22100 - PUMP ASSY, INJECTION OR SUPPLY | ||||
| 22100-33040 |
1NDTV..NDE120..JPP |
1 | ||
| 23271H - HOSE, FUEL, NO.1 | ||||
| 23271-33030 |
1NDTV..NDE120..JPP |
1 | ||
| 23273H - HOSE, FUEL, NO.2 | ||||
| 23273-33060 |
1NDTV..NDE120..JPP NO.2 |
1 | ||
| 23273-33040 |
1NDTV..NDE120..JPP NO.1 |
1 | ||
| 23273-33050 |
1NDTV..NDE120..JPP COLD SPEC,NO.1 |
1 | ||
| 23273H - HOSE, FUEL, NO.2 | ||||
| 23273-33060 |
1NDTV..NDE120..JPP NO.2 |
1 | ||
| 23273-33040 |
1NDTV..NDE120..JPP NO.1 |
1 | ||
| 23273-33050 |
1NDTV..NDE120..JPP COLD SPEC,NO.1 |
1 | ||
| 23273H - HOSE, FUEL, NO.2 | ||||
| 23273-33060 |
1NDTV..NDE120..JPP NO.2 |
1 | ||
| 23273-33040 |
1NDTV..NDE120..JPP NO.1 |
1 | ||
| 23273-33050 |
1NDTV..NDE120..JPP COLD SPEC,NO.1 |
1 | ||
| 23701 - PIPE SUB-ASSY, INJECTION, NO.1 | ||||
| 23701-33010 |
1NDTV..NDE120..JPP |
1 | ||
| 23702 - PIPE SUB-ASSY, INJECTION, NO.2 | ||||
| 23701-33020 |
1NDTV..NDE120..JPP |
1 | ||
| 23703 - PIPE SUB-ASSY, INJECTION, NO.3 | ||||
| 23701-33020 |
1NDTV..NDE120..JPP |
1 | ||
| 23704 - PIPE SUB-ASSY, INJECTION, NO.4 | ||||
| 23701-33020 |
1NDTV..NDE120..JPP |
1 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-33020 |
1NDTV..NDE120..JPP NO.2 |
1 | ||
| 23741-33010 |
1NDTV..NDE120..JPP NO.1 |
1 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-33020 |
1NDTV..NDE120..JPP NO.2 |
1 | ||
| 23741-33010 |
1NDTV..NDE120..JPP NO.1 |
1 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-33010 |
1NDTV..NDE120..JPP NO.1 |
1 | ||
| 23742-33020 |
1NDTV..NDE120..JPP NO.2 |
1 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-33010 |
1NDTV..NDE120..JPP NO.1 |
1 | ||
| 23742-33020 |
1NDTV..NDE120..JPP NO.2 |
1 | ||
| 23804C - PIPE SUB-ASSY, FUEL INLET | ||||
| 23804-33010 |
1NDTV..NDE120..JPP |
1 | ||
| 23810A - RAIL ASSY, COMMON | ||||
| 23810-33020 |
1NDTV..NDE120..JPP |
1 | ||
| 23810-33021 |
1NDTV..NDE120..JPP |
1 | ||
| Common parts | ||||
| 13614-33010 | ||||
| 90105-08353 | ||||
| 90467-13042 | ||||
| 90524-05001 | ||||
| 91551-80835 | ||||
| 94151-80600 | ||||
| 96132-51100 | ||||
| 96723-35044 | ||||
| Linked diagrams | ||||
| 2302 | ||||
| 7701 | ||||
