NDE120L-AHMDYW (2004)
Toyota Corolla Hb (Jpp)

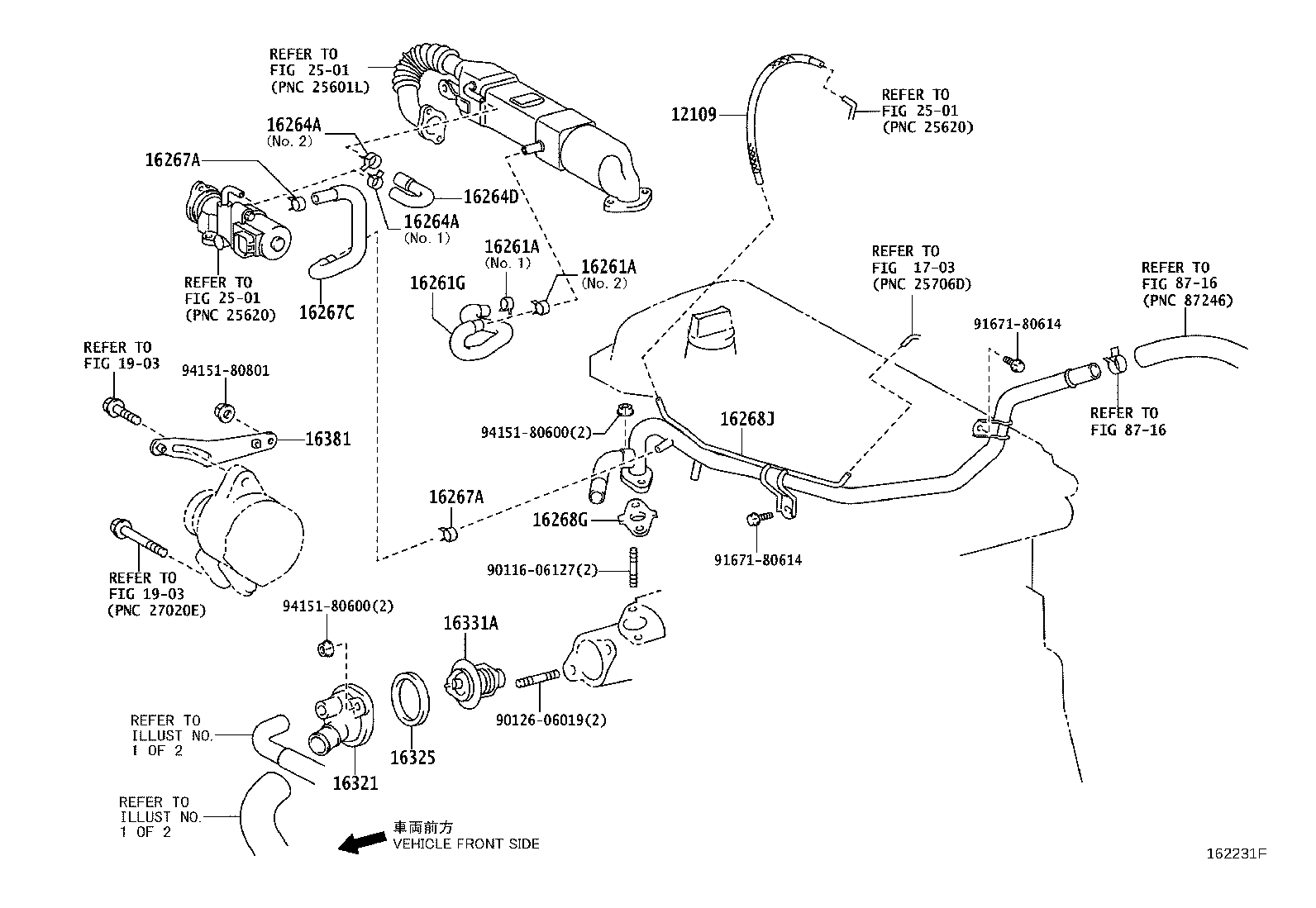

ILLUST NO. 2 OF 2(0408- )1NDTV..JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12109 - HOSE, WATER DRAIN | ||||
| 12109-33010 |
1NDTV..NDE120..JPP |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13054 |
1NDTV..NDE120..JPP NO.1 |
1 | ||
| 90467-15022 |
1NDTV..NDE120..JPP NO.2 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13054 |
1NDTV..NDE120..JPP NO.1 |
1 | ||
| 90467-15022 |
1NDTV..NDE120..JPP NO.2 |
1 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-33030 |
1NDTV..NDE120..JPP |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
1NDTV..NDE120..JPP NO.2 |
1 | ||
| 90467-13054 |
1NDTV..NDE120..JPP NO.1 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
1NDTV..NDE120..JPP NO.2 |
1 | ||
| 90467-13054 |
1NDTV..NDE120..JPP NO.1 |
1 | ||
| 16264D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-33020 |
1NDTV..NDE120..JPP |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13054 |
1NDTV..NDE120..JPP |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13054 |
1NDTV..NDE120..JPP |
2 | ||
| 16267C - HOSE, WATER BY-PASS, NO.4 | ||||
| 16267-33010 |
1NDTV..NDE120..JPP |
1 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-21020 |
1NDTV..NDE120..JPP |
1 | ||
| 16268J - PIPE, WATER BY-PASS, NO.5 | ||||
| 16268-33030 |
1NDTV..NDE120..JPP |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-33010 |
1NDTV..NDE120..JPP |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
1NDTV..NDE120..JPP |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03093 |
1NDTV..NDE120..JPP *WAX 82-95 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-33040 |
1NDTV..NDE120..JPP |
1 | ||
| Common parts | ||||
| 90116-06127 | ||||
| 90126-06019 | ||||
| 91671-80614 | ||||
| 94151-80600 | ||||
| 94151-80801 | ||||
| Linked diagrams | ||||
| 1703 | ||||
| 1903 | ||||
| 2501 | ||||
| 8716 | ||||

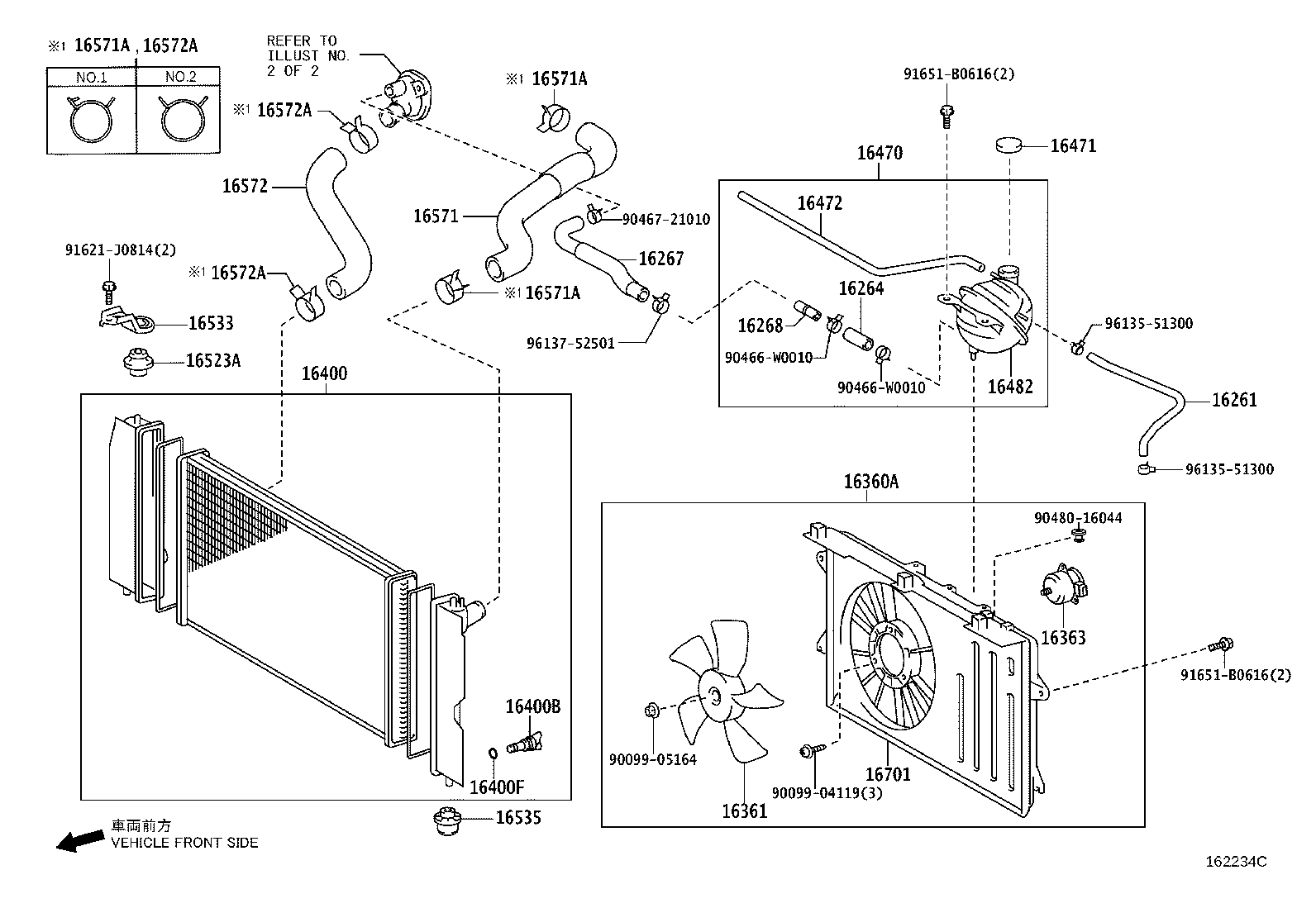

ILLUST NO. 1 OF 2(0408- )1NDTV..JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-0N020 |
1NDTV..NDE120..JPP |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-0N020 |
1NDTV..NDE120..JPP |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-0N010 |
1NDTV..NDE120..JPP |
1 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-33040 |
1NDTV..NDE120..JPP |
1 | ||
| 16360A - FAN ASSY, W/MOTOR | ||||
| 16360-33070 |
1NDTV..NDE120..JPP |
1 | ||
| 16361 - FAN | ||||
| 16361-21070 |
1NDTV..NDE120..JPP |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-28160 |
1NDTV..NDE120..JPP |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-0N031 |
1NDTV..NDE120..JPP |
1 | ||
| 16400-0N030 |
1NDTV..NDE120..JPP |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
1NDTV..NDE120..JPP |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
1NDTV..NDE120..JPP |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16480-0N010 |
1NDTV..NDE120..JPP |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16401-53010 |
1NDTV..NDE120..JPP |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 16472-0N010 |
1NDTV..NDE120..JPP |
1 | ||
| 16482 - TANK SUB-ASSY, RADIATOR RESERVE | ||||
| 16482-0G020 |
1NDTV..NDE120..JPP |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-21020 |
1NDTV..NDE120..JPP |
2 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-21020 |
1NDTV..NDE120..JPP |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-27010 |
1NDTV..NDE120..JPP |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-0N020 |
1NDTV..NDE120..JPP |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34004 |
1NDTV..NDE120..JPP NO.2 |
2 | ||
| 90467-33006 |
1NDTV..NDE120..JPP NO.1 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34004 |
1NDTV..NDE120..JPP NO.2 |
2 | ||
| 90467-33006 |
1NDTV..NDE120..JPP NO.1 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34004 |
1NDTV..NDE120..JPP NO.2 |
2 | ||
| 90467-33006 |
1NDTV..NDE120..JPP NO.1 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-0N020 |
1NDTV..NDE120..JPP |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34004 |
1NDTV..NDE120..JPP NO.2 |
2 | ||
| 90467-33006 |
1NDTV..NDE120..JPP NO.1 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34004 |
1NDTV..NDE120..JPP NO.2 |
2 | ||
| 90467-33006 |
1NDTV..NDE120..JPP NO.1 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34004 |
1NDTV..NDE120..JPP NO.2 |
2 | ||
| 90467-33006 |
1NDTV..NDE120..JPP NO.1 |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-0N020 |
1NDTV..NDE120..JPP |
1 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90466-W0010 | ||||
| 90467-21010 | ||||
| 90480-16044 | ||||
| 91621-J0814 | ||||
| 91651-B0616 | ||||
| 96135-51300 | ||||
| 96137-52501 | ||||
