CDE120L-AHMNYW (2002)

Toyota Corolla Hb (Jpp)

Production Sep 2002 - May 2004
Engine 1CDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0209- )JPP..LHD

Click highlighted areas on diagram

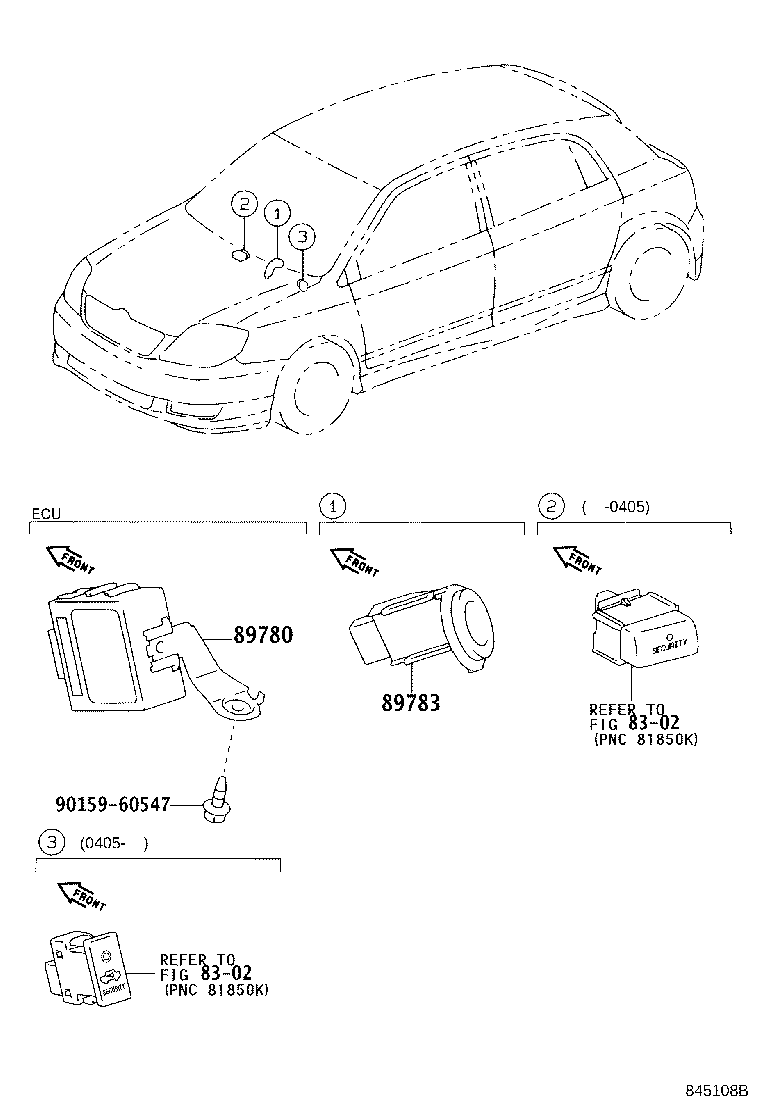

diagram 8302 8302 89780 89783 9015960547
Part # Description Qty Price
89780 - COMPUTER ASSY, TRANSPONDER KEY
89780-12140

CDE120..JPP

 1
89783 - AMPLIFIER, TRANSPONDER KEY
89783-02020

CDE120..JPP

 1
Common parts
90159-60547
Linked diagrams
8302
