CDE120L-AHMDYW (2002)
Toyota Corolla Hb (Jpp)

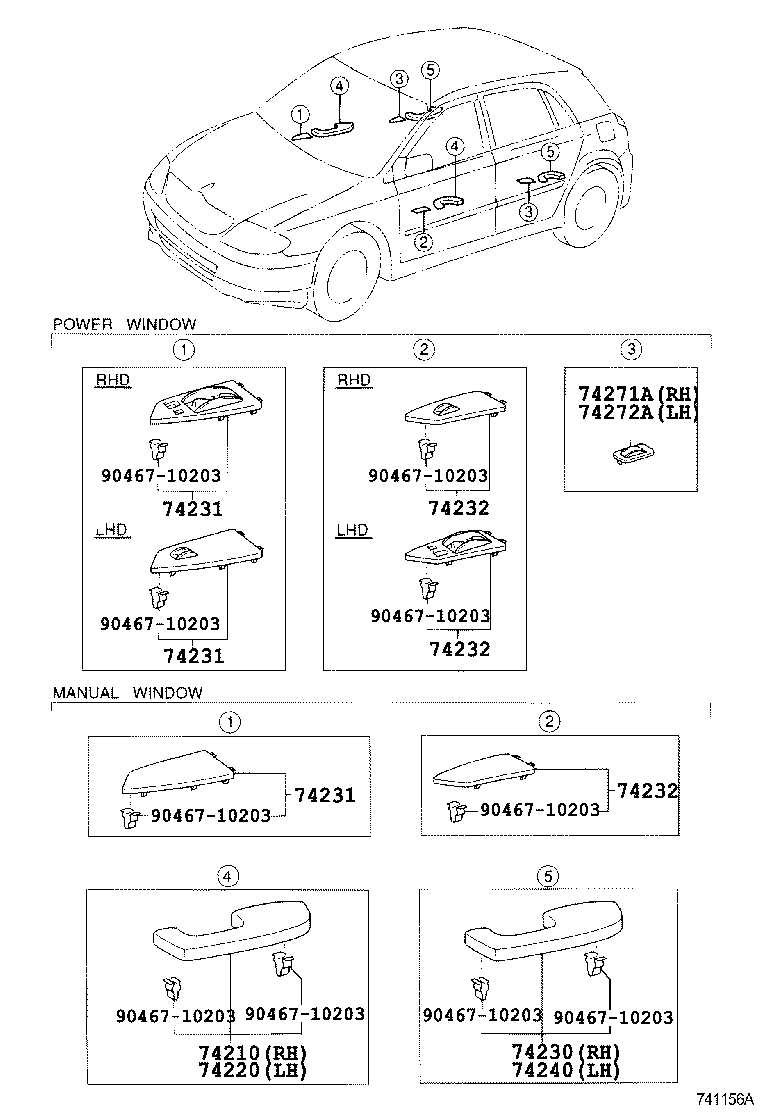

ILLUST NO. 1 OF 2(0209- )JPP
ARMREST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-12250J0 |
CDE120,ZZE12#..JPP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 74210-12250B1 |
CDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74220-12190B1 |
CDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 74220-12190J0 |
CDE120,ZZE12#..JPP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 74230 - ARMREST ASSY, REAR, RH | ||||
| 74210-12250B1 |
CDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 74210-12250J0 |
CDE120,ZZE12#..JPP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-02310B0 |
CDE120,ZZE12#..JPP..TERRA DK.GRAY,TRIM1# |
1 | ||
| 74231-02300B0 |
CDE120,ZZE12#..JPP..LHD..TERRA W(POWER WINDOW = FRONT ONLY),DK.GRAY,TRIM1# |
1 | ||
| 74231-02300J0 |
CDE120,ZZE12#..JPP..LHD..TERRA W(POWER WINDOW = FRONT ONLY),DK.BLUE,TRIM8# |
1 | ||
| 74231-02310J0 |
CDE120,ZZE12#..JPP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-02310B0 |
CDE120,ZZE12#..JPP..TERRA DK.GRAY,TRIM1# |
1 | ||
| 74231-02300B0 |
CDE120,ZZE12#..JPP..LHD..TERRA W(POWER WINDOW = FRONT ONLY),DK.GRAY,TRIM1# |
1 | ||
| 74231-02300J0 |
CDE120,ZZE12#..JPP..LHD..TERRA W(POWER WINDOW = FRONT ONLY),DK.BLUE,TRIM8# |
1 | ||
| 74231-02310J0 |
CDE120,ZZE12#..JPP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-02310B0 |
CDE120,ZZE12#..JPP..TERRA DK.GRAY,TRIM1# |
1 | ||
| 74231-02300B0 |
CDE120,ZZE12#..JPP..LHD..TERRA W(POWER WINDOW = FRONT ONLY),DK.GRAY,TRIM1# |
1 | ||
| 74231-02300J0 |
CDE120,ZZE12#..JPP..LHD..TERRA W(POWER WINDOW = FRONT ONLY),DK.BLUE,TRIM8# |
1 | ||
| 74231-02310J0 |
CDE120,ZZE12#..JPP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-02290B0 |
CDE120,ZZE12#..JPP..LHD..TERRA W(POWER WINDOW = FRONT ONLY),DK.GRAY,TRIM1# |
1 | ||
| 74232-02290J0 |
CDE120,ZZE12#..JPP..LHD..TERRA W(POWER WINDOW = FRONT ONLY),DK.BLUE,TRIM8# |
1 | ||
| 74232-02310J0 |
CDE120,ZZE12#..JPP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 74232-02310B0 |
CDE120,ZZE12#..JPP..TERRA DK.GRAY,TRIM1# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-02290B0 |
CDE120,ZZE12#..JPP..LHD..TERRA W(POWER WINDOW = FRONT ONLY),DK.GRAY,TRIM1# |
1 | ||
| 74232-02290J0 |
CDE120,ZZE12#..JPP..LHD..TERRA W(POWER WINDOW = FRONT ONLY),DK.BLUE,TRIM8# |
1 | ||
| 74232-02310J0 |
CDE120,ZZE12#..JPP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 74232-02310B0 |
CDE120,ZZE12#..JPP..TERRA DK.GRAY,TRIM1# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-02290B0 |
CDE120,ZZE12#..JPP..LHD..TERRA W(POWER WINDOW = FRONT ONLY),DK.GRAY,TRIM1# |
1 | ||
| 74232-02290J0 |
CDE120,ZZE12#..JPP..LHD..TERRA W(POWER WINDOW = FRONT ONLY),DK.BLUE,TRIM8# |
1 | ||
| 74232-02310J0 |
CDE120,ZZE12#..JPP..TERRA DK.BLUE,TRIM8# |
1 | ||
| 74232-02310B0 |
CDE120,ZZE12#..JPP..TERRA DK.GRAY,TRIM1# |
1 | ||
| 74240 - ARMREST ASSY, REAR, LH | ||||
| 74220-12190B1 |
CDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 74220-12190J0 |
CDE120,ZZE12#..JPP..TERRA DK.BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90467-10203 | ||||

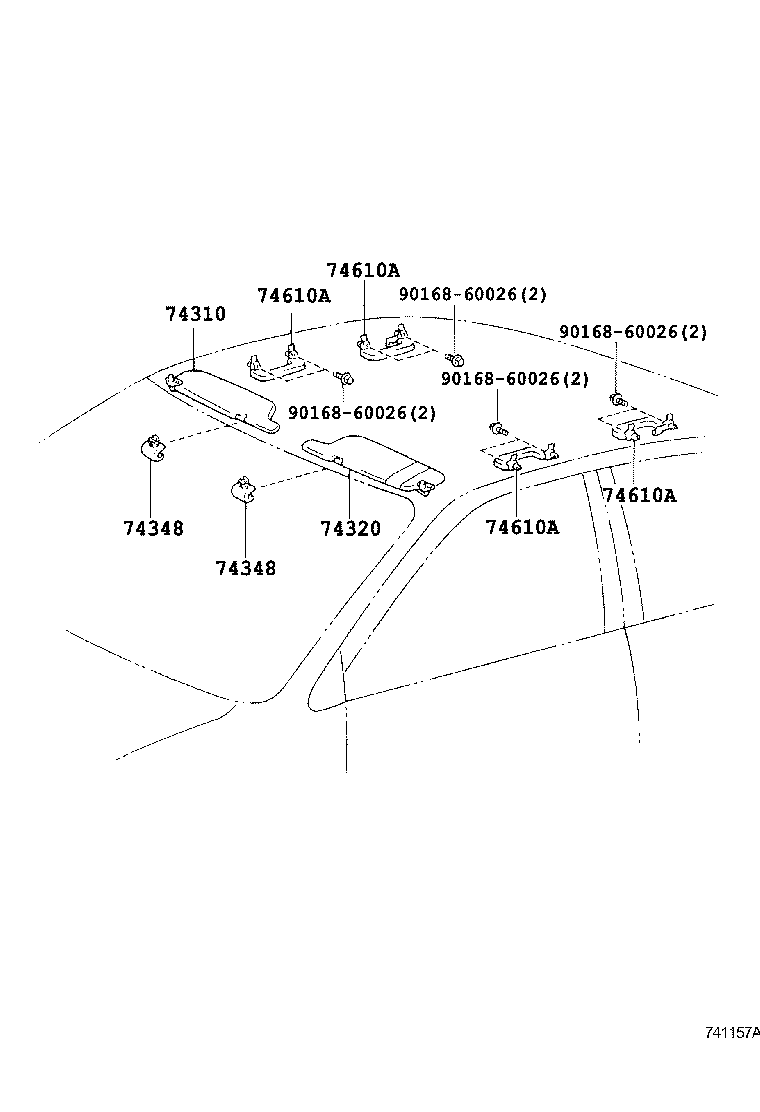

ILLUST NO. 2 OF 2(0209- )JPP
VISOR & ASSIST GRIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-02260B1 |
CDE120,ZZE12#..JPP..LHD..TERRA LT.GRAY,TRIM1#,8# |
1 | ||
| 74310-02261B1 |
CDE120,ZZE12#..JPP..LHD..TERRA LT.GRAY,TRIM1#,8# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-02260B1 |
CDE120,ZZE12#..JPP..LHD..TERRA LT.GRAY,TRIM1#,8# |
1 | ||
| 74320-02261B1 |
CDE120,ZZE12#..JPP..LHD..TERRA LT.GRAY,TRIM1#,8# |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-12040B0 |
CDE120,ZZE12#..JPP..TERRA LT.GRAY,TRIM1#,8# |
2 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-12040B0 |
CDE120,ZZE12#..JPP..TERRA LT.GRAY,TRIM1#,8# |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-02090B0 |
CDE120,ZZE12#..JPP..TERRA LT.GRAY,TRIM1#,8#,FRONT |
2 | ||
| 74610-02100B0 |
CDE120,ZZE12#..JPP..TERRA LT.GRAY,TRIM1#,8#,REAR |
2 | ||
| 74610-02091B0 |
CDE120,ZZE12#..JPP..TERRA LT.GRAY,TRIM1#,8#,FRONT |
2 | ||
| 74610-02101B0 |
CDE120,ZZE12#..JPP..TERRA LT.GRAY,TRIM1#,8#,REAR |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-02090B0 |
CDE120,ZZE12#..JPP..TERRA LT.GRAY,TRIM1#,8#,FRONT |
2 | ||
| 74610-02100B0 |
CDE120,ZZE12#..JPP..TERRA LT.GRAY,TRIM1#,8#,REAR |
2 | ||
| 74610-02091B0 |
CDE120,ZZE12#..JPP..TERRA LT.GRAY,TRIM1#,8#,FRONT |
2 | ||
| 74610-02101B0 |
CDE120,ZZE12#..JPP..TERRA LT.GRAY,TRIM1#,8#,REAR |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-02090B0 |
CDE120,ZZE12#..JPP..TERRA LT.GRAY,TRIM1#,8#,FRONT |
2 | ||
| 74610-02100B0 |
CDE120,ZZE12#..JPP..TERRA LT.GRAY,TRIM1#,8#,REAR |
2 | ||
| 74610-02091B0 |
CDE120,ZZE12#..JPP..TERRA LT.GRAY,TRIM1#,8#,FRONT |
2 | ||
| 74610-02101B0 |
CDE120,ZZE12#..JPP..TERRA LT.GRAY,TRIM1#,8#,REAR |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-02090B0 |
CDE120,ZZE12#..JPP..TERRA LT.GRAY,TRIM1#,8#,FRONT |
2 | ||
| 74610-02100B0 |
CDE120,ZZE12#..JPP..TERRA LT.GRAY,TRIM1#,8#,REAR |
2 | ||
| 74610-02091B0 |
CDE120,ZZE12#..JPP..TERRA LT.GRAY,TRIM1#,8#,FRONT |
2 | ||
| 74610-02101B0 |
CDE120,ZZE12#..JPP..TERRA LT.GRAY,TRIM1#,8#,REAR |
2 | ||
| Common parts | ||||
| 90168-60026 | ||||
