EE90R-AHMDSW (1987)
Toyota Corolla Hb

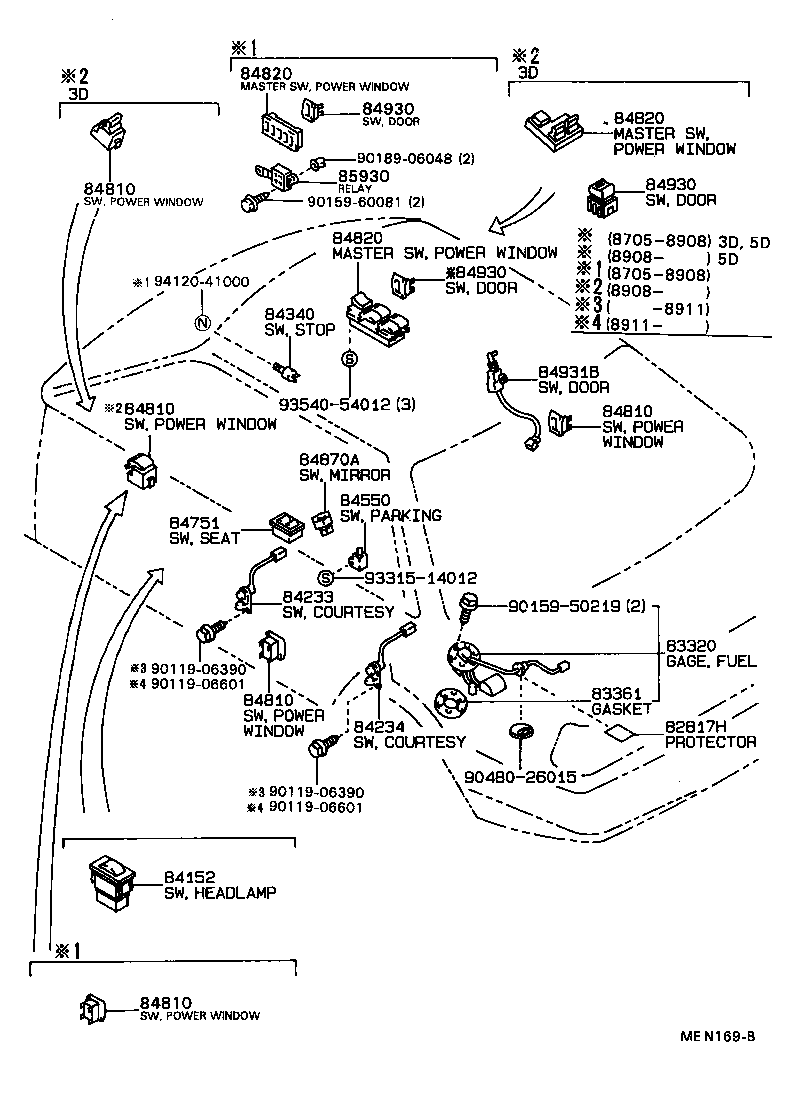

ILLUST NO. 4 OF 5(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80080 |
AE92,EE90..(GL,SR5,XL)..CBR |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-32020 |
AE92,CE90,EE90 |
1 | ||
| 83361-32020 |
EE90..GL,STD,XL;AE92,CE90..CBR,DSL |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-16060 |
AE92,CE90,EE90 |
2 | ||
| 84231-16060 |
AE92,CE90,EE90 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-16060 |
AE92,CE90,EE90..5D |
2 | ||
| 84231-12060 |
EE90..STD..EFI;AE92,CE90,EE90..5D |
2 | ||
| 84231-16060 |
EE90..STD..EFI;AE92,CE90,EE90..5D |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-30030 |
AE92,CE90,EE90 MATSUSHITA |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-12060 |
AE92,CE90,EE90 |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-2006003 |
AE92,CE90,EE90..5D SHADOW GRAY,TRIM1# |
3 | ||
| 84810-2006003 |
AE92,CE90,EE90..5D SHADOW GRAY,TRIM1#,RR |
2 | ||
| 84810-2006005 |
AE92,CE90,EE90..5D DARK BEIGE,TRIM4# |
3 | ||
| 84810-20060J0 |
AE92,CE90,EE90..5D DARK BLUE,TRIM8#,RR |
2 | ||
| 84810-32070 |
AE92,CE90,EE90..5D FR |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-2006003 |
AE92,CE90,EE90..5D SHADOW GRAY,TRIM1# |
3 | ||
| 84810-2006003 |
AE92,CE90,EE90..5D SHADOW GRAY,TRIM1#,RR |
2 | ||
| 84810-2006005 |
AE92,CE90,EE90..5D DARK BEIGE,TRIM4# |
3 | ||
| 84810-20060J0 |
AE92,CE90,EE90..5D DARK BLUE,TRIM8#,RR |
2 | ||
| 84810-32070 |
AE92,CE90,EE90..5D FR |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-2006003 |
AE92,CE90,EE90..5D SHADOW GRAY,TRIM1# |
3 | ||
| 84810-2006003 |
AE92,CE90,EE90..5D SHADOW GRAY,TRIM1#,RR |
2 | ||
| 84810-2006005 |
AE92,CE90,EE90..5D DARK BEIGE,TRIM4# |
3 | ||
| 84810-20060J0 |
AE92,CE90,EE90..5D DARK BLUE,TRIM8#,RR |
2 | ||
| 84810-32070 |
AE92,CE90,EE90..5D FR |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-2006003 |
AE92,CE90,EE90..5D SHADOW GRAY,TRIM1# |
3 | ||
| 84810-2006003 |
AE92,CE90,EE90..5D SHADOW GRAY,TRIM1#,RR |
2 | ||
| 84810-2006005 |
AE92,CE90,EE90..5D DARK BEIGE,TRIM4# |
3 | ||
| 84810-20060J0 |
AE92,CE90,EE90..5D DARK BLUE,TRIM8#,RR |
2 | ||
| 84810-32070 |
AE92,CE90,EE90..5D FR |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-2006003 |
AE92,CE90,EE90..5D SHADOW GRAY,TRIM1# |
3 | ||
| 84810-2006003 |
AE92,CE90,EE90..5D SHADOW GRAY,TRIM1#,RR |
2 | ||
| 84810-2006005 |
AE92,CE90,EE90..5D DARK BEIGE,TRIM4# |
3 | ||
| 84810-20060J0 |
AE92,CE90,EE90..5D DARK BLUE,TRIM8#,RR |
2 | ||
| 84810-32070 |
AE92,CE90,EE90..5D FR |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-1214003 |
EE90..RHD..5D SHADOW GRAY,TRIM1# |
1 | ||
| 84820-1214005 |
EE90..RHD..5D DARK BEIGE,TRIM4# |
1 | ||
| 84820-12230 |
EE90..RHD..5D |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-1214003 |
EE90..RHD..5D SHADOW GRAY,TRIM1# |
1 | ||
| 84820-1214005 |
EE90..RHD..5D DARK BEIGE,TRIM4# |
1 | ||
| 84820-12230 |
EE90..RHD..5D |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-1214003 |
EE90..RHD..5D SHADOW GRAY,TRIM1# |
1 | ||
| 84820-1214005 |
EE90..RHD..5D DARK BEIGE,TRIM4# |
1 | ||
| 84820-12230 |
EE90..RHD..5D |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-20050 |
AE92,CE90,EE90..GL,GTI,XL |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-1601005 |
EE90..GL;AE92..3D..GL;EE90..5D..XL;AE92,CE90..5D DARK BEIGE,TRIM4# |
1 | ||
| 84930-1601005 |
EE90..RHD..GL;AE92,CE90,EE90..5D DARK BEIGE,TRIM4# |
1 | ||
| 84930-1601003 |
EE90..GL;EE90..5D..XL;AE92,CE90..5D;AE92..3D..(GL,GTI) SHADOW GRAY,TRIM1# |
1 | ||
| 84930-1601005 |
EE90..GL;AE92..3D..GL;EE90..5D..XL;AE92,CE90..5D DARK BEIGE,TRIM4# |
1 | ||
| 84930-1601005 |
AE92,CE90,EE90..5D DARK BEIGE,TRIM4# |
1 | ||
| 84930-1601003 |
AE92,CE90,EE90..5D SHADOW GRAY,TRIM1# |
1 | ||
| 84930-1601003 |
EE90..5D..GL;EE90..RHD..5D SHADOW GRAY,TRIM1# |
1 | ||
| 84930-1601003 |
AE92..EFI;EE90..RHD..GL;AE92,CE90,EE90..5D SHADOW GRAY,TRIM1# |
1 | ||
| 84930-16010J0 |
EE90..5D..GL;EE90..RHD..5D DARK BLUE,TRIM8# |
1 | ||
| 84930-1601003 |
EE90..GL;EE90..5D..XL;AE92,CE90..5D;AE92..3D..(GL,GTI) SHADOW GRAY,TRIM1# |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-1601005 |
EE90..GL;AE92..3D..GL;EE90..5D..XL;AE92,CE90..5D DARK BEIGE,TRIM4# |
1 | ||
| 84930-1601005 |
EE90..RHD..GL;AE92,CE90,EE90..5D DARK BEIGE,TRIM4# |
1 | ||
| 84930-1601003 |
EE90..GL;EE90..5D..XL;AE92,CE90..5D;AE92..3D..(GL,GTI) SHADOW GRAY,TRIM1# |
1 | ||
| 84930-1601005 |
EE90..GL;AE92..3D..GL;EE90..5D..XL;AE92,CE90..5D DARK BEIGE,TRIM4# |
1 | ||
| 84930-1601005 |
AE92,CE90,EE90..5D DARK BEIGE,TRIM4# |
1 | ||
| 84930-1601003 |
AE92,CE90,EE90..5D SHADOW GRAY,TRIM1# |
1 | ||
| 84930-1601003 |
EE90..5D..GL;EE90..RHD..5D SHADOW GRAY,TRIM1# |
1 | ||
| 84930-1601003 |
AE92..EFI;EE90..RHD..GL;AE92,CE90,EE90..5D SHADOW GRAY,TRIM1# |
1 | ||
| 84930-16010J0 |
EE90..5D..GL;EE90..RHD..5D DARK BLUE,TRIM8# |
1 | ||
| 84930-1601003 |
EE90..GL;EE90..5D..XL;AE92,CE90..5D;AE92..3D..(GL,GTI) SHADOW GRAY,TRIM1# |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-1601005 |
EE90..GL;AE92..3D..GL;EE90..5D..XL;AE92,CE90..5D DARK BEIGE,TRIM4# |
1 | ||
| 84930-1601005 |
EE90..RHD..GL;AE92,CE90,EE90..5D DARK BEIGE,TRIM4# |
1 | ||
| 84930-1601003 |
EE90..GL;EE90..5D..XL;AE92,CE90..5D;AE92..3D..(GL,GTI) SHADOW GRAY,TRIM1# |
1 | ||
| 84930-1601005 |
EE90..GL;AE92..3D..GL;EE90..5D..XL;AE92,CE90..5D DARK BEIGE,TRIM4# |
1 | ||
| 84930-1601005 |
AE92,CE90,EE90..5D DARK BEIGE,TRIM4# |
1 | ||
| 84930-1601003 |
AE92,CE90,EE90..5D SHADOW GRAY,TRIM1# |
1 | ||
| 84930-1601003 |
EE90..5D..GL;EE90..RHD..5D SHADOW GRAY,TRIM1# |
1 | ||
| 84930-1601003 |
AE92..EFI;EE90..RHD..GL;AE92,CE90,EE90..5D SHADOW GRAY,TRIM1# |
1 | ||
| 84930-16010J0 |
EE90..5D..GL;EE90..RHD..5D DARK BLUE,TRIM8# |
1 | ||
| 84930-1601003 |
EE90..GL;EE90..5D..XL;AE92,CE90..5D;AE92..3D..(GL,GTI) SHADOW GRAY,TRIM1# |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-19015 |
AE92,CE90,EE90..5D |
1 | ||
| 84931-20071 |
AE92;EE90..GL;EE90..5D..XL;CE90..LHD..XL;EE90..3D..4F..XL |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 85930-12071 |
EE90..RHD..5D |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90119-06601 | ||||
| 90159-50219 | ||||
| 90159-60081 | ||||
| 90189-06048 | ||||
| 90480-26015 | ||||
| 93315-14012 | ||||
| 93540-54012 | ||||
| 94120-41000 | ||||

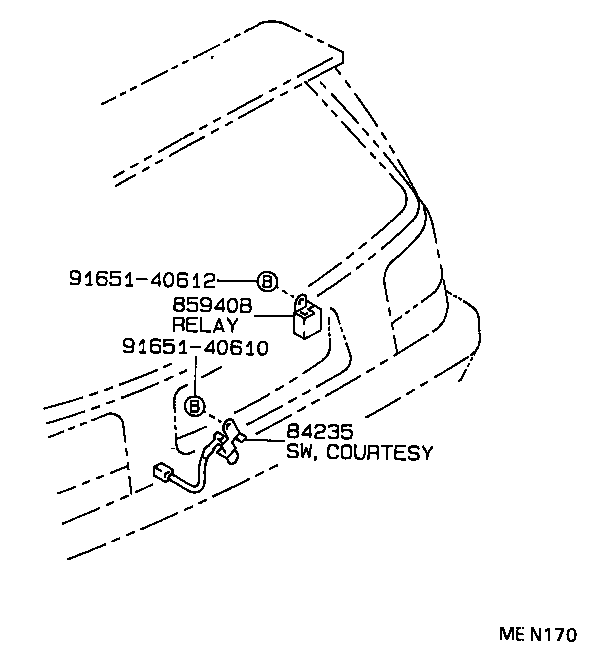

ILLUST NO. 5 OF 5(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-16021 |
AE92,CE90,EE90 |
1 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85940-12030 |
AE92,CE90,EE90 |
1 | ||
| Common parts | ||||
| 91651-40610 | ||||
| 91651-40612 | ||||

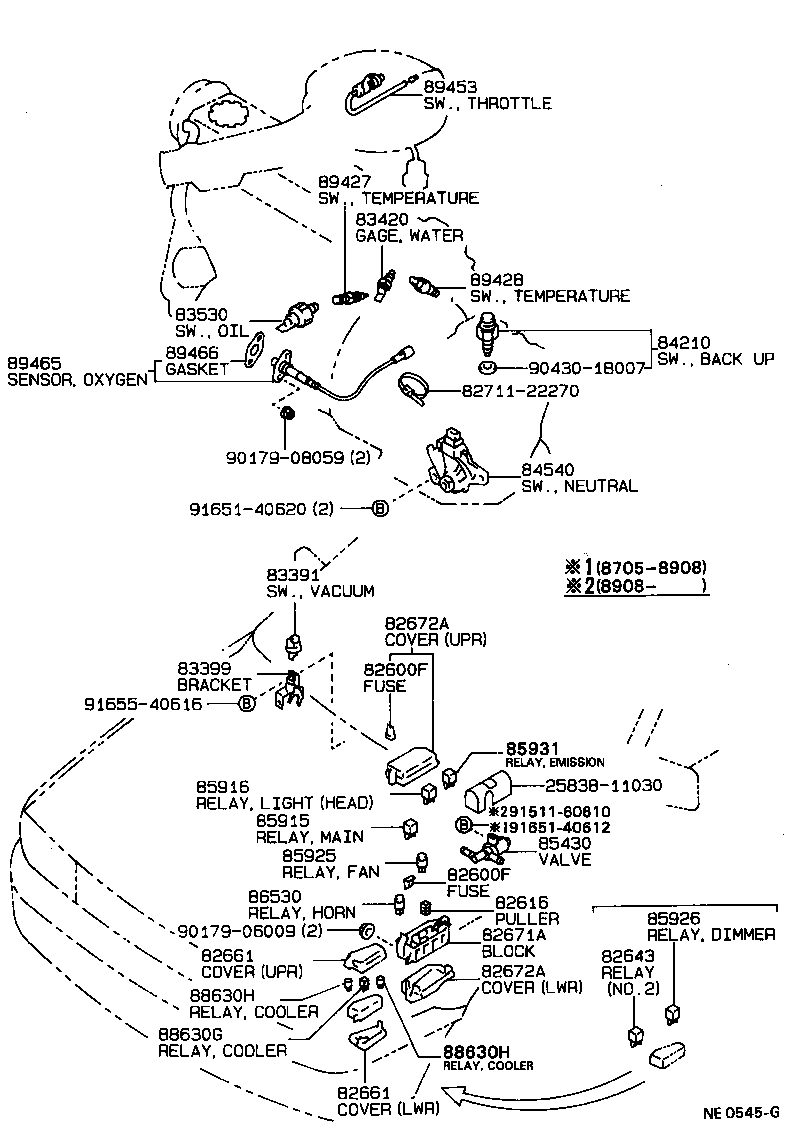

ILLUST NO. 1 OF 5(8705- )EE90
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
AE92,CE90,EE90 15A |
1 | ||
| 90982-09005 |
AE92,CE90,EE90 7.5A |
1 | ||
| 90982-09002 |
AE92,CE90,EE90 10A |
1 | ||
| 90982-07011 |
AE92,CE90,EE90 30A,GREEN |
1 | ||
| 90982-07011 |
AE92,CE90,EE90 30A,GREEN |
1 | ||
| 90982-09004 |
AE92,CE90,EE90 20A,YELLOW |
1 | ||
| 90982-09002 |
AE92,CE90,EE90 10A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
AE92,CE90,EE90 15A |
1 | ||
| 90982-09005 |
AE92,CE90,EE90 7.5A |
1 | ||
| 90982-09002 |
AE92,CE90,EE90 10A |
1 | ||
| 90982-07011 |
AE92,CE90,EE90 30A,GREEN |
1 | ||
| 90982-07011 |
AE92,CE90,EE90 30A,GREEN |
1 | ||
| 90982-09004 |
AE92,CE90,EE90 20A,YELLOW |
1 | ||
| 90982-09002 |
AE92,CE90,EE90 10A |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
AE92,CE90,EE90 |
1 | ||
| 82616-12010 |
AE92,CE90,EE90 |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-12050 |
AE92,EE90..CBR |
1 | ||
| 82671-12050 |
AE92,EE90..CBR |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-12010 |
AE92,EE90..CBR UPR |
1 | ||
| 82672-12070 |
AE92,CE90,EE90 LWR |
1 | ||
| 82672-12070 |
AE92,CE90,EE90 LWR |
1 | ||
| 82672-12140 |
AE92,EE90..CBR UPR |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-12010 |
AE92,EE90..CBR UPR |
1 | ||
| 82672-12070 |
AE92,CE90,EE90 LWR |
1 | ||
| 82672-12070 |
AE92,CE90,EE90 LWR |
1 | ||
| 82672-12140 |
AE92,EE90..CBR UPR |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16020 |
AE92,EE90..GL,GLI,SR5,STD,XL,XLI |
1 | ||
| 83420-16020 |
EE90 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30080 |
EE90 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
AE92,CE90,EE90..MTM..(GL,GLI,SR5,STD,XL,XLI) |
1 | ||
| 85430 - VALVE, OUTER VENT CONTROL | ||||
| 90925-09034 |
EE90..CBR |
2 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-04002 |
AE92,CE90,EE90 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
AE92,CE90,EE90 HEAD |
1 | ||
| 90987-02002 |
AE92,CE90,EE90 MARUKO,TAIL |
1 | ||
| 90987-02004 |
AE92,CE90,EE90 NIPPONDENSO,TAIL |
1 | ||
| 85925 - RELAY, RADIATOR FAN | ||||
| 90987-03001 |
AE92,CE90,EE90 |
1 | ||
| 85931 - RELAY, EMISSION CONTROL | ||||
| 85950-12010 |
EE90..CBR NO.1 |
1 | ||
| 90987-02004 |
EE90..CBR NO.2 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02004 |
AE92,CE90,EE90 NIPPONDENSO |
1 | ||
| 90987-02002 |
AE92,CE90,EE90 MARUKO |
1 | ||
| 89427 - SWITCH, TEMPERATURE DETECT | ||||
| 89427-12090 |
EE90..CBR |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-10100 |
EE90 AISIN |
1 | ||
| 89428-20060 |
EE90 |
1 | ||
| 89428-10110 |
EE90 NIPPONDENSO |
1 | ||
| Common parts | ||||
| 25838-11030 | ||||
| 82711-22270 | ||||
| 90179-06009 | ||||
| 90179-08059 | ||||
| 90430-18007 | ||||
| 91511-60610 | ||||
| 91651-40612 | ||||
| 91651-40620 | ||||
| 91655-40616 | ||||

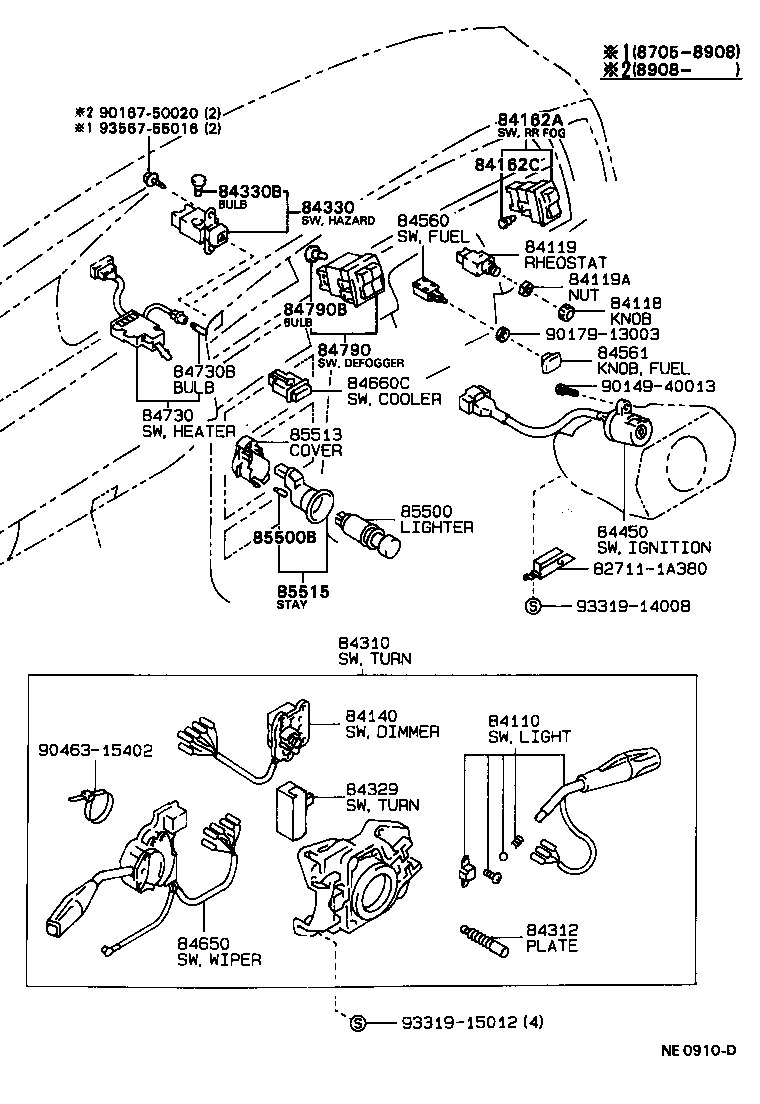

ILLUST NO. 2 OF 5(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80005 |
AE92,CE90,EE90..RHD TOKAIRIKA |
1 | ||
| 84112-80007 |
AE92,CE90,EE90..RHD MATSUSHITA |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-12070 |
AE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-20082 |
AE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI |
1 | ||
| 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET | ||||
| 90170-09167 |
AE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12210 |
AE92,CE90,EE90..RHD MATSUSHITA |
1 | ||
| 84140-12220 |
AE92,CE90,EE90..RHD TOKAIRIKA |
1 | ||
| 84140-12320 |
AE92,CE90,EE90..RHD MATSUSHITA |
1 | ||
| 84162A - SWITCH, REAR FOG LAMP | ||||
| 84162-1206005 |
CE90,EE90..RHD DARK BEIGE,TRIM4# |
1 | ||
| 84162-1206001 |
AE92,CE90,EE90..RHD BLACK,TRIM1# |
1 | ||
| 84162-1209001 |
CE90,EE90..RHD BLACK,TRIM1#,8# |
1 | ||
| 84162C - BULB (FOR REAR FOG LAMP SWITCH) | ||||
| 84999-10170 |
AE92,CE90,EE90 12V 1.12W |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-12830 |
CE90,EE90..RHD W(INTERMITTENT WIPER) |
1 | ||
| 84310-1A140 |
CE90,EE90..RHD W(INTERMITTENT WIPER & *RW) |
1 | ||
| 84310-12800 |
CE90,EE90..RHD |
1 | ||
| 84310-12830 |
CE90,EE90..RHD W(INTERMITTENT WIPER) |
1 | ||
| 84310-1A140 |
EE90..RHD W(INTERMITTENT WIPER & *RW) |
1 | ||
| 84310-1A420 |
AE92,CE90,EE90..RHD W(INTERMITTENT WIPER,WASHER-INTERLINKED) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12050 |
AE92,CE90,EE90 MATSUSHITA |
1 | ||
| 84312-12040 |
AE92,CE90,EE90 TOKAIRIKA |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-12010 |
AE92,CE90,EE90..RHD |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-12250 |
AE92,CE90,EE90..RHD |
1 | ||
| 84332-12320 |
AE92,CE90,EE90..RHD |
1 | ||
| 84332-12290 |
AE92,CE90,EE90..RHD |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10370 |
AE92,CE90,EE90..RHD 28V 1.12W,14V,1.4W |
1 | ||
| 84999-10320 |
AE92,CE90,EE90..RHD 14V 0.84W |
1 | ||
| 84999-10360 |
AE92,CE90,EE90..RHD 14V 1.4W,28V,1.12W |
1 | ||
| 84999-10190 |
AE92,CE90,EE90..RHD 12V 0.87W |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12150 |
AE92,CE90,EE90 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-12760 |
CE90,EE90..RHD W(INTERMITTENT WIPER & *RW),TOKAIRIKA |
1 | ||
| 84652-12750 |
CE90,EE90..RHD W(INTERMITTENT WIPER & *RW),MATSUSHITA |
1 | ||
| 84652-12460 |
CE90,EE90..RHD W(INTERMITTENT WIPER),TOKAIRIKA |
1 | ||
| 84652-12440 |
CE90,EE90..RHD TOKAIRIKA |
1 | ||
| 84652-12450 |
CE90,EE90..RHD W(INTERMITTENT WIPER),MATSUSHITA |
1 | ||
| 84652-12450 |
CE90,EE90..RHD W(INTERMITTENT WIPER),MATSUSHITA |
1 | ||
| 84652-12460 |
CE90,EE90..RHD W(INTERMITTENT WIPER),TOKAIRIKA |
1 | ||
| 84652-12750 |
EE90..RHD W(INTERMITTENT WIPER & *RW),MATSUSHITA |
1 | ||
| 84652-1A040 |
AE92,CE90,EE90..RHD W(WASHER LINKED INTERMITTENT WIPER),TOKAIRIKA |
1 | ||
| 84652-1A010 |
AE92,CE90,EE90..RHD W(WASHER LINKED INTERMITTENT WIPER),MATSUSHITA |
1 | ||
| 84652-12430 |
CE90,EE90..RHD MATSUSHITA |
1 | ||
| 84652-12760 |
EE90..RHD W(INTERMITTENT WIPER & *RW),TOKAIRIKA |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12240 |
AE92,CE90,EE90..RHD |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
AE92,CE90,EE90 14V 1.4W |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-1223001 |
CE90,EE90..RHD;AE92,CE90,EE90..GTI,STD BLACK,TRIM1# |
1 | ||
| 84790-1223005 |
AE92,CE90,EE90..CBR,DSL DARK BEIGE,TRIM4# |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10170 |
AE92,CE90,EE90 12V 1.12W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12250 |
AE92,CE90,EE90 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10230 |
AE92,CE90,EE90 14V 1.4W |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12010 |
AE92,CE90,EE90 |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-12010 |
AE92,CE90,EE90 |
1 | ||
| Common parts | ||||
| 82711-1A380 | ||||
| 90149-40013 | ||||
| 90167-50020 | ||||
| 90179-13003 | ||||
| 90463-15402 | ||||
| 93319-14008 | ||||
| 93319-15012 | ||||
| 93567-55016 | ||||

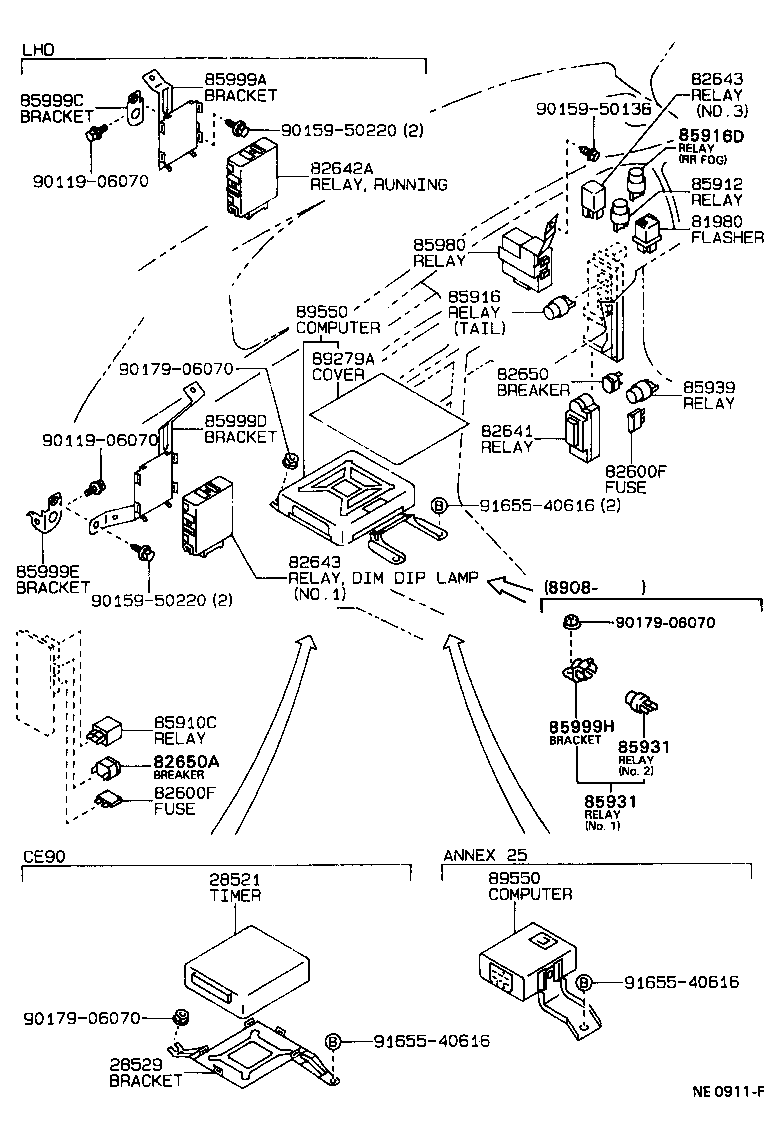

ILLUST NO. 3 OF 5(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
AE92,CE90,EE90 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
AE92,CE90,EE90 15A |
1 | ||
| 90982-09005 |
AE92,CE90,EE90 7.5A |
1 | ||
| 90982-09002 |
AE92,CE90,EE90 10A |
1 | ||
| 90982-07011 |
AE92,CE90,EE90 30A,GREEN |
1 | ||
| 90982-07011 |
AE92,CE90,EE90 30A,GREEN |
1 | ||
| 90982-09004 |
AE92,CE90,EE90 20A,YELLOW |
1 | ||
| 90982-09002 |
AE92,CE90,EE90 10A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
AE92,CE90,EE90 15A |
1 | ||
| 90982-09005 |
AE92,CE90,EE90 7.5A |
1 | ||
| 90982-09002 |
AE92,CE90,EE90 10A |
1 | ||
| 90982-07011 |
AE92,CE90,EE90 30A,GREEN |
1 | ||
| 90982-07011 |
AE92,CE90,EE90 30A,GREEN |
1 | ||
| 90982-09004 |
AE92,CE90,EE90 20A,YELLOW |
1 | ||
| 90982-09002 |
AE92,CE90,EE90 10A |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-12010 |
AE92,CE90,EE90 |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
AE92,CE90,EE90 30A |
1 | ||
| 82650A - BREAKER ASSY, WIRING CIRCUIT, NO.2 | ||||
| 82650-20011 |
AE92;EE90..RHD..GL;EE90..RHD..5D;CE90,EE90..LHD..(GL,XL) 30A |
1 | ||
| 82650-20011 |
EE90..RHD..5D;AE92,EE90..RHD..(GL,GTI) 30A |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
AE92,CE90,EE90 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
AE92,CE90,EE90 HEAD |
1 | ||
| 90987-02002 |
AE92,CE90,EE90 MARUKO,TAIL |
1 | ||
| 90987-02004 |
AE92,CE90,EE90 NIPPONDENSO,TAIL |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02002 |
AE92,CE90,EE90 MARUKO |
1 | ||
| 90987-02004 |
AE92,CE90,EE90 NIPPONDENSO |
1 | ||
| 85931 - RELAY, EMISSION CONTROL | ||||
| 85950-12010 |
EE90..CBR NO.1 |
1 | ||
| 90987-02004 |
EE90..CBR NO.2 |
1 | ||
| 85931 - RELAY, EMISSION CONTROL | ||||
| 85950-12010 |
EE90..CBR NO.1 |
1 | ||
| 90987-02004 |
EE90..CBR NO.2 |
1 | ||
| 85939 - RELAY, POWER WINDOW | ||||
| 90987-02002 |
EE90..5D..XL;EE90..LHD..GL;AE92,CE90..5D;AE92..3D..(GL,GTI) MARUKO |
1 | ||
| 90987-02004 |
EE90..5D..XL;EE90..LHD..GL;AE92,CE90..5D;AE92..3D..(GL,GTI) NIPPONDENSO |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-12020 |
EE90..RHD..5D;AE92,EE90..RHD..(GL,GTI) |
1 | ||
| 85999H - BRACKET, RELAY | ||||
| 85999-12050 |
EE90..CBR |
1 | ||
| Common parts | ||||
| 90119-06070 | ||||
| 90159-50138 | ||||
| 90159-50220 | ||||
| 90179-06070 | ||||
| 91655-40616 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
