EE90R-AHMDSW (1987)
Toyota Corolla Hb
Production
May 1987
-
Jun 1992
Engine
2E
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

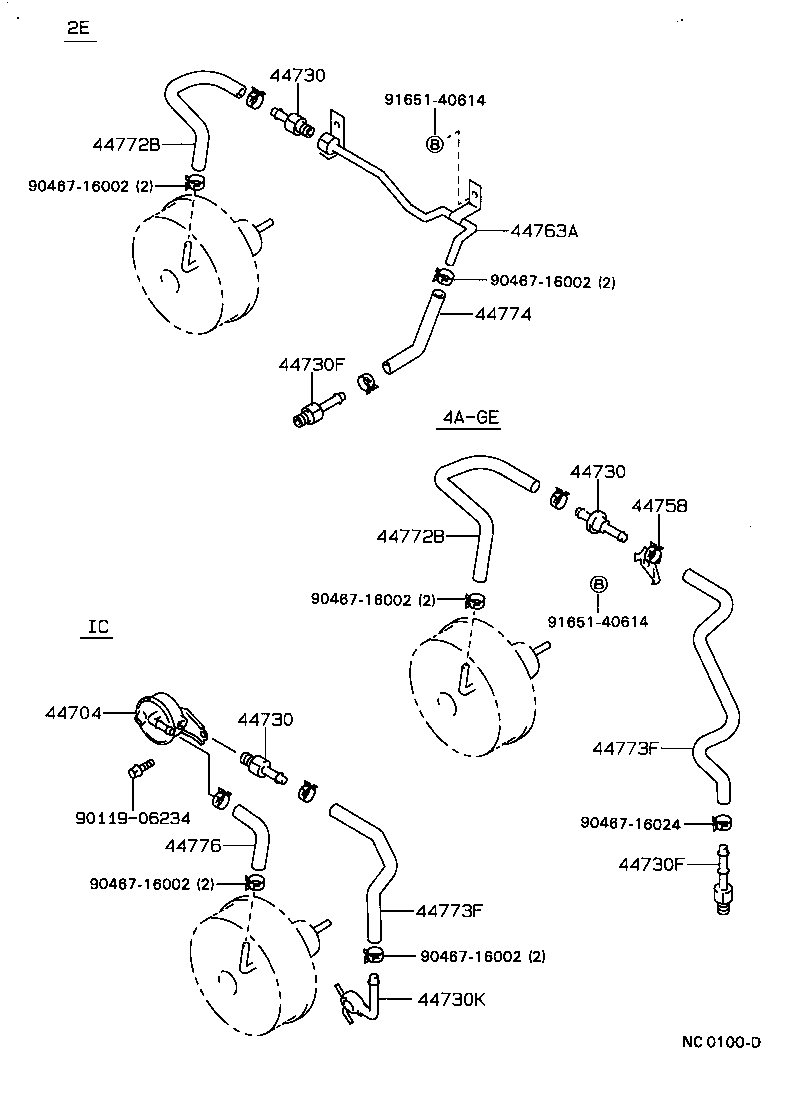

ILLUST NO. 2 OF 2(8705-8908)RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44580-22030 |
EE90;AE92..LHD |
1 | ||
| 44580-22030 |
EE90;AE92..LHD |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44580-22030 |
EE90;AE92..LHD |
1 | ||
| 44580-22030 |
EE90;AE92..LHD |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44580-22030 |
EE90;AE92..LHD |
1 | ||
| 44580-22030 |
EE90;AE92..LHD |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51034 |
EE90..CBR |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51034 |
EE90..CBR |
1 | ||
| 44763A - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-12070 |
EE90..RHD |
1 | ||
| 44763-12170 |
EE90..RHD |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-12360 |
EE90..RHD |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-12360 |
EE90..RHD |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-12090 |
EE90..RHD |
1 | ||
| 44774-12230 |
EE90..RHD |
1 | ||
| Common parts | ||||
| 90119-06234 | ||||
| 90467-16002 | ||||
| 90467-16024 | ||||
| 91651-40614 | ||||
ILLUST NO. 1 OF 2(8705- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-12600 |
AE92,EE90..CBR |
1 | ||
| 04443-12600 |
AE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI |
1 | ||
| 04443-12520 |
AE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI |
1 | ||
| 44606E - ROD SUB-ASSY, BRAKE BOOSTER PISTON | ||||
| 44606-12520 |
AE92,CE90,EE90 |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-12640 |
AE92,CE90,EE90..RHD |
1 | ||
| 44610-12630 |
CE90,EE90..RHD |
1 | ||
| 44621V - SEAL, BOOSTER BODY | ||||
| 44621-28120 |
AE92,CE90,EE90 |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-28120 |
AE92,CE90,EE90 |
1 | ||
| 44635B - KEY, VALVE STOPPER | ||||
| 44635-12630 |
AE92,CE90,EE90 |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-12520 |
AE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-32010 |
AE92,CE90,EE90 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
