EE90R-AHMDSW (1987)

Toyota Corolla Hb

Production May 1987 - Jun 1992
Engine 2E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )

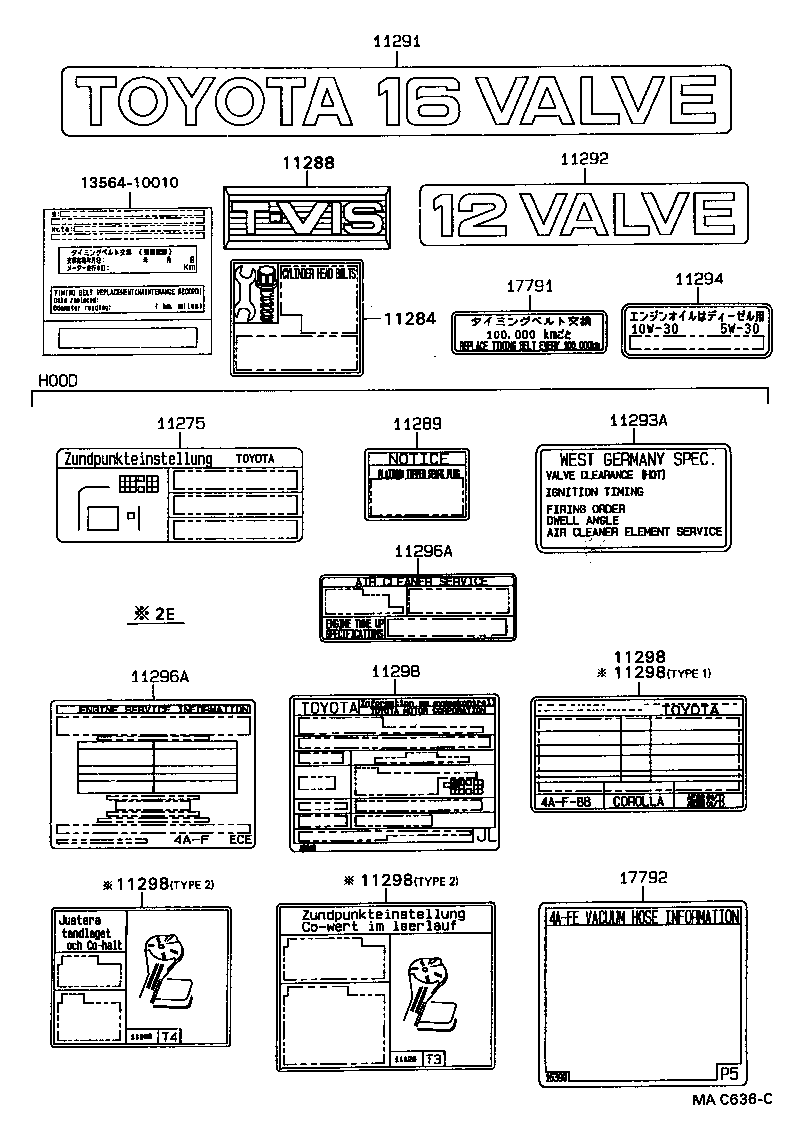

Click highlighted areas on diagram

diagram 11275 11284 11288 11289 11291 11292 11293A 11294 11296A 11296A 11298 11298 11298 11298 11298 1356410010 17791 17792
Part # Description Qty Price
11292 - PLATE, ENGINE NAME, NO.2
11292-10010

2E..EE90

 1
11293A - PLATE, ENGINE CAUTION
11293-10012

2E..EE90

 1
Common parts
13564-10010
