EE90R-AGMDSW (1987)

Toyota Corolla Hb

Production May 1987 - May 1992
Engine 2E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )RHD

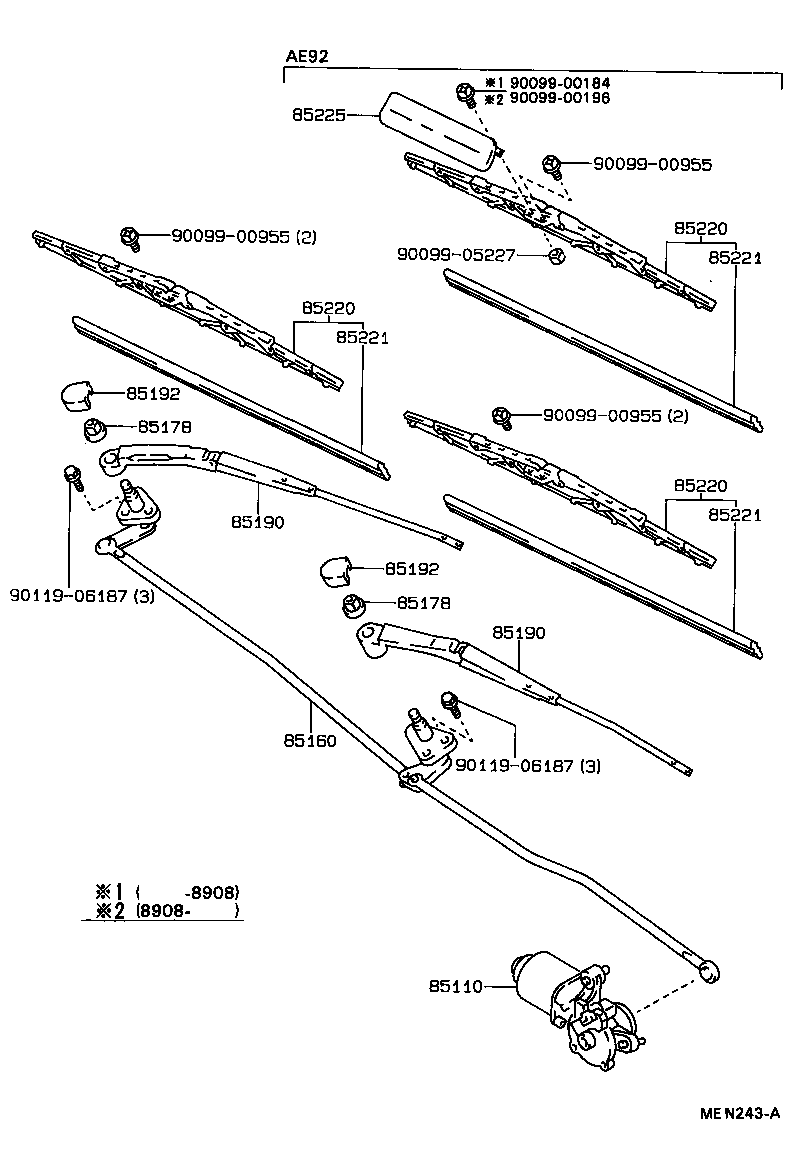

Click highlighted areas on diagram

diagram 85110 85160 85178 85178 85190 85190 85192 85192 85220 85220 85220 85221 85221 85221 85225 9009900184 9009900196 9009900955 9009900955 9009900955 9009905227 9011906187 9011906187
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-12640

CE90,EE90..RHD

 1
85110-12641

CE90,EE90..RHD

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85160-12440

CE90,EE90..RHD

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90179-08113

AE92,CE90,EE90

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90179-08113

AE92,CE90,EE90

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-1A040

CE90,EE90..RHD

RH

 1
85190-1A041

CE90,EE90..RHD

RH

 1
85210-12240

AE92,CE90,EE90..RHD

LH

 1
85210-12242

AE92,CE90,EE90..RHD

LH

 1
85210-12241

AE92,CE90,EE90..RHD

LH

 1
85190 - ARM ASSY, WINDSHIELD WIPER
85190-1A040

CE90,EE90..RHD

RH

 1
85190-1A041

CE90,EE90..RHD

RH

 1
85210-12240

AE92,CE90,EE90..RHD

LH

 1
85210-12242

AE92,CE90,EE90..RHD

LH

 1
85210-12241

AE92,CE90,EE90..RHD

LH

 1
85192 - COVER, WINDSHIELD WIPER ARM
85192-12800

AE92,CE90,EE90

 2
85192 - COVER, WINDSHIELD WIPER ARM
85192-12800

AE92,CE90,EE90

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-32590

CE90,EE90..RHD

RH

 1
85220-16320

AE92,CE90,EE90..RHD

LH

 1
85220-32500

CE90,EE90..RHD

RH

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-32590

CE90,EE90..RHD

RH

 1
85220-16320

AE92,CE90,EE90..RHD

LH

 1
85220-32500

CE90,EE90..RHD

RH

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-32590

CE90,EE90..RHD

RH

 1
85220-16320

AE92,CE90,EE90..RHD

LH

 1
85220-32500

CE90,EE90..RHD

RH

 1
85221 - BLADE, WINDSHIELD WIPER
85221-30120

CE90,EE90..RHD

LH

 1
85221-32050

AE92,CE90,EE90..RHD

RH

 1
85221-32050

AE92,CE90,EE90

RH

 1
85223-22700

AE92,CE90,EE90..RHD

LH

 1
85221-32050

CE90,EE90..RHD

RH

 1
85221-32050

AE92,EE90..RHD

RH

 1
85221-32050

AE92..RHD;CE90,EE90

RH

 1
85221-12240

AE92,CE90,EE90..RHD

LH

 1
85221-30120

AE92,CE90,EE90..RHD

LH

 1
85221 - BLADE, WINDSHIELD WIPER
85221-30120

CE90,EE90..RHD

LH

 1
85221-32050

AE92,CE90,EE90..RHD

RH

 1
85221-32050

AE92,CE90,EE90

RH

 1
85223-22700

AE92,CE90,EE90..RHD

LH

 1
85221-32050

CE90,EE90..RHD

RH

 1
85221-32050

AE92,EE90..RHD

RH

 1
85221-32050

AE92..RHD;CE90,EE90

RH

 1
85221-12240

AE92,CE90,EE90..RHD

LH

 1
85221-30120

AE92,CE90,EE90..RHD

LH

 1
85221 - BLADE, WINDSHIELD WIPER
85221-30120

CE90,EE90..RHD

LH

 1
85221-32050

AE92,CE90,EE90..RHD

RH

 1
85221-32050

AE92,CE90,EE90

RH

 1
85223-22700

AE92,CE90,EE90..RHD

LH

 1
85221-32050

CE90,EE90..RHD

RH

 1
85221-32050

AE92,EE90..RHD

RH

 1
85221-32050

AE92..RHD;CE90,EE90

RH

 1
85221-12240

AE92,CE90,EE90..RHD

LH

 1
85221-30120

AE92,CE90,EE90..RHD

LH

 1
Common parts
90099-00184
90099-00196
90099-00955
90099-05227
90119-06187
