EE90R-AGMDSW (1987)

Toyota Corolla Hb

Production May 1987 - May 1992
Engine 2E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )

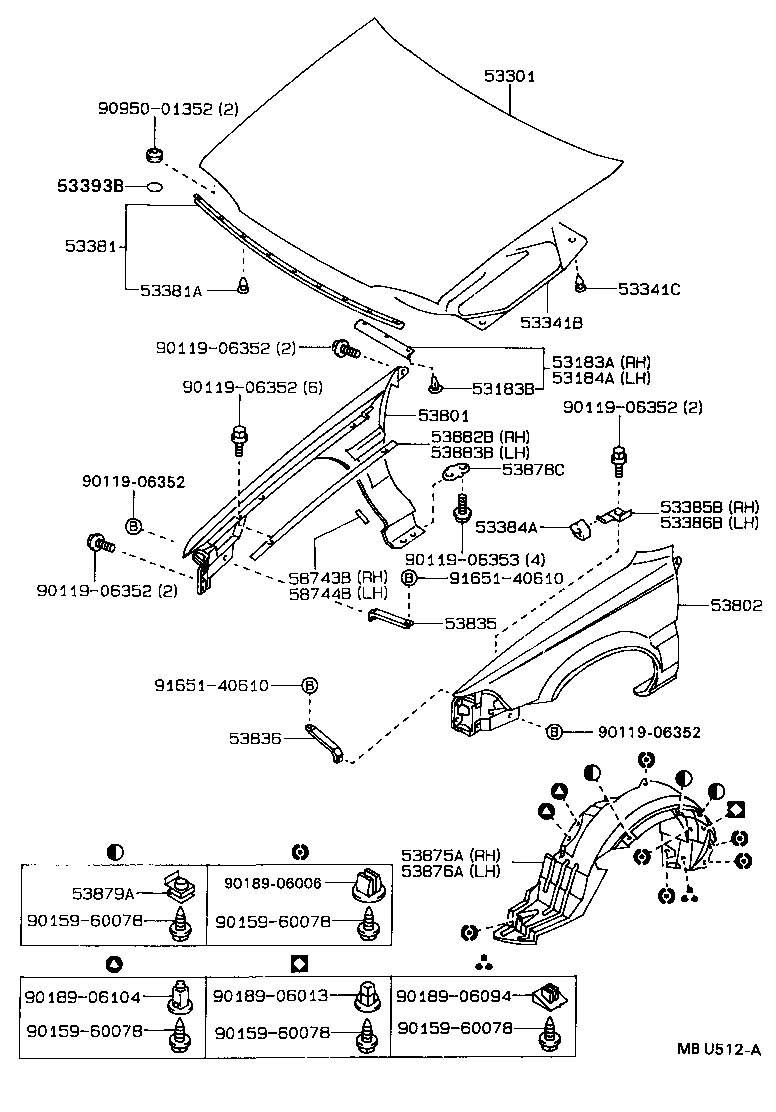

Click highlighted areas on diagram

diagram 53183A 53183B 53184A 53301 53341B 53341C 53381 53381A 53384A 53385B 53386B 53393B 53801 53802 53835 53836 53875A 53876A 53878C 53879A 53882B 53883B 58743B 58744B 9011906352 9011906352 9011906352 9011906352 9011906352 9011906352 9011906353 9015960078 9015960078 9015960078 9015960078 9015960078 9018906006 9018906013 9018906094 9018906104 9095001352 9165140610 9165140610
Part # Description Qty Price
53183A - SEAL, HEADLAMP COVER, RH
53183-12050

AE92,CE90,EE90

 1
53183B - CLIP(FOR HEADLAMP COVER SEAL)
90467-08011

AE92,CE90,EE90

 6
53184A - SEAL, HEADLAMP COVER, LH
53184-12040

AE92,CE90,EE90

 1
53301 - HOOD SUB-ASSY
53301-12590

AE92,CE90,EE90

 1
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-12140

AE92,CE90,EE90

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011

AE92,CE90,EE90

 9
53384A - BUMPER, FENDER TO HOOD
53384-12030

AE92,CE90,EE90

 2
53385B - BRACKET, FENDER TO HOOD BUMPER, RH
53385-12020

AE92,CE90,EE90

 1
53386B - BRACKET, FENDER TO HOOD BUMPER, LH
53386-12020

AE92,CE90,EE90

 1
53801 - FENDER SUB-ASSY, FRONT RH
53801-1E500

AE92,CE90,EE90

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-1E380

AE92,CE90,EE90

 1
53835 - BRACE, FRONT FENDER TO EXTENSION, RH
53835-12050

AE92,CE90,EE90

 1
53836 - BRACE, FRONT FENDER TO EXTENSION, LH
53835-12050

AE92,CE90,EE90

 1
53875A - LINER, FRONT FENDER, RH
53875-12150

AE92,CE90,EE90

 1
53876A - LINER, FRONT FENDER, LH
53876-12140

AE92,CE90,EE90

 1
53878C - SPACER, FRONT FENDER
53878-20030

AE92,CE90,EE90

 2
53879A - RETAINER, FRONT FENDER LINER
53879-14010

AE92,CE90,EE90

 4
53882B - SEAL, FRONT FENDER, RH
53882-12080

AE92,CE90,EE90

 1
53883B - SEAL, FRONT FENDER, LH
53882-12080

AE92,CE90,EE90

 1
Common parts
90119-06352
90119-06353
90159-60078
90189-06006
90189-06013
90189-06094
90189-06104
90950-01352
91651-40610
