EE90R-AGMDSW (1987)
Toyota Corolla Hb
Production
May 1987
-
May 1992
Engine
2E
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8908- )2E

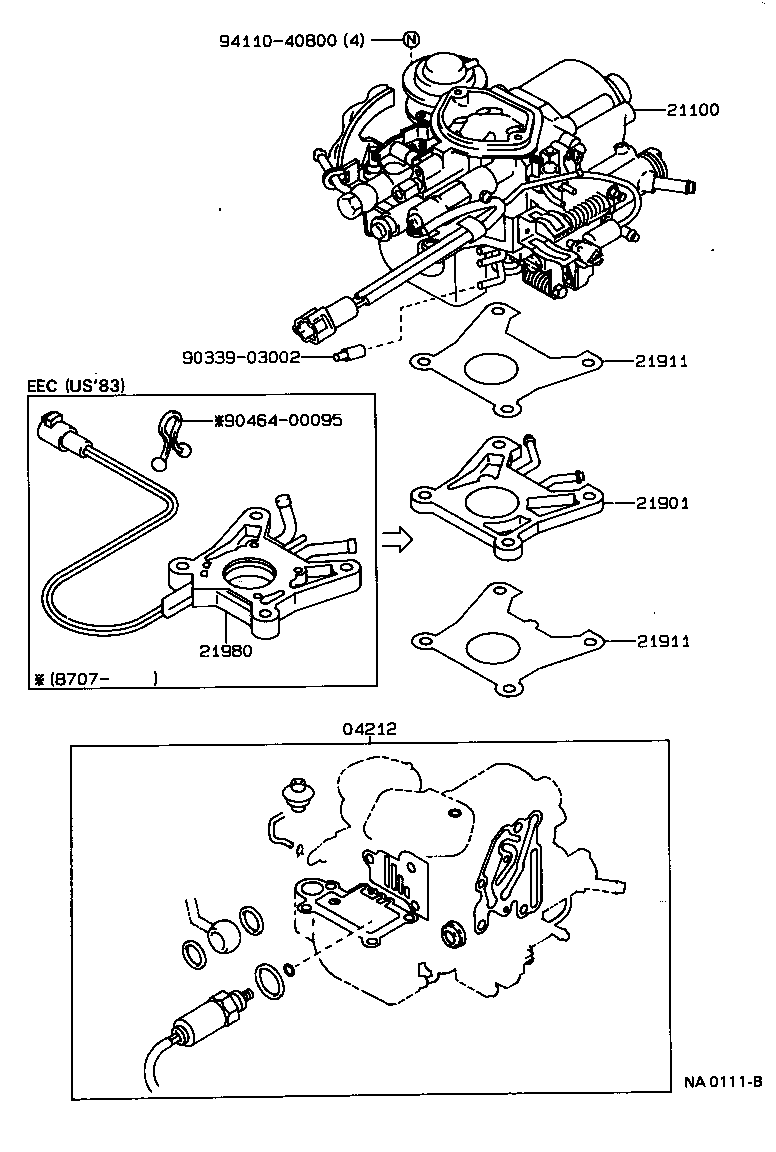

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04211 - CARBURETOR KIT | ||||
| 04211-11100 |
2E..EE90..MTM |
1 | ||
| 04212 - GASKET KIT, CARBURETOR | ||||
| 04212-11050 |
2E..EE90 |
1 | ||
| 04212-11070 |
2E..EE90 |
1 | ||
| 21100 - CARBURETOR ASSY | ||||
| 21100-11540 |
2E..EE90..MTM |
1 | ||
| 21901 - INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1 | ||||
| 21901-11010 |
2E..EE90 |
1 | ||
| 21901-11040 |
2E..EE90 |
1 | ||
| Common parts | ||||
| 94110-40800 | ||||
(8705-8908)2E
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04212 - GASKET KIT, CARBURETOR | ||||
| 04212-11050 |
2E..EE90 |
1 | ||
| 04212-11070 |
2E..EE90 |
1 | ||
| 21100 - CARBURETOR ASSY | ||||
| 21100-11540 |
2E..EE90..MTM |
1 | ||
| 21901 - INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1 | ||||
| 21901-11010 |
2E..EE90 |
1 | ||
| 21901-11040 |
2E..EE90 |
1 | ||
| 21911 - GASKET, CARBURETOR | ||||
| 21911-11020 |
2E..EE90 |
2 | ||
| 21911 - GASKET, CARBURETOR | ||||
| 21911-11020 |
2E..EE90 |
2 | ||
| Common parts | ||||
| 90339-03002 | ||||
| 90464-00095 | ||||
| 94110-40800 | ||||
