EE90R-AGHNSW (1987)

Toyota Corolla Hb

Production May 1987 - May 1992
Engine 2E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )

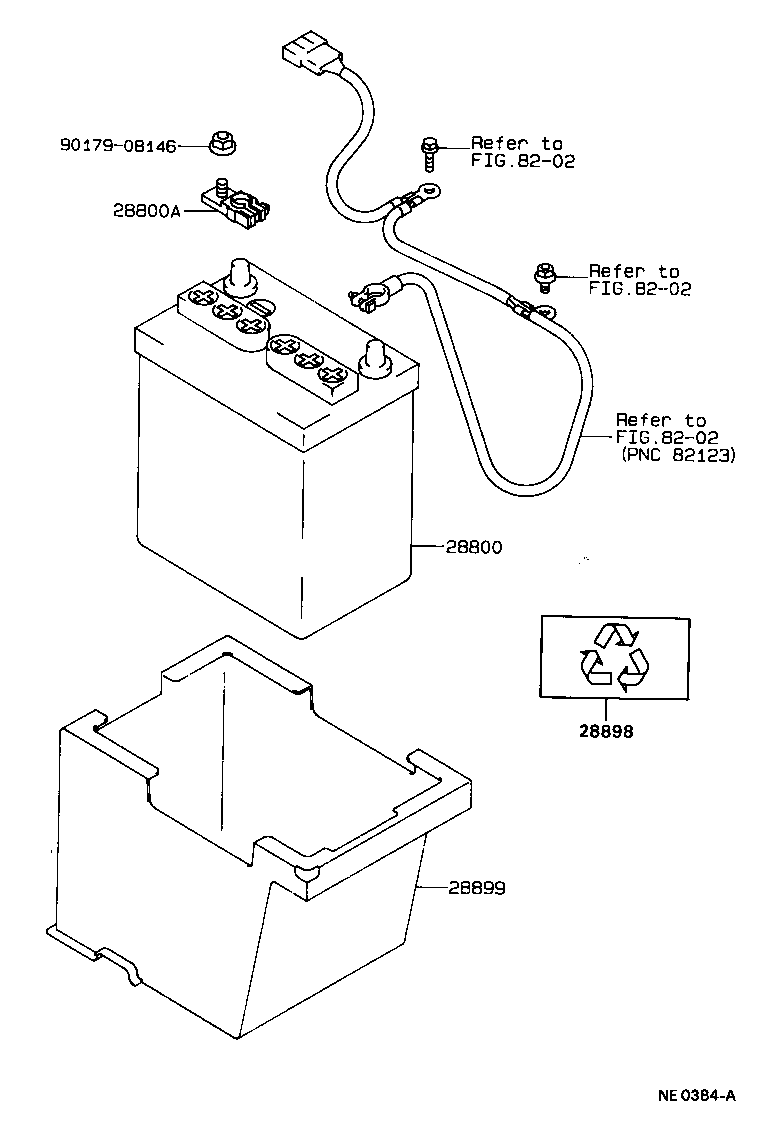

Click highlighted areas on diagram

diagram 28800 28800A 28898 28899 8202 8202 8202 9017908146
Part # Description Qty Price
28800 - BATTERY
28800-31200

2E..EE90

50D20L,GS

 1
28800-31210

2E..EE90

50D20L,YUASA

 1
28800-31220

2E..EE90

50D20L,SHINKOBE

 1
28800-31240

2E..EE90

50D20L,FRUKAWA

 1
28800-70060

2E#..EE90..3D

50D20L

 2
28800-31021

4AF,4AGE,2E..AE92,EE90..GL,GTI,STD,XL

32C24L,GS

 1
28800-31230

2E..EE90

50D20L,MATSUSHITA

 1
28800-70060

2E#..EE90

50D20L

 1
28800-31021

4AF#,4AGE,2E#..AE92,EE90

32C24L

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05035

4AF#,2E#..AE92,EE90

 1
Common parts
90179-08146
Linked diagrams
8202
